30" Wide Built-In Refrigerator-Freezer (Panels Not Included)
Next day shipping

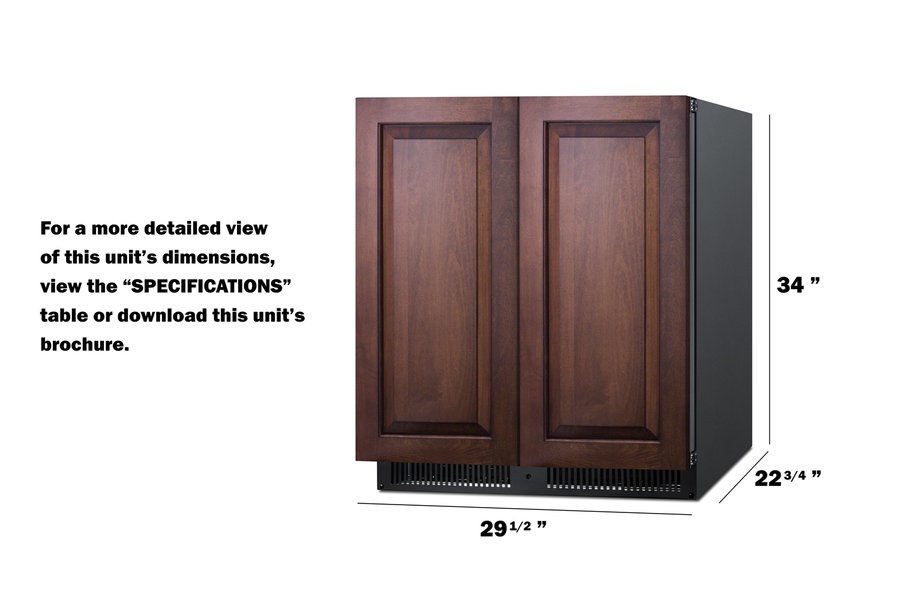

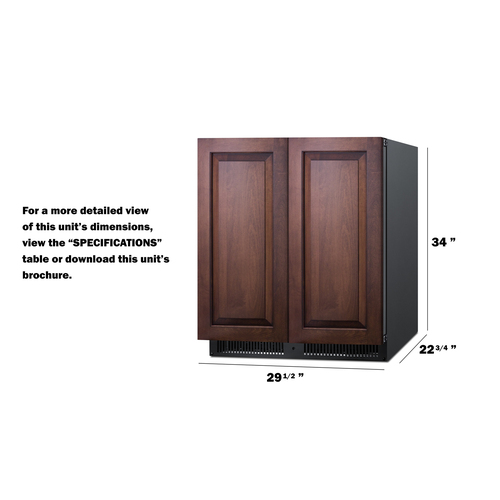

(86cm H x 75cm W x 58cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 34.0" (86 cm) |
| Nominal Width | 30.0" (76 cm) |
| Width | 29.5" (75 cm) |
| Nominal Depth | 25.0" (64 cm) |
| Depth | 22.75" (58 cm) |
| Depth with Panel | 23.5" (60 cm) |
| Capacity | 5.1 cu.ft. (144 L) |
| Defrost Type | Frost-Free |

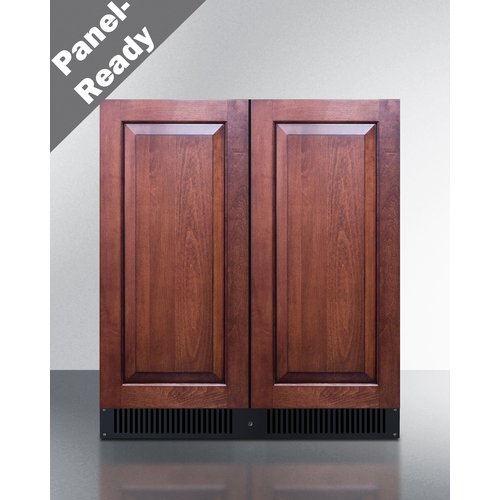

| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 440.0kWh/year |
| Amps | 1.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 125.0 lbs. (57 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101151250 |
|
Refrigerator-Freezer
|
|
| Door Swing | French |
| Adjustable Shelves | Yes |
| Interior Light | Yes |
| Refrigerator - Interior Height | 25.0" (64 cm) |
| Refrigerator - Interior Width | 12.25" (31 cm) |
| Refrigerator - Interior Depth | 17.25" (44 cm) |
| Refrigerator - Capacity | 3.0 cu.ft |
| Refrigerator - Shelf Type | Glass |
| Refrigerator - Shelf Qty | 3 |
| Refrigerator - Full Door Shelves | 2 |
| Refrigerator - Temperature Range | 36°F to 43°F |
| Freezer - Interior Height | 25.75" (65 cm) |
| Freezer - Interior Width | 10.5" (27 cm) |
| Freezer - Interior Depth | 15.75" (40 cm) |
| Freezer - Capacity | 2.1 cu.ft |
| Freezer - Shelf Type | Wire |
| Freezer - Shelf Qty | 3 |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.41 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs | 2 |
| Freezer - Temperature Range | -4º to 4ºF |
| Compressor Step Height | 4.0" (10 cm) |
| Compressor Step Width | 10.5" (27 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
| Sound Level | 33.5 dB |
FEATURES
Combination unit with a unique French door swing
Separate refrigerator and freezer sections with single compressor operation
Front-breathing system allows the unit to be used built-in

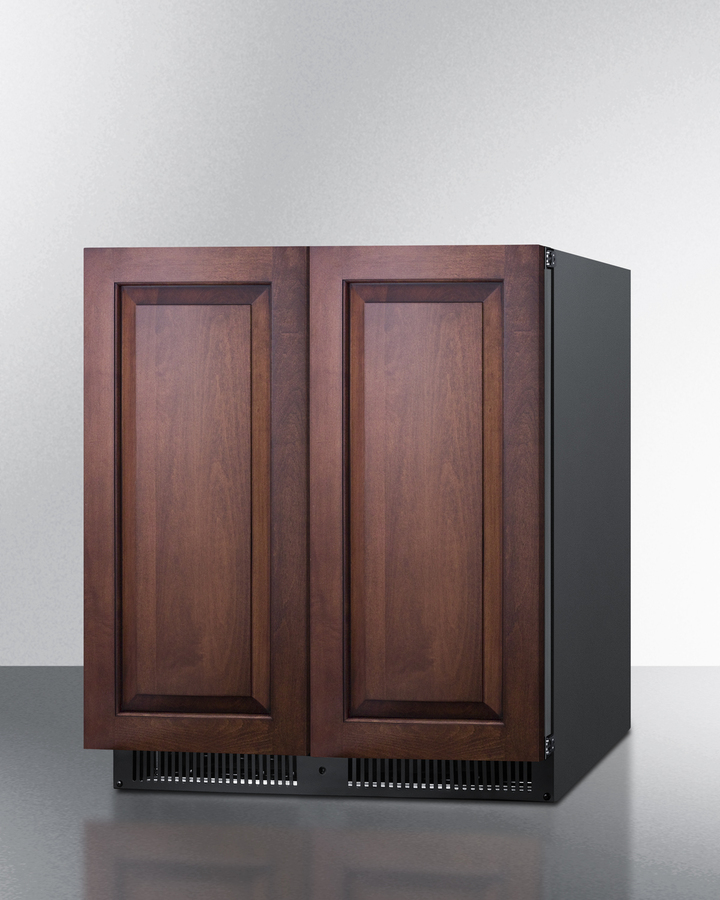

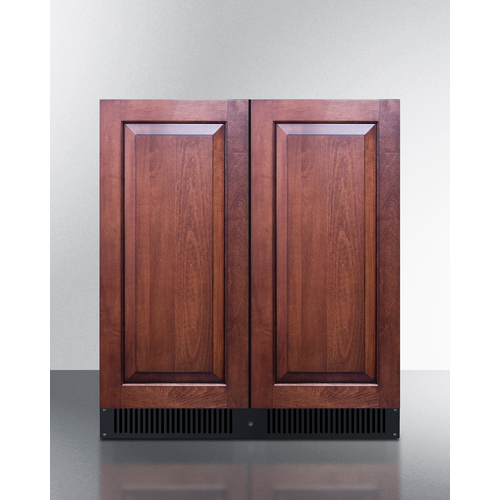

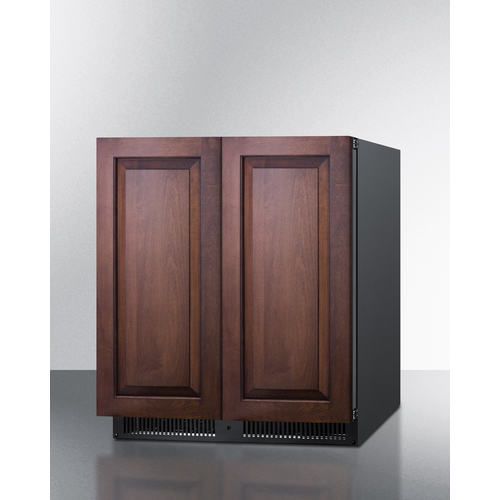

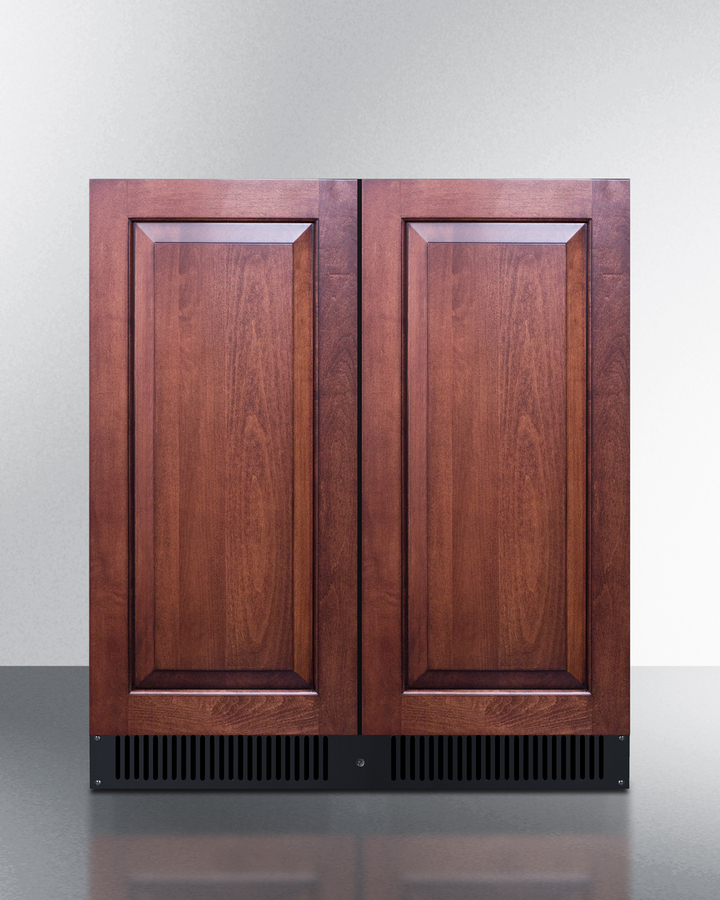

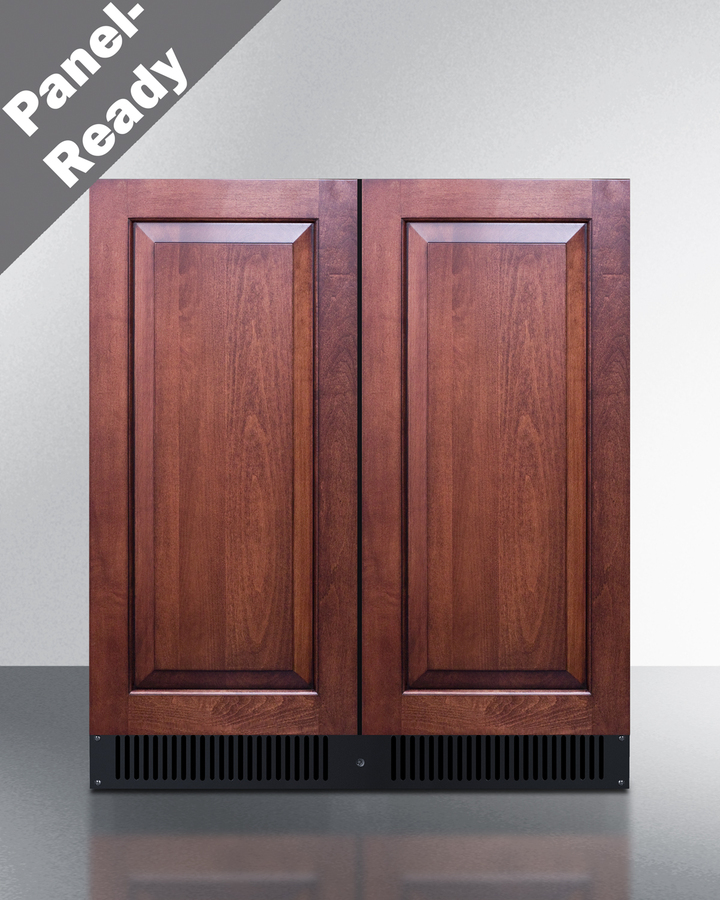

Customize the doors with our innovative bracket system that lets you add an overlay panel without drilling through the door (recommended panel size: 30" H x 14 5/8" W at 3/4" thickness)
Enhanced panel execution allows the unit to be flush with cabinets

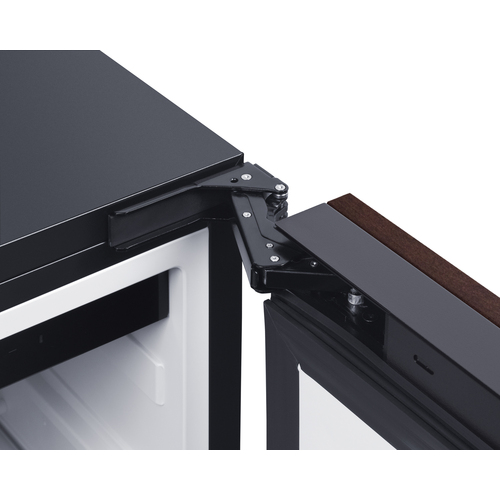

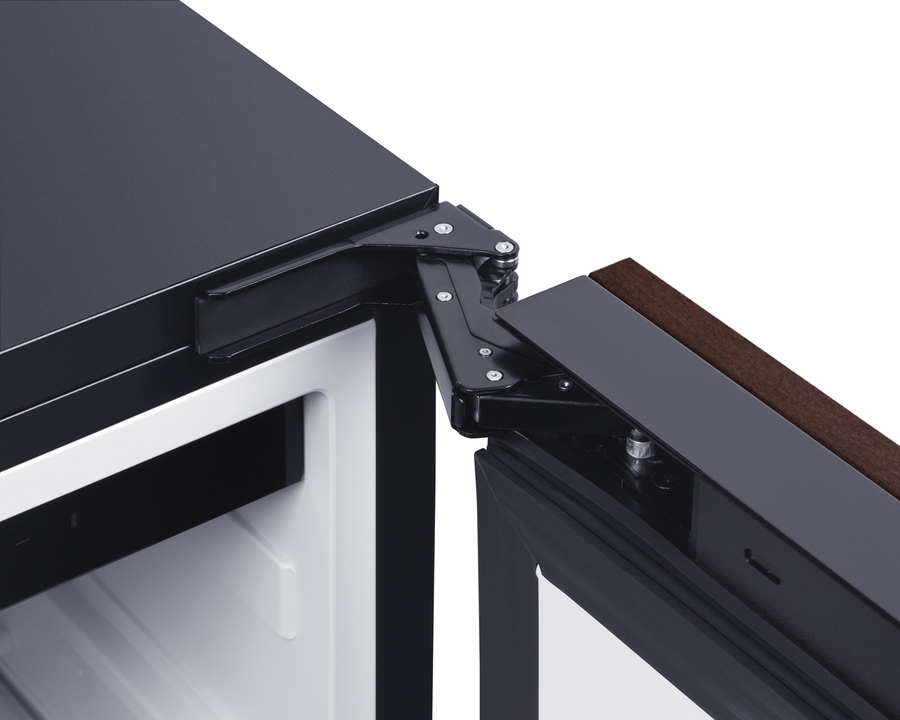

European style hinge design ensures a flush fit and allows for a smoother opening
No-frost operation ensures reduced maintenance in both the refrigerator and freezer compartments
Refrigerator section includes a digital control panel to manage each compartment's temperature for added convenience, with a readout in Celsius or Fahrenheit
Interior LED lighting in both sections offers an attractive and energy efficient presentation
Setting allows you to disable the digital displays, lights, and alarms for religious observance

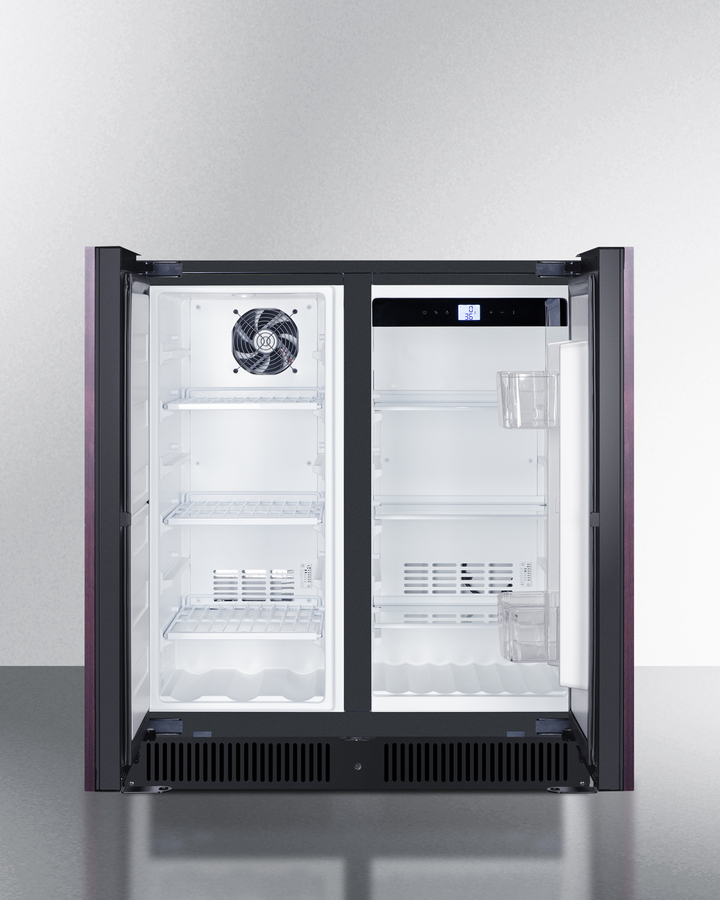

Refrigerator section includes spill-proof glass shelves for easier cleaning, while the freezer includes three adjustable wire shelves to ensure proper cold air circulation
Two removable door racks provide additional storage as needed
Alarm will sound if either door is left open for over 60 seconds
Audible alarm sounds if the interior temperature rises above the recommended range
Floor is specially designed with slots to allow you to store bottles safely on their sides
Space-saving design with no exposed coils in the rear offers easy cleanability
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
In the event of power loss, the unit will retain its last temperature settings upon power recovery
ETL-S listed to NSF-7 Standards for use in commercial establishments
Unit comes in a fully finished jet black finish
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION

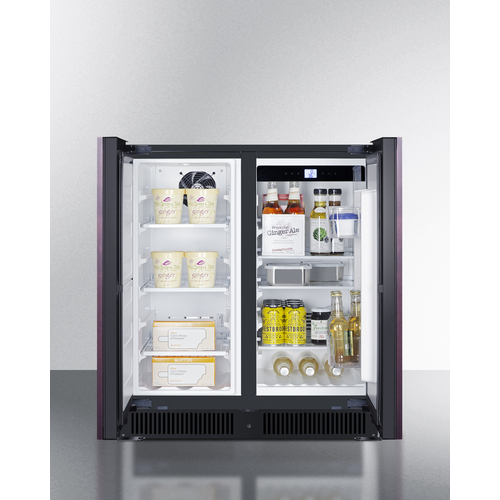

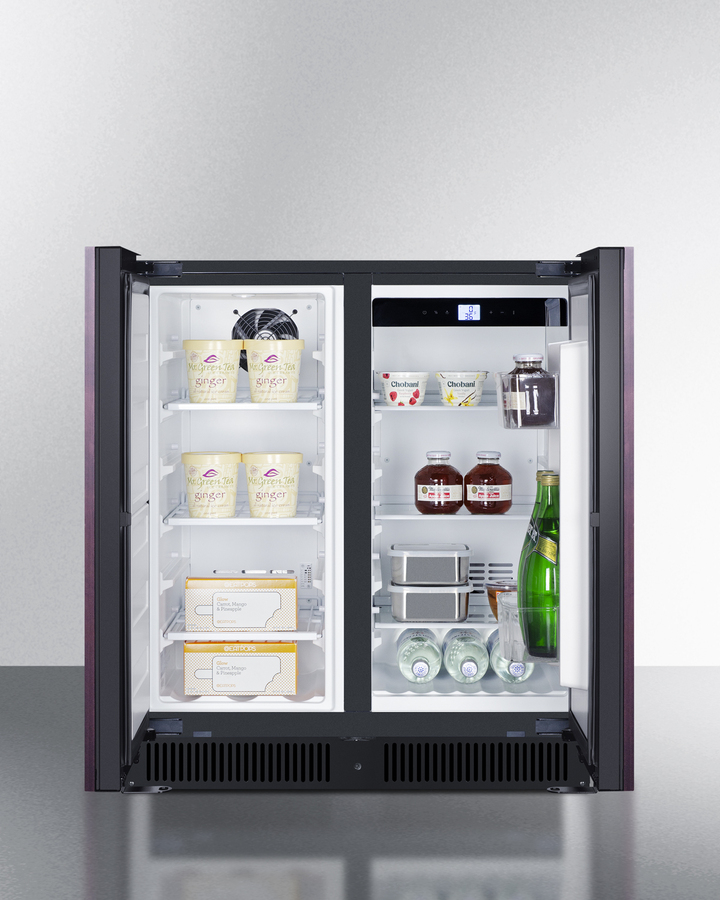

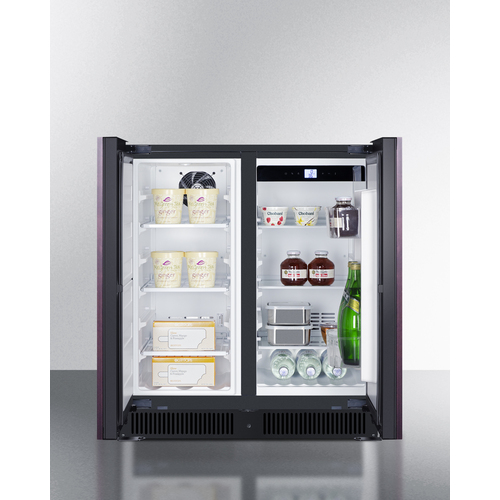

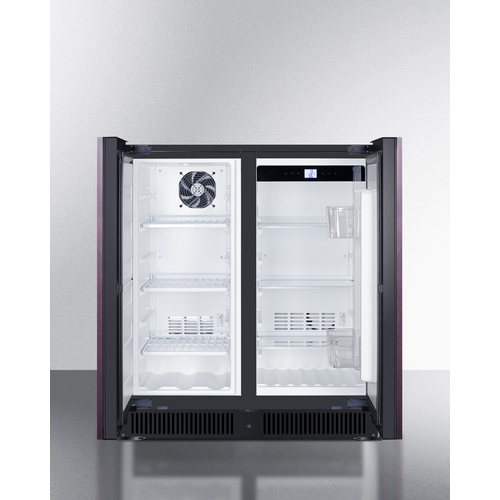

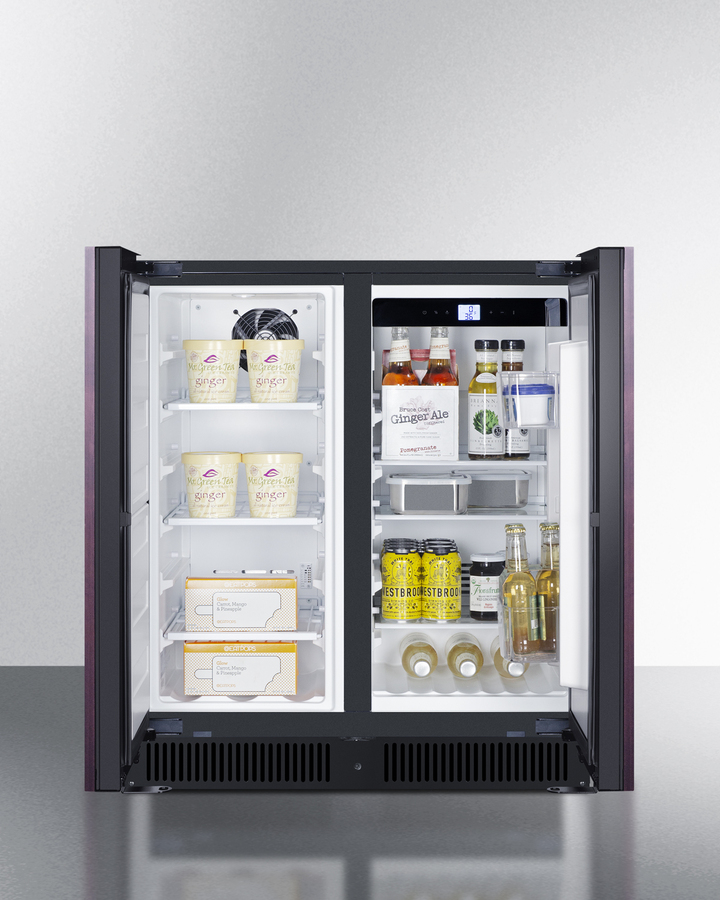

Summit manufactures unique refrigeration solutions to combine full functionality and custom style under the counter. Sized at 30" wide, the FFRF3070BPNR is an all-in-one side-by-side refrigerator-freezer. The front-breathing design allows built-in installation under counters, while the fully finished black cabinet also enables freestanding use. French doors allow you to separately store refrigerated and frozen foods. This unit comes in a jet black finish and includes two sets of brackets that allow easy installation of custom panels over the doors (recommended panel size: 30" H x 14 5/8" W at 3/4" thickness). The European style fully articulating hinging ensures seamless integration into your space. This unit includes a lock in the kickplate to secure both sections. A sealed back and right angle plug offer added space savings. Inside, the FFRF3070BPNR features a frost-free freezer compartment on the left and a frost-free refrigerator compartment on the right. The refrigerator includes a digital thermostat allowing users to manage the temperature in each compartment, with a readout in Celsius or Fahrenheit for added convenience. Adjustable glass shelves offer cleaner spill-proof storage for fresh food items, while two removable door shelves provide additional storage space as needed. The freezer compartment includes adjustable wire shelves to ensure proper cold air circulation. Both sides feature LED lighting to provide an attractive, energy efficient presentation. The slotted floor design is ideal for keeping bottles safely in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that allows you to disable certain functions during religious observance. With its innovative all-in-one design, user-friendly features, and full frost-free operation, the FFRF3070BPNR is a great choice for smaller kitchens looking to maximize storage space under the counter. Additional choices are available in white, black, and stainless steel. Browse the full Summit selection to discover the perfect fit for your space.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
YOU MIGHT NEED
PF1Kit
SIMILAR PRODUCTS
FFRF24SS
SPR3032DPNR

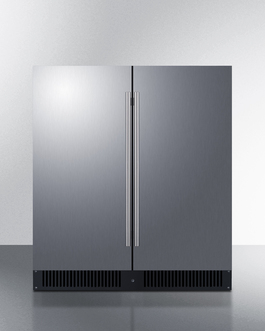

FFRF3070BSS
