FFBF192SS

Estar 7f5cdf36e294ad6062a30ecb97f27c51a3ee326dda0a99a822a1681b04a1047c
Delivery 9240a3e8870753a2ec143c34af2b405742ae73bfeb126dd29f201daa25ab8f11
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

Fingerprint-resistant doors offer the look of stainless steel with easier cleanability

78.63" H x 23.63" W x 25.0" D

(200cm H x 60cm W x 64cm D)

OVERVIEW

  • Fingerprint resistant finish offers the look of stainless steel without the constant cleanup
  • ENERGY STAR certified for guaranteed savings
  • Full 12.5 cu.ft. capacity in a slim counter depth fit
  • Bottom freezer design allows easier access to the refrigerator
  • Fully frost-free in both compartments for low maintenance use
  • Deluxe interior includes door storage, adjustable glass shelves, a crisper, and LED lighting
  • Digital temperature controls for both the refrigerator and freezer sections

SPECIFICATIONS

Overview
Height of Cabinet 78.0" (198 cm)
Height to Hinge Cap 78.63" (200 cm)
Width 23.63" (60 cm)
Depth 25.0" (64 cm)
Depth with Handle 27.0" (69 cm)
Depth with door at 90° 46.63" (118 cm)
Capacity 12.5 cu.ft. (354 L)
Defrost Type Frost-Free
Door Stainless Look
Cabinet Platinum
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 405.0kWh/year
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 183.0 lbs. (83 kg)
Shipping Weight 190.0 lbs. (86 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Interior Drawers Yes
Drawer Qty 5
Crisper Qty 2
Crisper Finish Transparent
Crisper Cover Glass
Wine Bottle Shelving Yes
Interior Light Yes
Refrigerator - Interior Height 42.0" (107 cm)
Refrigerator - Interior Width 19.25" (49 cm)
Refrigerator - Interior Depth 19.0" (48 cm)
Refrigerator - Capacity 8.9 cu.ft
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 4
Refrigerator - Temperature Range 2 to 8ºC
Freezer - Interior Height 24.63" (63 cm)
Freezer - Interior Width 16.5" (42 cm)
Freezer - Interior Depth 14.63" (37 cm)
Freezer - Capacity 3.6 cu.ft
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.6 oz.
High Side PSI 250.0
Low Side PSI 88.0
Level Legs 2
Freezer - Temperature Range -15 to -25ºC

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

SUMMIT's collection of ENERGY STAR qualified frost-free refrigerator-freezers provides an attractive and user-friendly solution to small kitchen spaces.

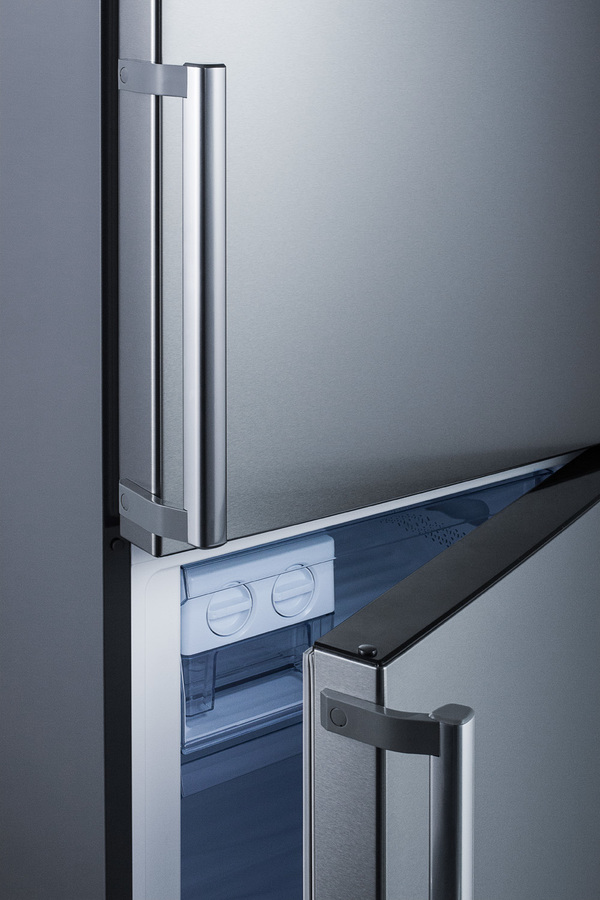

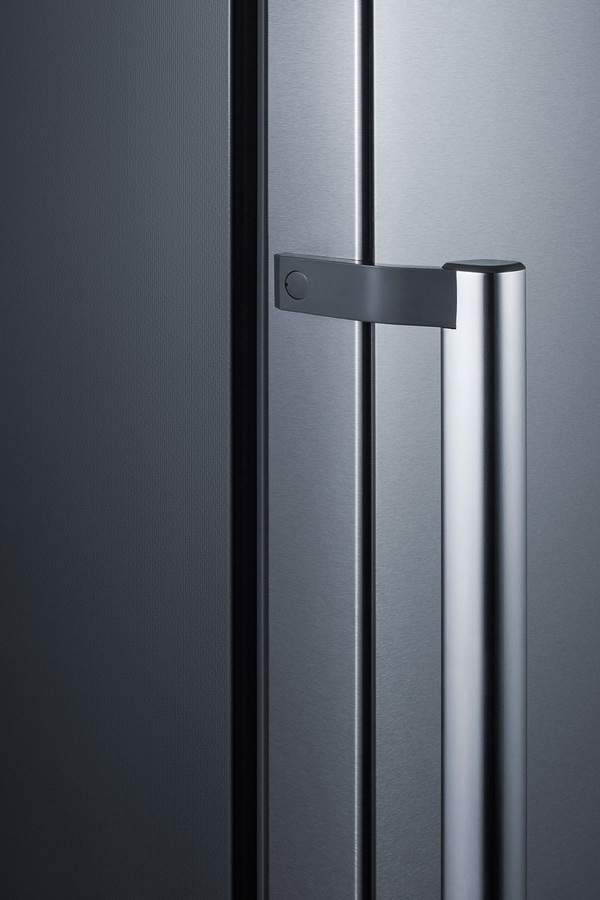

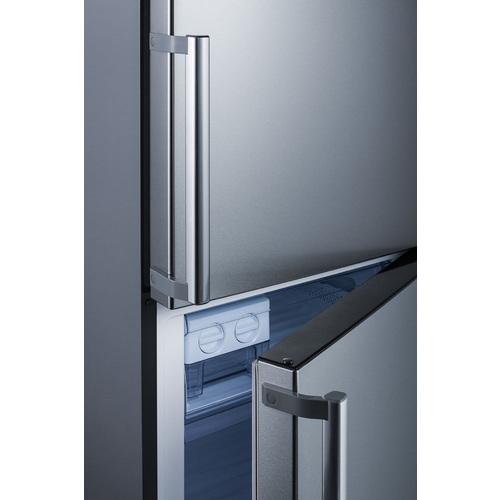

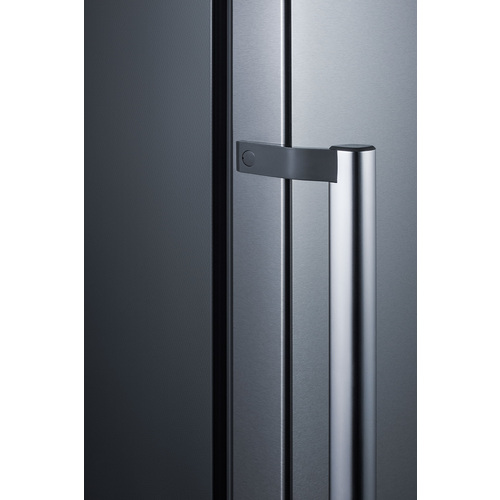

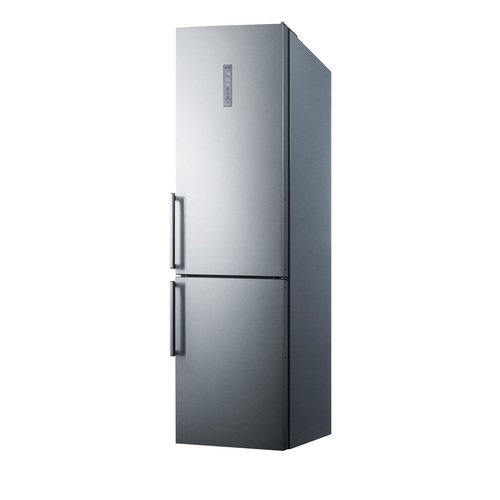

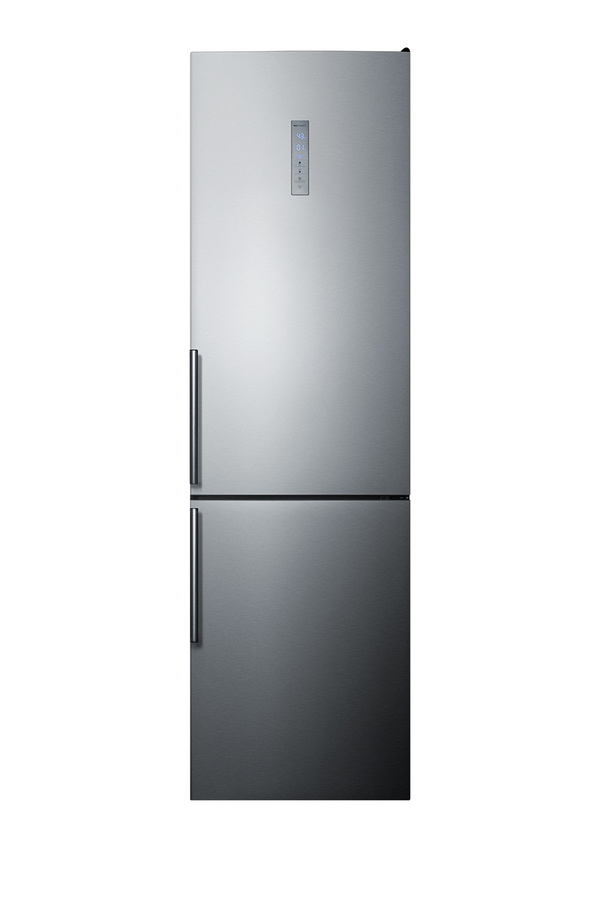

The counter depth FFBF192SS is a bottom freezer refrigerator sized with a unique 24" width that offers a generous 12.5 cu.ft. storage capacity. It comes with a textured platinum cabinet and sealed back design. The doors feature a gentle curve and the look of stainless steel in a fingerprint-resistant alternative finish. Pro style handles complete the modern look. NOTE: this unit ships with a right hand door swing. For a left version, order with suffix "LHD."

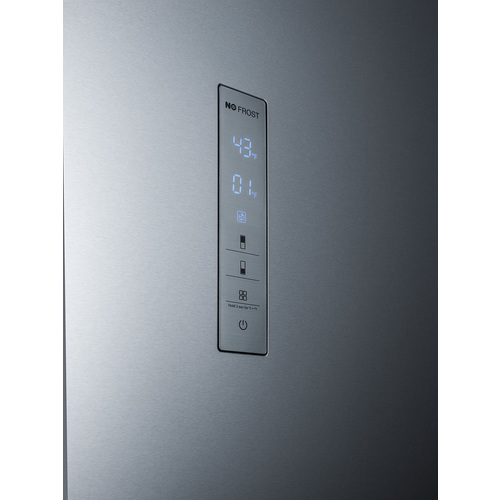

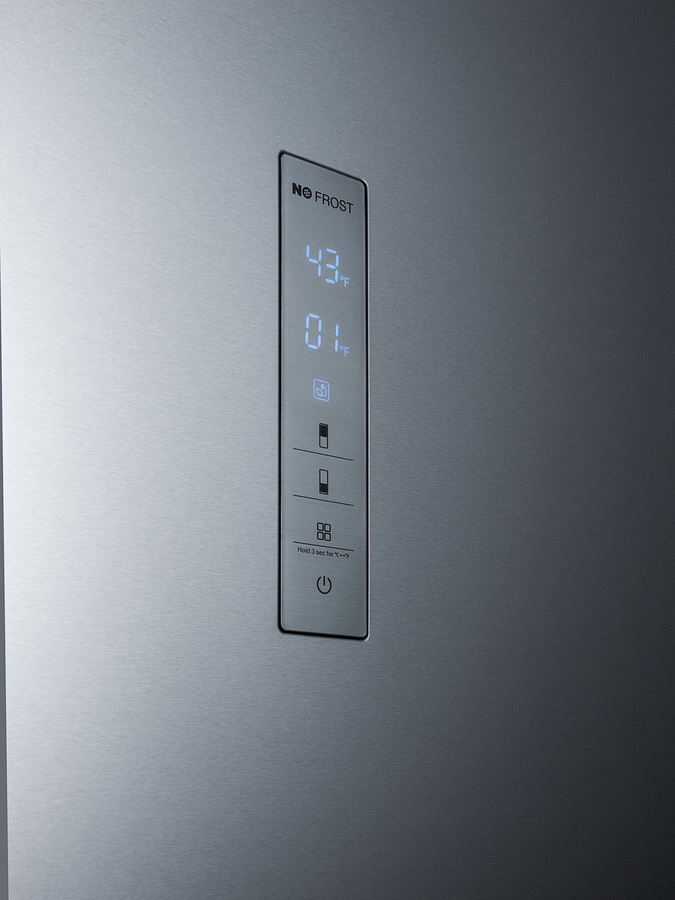

The FFBF192SS includes an external digital control panel in a sleek mirror finish, allowing you to manage the interior without exposing stored contents to room temperature. The refrigerator and freezer temperature settings can be viewed in Celsius or Fahrenheit. The control panel also includes a "Super Cool" and "Super Freeze" option to cool the interior quickly, a great feature when loading groceries. A "Holiday" setting allows you to reduce energy consumption in the refrigerator section while still safely storing items in the freezer compartment, while the "Eco" setting lets you save even more energy for longer term vacations. This also includes an open door alarm that will sound if either door is left open for over two minutes.

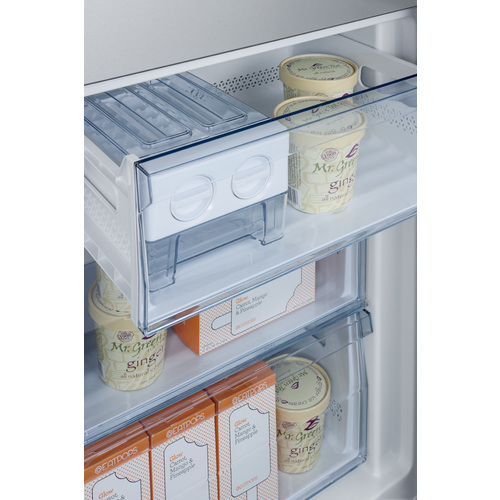

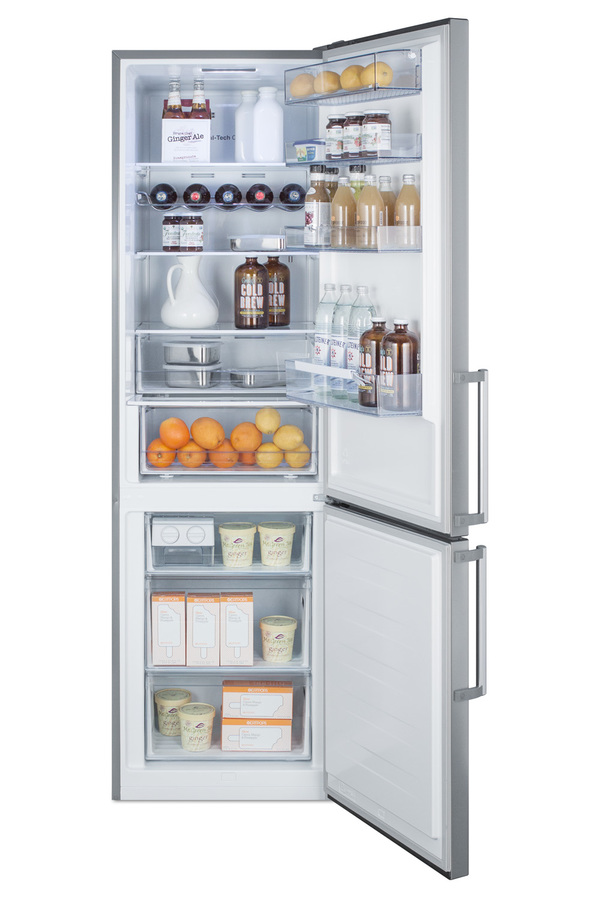

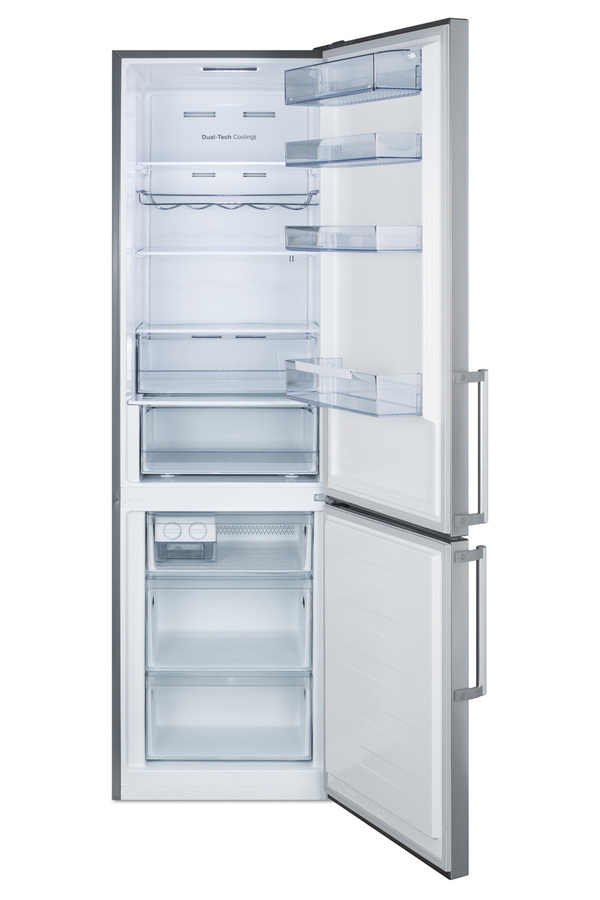

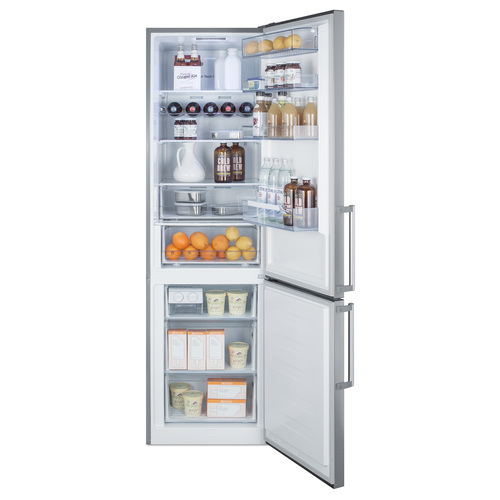

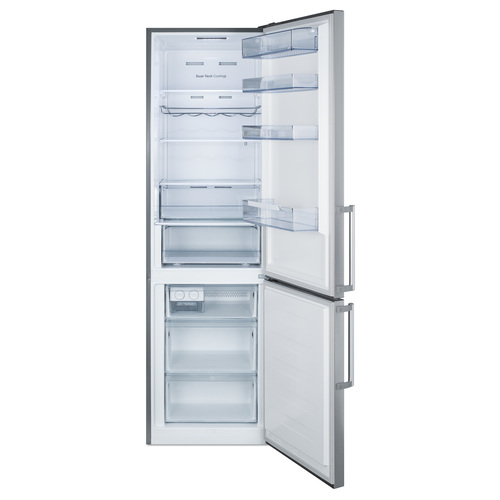

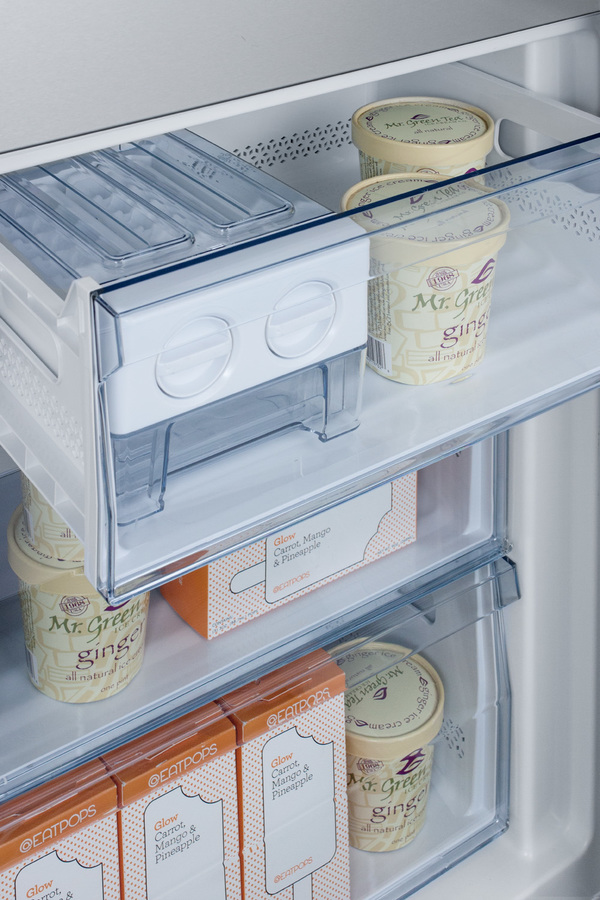

Inside, the FFBF192SS utilizes frost-free operation for minimum user maintenance in both compartments. The refrigerator section includes spill-proof glass shelves and removable door racks. This unit comes with a clear crisper for produce storage, as well as a slide-out storage drawer designed to keep meats and certain other items at a slightly colder temperature. An LED light offers an attractive and energy efficient interior view. The lower freezer section features three clear slide-out drawers for added efficiency and more organized storage. We include a removable ice cube box for added convenience. Simply fill up the included tray with water and freeze. When ice has been created, turn the handle to release it into the lower box for easier access.

With its unique size, modern style, and user-friendly features, the FFBF192SS is the perfect choice for smaller homes looking to bring luxury to the kitchen. This unit is ENERGY STAR certified.

FEATURES

Counter depth
Sized at 25" deep for an easier fit in space-challenged kitchens
ENERGY STAR certified
Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs
Bottom freezer
Convenient design keeps all refrigerated storage at eye level for easier use
Full capacity in slim fit
Unique size offers a full 12.5 cu.ft. capacity in less than 24" of width
Digital thermostats
Separate digital controls let you adjust the refrigerator and freezer sections, with a digital display viewable in Celsius or Fahrenheit
Frost-free operation
Eliminates the need to manually defrost the refrigerator or freezer section
Adjustable glass shelves
Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Door storage
Store tall bottles and condiments right on the door for convenient access
Crisper drawer
Get the longest life and best taste out of produce by storing it in a convenient slide drawer
Meat & fish drawer
Slide-out drawer maintains a slightly colder temperature to create the right conditions for defrosting meat and keeping items in a semi-frozen state
Space-saving design
Crisper drawers slide out with the doors open at 90º for easier use in smaller kitchens
LED lighting
Automatically illuminates when you open the door
Stainless steel look
Doors offer the look of stainless steel complete with a horizontal grain, but the easier cleanability of a fingerprint-resistant steel finish
Removable transparent freezer drawers
Unique freezer design keeps the cold inside, even when the door is opened
Open door alarm
Audible alarm will sound if either door is left ajar for over two minutes
Super Cool function
Allows you to rapidly cool the refrigerator section to 35.6ºF. Ideal for bringing newly loaded groceries to a safer storage temperature
Super Freeze function
Allows you to rapidly cool the freezer to -12ºF as needed

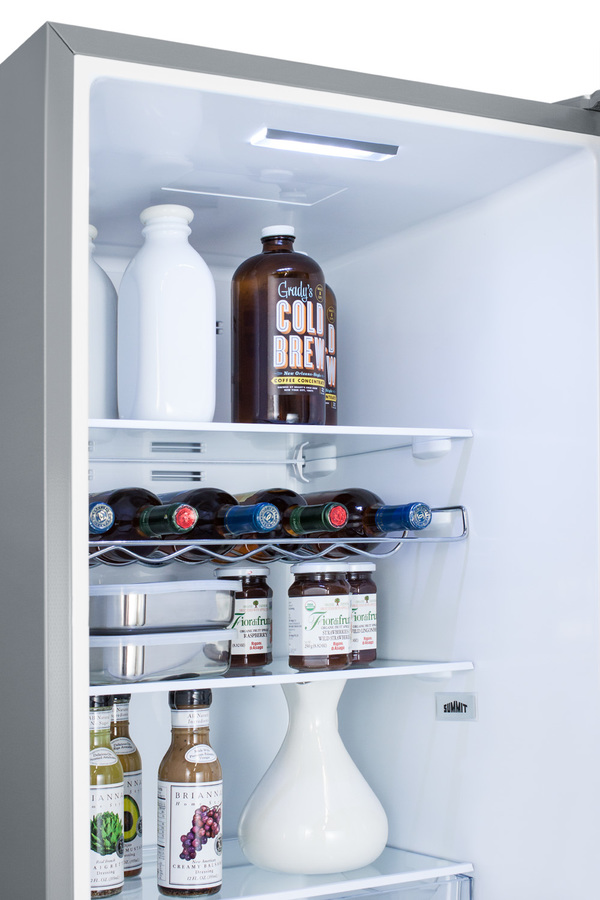

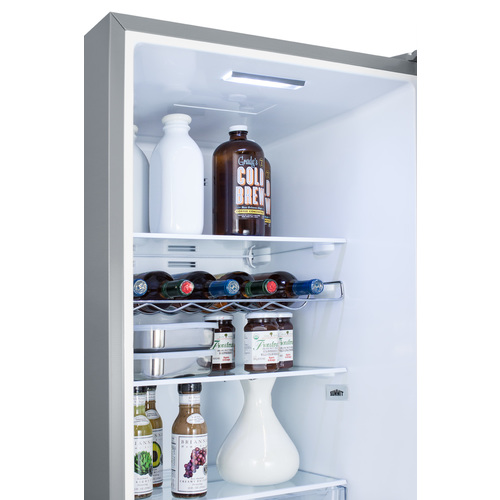

Bottle holder
Includes a scalloped shelf ideal for storing wine and other bottled beverages horizontally
Holiday setting
Allows you to disable the refrigerator while keeping the freezer functioning, perfect for use during vacation or downtime when you may want to keep items frozen but save on energy usage in the fresh food section
Integrative ice box included
Removable ice box lets you fill up cube trays and drop the cubes into a handy box when they are frozen.
Sealed back
Easier cleanup with a flat back design
Fully finished cabinet
Textured cabinet in an attractive deep gray finish
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 78.0" (198 cm)
Height to Hinge Cap 78.63" (200 cm)
Width 23.63" (60 cm)
Depth 25.0" (64 cm)
Depth with Handle 27.0" (69 cm)
Depth with door at 90° 46.63" (118 cm)
Capacity 12.5 cu.ft. (354 L)
Defrost Type Frost-Free
Door Stainless Look
Cabinet Platinum
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 405.0kWh/year
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 183.0 lbs. (83 kg)
Shipping Weight 190.0 lbs. (86 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Interior Drawers Yes
Drawer Qty 5
Crisper Qty 2
Crisper Finish Transparent
Crisper Cover Glass
Wine Bottle Shelving Yes
Interior Light Yes
Refrigerator - Interior Height 42.0" (107 cm)
Refrigerator - Interior Width 19.25" (49 cm)
Refrigerator - Interior Depth 19.0" (48 cm)
Refrigerator - Capacity 8.9 cu.ft
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 4
Refrigerator - Temperature Range 2 to 8ºC
Freezer - Interior Height 24.63" (63 cm)
Freezer - Interior Width 16.5" (42 cm)
Freezer - Interior Depth 14.63" (37 cm)
Freezer - Capacity 3.6 cu.ft
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.6 oz.
High Side PSI 250.0
Low Side PSI 88.0
Level Legs 2
Freezer - Temperature Range -15 to -25ºC

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing
Door reversal to left hand swing

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
FFBF192SS.pdf
Download
TECHNICAL DRAWING (.dwg)
FFBF192SS__A-C_2010__REF._FRE.dwg
Energy Guide
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
