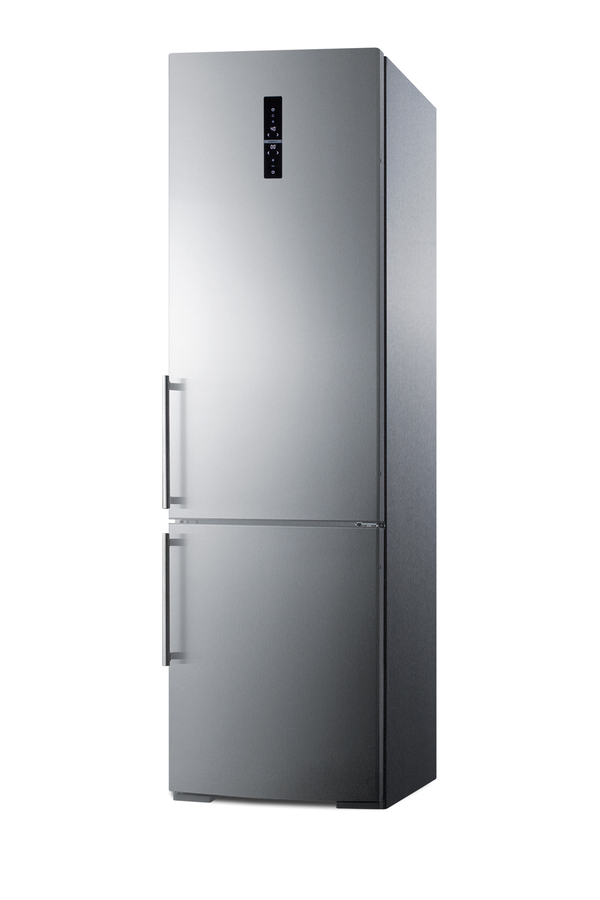

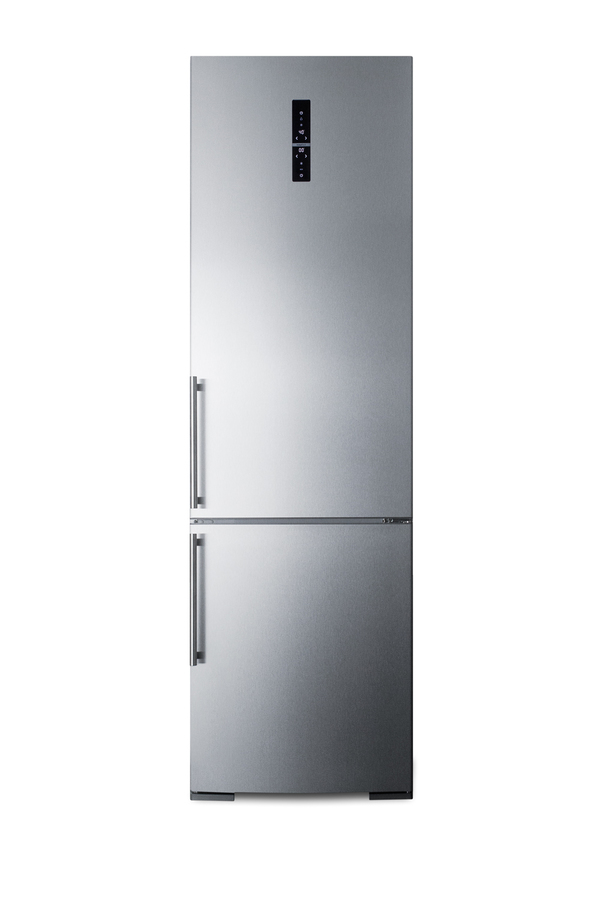

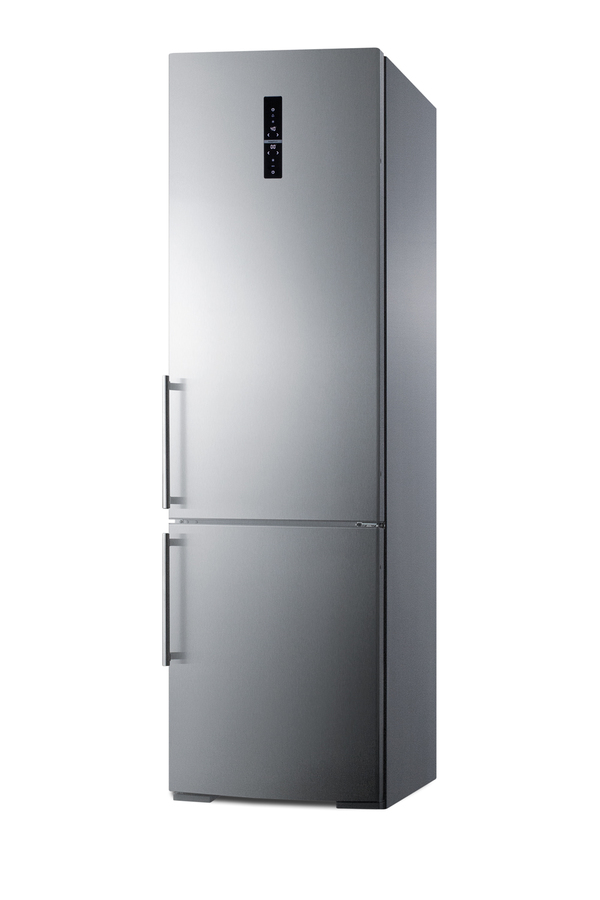

FFBF181ESBI

Designed for built-in installation in space-challenged kitchens

79.25" H x 23.63" W x 25.25" D

(201cm H x 60cm W x 64cm D)

OVERVIEW

  • Designed for built-in installation
  • Bottom freezer design allows easier access to the refrigerator
  • Full 12.8 cu.ft. capacity inside a slim 24" W x 25 1/4" D counter depth footprint
  • Stainless steel doors with unique curve bring modern style to the kitchen
  • Adaptive intelligent technology features innovative sensor technology to adjust controls based on your behavior and habits
  • Digital temperature controls for both the refrigerator and freezer sections
  • Deluxe interior for optimum storage convenience
  • Made in Europe

SPECIFICATIONS

Overview
Height of Cabinet 78.75" (200 cm)
Height to Hinge Cap 79.25" (201 cm)
Width 23.63" (60 cm)
Width with Door Open 24.63" (63 cm)
Depth 25.25" (64 cm)
Depth with Handle 27.25" (69 cm)
Depth with door at 90° 47.0" (119 cm)
Capacity 12.8 cu.ft. (362 L)
Defrost Type Frost-Free/Automatic
Door Stainless Steel
Cabinet Platinum
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 390.0kWh/year
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 185.0 lbs. (84 kg)
Shipping Weight 192.0 lbs. (87 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Interior Drawers Yes
Drawer Qty 5
Crisper Qty 2
Crisper Finish Transparent
Crisper Cover Glass
Wine Bottle Shelving Yes
Interior Light Yes
Refrigerator - Interior Height 44.0" (112 cm)
Refrigerator - Interior Width 19.25" (49 cm)
Refrigerator - Interior Depth 17.5" (44 cm)
Refrigerator - Capacity 9.35 cu.ft
Refrigerator - Shelf Type Glass and Scalloped
Refrigerator - Shelf Qty 4
Refrigerator - Full Door Shelves 4
Refrigerator - Temperature Range 34º to 46ºF
Freezer - Interior Height 24.0" (61 cm)
Freezer - Interior Width 16.5" (42 cm)
Freezer - Interior Depth 13.0" (33 cm)
Freezer - Capacity 3.46 cu.ft
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R134a
Refrigerant Amount 5.11 oz.
High Side PSI 215.0
Low Side PSI 36.0
Level Legs 2
Condensor Location Rear of Unit
Freezer - Temperature Range -6º to 6ºF
Compressor Step Height 8.0" (20 cm)
Compressor Step Width 16.5" (42 cm)
Compressor Step Depth 5.0" (13 cm)

AVAILABLE UPGRADES

Exterior
FFBF181PNLRH - Stainless steel side panel on right
Stainless steel panel installed on right side to cover FFBF181ES cabinet
FFBF181PNLLH - Stainless steel side panel on left
Stainless steel panel installed on left side to cover FFBF181ES cabinet
LHD - Left hand door swing
Door reversal to left hand swing


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

WHERE TO BUY

Invalid Format

DESCRIPTION

SUMMIT's collection of European no-frost counter depth refrigerator-freezers provides an attractive and user-friendly answer to small kitchen spaces.

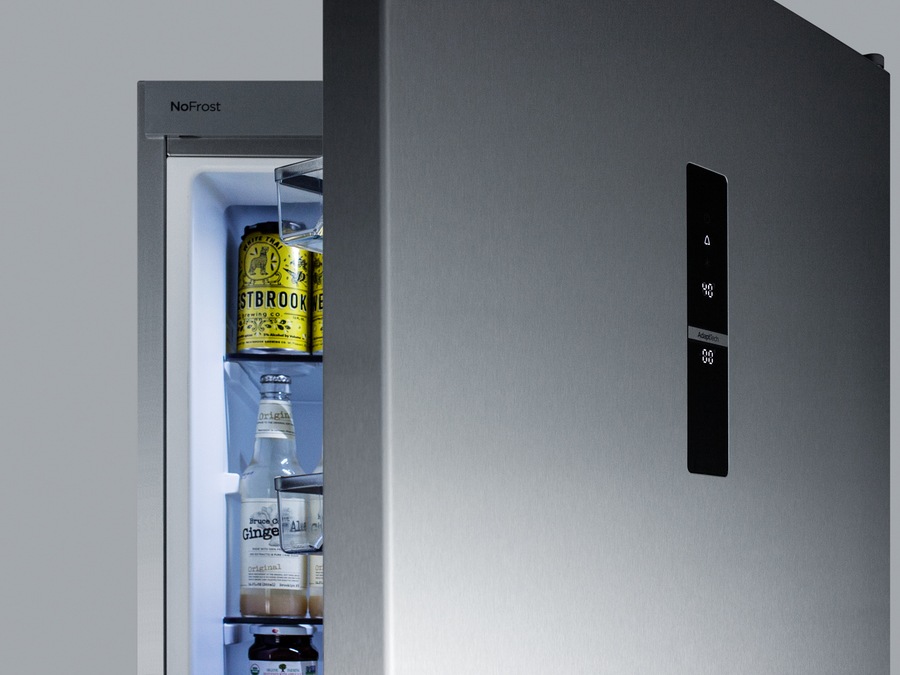

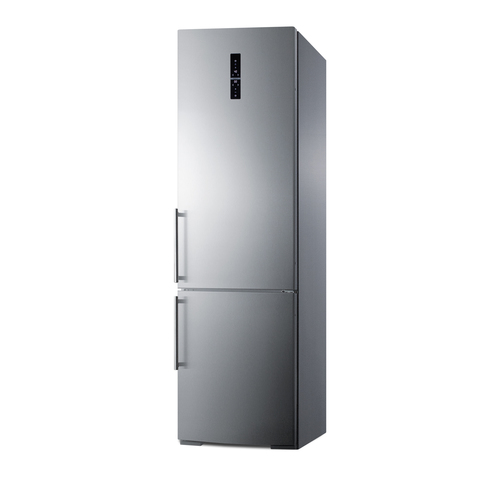

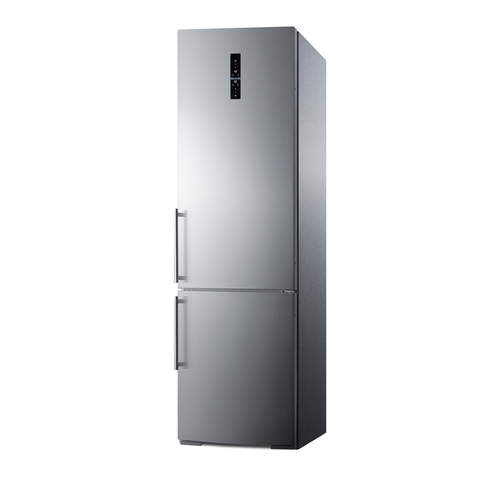

Made for us in Europe, the FFBF181ESBI is a bottom freezer refrigerator with a unique 24" W x 25 1/4" D footprint and generous 12.8 cu.ft. capacity. The front-breathing design allows built-in installation for added space savings. It comes in a platinum cabinet finish with stainless steel doors and designer handles. The exterior digital control panel lets you manage the refrigerator and freezer temperature without opening the door, a helpful function for saving energy and not exposing the interior to warmer room temperature. The control panel includes an audible and visual high temperature and open door alarm to help protect stored contents, as well as a child safety lock to prevent anyone from accidentally changing the settings.

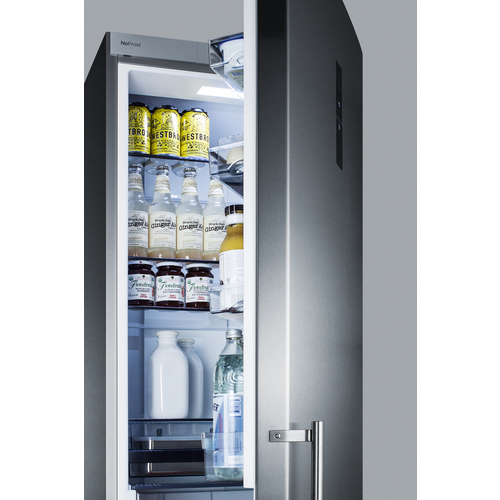

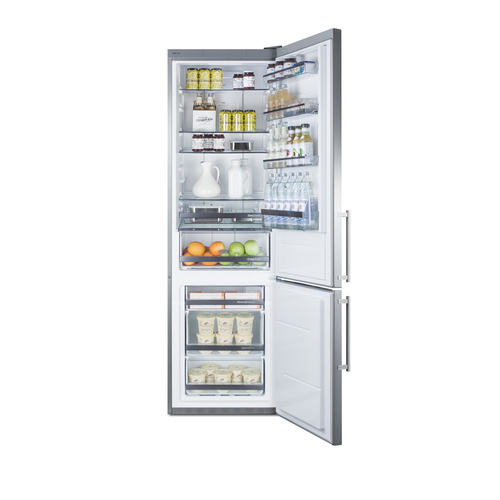

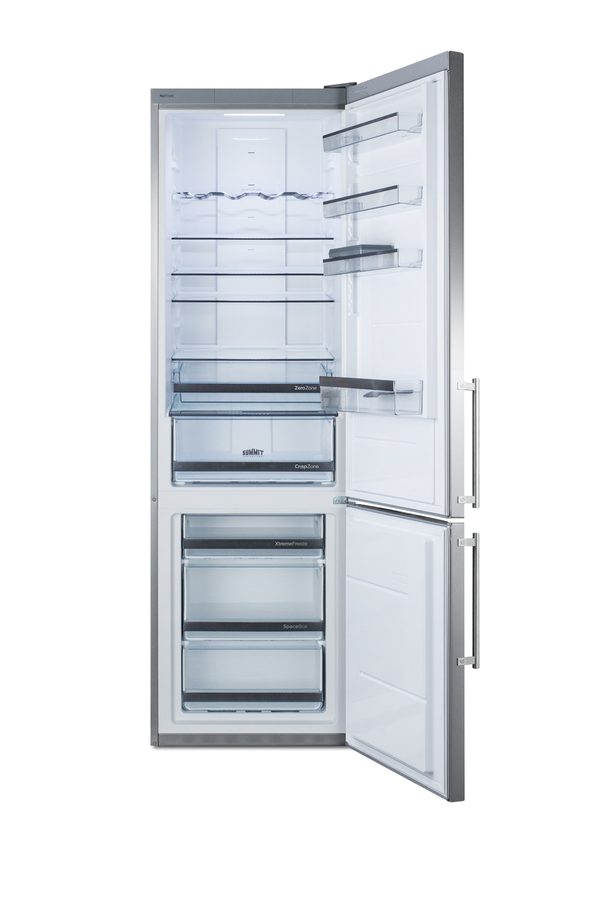

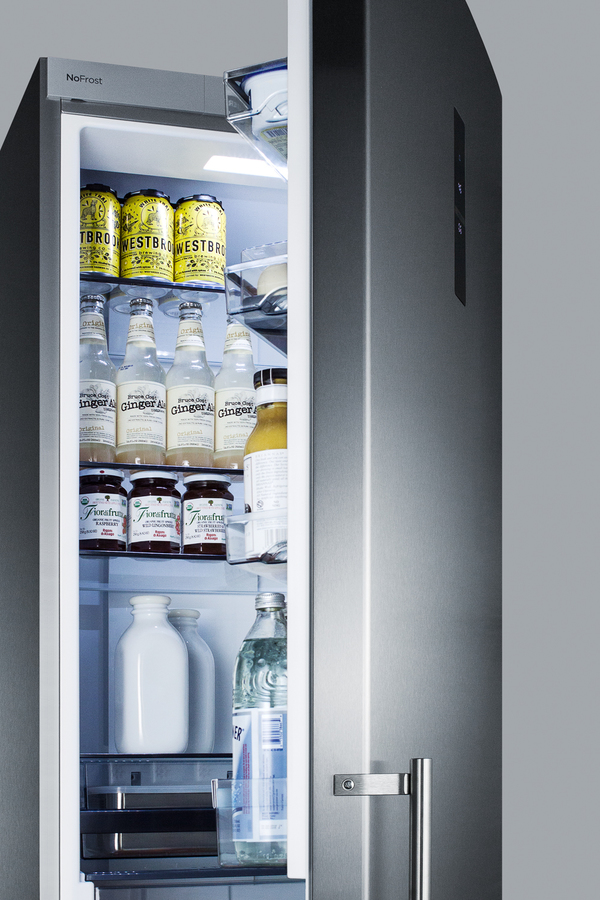

Inside, the FFBF181ESBI features a fully frost-free freezer compartment and an automatic defrost refrigerator section. The refrigerator section includes adjustable spill-proof glass shelves, as well as a scalloped shelf ideal for storing wine and other bottled beverages. The door features adjustable racks to accommodate a variety of sizes. This unit includes a "ZeroZone" deli drawer ideal for storing meats and cheeses at slightly colder temperatures than the rest of the refrigerator compartment. The large crisper drawer features humidity control for optimum storage of fruits and vegetables. A removable "multibox" with a silicone lid and air-tight seal is included to help store small food items that might have particularly strong odors. The control panel includes a “refrigerator boost” option to reach colder temperatures when loading groceries or first starting the unit up. This unit is equipped with adaptive intelligent technology that utilizes innovative sensors to automatically adjust to your habits. By recording common times of the door being opened and closed or patterns of when you load your groceries, the unit learns to anticipate this action and self-adjusts the temperature to handle these changes.

The lower frost-free freezer compartment is equipped with three slide-out drawers with plastic fronts to better protect stored items from ambient air when the door is opened. A "freezer boost" function on the control panel helps the unit to reach its coldest temperature faster, while the upper drawer includes its own "XtremeFreeze" function.

With its unique footprint and attractive style, the FFBF181ESBI brings a luxury look to kitchens with space limitations.

FEATURES

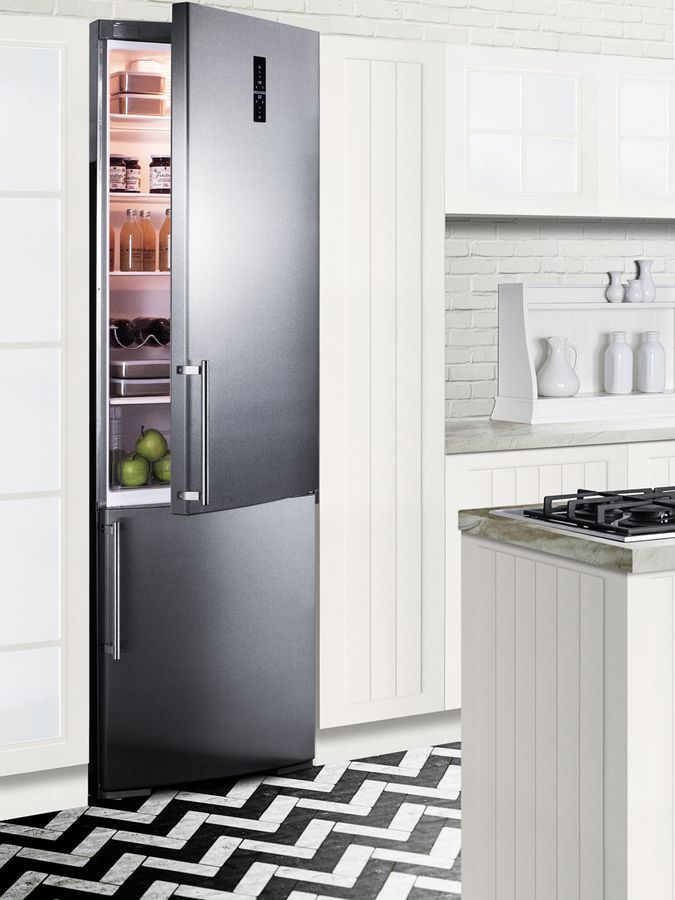

Built-in capable

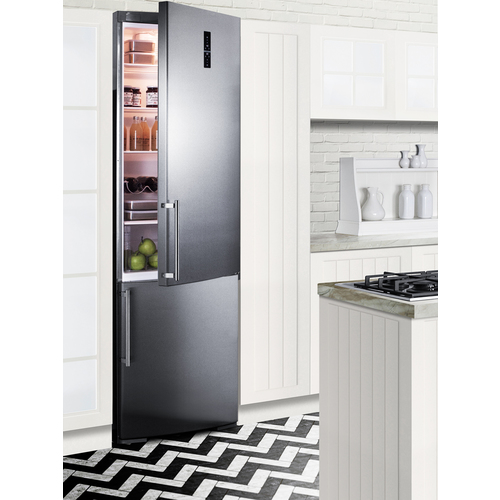

Front-breathing design allows fully integrated installation
Stainless steel doors
Professional look in high quality stainless steel, with a unique curve to add a modern touch to any kitchen
Bottom freezer
Convenient design keeps all refrigerated storage at eye level for easier use

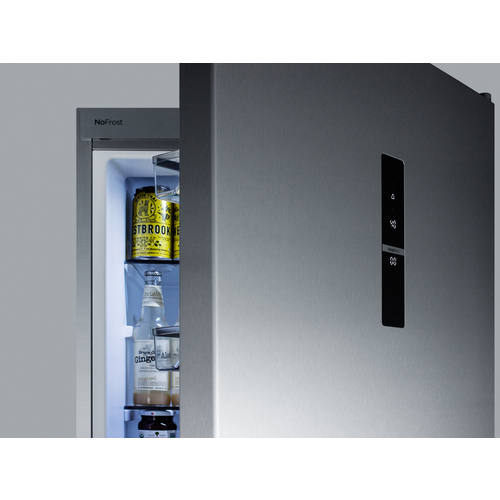

Digital thermostats
Separate digital controls let you adjust the refrigerator and freezer section, with a digital display for added convenience
Adaptive intelligent technology
Innovative sensor technology allows the unit to adjust to your habits, reading your patterns to manage the temperature based on the frequency of door openings and grocery loading
Adjustable glass shelves
Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Adjustable door storage
Three door racks can be adjusted in height to accommodate a variety of sizes
Fixed bottle door rack
Lower door rack is ideal for storing tall condiments
Wine shelf
Store bottles safely on an adjustable scalloped steel rack
Humidity controlled crisper
Large crisper drawer allows you to ensure the optimum storage of fruits and vegetables

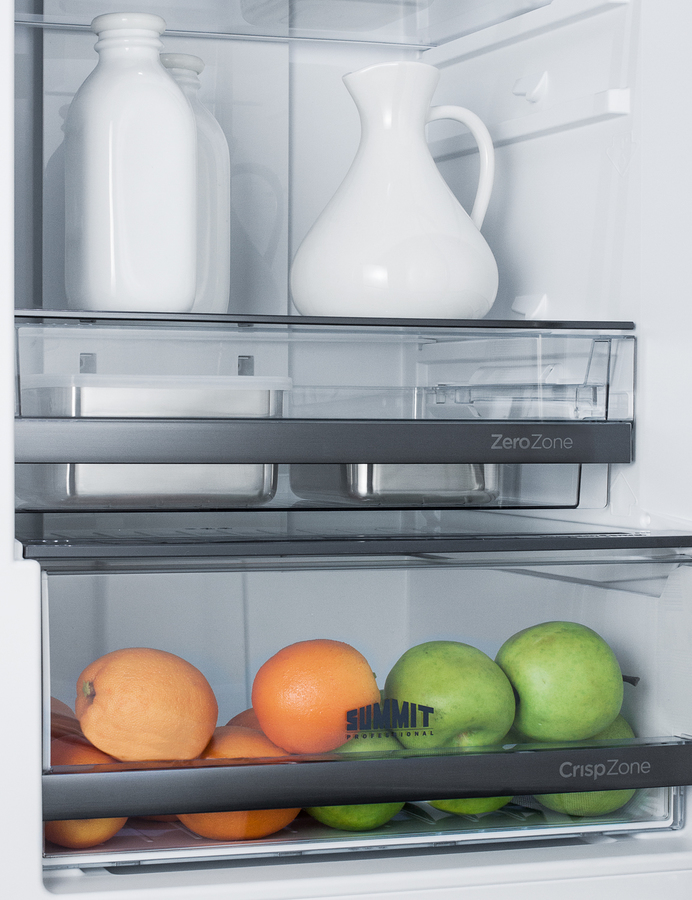

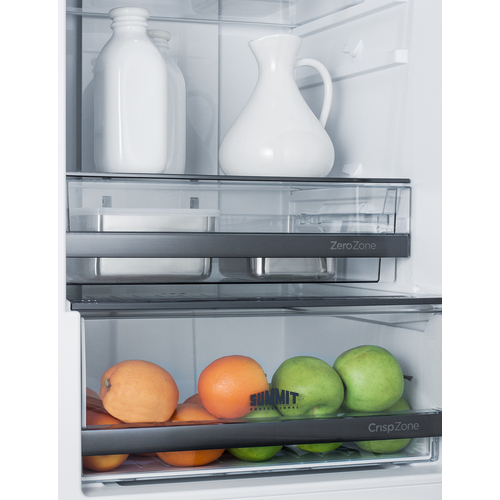

ZeroZone deli drawer
Slide-out drawer allows you to store meats and other deli items at a slightly colder temperature for long-lasting freshness
Multibox storage container
Removable container with a silicone lid and air-tight seal offers a convenient way to store smaller food items with a strong odor, such as blue-vein cheeses or onions
Interior LED refrigerator light
Automatically illuminates when you open the door
Removable transparent freezer drawers
Unique freezer design keeps the cold inside, even when the door is opened
Open door alarm
Audible alarm will sound if the refrigerator door is left ajar for over one minute
High temperature alarm
Audible alarm will sound if the temperature in the refrigerator or freezer compartment is too high
LED visual alarms
All alarms are both audible and visual, with lamps in the control panel that will illuminate when the alarm is sounded
No-frost operation
Frost-free freezer section and automatic defrost refrigerator offer low maintenance operation
Power failure alarm
If the temperature exceeds acceptable levels due to power failure, an audible alarm will sound
Intensive cooling & freezing function
Allows you to rapidly cool the refrigerator or freezer section, ideal for bringing newly loaded groceries to a safer storage temperature
Child lock
Temperature controls include a locking function to prevent accidental setting changes
Factory reversible door swing
Unit ships RHD unless ordered reversed in our factory. The doors are not user-reversible
Fully finished platinum cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 78.75" (200 cm)
Height to Hinge Cap 79.25" (201 cm)
Width 23.63" (60 cm)
Width with Door Open 24.63" (63 cm)
Depth 25.25" (64 cm)
Depth with Handle 27.25" (69 cm)
Depth with door at 90° 47.0" (119 cm)
Capacity 12.8 cu.ft. (362 L)
Defrost Type Frost-Free/Automatic
Door Stainless Steel
Cabinet Platinum
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 390.0kWh/year
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 185.0 lbs. (84 kg)
Shipping Weight 192.0 lbs. (87 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Interior Drawers Yes
Drawer Qty 5
Crisper Qty 2
Crisper Finish Transparent
Crisper Cover Glass
Wine Bottle Shelving Yes
Interior Light Yes
Refrigerator - Interior Height 44.0" (112 cm)
Refrigerator - Interior Width 19.25" (49 cm)
Refrigerator - Interior Depth 17.5" (44 cm)
Refrigerator - Capacity 9.35 cu.ft
Refrigerator - Shelf Type Glass and Scalloped
Refrigerator - Shelf Qty 4
Refrigerator - Full Door Shelves 4
Refrigerator - Temperature Range 34º to 46ºF
Freezer - Interior Height 24.0" (61 cm)
Freezer - Interior Width 16.5" (42 cm)
Freezer - Interior Depth 13.0" (33 cm)
Freezer - Capacity 3.46 cu.ft
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R134a
Refrigerant Amount 5.11 oz.
High Side PSI 215.0
Low Side PSI 36.0
Level Legs 2
Condensor Location Rear of Unit
Freezer - Temperature Range -6º to 6ºF
Compressor Step Height 8.0" (20 cm)
Compressor Step Width 16.5" (42 cm)
Compressor Step Depth 5.0" (13 cm)

AVAILABLE UPGRADES

Exterior
FFBF181PNLRH - Stainless steel side panel on right
Stainless steel panel installed on right side to cover FFBF181ES cabinet
FFBF181PNLLH - Stainless steel side panel on left
Stainless steel panel installed on left side to cover FFBF181ES cabinet
LHD - Left hand door swing
Door reversal to left hand swing

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
FFBF181ESBI.pdf
Download
TECHNICAL DRAWING (.dwg)
FFBF181ES_REF._FRE__A-C_2000_.dwg
Download
MSDS INFORMATION
R134a_safety_list.pdf
Energy Guide


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice
