FF948SSIM

Made in North America with a unique footprint for smaller kitchens

65.75" H x 22.0" W x 26.0" D

(167cm H x 56cm W x 66cm D)

OVERVIEW

  • Unique 22" width is ideal for apartment and space-challenged kitchens while still offering nearly 9 cu.ft. of storage
  • True frost-free operation saves you maintenance by preventing icy buildup
  • Fully featured interior with a crisper, adjustable shelves, and more
  • Door shelves offer convenient storage solutions
  • Stainless steel doors and platinum cabinet bring a professional look to small kitchens
  • Factory installed icemaker for added convenience
  • Made in North America

SPECIFICATIONS

Overview
Height of Cabinet 64.75" (164 cm)
Height to Hinge Cap 65.75" (167 cm)
Width 22.0" (56 cm)
Width with Door Open 23.75" (60 cm)
Depth 26.0" (66 cm)
Depth with door at 90° 44.25" (112 cm)
Capacity 8.8 cu.ft. (249 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Platinum
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 400.0kWh/year
Amps 0.82
Voltage/Frequency 115 V AC/60 Hz
Weight 125.0 lbs. (57 kg)
Shipping Weight 130.0 lbs. (59 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 40.5" (103 cm)
Refrigerator - Interior Width 17.0" (43 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Capacity 6.67 cu.ft
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 4
Freezer - Interior Height 16.0" (41 cm)
Freezer - Interior Width 16.25" (41 cm)
Freezer - Interior Depth 13.25" (34 cm)
Freezer - Capacity 2.1 cu.ft
Freezer - Shelf Type Wire
Freezer - Shelf Qty 1
Freezer - Full Door Shelves 1
Freezer - Half Door Shelves 1
Thermostat Type Dial
Fan Type Interior
Refrigerant Type R134a
Refrigerant Amount 3.53 oz.
Level Legs 2
Compressor Step Height 9.75" (25 cm)
Compressor Step Width 17.0" (43 cm)
Compressor Step Depth 4.0" (10 cm)

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing
Door reversal to left hand swing


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

WHERE TO BUY

Invalid Format

DESCRIPTION

SUMMIT's thin-line collection of frost-free refrigerator-freezers brings quality and convenience to even the smallest kitchen space.

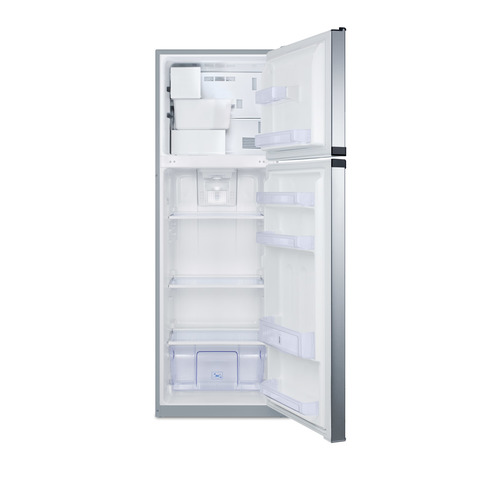

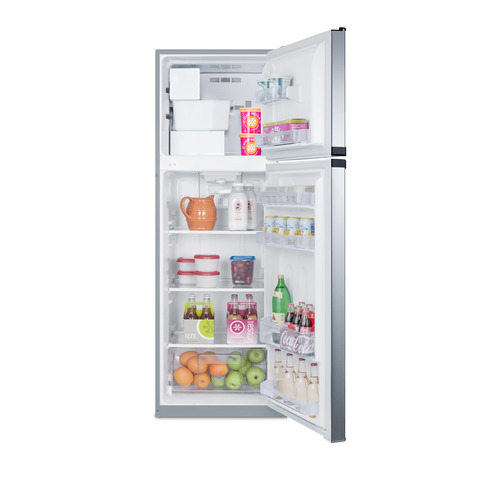

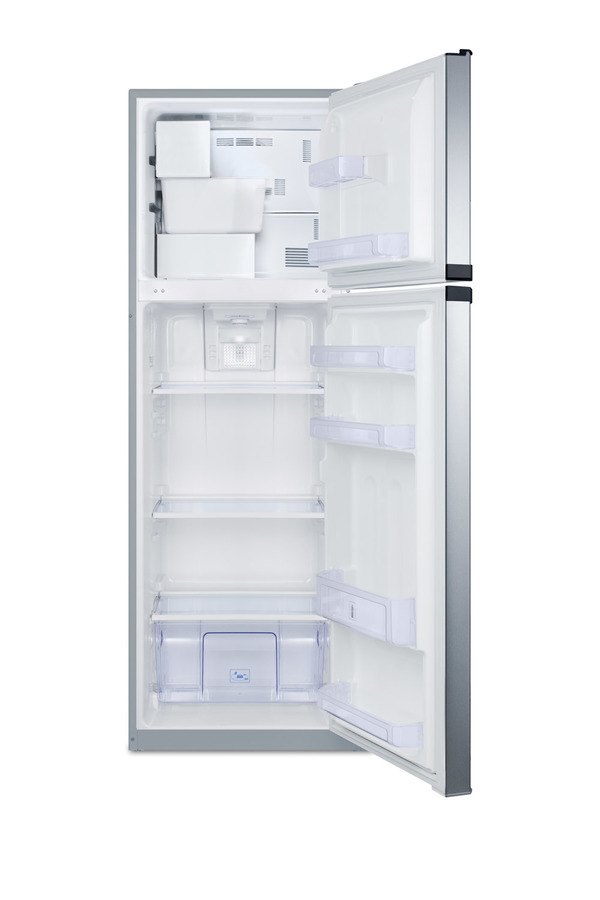

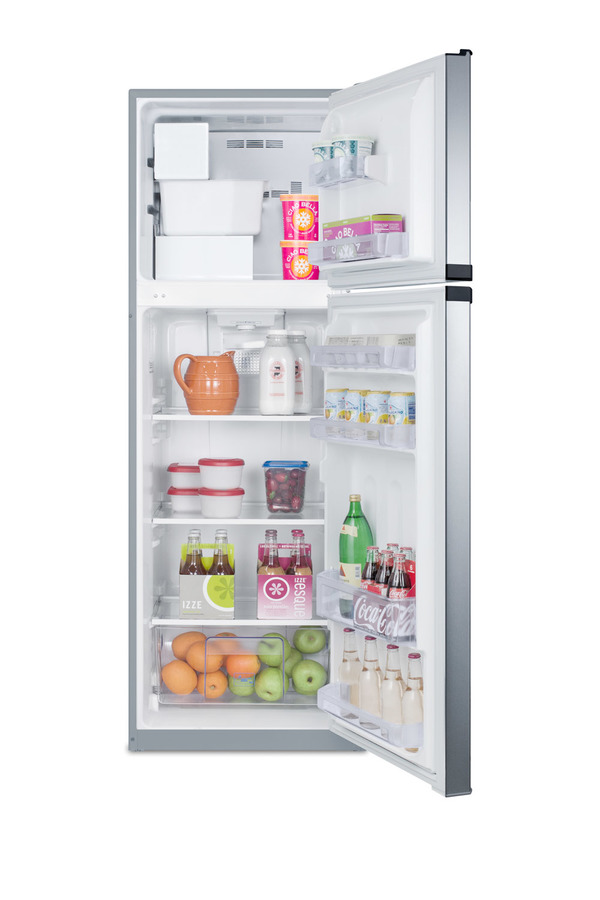

The FF948SSIM offers a full 8.8 cu.ft. capacity inside a slim fit, with a unique curved door design for added style. The fresh food section includes adjustable glass shelves for spill-proof storage and easy cleaning, with a large tilt-out crisper and four door racks to help keep your refrigerator organized. The large freezer section includes a removable wire shelf and two door racks for added convenience. A factory installed icemaker offers a steady supply of ice cubes.

Made in North America, the FF948SSIM includes reversible stainless steel doors and a platinum cabinet. For this unit in white, see the FF946WIM.

NOTE: Because of this unit's curved door style, the FF948SSIM requires an additional 1 3/4" of width to open the doors to a full 90º. If placing this unit against a right angle wall, be sure to accommodate this extra space.

FEATURES

Thin-line design
Limited space is no problem for our thin-line models, designed specifically for those hard-to-fit spots
Frost-free operation
No-frost convenience for reduced user maintenance
Adjustable glass shelves
Spill-proof shelves made from solid safety glass offer convenient and flexible storage in the refrigerator section
Factory installed icemaker
Produces a steady of supply of ice in the freezer section
Door storage
Refrigerator door includes four racks ideal for storing condiments and tall bottles. Freezer door includes one full and one half shelf
Clear crisper
Get the longest life and best taste out of produce by storing greens in a convenient slide drawer that tilts out for easy loading and unloading
Reversible stainless steel doors
User-reversible door swing for added flexibility
Interior light
Automatically illuminates when you open the refrigerator door
Platinum cabinet
Professional style offers the look of stainless steel
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 64.75" (164 cm)
Height to Hinge Cap 65.75" (167 cm)
Width 22.0" (56 cm)
Width with Door Open 23.75" (60 cm)
Depth 26.0" (66 cm)
Depth with door at 90° 44.25" (112 cm)
Capacity 8.8 cu.ft. (249 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Platinum
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 400.0kWh/year
Amps 0.82
Voltage/Frequency 115 V AC/60 Hz
Weight 125.0 lbs. (57 kg)
Shipping Weight 130.0 lbs. (59 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 40.5" (103 cm)
Refrigerator - Interior Width 17.0" (43 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Capacity 6.67 cu.ft
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 4
Freezer - Interior Height 16.0" (41 cm)
Freezer - Interior Width 16.25" (41 cm)
Freezer - Interior Depth 13.25" (34 cm)
Freezer - Capacity 2.1 cu.ft
Freezer - Shelf Type Wire
Freezer - Shelf Qty 1
Freezer - Full Door Shelves 1
Freezer - Half Door Shelves 1
Thermostat Type Dial
Fan Type Interior
Refrigerant Type R134a
Refrigerant Amount 3.53 oz.
Level Legs 2
Compressor Step Height 9.75" (25 cm)
Compressor Step Width 17.0" (43 cm)
Compressor Step Depth 4.0" (10 cm)

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing
Door reversal to left hand swing

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
FF948SSIM.pdf
Download
MSDS INFORMATION
MSDS_R134a_PS.pdf
Energy Guide


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice
