SPECIFICATIONS

Overview
Height to Cabinet 33.5"
Width 23.63"
Depth 23.5"
Depth with Handle 25.13"
Depth with door at 90° 46.0"
Capacity 5.5 cu.ft.
Defrost Type Automatic
Door Diamond Plate
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 118.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 1.8oz.
High Side PSI 285.0
Low Side PSI 70.0
Level Legs Qty 4
Interior Light Yes
Dimensions
Interior Height 27.75"
Interior Width 20.0"
Interior Depth 17.5"
Compressor Step Height 7.0"
Compressor Step Width 20.0"
Compressor Step Depth 6.0"

AVAILABLE UPGRADES

Exterior
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
HUM Humidity Sensor
Humidity sensor with min/max readout
SSK
Stainless steel kickplate factory installed
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD
Door reversal to left hand swing
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
SS Hinges
Stainless steel top and bottom hinges
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
CAS3 3" Casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
CAS6 6" Casters
6" high NSF listed casters
DT Digital Thermostat
Install a digital thermostat with external readout for precise temperature management
Legs
6" high leveling legs
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
DL2 Temperature Logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
KEY
Extra keys available for purchase
AC Keypad
Keypad lock powered by appliance power cord for keyless security
KEYPAD
Battery-powered keypad lock installed for keyless security
Interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior
FCGP - Fan w/Gel Packs
Internal fan with gel packs included for a stabilized interior


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

FF7LBLDPL

Estar commercial

33.5" H x 23.63" W x 23.5" D

OVERVIEW

WHERE TO BUY

Invalid Format
AccuCold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The commercially listed FF7 Series features high performing, perfectly sized all-refrigerators designed for freestanding use.

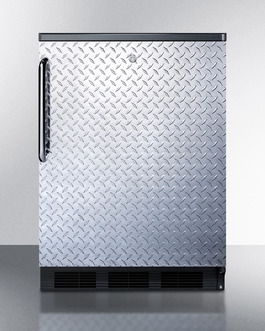

The FF7LBLDPL is a counter height all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. Designed for freestanding use, this model has a black cabinet and unique textured diamond plate door in wrapped aluminum. A professional towel bar handle in polished stainless steel completes the industrial look and a factory installed lock offers added security.

Inside, the FF7LBLDPL utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable glass shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial.

The FF7LBLDPL is ETL-S listed to NSF-7 standards for use in commercial establishments and is ENERGY STAR certified as a commercial refrigerator. For a built-in version of this unit, see the FF7LBLBIDPL. For more finish options, browse the entire FF7 Series.

NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.

FEATURES

ENERGY STAR certified commercial performance
Meets ENERGY STAR standards as a commercial refrigerator
Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
Fully finished black cabinet
Allows the refrigerator to be used as a freestanding model
Slim undercounter dimensions
Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit
Automatic defrost
Reduced user maintenance with automatic defrost
Factory installed lock
Keyed lock for a secure interior
Diamond plate wrapped door
Textured aluminum finish for an industrial look
Professional towel bar handle
Curved handle in polished stainless steel completes the look
Adjustable glass shelves
Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
One piece interior liner
Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Hidden evaporator
Cold wall design with hidden evaporator and seamless interior
Deep shelf space
Interior accommodates large trays up to 19 1/2" x 15 1/2"
Interior light on rocker switch
Turn the light on when you need it and off when you're done with a convenient rocker switch located just behind the thermostat
Adjustable thermostat
Dial thermostat located inside for easy temperature management
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
