SPECIFICATIONS

Overview
Height of Cabinet 33.5" (85 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 46.13" (117 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Panel-Ready
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 107.0 lbs. (49 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Height Adjustable 1
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 1.8oz.
High Side PSI 285.0
Low Side PSI 70.0
Level Legs Qty 4
Interior Light Yes
Dimensions
Interior Height 27.75" (70 cm)
Interior Width 20.0" (51 cm)
Interior Depth 17.5" (44 cm)
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 20.0" (51 cm)
Compressor Step Depth 6.0" (15 cm)

AVAILABLE UPGRADES

Exterior
Legs
6" high leveling legs
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DT Digital Thermostat
Install a digital thermostat with external readout for precise temperature management
CAS6 6" casters
6" high NSF listed casters
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
DL2 Temperature Logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
KEY
Extra keys available for purchase
Interior
FCGP - Fan w/Gel Packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior
LockBox24
Interior lift-up compartment with combination lock for use in FF7 or FFAR10 models


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

FF7LBLBIFR

Commercial meets nsf 57f181a562ef64be646d83b66028b1c5c2f384b45328a17b7b74a5f0cdc84c8e
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

Made in Europe and meets NSF-7 commercial standards

33.5" H x 23.63" W x 23.5" D

OVERVIEW

WHERE TO BUY

Invalid Format

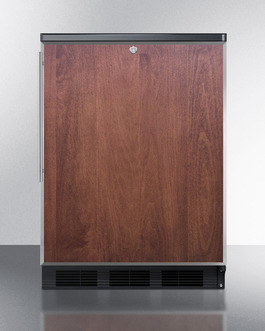

Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The commercially listed FF7BI Series features high performing, perfectly sized all-refrigerators designed for built-in use under counters.

The FF7LBLBIFR features a front-breathing design that allows built-in installation under counters, while the fully finished cabinet also enables freestanding use. The 24" footprint is ideal for many common cutouts, while the full 5.5 cu.ft. interior provides more storage than most units in this size class. This model has a black cabinet. The reversible door includes a lock and two-piece stainless steel handle designed to accept slide-in panel inserts (sized 23" W x 28" H at up to 1/4" thick). A stainless steel handle is included.

Inside, the FF7LBLBIFR utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable glass shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial.

The FF7LBLBIFR is ETL-S listed to NSF-7 standards for use in commercial establishments. For more finish options, browse the entire FF7BI Series.

NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.

FEATURES

Commercially approved
ETL-S listed to NSF-7 commercial standards
Slim undercounter dimensions
Less than 24 inches wide with a full 5.5 c.f. capacity
Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinets
Fully finished black cabinet
Allows the unit to be used freestanding
Stainless steel door frame
Slide a panel into this two-piece U-shaped frame to match your unit to other cabinets (panel size: 23" W x 28" H at up to 1/4" thick)
Factory installed lock
Keyed lock for a secure interior
Professional handle
Stainless steel handle can be reversed with door swing
Reversible door
User-reversible door swing for added flexibility
Automatic defrost
Reduced maintenance with auto defrost system
Adjustable glass shelves
Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Deep shelf space
Interior accommodates large trays up to 19 1/2" x 15 1/2"
One piece interior liner
Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Adjustable thermostat
Dial thermostat located inside for easy temperature management
Interior light on rocker switch
Turn the light on when you need it and off when you're done with a convenient rocker switch
Hidden evaporator
Cold wall design with hidden evaporator and seamless interior
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

DOWNLOADS

Download BROCHURE
FF7LBLBIFR.pdf
Download MSDS INFORMATION
R134a_safety_list.pdf
