FF7LBIPLUSADA
SHARE THIS PRODUCT
E-mail a Friend Print

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.0" (61 cm)
Depth with door at 90° 45.13" (115 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 104.0 lbs. (47 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Fan Type Interior and Exterior
Refrigerant Type R134a
Refrigerant Amount 1.8oz.
High Side PSI 285.0
Low Side PSI 88.0
Level Legs Qty 4
Interior Light Yes
Dimensions
Interior Height 26.25" (67 cm)
Interior Width 21.0" (53 cm)
Interior Depth 17.75" (45 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 5.5" (14 cm)

AVAILABLE UPGRADES

Interior
LockBox24
Interior lift-up compartment with combination lock for use in FF7 or FFAR10 models
Door
SSTB Door
Stainless steel wrapped door finish with curved towel bar style handle
Exterior
DL2 Temperature Logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
CSS
Stainless steel wrapped cabinet and door with curved towel bar handle (specify RHD or LHD)
DT Digital Thermostat
Install a digital thermostat with external readout for precise temperature management
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
KEY
Extra keys available for purchase


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

FF7LBIPLUSADA

Commercial meets nsf 57f181a562ef64be646d83b66028b1c5c2f384b45328a17b7b74a5f0cdc84c8e
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

Includes a NIST calibrated thermometer

32.25" H x 23.63" W x 23.5" D

OVERVIEW

WHERE TO BUY

Invalid Format
Accucold's PLUS Series refrigerators come specially featured for use doctors’ offices, medical clinics, nursing stations, and other general purpose facilities that require more temperature assurance than a standard refrigeration unit provides.

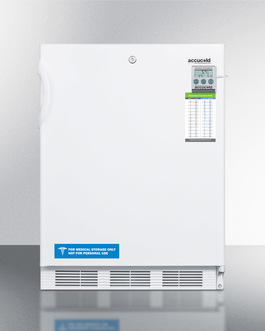

The FF7LBIPLUSADA is a 24” wide all-refrigerator designed for built-in installation or freestanding use, with a 32" height that can fit under lower ADA compliant counters. It uses full automatic defrost operation, with an internal fan for stabilized cooling. The interior features adjustable shelves, a flat door liner, and a switchable light. This model has a white cabinet with a factory installed lock on the door. A NIST traceable thermometer provides an external readout of the current and high/low temperatures. We include an access port for users to connect their own monitoring equipment.

The FF7LBIPLUSADA is ETL-S listed to NSF-7 commercial standards. Additionally, it can be customized with a variety of options for optimum storage, including a USB data logger, self-closing door, digital thermostat, and more.

FEATURES

ADA compliant
32" high to fit under lower ADA compliant counters
Built-in capable
Make the best use of space by installing your appliance under the counter
Commercially approved
ETL-S listed to NSF standards for commercial use
Factory installed lock
Keyed security on the refrigerator door
Traceable thermometer
Thermometer provides external readout of current and high/low temperatures
Internal fan with heat sink
Fan-forced cooling helps the unit stay evenly cooled from top to bottom
Automatic defrost
Reduced maintenance with auto defrost system
Adjustable glass shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Interior light
Turn the light on and off with a convenient rocker switch
Flat door liner
Easy to clean, with more depth for storage
Access port
Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
Adjustable thermostat
Manage the temperature with ease and accuracy
Fully finished white cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

DOWNLOADS

Download MSDS INFORMATION
R134a_safety_list.pdf
Download MSDS INFORMATION
Propylene_Glycol_SDS.pdf
