SPECIFICATIONS

Overview
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.25" (82 cm)
Width	23.63" (60 cm)
Depth	23.5" (60 cm)
Depth with Handle	24.75" (63 cm)
Depth with door at 90°	45.5" (116 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	Stainless Steel
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Sanitation	ETL-S
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Shipping Weight	104.0 lbs. (47 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
Refrigerator Features
Door Swing	RHD
Reversible	Factory Reversible
Shelf Type	Wire
Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Dial
Refrigerant Type	R134a
Refrigerant Amount	1.8oz.
High Side PSI	285.0
Low Side PSI	88.0
Level Legs Qty	4
Interior Light	Yes
Dimensions
Interior Height	26.25" (67 cm)
Interior Width	21.0" (53 cm)
Interior Depth	17.75" (45 cm)
Compressor Step Height	5.5" (14 cm)
Compressor Step Width	21.0" (53 cm)
Compressor Step Depth	5.5" (14 cm)

AVAILABLE UPGRADES

Interior

LockBox24 Interior lift-up compartment with combination lock for use in FF7 or FFAR10 models	FCGP - Fan w/Gel Packs Internal fan with gel packs included for a stabilized interior
FC - Internal Fan Internal fan for even temperature distribution throughout the unit interior

Exterior

DL2 Temperature Logger USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout	TT Thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	DT Digital Thermostat Install a digital thermostat with external readout for precise temperature management
Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations	SS Hinges Stainless steel top and bottom hinges
SCD Self-Closing Door Protect interior contents and reduce energy waste with the Self Closing Door Option	ODA Open Door Alarm Add an open door alarm to audibly buzz when the door is left ajar.
LHD Door reversal to left hand swing	Latch Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK Stainless steel kickplate factory installed	HUM Humidity Sensor Humidity sensor with min/max readout
HG Cord Add a hospital grade cord equipped with green dot plug with the HG suffix	DL1 Temperature Logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Agion Door Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface

Lock

L Lock Add a single key lock to the door with the L option	KEYPAD Battery-powered keypad lock installed for keyless security
AC Keypad Keypad lock powered by appliance power cord for keyless security

California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

FF7BISSHVADA

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

Made in Europe and meets NSF-7 commercial standards

32.25" H x 23.63" W x 23.5" D

OVERVIEW

Commercially approved for use in foodservice establishments
32" height allows installation under lower ADA compliant counters
Flexible design allows built-in or freestanding use in 24" spaces
Stainless steel door and sleek handle add modern luxury to any setting
Automatic defrost minimizes user maintenance
Full 5.5 cu.ft. capacity inside a convenient 24" footprint
Made in Europe

WHERE TO BUY

Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The commercially listed FF7BIADA Series features 24" wide all-refrigerators designed for built-in installation under lower ADA compliant counters.

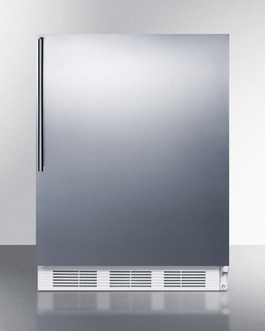

The FF7BISSHVADA is a 32" high all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. The front-breathing design allows built-in use under counters, while the fully finished cabinet also lets this unit be used freestanding. This model has a white cabinet and stainless steel wrapped door. A thin handle with a 14mm diameter completes the sleek, modern look.

Inside, the FF7BISSHVADA utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable wire shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial.

The FF7BISSHVADA is ETL-S listed to NSF-7 standards for use in commercial establishments. For more finish options, browse the entire FF7BIADA Series.

NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.

FEATURES

ADA compliant 32 inch height fits under standard ADA counters	Commercially approved ETL-S listed to NSF-7 Standards for use in commercial establishments
Slim undercounter dimensions Less than 24 inches wide with a full 5.5 c.f. capacity	Built-in capable Make the best use of space by installing your appliance under the counter and flush with other cabinets
Fully finished white cabinet Allows the refrigerator to be used freestanding	Stainless steel door Durable design with lasting elegance
Professional stainless steel handle Thin 14mm diameter on vertical stainless steel handle	Automatic defrost Reduced user maintenance with automatic defrost
One piece interior liner Easy clean-up with a seamless liner that won't hold a mess in hidden crevices	Adjustable shelves Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Deep shelf space Interior accommodates large trays up to 19 1/2" x 15 1/2"	Interior light on rocker switch Turn the light on when you need it and off when you're done with a convenient rocker switch
Adjustable thermostat Dial thermostat located inside for easy temperature management	Hidden evaporator Cold wall design with hidden evaporator and seamless interior
100% CFC free Environmentally friendly design without ozone-damaging chemicals
