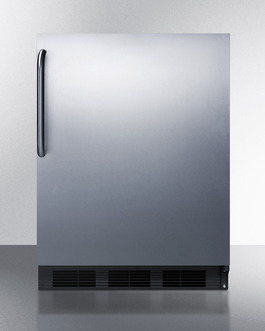

FF7BCSS

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

Made in Europe and meets NSF-7 commercial standards

33.25" H x 23.75" W x 23.5" D

(84cm H x 60cm W x 60cm D)

OVERVIEW

Commercially approved for use in foodservice establishments
Complete stainless steel construction adds luxury to any setting
Automatic defrost minimizes user maintenance
Includes adjustable glass shelves for spill-proof storage
Flexible design allows built-in or freestanding use in 24" spaces
Made in Europe

SPECIFICATIONS

Overview
Height of Cabinet	32.63" (83 cm)
Height to Hinge Cap	33.25" (84 cm)
Width	23.75" (60 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.25" (64 cm)
Depth with door at 90°	45.5" (116 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	Stainless Steel
Cabinet	Stainless Steel
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Sanitation	ETL-S
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Shipping Weight	148.0 lbs. (67 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
Refrigerator Features
Door Swing	RHD
Reversible	Factory Reversible
Height Adjustable	1
Shelf Type	Glass
Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Dial
Fan Type	Exterior
Refrigerant Type	R134a
Refrigerant Amount	1.8oz.
High Side PSI	285.0
Low Side PSI	70.0
Level Legs Qty	4
Interior Light	Yes
Dimensions
Interior Height	27.75" (70 cm)
Interior Width	20.0" (51 cm)
Interior Depth	17.5" (44 cm)
Compressor Step Height	7.0" (18 cm)
Compressor Step Width	20.0" (51 cm)
Compressor Step Depth	6.0" (15 cm)

AVAILABLE UPGRADES

Interior

LockBox24 Interior lift-up compartment with combination lock for use in FF7 or FFAR10 models	FCGP - Fan w/Gel Packs Internal fan with gel packs included for a stabilized interior
FC - Internal Fan Internal fan for even temperature distribution throughout the unit interior

Lock

L-Installed Lock Add a single key lock to the door with the L option	KEYPAD Battery-powered keypad lock installed for keyless security
AC Keypad Keypad lock powered by appliance power cord for keyless security

Exterior

DL2 Temperature Logger USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout	TT Thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	Legs 6" high leveling legs
DT Digital Thermostat Install a digital thermostat with external readout for precise temperature management	CAS6 6" casters 6" high NSF listed casters
CAS3 3" casters 3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish	Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
SS Hinges Stainless steel top and bottom hinges	SCD Self-Closing Door Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA Open Door Alarm Add an open door alarm to audibly buzz when the door is left ajar.	LHD Door reversal to left hand swing
Latch Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.	SSK Stainless steel kickplate factory installed
HUM Humidity Sensor Humidity sensor with min/max readout	HG Cord Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 Temperature Logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac	Agion Door Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface

California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

WHERE TO BUY

DESCRIPTION

Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The commercially listed FF7BI Series features high performing, perfectly sized all-refrigerators designed for built-in use under counters.

The FF7BCSS features a front-breathing design that allows built-in installation under counters, while the fully finished cabinet also enables freestanding use. The 24" footprint is ideal for many common cutouts, while the full 5.5 cu.ft. interior provides more storage than most units in this size class. This unit comes in a fully wrapped stainless steel finish. A curved towel bar handle completes the professional look.

Inside, the FF7BCSS utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable glass shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial.

The FF7BCSS is ETL-S listed to NSF-7 standards for use in commercial establishments. For more finish options, browse the entire FF7BI Series.

NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.

FEATURES

Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments

Slim undercounter dimensions
Less than 24 inches wide to fit tight spaces

Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinets

Fully finished cabinet
Allows the refrigerator to be used freestanding

Complete stainless steel construction
Durable design with lasting elegance

Professional towel bar handle
Curved handle in brushed stainless steel offers a sturdy grip with professional elegance

Automatic defrost
Reduced user maintenance with automatic defrost

Adjustable glass shelves
Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

One piece interior liner
Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Deep shelf space
Interior accommodates large trays up to 19 1/2" x 15 1/2"

Adjustable thermostat
Dial thermostat located inside for easy temperature management

Hidden evaporator
Cold wall design with hidden evaporator and seamless interior

100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet	32.63" (83 cm)
Height to Hinge Cap	33.25" (84 cm)
Width	23.75" (60 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.25" (64 cm)
Depth with door at 90°	45.5" (116 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	Stainless Steel
Cabinet	Stainless Steel
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Sanitation	ETL-S
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Shipping Weight	148.0 lbs. (67 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
Refrigerator Features
Door Swing	RHD
Reversible	Factory Reversible
Height Adjustable	1
Shelf Type	Glass
Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Dial
Fan Type	Exterior
Refrigerant Type	R134a
Refrigerant Amount	1.8oz.
High Side PSI	285.0
Low Side PSI	70.0
Level Legs Qty	4
Interior Light	Yes
Dimensions
Interior Height	27.75" (70 cm)
Interior Width	20.0" (51 cm)
Interior Depth	17.5" (44 cm)
Compressor Step Height	7.0" (18 cm)
Compressor Step Width	20.0" (51 cm)
Compressor Step Depth	6.0" (15 cm)

AVAILABLE UPGRADES

Interior

LockBox24 Interior lift-up compartment with combination lock for use in FF7 or FFAR10 models	FCGP - Fan w/Gel Packs Internal fan with gel packs included for a stabilized interior
FC - Internal Fan Internal fan for even temperature distribution throughout the unit interior

Lock

L-Installed Lock Add a single key lock to the door with the L option	KEYPAD Battery-powered keypad lock installed for keyless security
AC Keypad Keypad lock powered by appliance power cord for keyless security

Exterior

DL2 Temperature Logger USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout	TT Thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	Legs 6" high leveling legs
DT Digital Thermostat Install a digital thermostat with external readout for precise temperature management	CAS6 6" casters 6" high NSF listed casters
CAS3 3" casters 3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish	Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
SS Hinges Stainless steel top and bottom hinges	SCD Self-Closing Door Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA Open Door Alarm Add an open door alarm to audibly buzz when the door is left ajar.	LHD Door reversal to left hand swing
Latch Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.	SSK Stainless steel kickplate factory installed
HUM Humidity Sensor Humidity sensor with min/max readout	HG Cord Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 Temperature Logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac	Agion Door Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface

DOWNLOADS

BROCHURE w/ DRAWINGS
FF7BCSS.pdf

TECHNICAL DRAWING (.dwg)
FF7CSS_FF7BCSSFEFRIGERATORA-C2000.dwg

MSDS INFORMATION
R134a_safety_list.pdf

USE & CARE
Manual_FF6BI_FF7BI__SCR600LBI_SCR600BLBI_Engl_French.pdf
