SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.13" (64 cm)
Depth with door at 90° 46.0" (117 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 113.0 lbs. (51 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Crisper Qty 1
Crisper Finish Opaque
Crisper Cover Glass
Shelf Type Wire
Shelf Qty 3
Full Door Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.8oz.
High Side PSI 285.0
Low Side PSI 70.0
Level Legs Qty 4
Interior Light Yes
Dimensions
Interior Height 27.75" (70 cm)
Interior Width 20.0" (51 cm)
Interior Depth 17.5" (44 cm)
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 20.0" (51 cm)
Compressor Step Depth 6.0" (15 cm)

AVAILABLE UPGRADES

Exterior
DL2 Temperature Logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DT Digital Thermostat
Install a digital thermostat with external readout for precise temperature management
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
SS Hinges
Stainless steel top and bottom hinges
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Agion Door
Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
KEY
Extra keys available for purchase
Interior
FCGP - Fan w/Gel Packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

FF6L7SSTBADA

Estar commercial 0f84a2c117405e1b03d7d709b4257b0b4e1fa195edae4c1fa459461c57944b1e
Commercial meets nsf 57f181a562ef64be646d83b66028b1c5c2f384b45328a17b7b74a5f0cdc84c8e
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

Made in Europe and meets NSF-7 commercial standards

32.25" H x 23.63" W x 23.5" D

OVERVIEW

WHERE TO BUY

Invalid Format
Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The commercially listed FF67ADA Series features 24" wide all-refrigerators sized for freestanding use in ADA compliant settings.

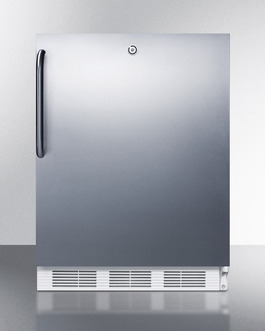

The FF6L7SSTBADA is a 32" high all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. Designed for freestanding use, this model has a white cabinet and stainless steel wrapped door. A curved towel bar handle completes the professional look and a factory installed front lock offers convenient security.

Inside, the FF6L7SSTBADA utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior. Adjustable wire shelves allow users to reconfigure the interior for optimum storage. Additional features include automatic interior lighting, door storage, and a crisper drawer. This unit includes an adjustable dial thermostat.

The FF6L7SSTBADA is ETL-S listed to NSF-7 standards for use in commercial establishments and is ENERGY STAR certified as a commercial refrigerator. For a built-in version of this unit, see the FF6LBI7SSTBADA. For more finish options, browse the entire FF67ADA Series.

NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.

FEATURES

ENERGY STAR certified commercial performance
Meets ENERGY STAR standards as a commercial refrigerator
Commercially approved
ETL-S listed to NSF-7 commercial standards
ADA compliant
32" height for use in settings complying with ADA guidelines for lower counter height
Slim counter height dimensions
Less than 24 inches wide with a full 5.5 c.f. capacity
Fully finished white cabinet
Allows the unit to be used freestanding
Stainless steel wrapped door
Durable design with lasting elegance
Professional towel bar handle
Curved handle in brushed stainless steel offers a sturdy grip with professional elegance
Factory installed lock
Keyed lock offers added security
Automatic defrost
Reduced maintenance with auto defrost system
Hidden evaporator
Cold wall design with hidden evaporator and seamless interior
One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Adjustable shelves
Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Crisper
Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
Door shelves
Store large bottles right on the door for easy access
Adjustable thermostat
Dial thermostat located inside for easy temperature management
Interior light
Automatically illuminates when you open the door
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
