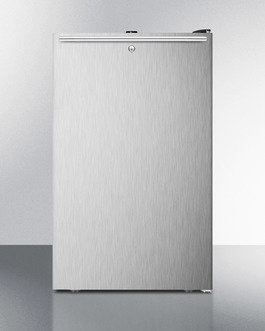

20" Wide Built-In All-Refrigerator, ADA Compliant

SKU: FF521BLBI7SSHHADA
Factory installed lock located towards the top of the door for convenient security
DISCONTINUED- REPLACED BY FF195ADA
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
32.5" H x 19.25" W x 21.38" D
(83cm H x 49cm W x 54cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.5" (83 cm)
Width 19.25" (49 cm)
Depth 21.38" (54 cm)
Depth with door at 90° 39.5" (100 cm)
Capacity 4.1 cu.ft. (116 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 64.0 lbs. (29 kg)
Shipping Weight 67.0 lbs. (30 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101035673
Refrigerator Features
Door Swing RHD
Reversible Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.75oz.
High Side PSI 205.0
Low Side PSI 103.0
Level Legs Qty 2
Interior Light Yes
Dimensions
Interior Height 28.5" (72 cm)
Interior Width 15.75" (40 cm)
Interior Depth 18.0" (46 cm)
Compressor Step Height 8.0" (20 cm)
Compressor Step Width 17.0" (43 cm)
Compressor Step Depth 6.75" (17 cm)

Exterior
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Slim 20" width

Full 4.1 cu.ft. capacity inside conveniently slim footprint

ADA compliant

32" high to fit under lower ADA compliant counters

Commercially listed

ETL-S listed to NSF standards for commercial use

Built-in capable

Make the best use of space by installing your appliance under the counter

Fully finished black cabinet

Allows the unit to be used freestanding

Stainless steel wrapped door

Durable 304 grade wrapping

Professional horizontal handle

Stainless steel handle mounted horizontally for a modern look

Factory installed lock

Top-mounted for convenient security

Automatic defrost

Reduced maintenance with auto defrost system

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

Adjustable glass shelves

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Crisper drawer

Get the longest life and best taste out of produce by storing greens in a bottom crisper

Interior light

Turn the light on and off with a convenient rocker switch

Flat door liner

Easy to clean, with more depth for storage

Adjustable thermostat

Manage the temperature with ease and accuracy

Matching freezer available

Pair with FS408BLBI7SSHHADA for a complete undercounter set

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

Accucold by Summit Appliance offers a wide range of ADA compliant all-refrigerators for general purpose storage. The commercially listed FF521BLBI7ADA Series features high performing 20" wide, 32" high all-refrigerators designed for built-in use under counters in commercial settings following ADA guidelines for lower counter height.

The ETL-S listed FF521BLBI7SSHHADA features a full 4.1 cu.ft. capacity. It has a black cabinet and 304 grade stainless steel wrapped door complete with a sleek horizontal handle. A factory installed lock is located at the top of the door for convenient security. Designed for built-in use, the FF521BLBI7SSHHADA can also be used freestanding.

Inside, this auto defrost refrigerator includes three adjustable glass shelves. A bottom crisper drawer offers added storage options. Additional features include an adjustable thermostat and a switchable interior light.

At just 20" wide, the ADA compliant FF521BLBI7SSHHADA is ideal for any space in need of reliable refrigeration and can be perfectly matched with our FS408BLBI7SSHHADA all-freezer.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
