Height of Cabinet 33.5" (85 cm)
Height to Hinge Cap 34.0" (86 cm)
Width 19.25" (49 cm)
Depth 21.38" (54 cm)
Depth with door at 90° 39.5" (100 cm)
Capacity 4.1 cu.ft. (116 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 64.0 lbs. (29 kg)
Shipping Weight 85.0 lbs. (39 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Height Adjustable 1
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Shelf Type Wire
Shelf Qty 2
Full Door Shelf Qty 1
Half Door Shelf Qty 2
Adjustable Shelves Yes
Can Storage Yes
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.9oz.
High Side PSI 250.0
Low Side PSI 110.0
Level Legs Qty 2
Interior Light Yes
Interior Height 28.5" (72 cm)
Interior Width 15.75" (40 cm)
Interior Depth 18.0" (46 cm)
Compressor Step Height 8.0" (20 cm)
Compressor Step Width 16.5" (42 cm)
Compressor Step Depth 5.5" (14 cm)


DL2 Temperature Logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
CAS6 6" casters
6" high NSF listed casters
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
Door reversal to left hand swing
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HUM Humidity Sensor
Humidity sensor with min/max readout
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Agion Door
Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Extra keys available for purchase
FCGP - Fan w/Gel Packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior

California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

FF511LBISSTB Matching freezer c541dc042b05394e621422d903b7fff8e778ba7d81d6260ff2a91729ef38232e

Factory installed lock located towards the top of the door for convenient security

34.0" H x 19.25" W x 21.38" D



Invalid Format

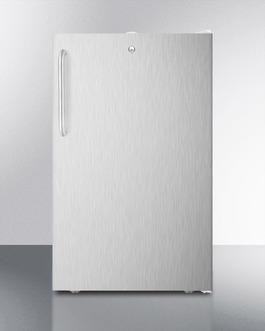

Accucold by Summit Appliance offers a wide range of undercounter all-refrigerators for general purpose storage. The FF511LBI Series features high performing 20" wide all-refrigerators designed for built-in use under counters.

The FF511LBISSTB features a full 4.1 cu.ft. capacity. It has a white cabinet and 304 grade stainless steel wrapped door complete with a towel bar handle in brushed stainless steel. A factory installed lock is located at the top of the door for convenient security. Designed for built-in use, the FF511LBISSTB can also be used freestanding.

Inside, this auto defrost refrigerator includes three adjustable wire shelves. A bottom crisper drawer offers added storage options. Additional features include an adjustable thermostat and a switchable interior light.

At just 20" wide, the FF511LBISSTB is ideal for any space in need of reliable refrigeration and can be perfectly matched with our FS407LBISSTB all-freezer.


Slim 20" width
Full 4.1 cu.ft. capacity inside conveniently slim footprint
Built-in capable
Make the best use of space by installing your appliance under the counter
Factory installed lock
Top-mounted for convenient security
Stainless steel wrapped door
Durable 304 grade wrapping
Professional towel bar handle
A curved stainless steel handle provides generous room for a comfortable grip
Fully finished white cabinet
Allows the unit to be used freestanding
Automatic defrost
Reduced maintenance with auto defrost system
Adjustable shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Crisper drawer
Get the longest life and best taste out of produce by storing greens in a bottom crisper
Flat door liner
Easy to clean, with more depth for storage
Interior light
Turn the light on and off with a convenient rocker switch
Adjustable thermostat
Manage the temperature with ease and accuracy
Matching freezer available
Combine any FF511LBISSTB with a matching FS407LBISSTB for a complete undercounter set
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
