SPECIFICATIONS

Overview
Height of Cabinet 33.5" (85 cm)
Height to Hinge Cap 34.0" (86 cm)
Width 19.25" (49 cm)
Depth 21.38" (54 cm)
Depth with Handle 23.0" (58 cm)
Depth with door at 90° 39.5" (100 cm)
Capacity 4.1 cu.ft. (116 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 64.0 lbs. (29 kg)
Shipping Weight 85.0 lbs. (39 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Height Adjustable 1
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Fan Type Interior
Refrigerant Type R134a
Refrigerant Amount 1.75oz.
High Side PSI 205.0
Low Side PSI 103.0
Level Legs Qty 2
Interior Light Yes
Dimensions
Interior Height 28.5" (72 cm)
Interior Width 15.75" (40 cm)
Interior Depth 18.0" (46 cm)
Compressor Step Height 8.0" (20 cm)
Compressor Step Width 17.0" (43 cm)
Compressor Step Depth 6.75" (17 cm)

AVAILABLE UPGRADES

Exterior
DT Digital Thermostat
Install a digital thermostat with external readout for precise temperature management
DL2 Temperature Logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
CAS6 6" Casters
6" high NSF listed casters
CAS3 3" Casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HUM Humidity Sensor
Humidity sensor with min/max readout
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Agion Door
Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
KEY
Extra keys available for purchase


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

FF511LBIMED Matching freezer c541dc042b05394e621422d903b7fff8e778ba7d81d6260ff2a91729ef38232e

Includes NIST calibrated high/low temperature alarm

34.0" H x 19.25" W x 21.38" D

OVERVIEW

WHERE TO BUY

Invalid Format
Accucold by Summit Appliance offers the MED Series all-refrigerators, a complete line that comes fully featured for stabilized temperature performance for use in medical, scientific, pharmaceutical, and laboratory institutions.

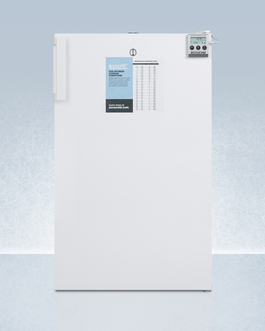

The FF511LBIMED is a 20” wide all-refrigerator designed for built-in use under counters. It uses automatic defrost operation complete with an internal fan and heat sink for even cold air distribution throughout the 4.1 cu.ft. interior. The door includes a front lock and high temperature warning alarm that also displays the current and high/low temperatures. Additional features include an interior light, adjustable shelves, and hospital grade cord with a ‘green dot’ plug for added safety in high traffic areas.

The FF511LBIMED can be used built-in or freestanding and paired with the matching FS407LBIMED all-freezer.

FEATURES

Slim 20" width
Full 4.1 cu.ft. capacity inside conveniently slim footprint
Built-in capable
Make the best use of space by installing your appliance under the counter
Fully finished white cabinet
Allows the unit to be used freestanding
Factory installed lock
Keyed security on the refrigerator door
Automatic defrost
Reduced maintenance with auto defrost system
Internal fan with heat sink
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
High temperature alarm
Warns of temperature fluctuations and includes an external temperature readout on the door
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety
Adjustable shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Interior light
Turn the light on and off with a convenient rocker switch
Flat door liner
Easy to clean, with more depth for storage
Adjustable thermostat
Manage the temperature with ease and accuracy
Matching freezer available
Pair with FS407LBIMED for a complete undercounter set
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
