FF511L7MED
SHARE THIS PRODUCT
E-mail a Friend Print

SPECIFICATIONS

Overview
Height 33.5"
Height to Hinge Cap 34.0"
Width 19.25"
Depth 21.38"
Depth with Handle 23.0"
Depth with door at 90° 39.5"
Capacity 4.1 cu.ft.
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 64.0 lbs.
Shipping Weight 85.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Fan Type Interior
Refrigerant Type R134a
Refrigerant Amount 1.75oz.
High Side PSI 205.0
Low Side PSI 103.0
Level Legs Qty 2
Interior Light Yes
Dimensions
Interior Height 28.5"
Interior Width 15.75"
Interior Depth 18.0"
Compressor Step Height 8.0"
Compressor Step Width 17.0"
Compressor Step Depth 6.75"

AVAILABLE UPGRADES

Exterior
DL2 Temperature Logger
DL2
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HUM Humidity Sensor
Humidity sensor with min/max readout
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Lock
KEY
Extra keys available for purchase


California residents:
click here for information on Proposition 65

FF511L7MED

Commercial approved
This unit meets NSF standards and is designed for commercial use. It complies with the U.S. Department of Energy (DOE) standards for commercial energy usage, but may not meet DOE household standards. For information on its commercial sanitation listing, see Specifications.

33.5" H x 19.25" W x 21.38" D

OVERVIEW

WHERE TO BUY

Invalid Format

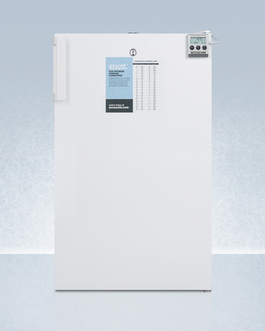

AccuCold FF511L7MED is a freestanding all-refrigerator specially equipped for use in medical and laboratory facilities and ETL-S listed to commercial NSF standards.

This 20” wide all-refrigerator offers 4.1 cu.ft. of storage capacity inside an auto defrost interior. This model includes an internal fan for an even cooling, with adjustable wire shelves and a switchable light.

The FF511L7MED has a white exterior with a top-mounted factory installed lock on the door. A high temperature alarm alerts users of temperature changes. This alarm is mounted on the door and provides a temperature readout for added convenience. This unit includes a hospital grade (‘green dot’) cord and plug for added protection in high traffic areas.

FEATURES

Commercially listed
ETL-S listed to NSF standards for commercial use
Slim 20" width
Full 4.1 cu.ft. capacity inside conveniently slim footprint
Automatic defrost
Reduced maintenance with auto defrost system
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Factory installed lock
Top-mounted for convenient security
Fully finished white cabinet
Allows the unit to be used freestanding
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety
High temperature alarm
Warns of temperature fluctuations and includes an external temperature readout on the door
Adjustable shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Flat door liner
Easy to clean, with more depth for storage
Interior light
Turn the light on and off with a convenient rocker switch
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

DOWNLOADS

Download BROCHURE w/ DRAWINGS
FF511L7MED.pdf
Download TECHNICAL DRAWING (.dwg)
FF511L_FF521BLREF.A-C2000.dwg
Download MSDS INFORMATION
R134a_MSDS_T.pdf
Download MSDS INFORMATION
PROPYLENE_GLYCOL_MSDS1.pdf
