FF433ESSSHV

Estar 7f5cdf36e294ad6062a30ecb97f27c51a3ee326dda0a99a822a1681b04a1047c

Full automatic defrost operation in both refrigerator and freezer section

33.38" H x 18.5" W x 20.25" D

(85cm H x 47cm W x 51cm D)

OVERVIEW

  • ENERGY STAR qualified with a more efficient system for lower energy use
  • Compact size with a slim 19" width fits well in hotels and offices
  • Stainless steel door with sleek professional handle
  • Door storage provides ample room for large bottles
  • Simple maintenance with auto defrost interior
  • Made in North America

SPECIFICATIONS

Overview
Height of Cabinet 33.0" (84 cm)
Height to Hinge Cap 33.38" (85 cm)
Width 18.5" (47 cm)
Depth 20.25" (51 cm)
Depth with door at 90° 37.25" (95 cm)
Capacity 3.6 cu.ft. (102 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 262.0kWh/year
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 85.0 lbs. (39 kg)
Shipping Weight 88.0 lbs. (40 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Refrigerator - Interior Height 16.5" (42 cm)
Refrigerator - Interior Width 16.0" (41 cm)
Refrigerator - Interior Depth 14.5" (37 cm)
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 4.5" (11 cm)
Freezer - Interior Width 12.75" (32 cm)
Freezer - Interior Depth 11.0" (28 cm)
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 2.5 oz.
High Side PSI 235.0
Low Side PSI 140.0
Level Legs 2
Compressor Step Height 6.25" (16 cm)
Compressor Step Width 16.0" (41 cm)
Compressor Step Depth 4.5" (11 cm)

AVAILABLE UPGRADES

Exterior
TT - Installed thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
TT - Installed thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
FA Rear - Fan assist
Fan assisted cooling for enclosed use in cubbies or cabinets, rear breathing
FA Front - Fan assist
Fan assisted cooling for enclosed use in cubbies or cabinets, front breathing
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

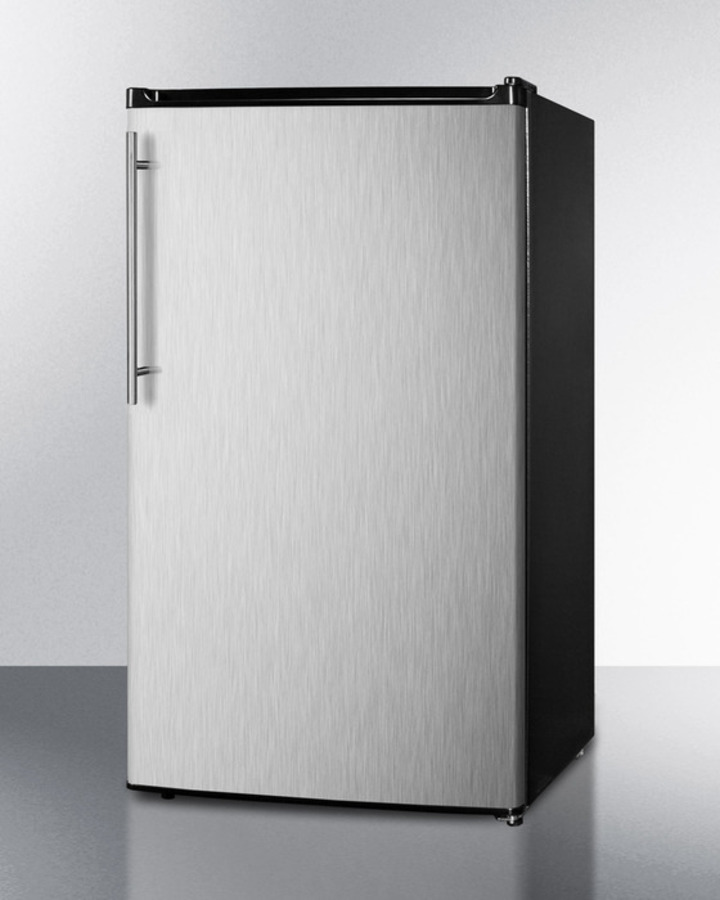

SUMMIT's FF43ESSSHV brings an ENERGY STAR qualified performance to a perfectly sized compact refrigerator-freezer.

The counter height FF433ESSSHV has a conveniently slim 18 ¾" width for an easy fit in any office, apartment, hotel, or other setting with limited space. The black cabinet includes a wrapped stainless steel door, with a sleek stainless steel handle completing the look. This unit is designed for freestanding use.

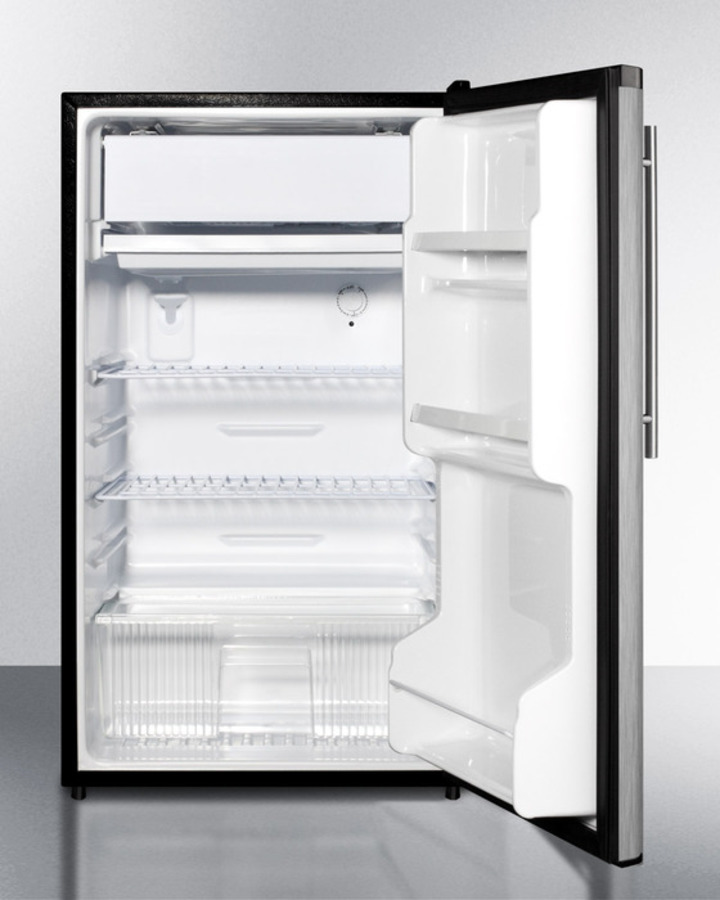

Inside, the FF433ESSSHV uses automatic defrost to reduce maintenance in both the refrigerator and freezer section. Adjustable shelves, door storage, and a crisper make storage simple inside the 3.6 cu.ft. interior.

All SUMMIT's FF433ES series units are built in North America and come with a proven history of reliability and customer satisfaction. An identical model is available with a white cabinet (see the FF412ESSSHV).

NOTE: Due to its timer-based auto defrost system, this model is not designed for vaccine or medical storage.

FEATURES

ENERGY STAR Qualified
Rated by the DOE to perform with more efficiency than standards require
CEE Tier I qualified
Efficient design meets CEE Tier I specifications, using 20% less energy than DOE standards require for this product category
Automatic defrost
No-frost system simplifies maintenance in both refrigerator and freezer
Fully finished black cabinet
Allows the unit to be used freestanding
Stainless steel wrapped door
Durable construction with a professional look
Professional handle
Thin (14mm diameter) stainless steel handle mounted vertically for a sleek look that matches many popular styles of cabinetry
Adjustable shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Crisper drawer
Get the longest life and best taste out of produce by storing greens in a bottom crisper
Door storage
Store tall bottles and condiments right on the door for convenient access
Adjustable thermostat
Dial thermostat located inside for easy temperature management
Slim counter height dimensions
Less than 19" wide for an easy fit
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 33.0" (84 cm)
Height to Hinge Cap 33.38" (85 cm)
Width 18.5" (47 cm)
Depth 20.25" (51 cm)
Depth with door at 90° 37.25" (95 cm)
Capacity 3.6 cu.ft. (102 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 262.0kWh/year
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 85.0 lbs. (39 kg)
Shipping Weight 88.0 lbs. (40 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Refrigerator - Interior Height 16.5" (42 cm)
Refrigerator - Interior Width 16.0" (41 cm)
Refrigerator - Interior Depth 14.5" (37 cm)
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 4.5" (11 cm)
Freezer - Interior Width 12.75" (32 cm)
Freezer - Interior Depth 11.0" (28 cm)
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 2.5 oz.
High Side PSI 235.0
Low Side PSI 140.0
Level Legs 2
Compressor Step Height 6.25" (16 cm)
Compressor Step Width 16.0" (41 cm)
Compressor Step Depth 4.5" (11 cm)

AVAILABLE UPGRADES

Exterior
TT - Installed thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
TT - Installed thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
FA Rear - Fan assist
Fan assisted cooling for enclosed use in cubbies or cabinets, rear breathing
FA Front - Fan assist
Fan assisted cooling for enclosed use in cubbies or cabinets, front breathing
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security

DOWNLOADS

Download
BROCHURE
FF433ESSSHV.pdf
Download
MSDS INFORMATION
MSDS_R134a_PS.pdf
Energy Guide
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
