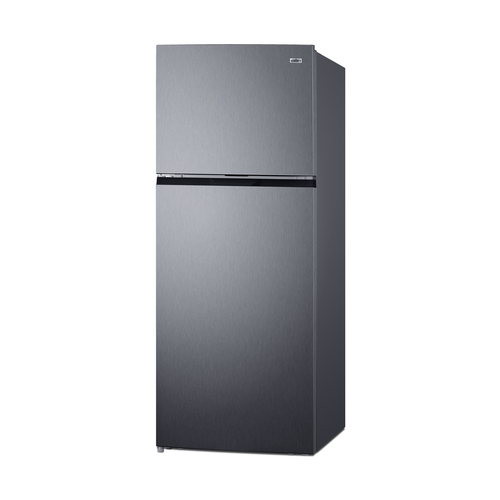

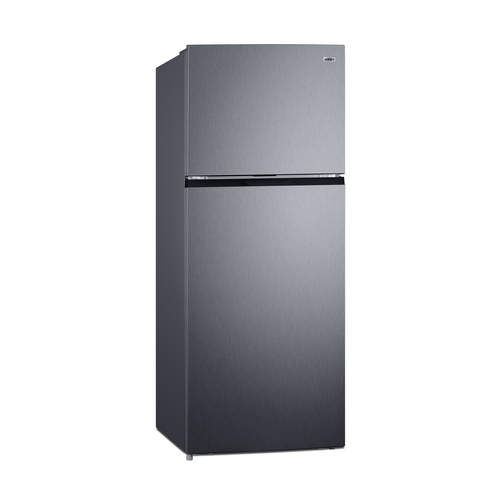

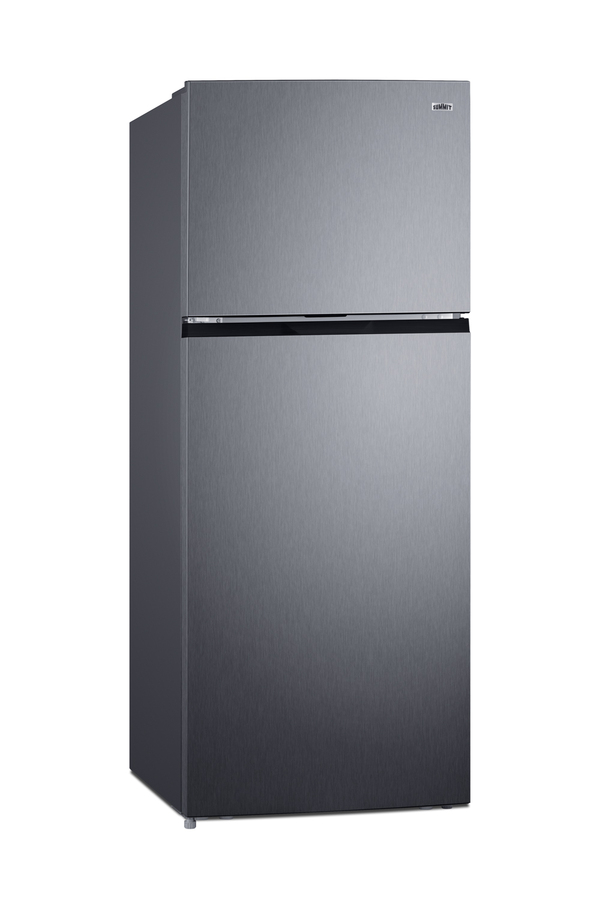

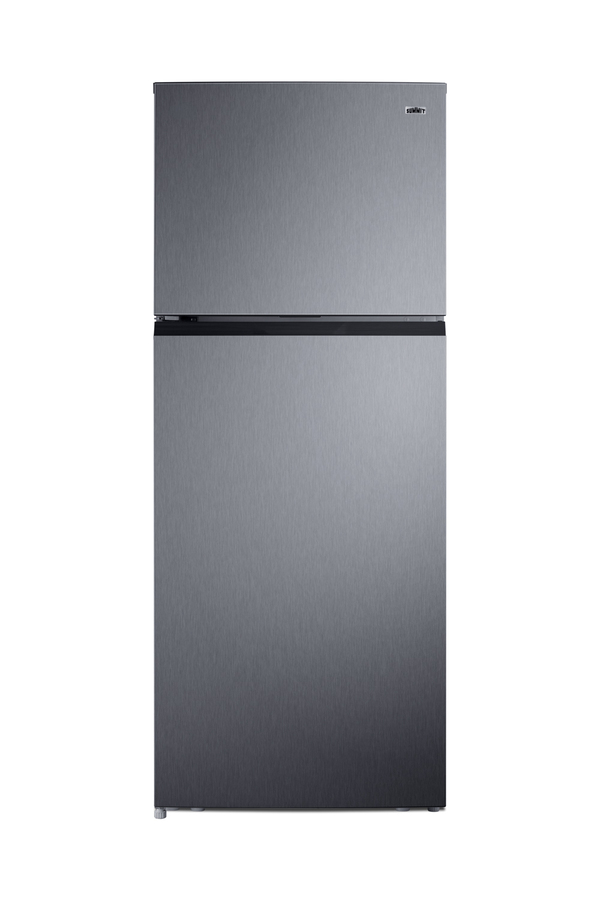

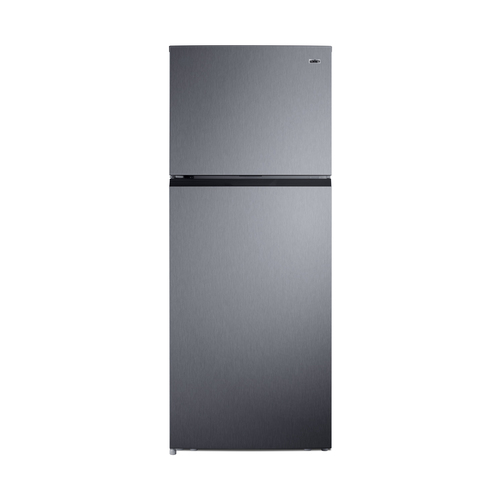

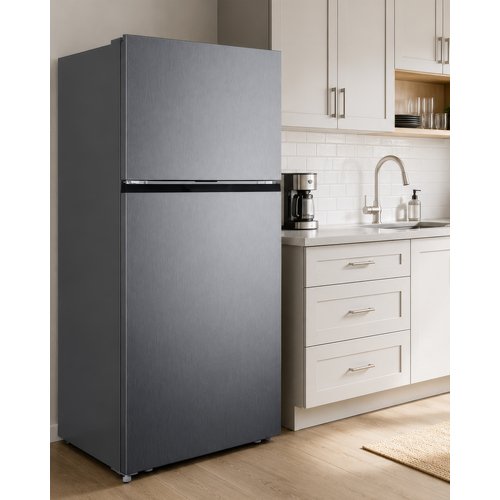

28" Wide Top Mount Refrigerator-Freezer

SKU: FF161PLLHD

Full capacity in a counter depth fit ideal for apartment kitchens

Estimated Time to Ship:

2 to 3 days

Find a dealer

Door Swing:
RHD LHD

Color: Stainless Steel Look

*Additional features may vary

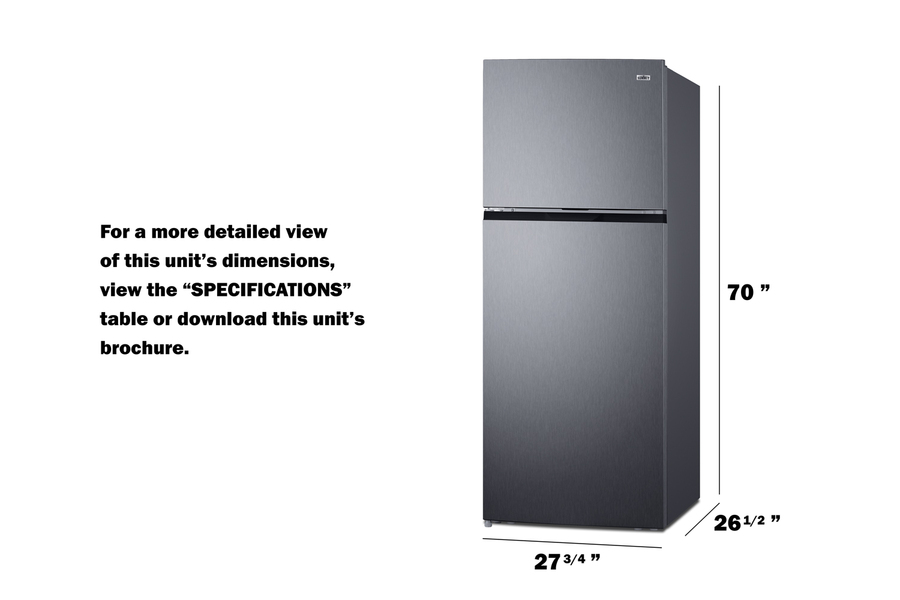

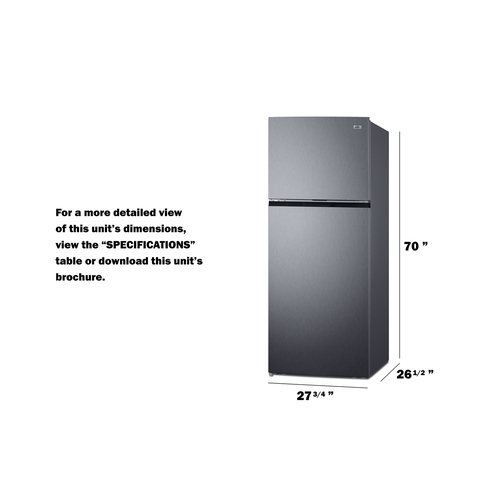

70.0" H x 27.75" W x 26.5" D
(178cm H x 70cm W x 67cm D)

Overview
Height of Cabinet	70.0" (178 cm)
Width	27.75" (70 cm)
Width with Door Open	28.5" (72 cm)
Depth	26.5" (67 cm)
Depth with Panel	166.0" (422 cm)
Depth with door at 90°	55.38" (141 cm)
Capacity	14.8 cu.ft. (419 L)
Defrost Type	Frost-Free
Door	Stainless Look
Cabinet	Gray
US Electrical Safety	CSA
Canadian Electrical Safety	CSA-C
Energy Usage/Year	370.0kWh/year
Amps	1.8
Plug Type	NEMA 5-15P
Voltage/Frequency	115 V AC/60 Hz
Weight	145.0 lbs. (66 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101162126
Refrigerator-Freezer
Door Swing	LHD
Adjustable Shelves	Yes
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Interior Light	Yes
Refrigerator - Interior Height	42.38" (108 cm)
Refrigerator - Interior Width	23.0" (58 cm)
Refrigerator - Interior Depth	21.0" (53 cm)
Refrigerator - Shelf Type	Glass
Refrigerator - Shelf Qty	3
Refrigerator - Full Door Shelves	3
Refrigerator - Refrigerant Type	R600a
Freezer - Interior Height	18.5" (47 cm)
Freezer - Interior Width	21.5" (55 cm)
Freezer - Interior Depth	15.5" (39 cm)
Freezer - Shelf Type	Glass
Freezer - Shelf Qty	1
Freezer - Full Door Shelves	2
Gallon Door Storage	Yes
Thermostat Type	Dial
Fan Type	Interior
Refrigerant Type	R600a
Compressor Step Height	8.5" (22 cm)
Compressor Step Width	23.0" (58 cm)
Compressor Step Depth	7.5" (19 cm)

28" Wide Top Mount Refrigerator-Freezer

Full-sized top-mount refrigerator-freezer with a spacious interior to add true convenience to any kitchen space

Counter depth fit

23 1/4" deep cabinet and overall 26 1/2" depth for an easy fit

Frost-free operation

No-frost convenience for reduced user maintenance

Dial controls

Both the refrigerator and freezer sections have a dial thermostat for individual, user convenient, temperature management

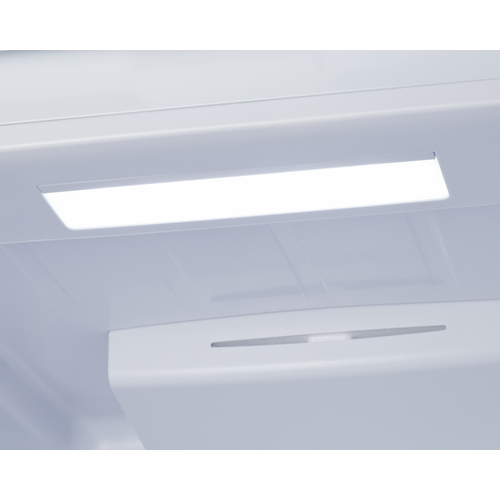

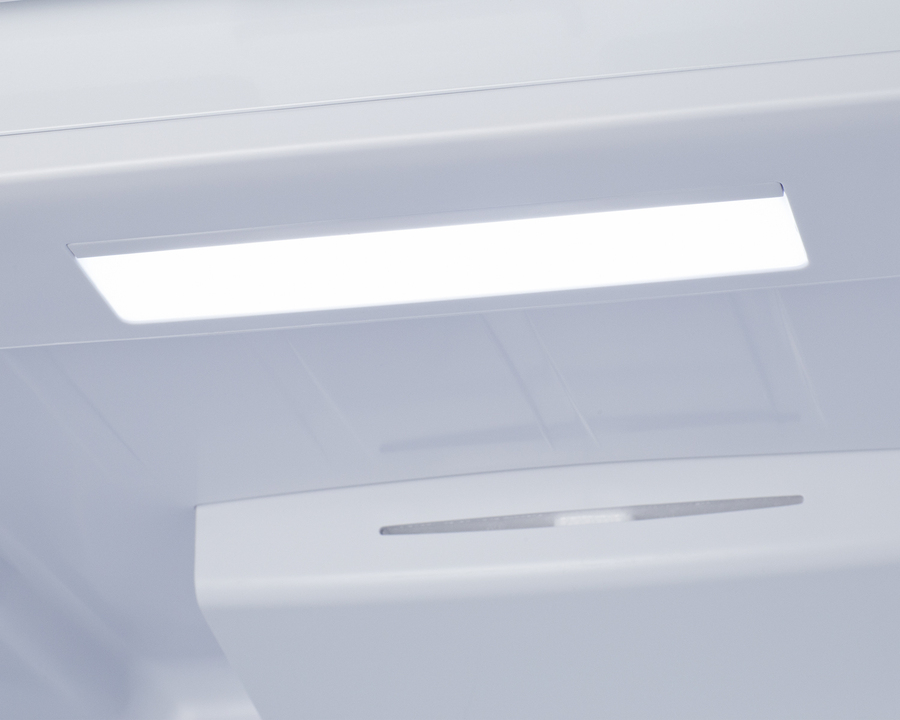

Interior light

Automatically illuminates when you open the door of the fresh food section

Adjustable glass shelves

Spill-proof shelving for easy cleanup and flexible storage in both the refrigerator and freezer compartments

Ample door storage

Multiple door shelves in both the refrigerator and freezer compartments offer convenient storage for condiments and bottles

Gallon-sized rack

Lower door shelf in a deeper fit ideal for storing larger beverage containers

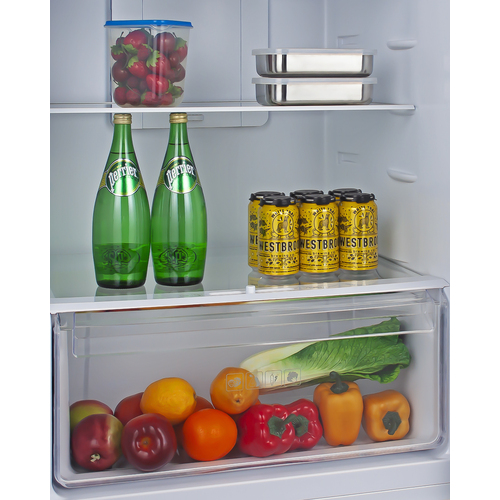

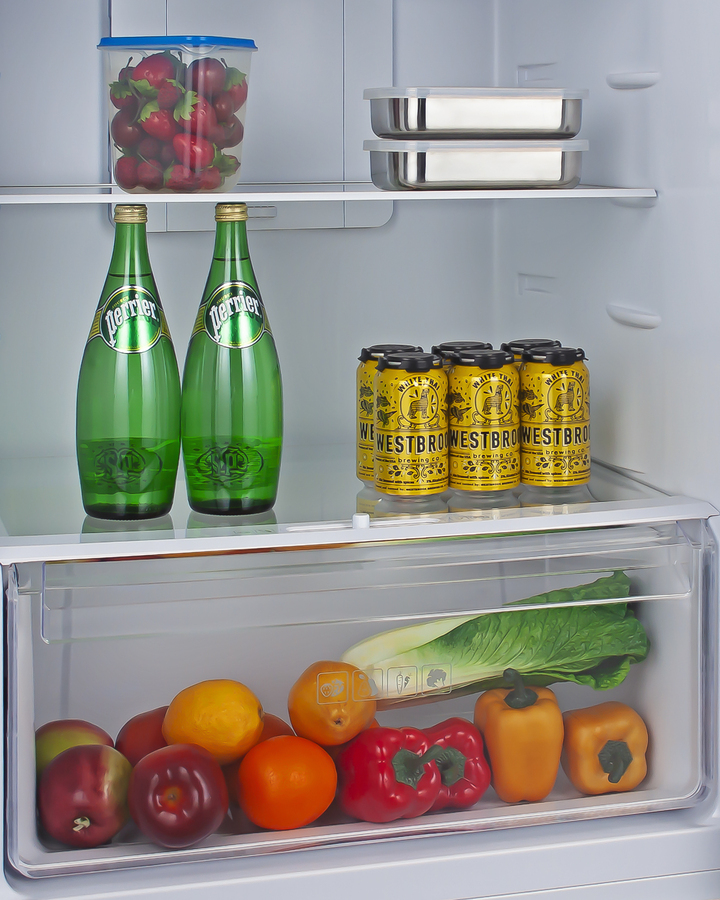

Fruit and vegetable crisper

Get the longest life and best taste out of produce by storing it in a convenient slide drawer with humidity control

Humidity gauge

Better manage the humidity in the crisper drawer for optimum produce storage

Modern stainless steel look

Enjoy the look of stainless steel with the convenience of a magnetic, fingerprint-resistant coating

Sealed back

No exposed coils for easier cleaning and a better fit

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

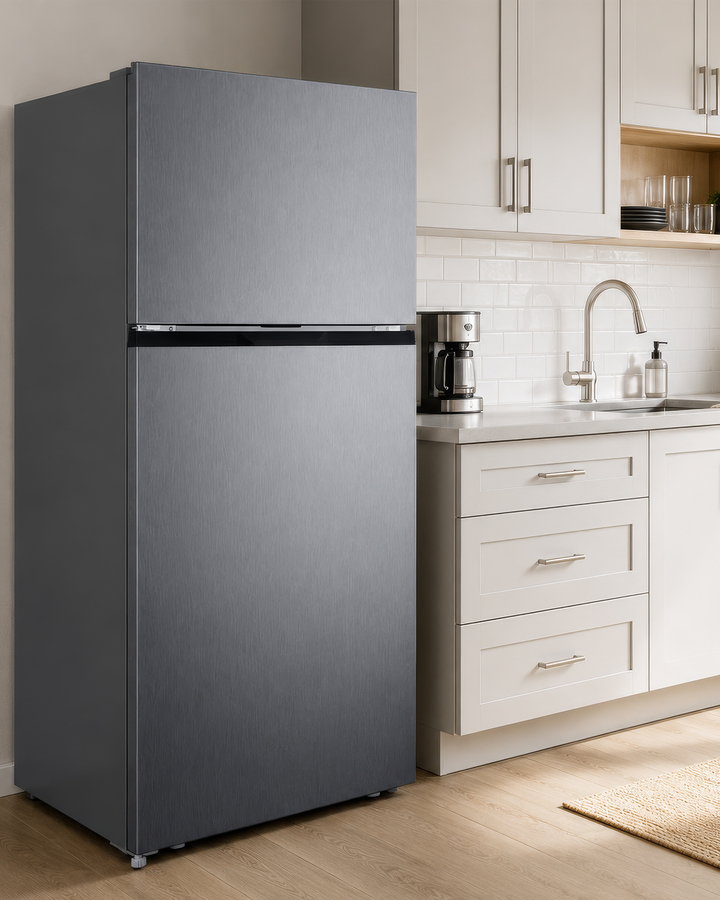

Summit's counter depth top-mount refrigerator-freezers are specially designed to bring modern style and true convenience to any kitchen.

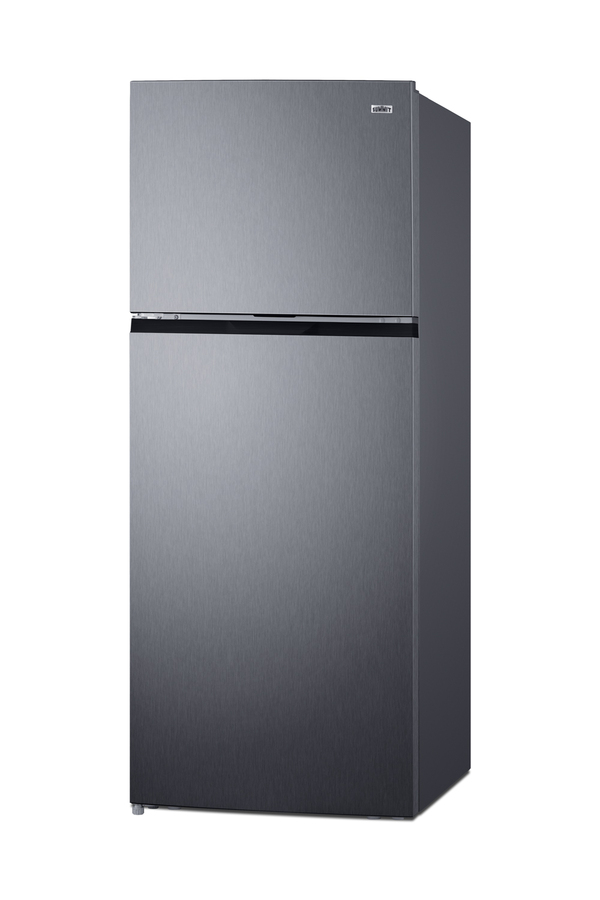

Model FF161PLLHD is a 28" wide top-mount refrigerator-freezer that offers nearly 15 cu.ft. of storage capacity.  The doors feature a modern stainless steel look in a magnetic, fingerprint-resistant finish. The textured gray cabinet creates a timeless look in any kitchen. This unit has a sealed rear and right-angle cord for a better fit.

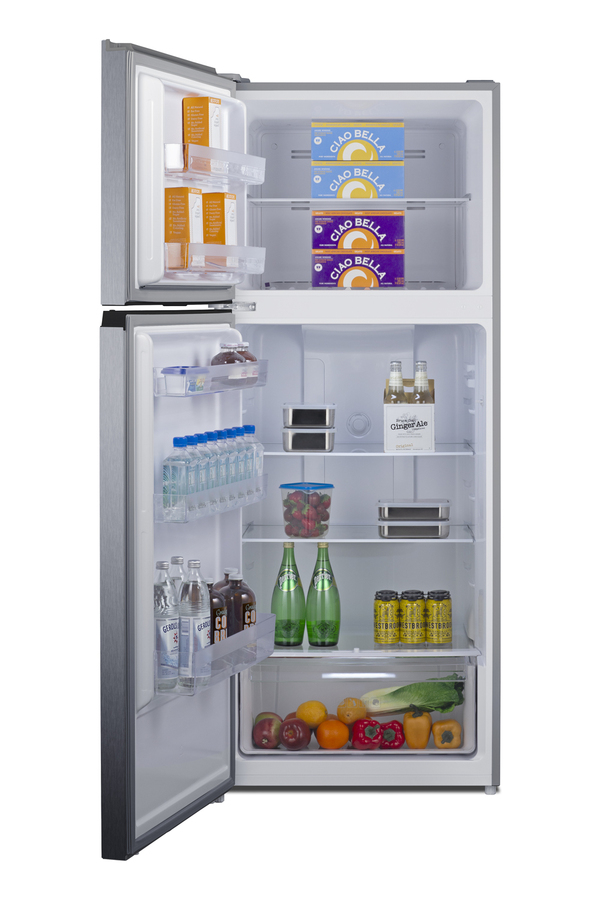

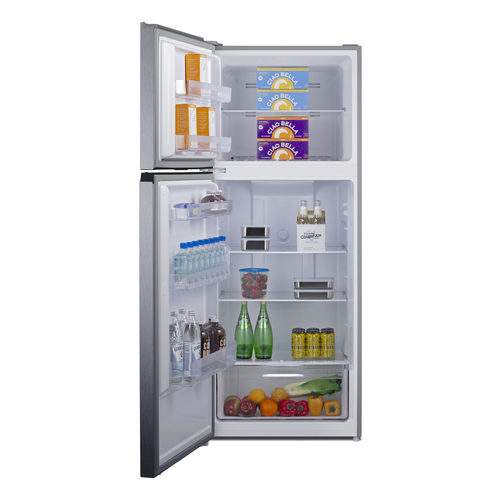

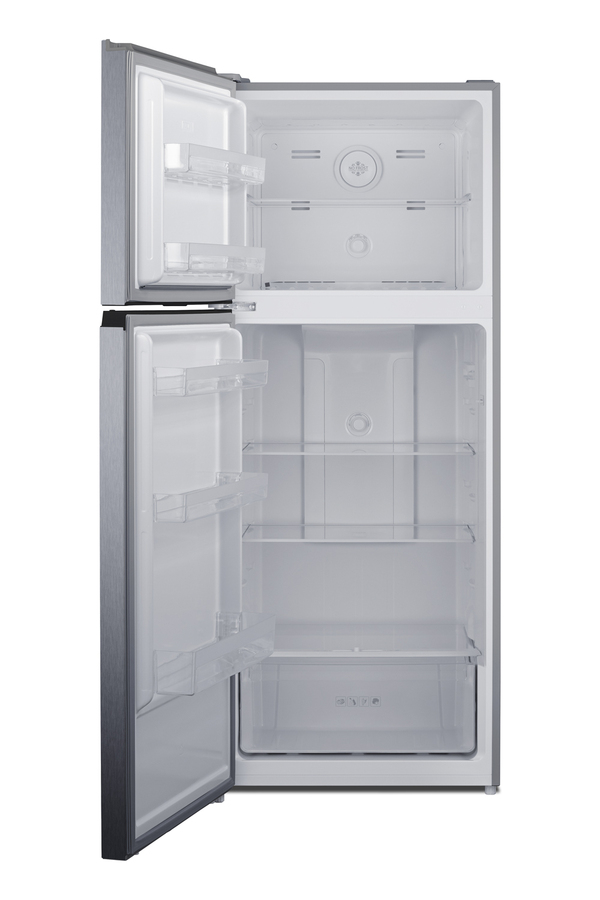

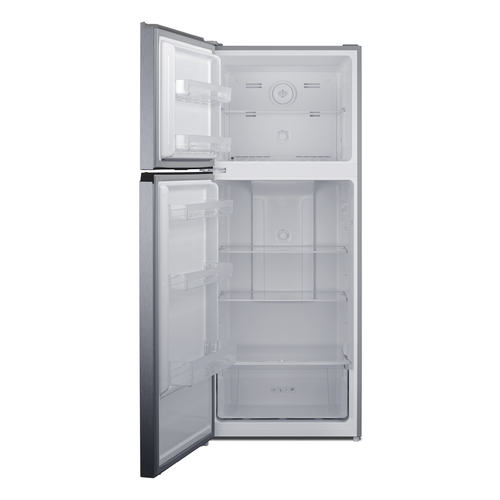

Inside, this refrigerator comes fully featured for frost-free storage. The fresh food section includes adjustable spill-proof glass shelves and a clear crisper with humidity control for optimum produce storage. Automatic LED lighting illuminates when the door is opened. Door storage includes a full gallon-sized rack and two additional shelves.

The freezer section offers plenty of storage capacity. Two door racks and a removable glass shelf make it easy to organize frozen items. Both the refrigerator and freezer sections have a basic dial thermostat allowing users to individually set and manage the temperature of each compartment.

Conveniently featured and perfectly sized, the FF161PLLHD is the ideal choice for apartments and other  kitchens looking for a reliable refrigerator-freezer. For this unit in a classic white finish, see model FF160WLHD.

BROCHURE
FF161PLLHD.pdf

TECHNICAL DRAWING (.dwg)
FF160W.dwg

ASSEMBLY DRAWING
FF160W-Assembly.pdf

USE & CARE
FF161PLLHD-User-Manual.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
