FF1532B
FF1538B

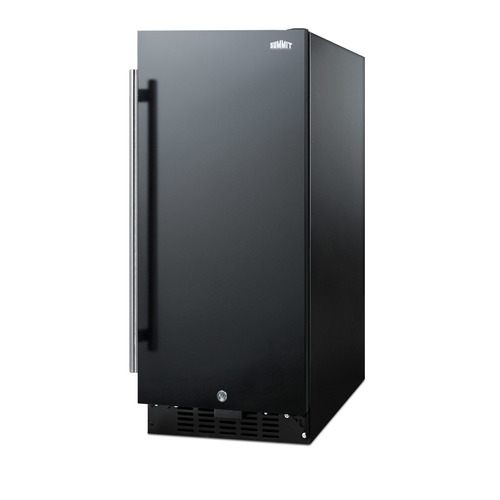

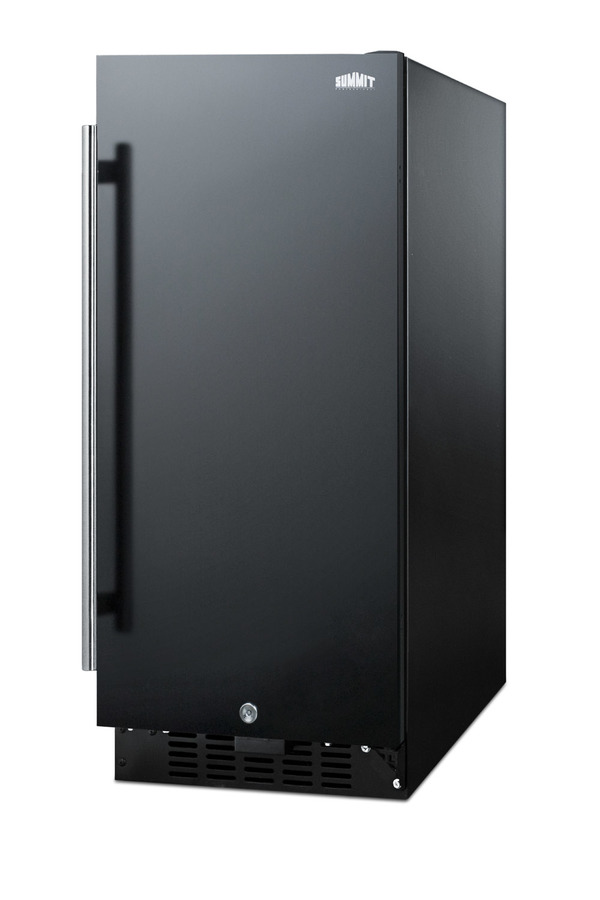

angle

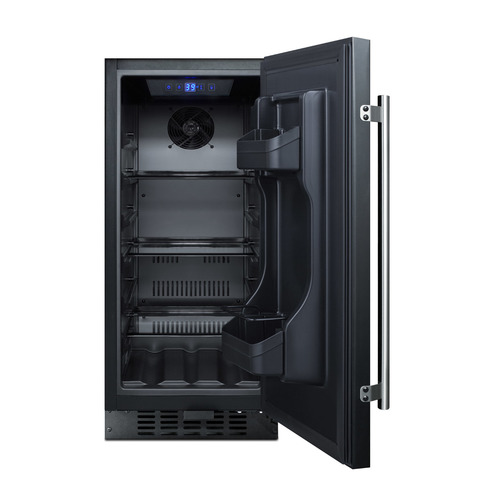

open

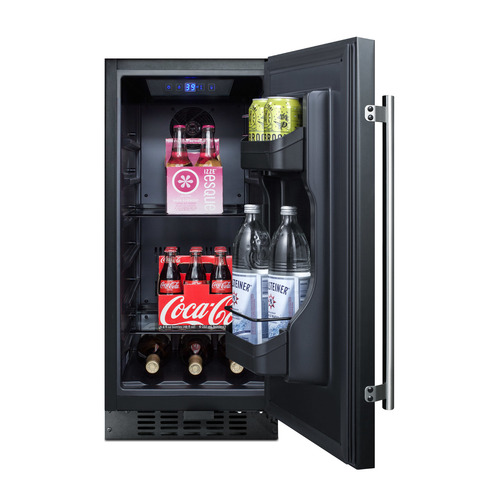

full
set
Stacked set
Stacking rack
SHARE THIS PRODUCT
Pinterest E-mail a Friend Print

SPECIFICATIONS

Overview
Height of Cabinet 34.0" (86 cm)
Width 14.75" (37 cm)
Depth 22.75" (58 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 36.25" (92 cm)
Capacity 3.0 cu.ft. (85 L)
Defrost Type Frost-Free
Door Black
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 255.0kWh/year
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 63.0 lbs. (29 kg)
Shipping Weight 77.0 lbs. (35 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Full Door Shelf Qty 2
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.64oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Dimensions
Interior Height 24.63" (63 cm)
Interior Width 12.0" (30 cm)
Interior Depth 17.63" (45 cm)
Compressor Step Height 3.13" (8 cm)
Compressor Step Width 12.0" (30 cm)
Compressor Step Depth 5.25" (13 cm)

AVAILABLE UPGRADES

Exterior
SSK
Stainless steel kickplate factory installed
LHD
Door reversal to left hand swing
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Lock
KEY
Extra keys available for purchase


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

FF1532B Matching freezer c541dc042b05394e621422d903b7fff8e778ba7d81d6260ff2a91729ef38232e

Delivery 9240a3e8870753a2ec143c34af2b405742ae73bfeb126dd29f201daa25ab8f11
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
Commercial home ea581a399e3ae77121f807aa081394156550222354be8f27504df77d2fff3a44
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

15" wide fit for home or commercial use

34.0" H x 14.75" W x 22.75" D

OVERVIEW

WHERE TO BUY

Invalid Format
SUMMIT's selection of built-in undercounter refrigeration includes uniquely sized 15" wide units for a slim fit with user-friendly convenience.

The FF1532B is frost-free all-refrigerator in a slim 15" width. The front-breathing system allows built-in installation, while the fully finished cabinet also allows freestanding use. It comes in a black exterior finish with a reversible door complete with a professional stainless steel handle. A factory installed lock offers added security.

Inside, the FF1532B includes adjustable glass shelves for easy storage.  Two door shelves are perfect for storing beverages and condiments, while the floor is specially slotted to hold wine bottles. LED lighting provides an attractive presentation inside the 3 cu.ft. interior. The digital thermostat features a readout in Celsius or Fahrenheit for easy and intuitive temperature control. This unit is ETL-S listed to NSF-7 commercial standards.

With ideal dimensions and advanced product features, the FF1532B is the perfect choice for unique kitchen spaces. This unit can be paired with the matching SCFF1533B all-freezer as a side-by-side set or combined with our StackRack.

FEATURES

Built-in capable
Make the best use of space by installing your appliance under the counter
Fully finished black cabinet
Allows the unit to be used freestanding
Factory installed lock
Keyed security on the door
Digital thermostat
Electronic controls for precise temperature management.
Digital display
Temperature readout can be shown in Celsius or Fahrenheit
LED lighting
Gentle illumination with an on/off switch
Frost-free operation
No-frost operation ensures reduced maintenance
Adjustable glass shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Door storage
Two chrome shelves offer the perfect storage solution for tall bottles and condiments
Reversible door
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
Professional handle
Stainless steel handle completes the professional look
Flush back
Space saving design that is easy to clean
CEE Tier I qualified
Efficient design meets CEE Tier I specifications, using 20% less energy than DOE standards require for this product category
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 96 hours
Multiple door finishes available
Can be ordered with a stainless steel wrapped door or with an integrated frame that accepts custom panels
Commercially approved
ETL-S listed to NSF-7 commercial standards
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
