FF1512SSIM

Estar efficient 2019 21469897ddbe8061093fd49334d7043d8d4328373a8fbe4f077dc9eb81d91f75

Ideal footprint offers full capacity in a counter depth fit

67.75" H x 27.63" W x 25.63" D

(172cm H x 70cm W x 65cm D)

OVERVIEW

  • ENERGY STAR certified for huge savings
  • Full-size capacity in a unique counter depth fit
  • True frost-free operation saves you maintenance by preventing icy buildup
  • Stainless steel doors and platinum cabinet bring a professional look to small kitchens
  • Factory installed icemaker provides a steady supply of ice
  • Door storage in both compartments for true storage convenience
  • Made in Europe

SPECIFICATIONS

Overview
Height of Cabinet 67.75" (172 cm)
Width 27.63" (70 cm)
Width with Door Open 28.63" (73 cm)
Depth 25.63" (65 cm)
Depth with Handle 27.63" (70 cm)
Depth with door at 90° 50.75" (129 cm)
Capacity 12.6 cu.ft. (357 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Platinum
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 400.0kWh/year
Amps 2.4
Voltage/Frequency 115 V AC/60 Hz
Weight 185.0 lbs. (84 kg)
Shipping Weight 192.0 lbs. (87 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 41.0" (104 cm)
Refrigerator - Interior Width 23.5" (60 cm)
Refrigerator - Interior Depth 18.5" (47 cm)
Refrigerator - Capacity 9.67 cu.ft
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 3
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 16.25" (41 cm)
Freezer - Interior Width 22.25" (57 cm)
Freezer - Interior Depth 16.38" (42 cm)
Freezer - Capacity 2.89 cu.ft
Freezer - Shelf Type Glass
Freezer - Shelf Qty 1
Freezer - Full Door Shelves 1
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.94 oz.
High Side PSI 224.0
Low Side PSI 53.0
Level Legs 2
Compressor Step Height 9.0" (23 cm)
Compressor Step Width 23.5" (60 cm)
Compressor Step Depth 5.5" (14 cm)

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing
Door reversal to left hand swing


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

WHERE TO BUY

Invalid Format

DESCRIPTION

SUMMIT carries one of the industry's most extensive lines of ENERGY STAR certified frost-free refrigerator-freezers in unique counter depth footprints for apartments and smaller kitchens.

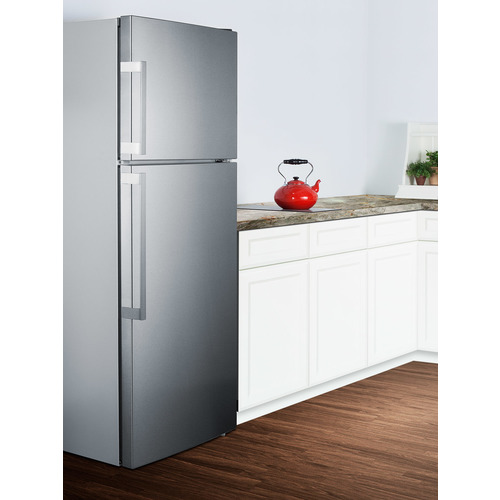

Made for us in Europe, the FF1512SSIM comes with an attractive platinum cabinet and reversible stainless steel doors. Designer style handles complete the modern look. At less than 26" deep, it offers a generous 12.6 cu.ft. capacity for maximum storage in a convenient fit.

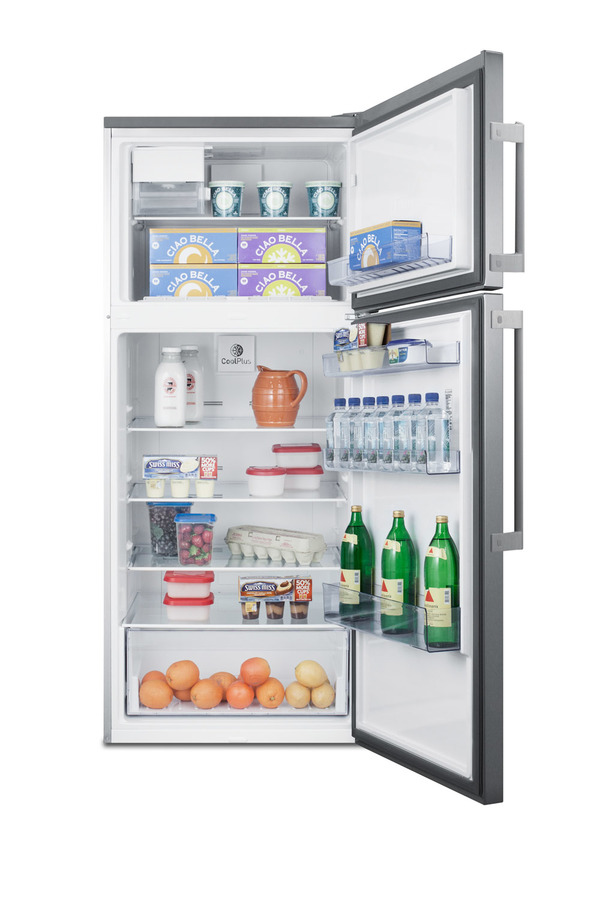

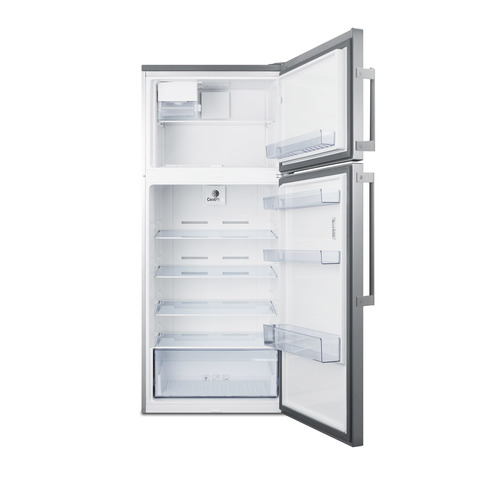

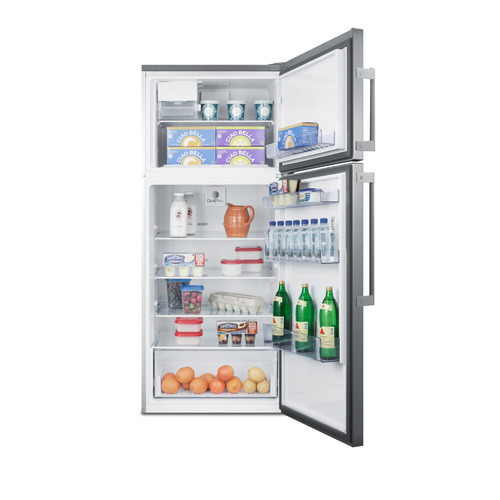

Inside, the FF1512SSIM utilizes frost-free operation for minimum user maintenance and a dual evaporator system for improved cooling. Adjustable glass shelves offer spill-proof storage while multiple door racks are ideal for keeping condiments in easy reach. A large clear crisper drawer is included for optimum produce storage. The freezer compartment includes a glass shelf, door rack, and factory installed icemaker.

Additional features make the FF1512SSIM a user-friendly choice. LED lighting in the side walls of the refrigerator offers an efficient and attractive view inside. This unit includes an innovative touch control system that lets you manage the refrigerator and freezer temperature with an intuitive digital thermostat. For added energy savings, it features a vacation setting. The open door alarm alerts with an audio and visual signal when the door is left ajar for over one minute.

The FF1512SSIM is ENERGY STAR certified to ensure an efficient and low cost performance. With its professional style, unique size, and innovative features, this model is a great choice for smaller kitchens with full storage needs. For this unit without an icemaker, see the FF1511SS. This unit has been designated as one of the Most Efficient ENERGY STAR certified products in 2016.

FEATURES

ENERGY STAR Most Efficient 2016 recognition
This unit has been recognized as the Most Efficient of ENERGY STAR 2016, helping to prevent greenhouse gas emissions by meeting rigorous energy efficiency performance levels set by the U.S. Environmental Protection Agency
CEE Tier I qualified
Efficient design meets CEE Tier I specifications, using 20% less energy than DOE standards require for this product category
ENERGY STAR certified
Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs
Reversible stainless steel doors
User-reversible door swing for added flexibility

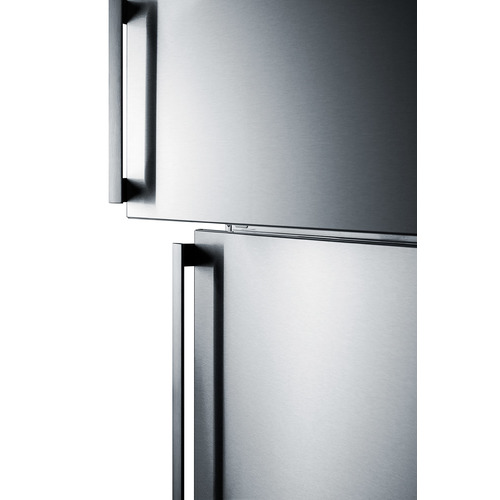

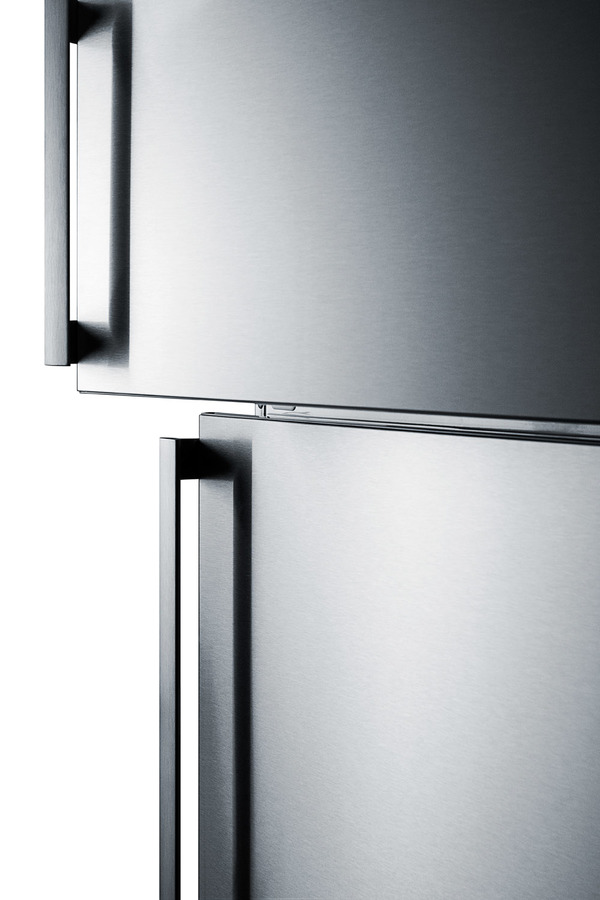

Designer handles
Brushed steel handles offer a modern look for the refrigerator
Frost-free operation
No-frost convenience for reduced user maintenance
Factory installed icemaker
Keep a constant supply of ice cubes on hand inside the freezer
Large capacity
Generous capacity inside a counter deep footprint
Adjustable glass shelves
Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Crisper drawer
Get the longest life and best taste out of produce by storing it in a convenient slide drawer
Door storage
Store tall bottles and condiments right on the door for convenient access

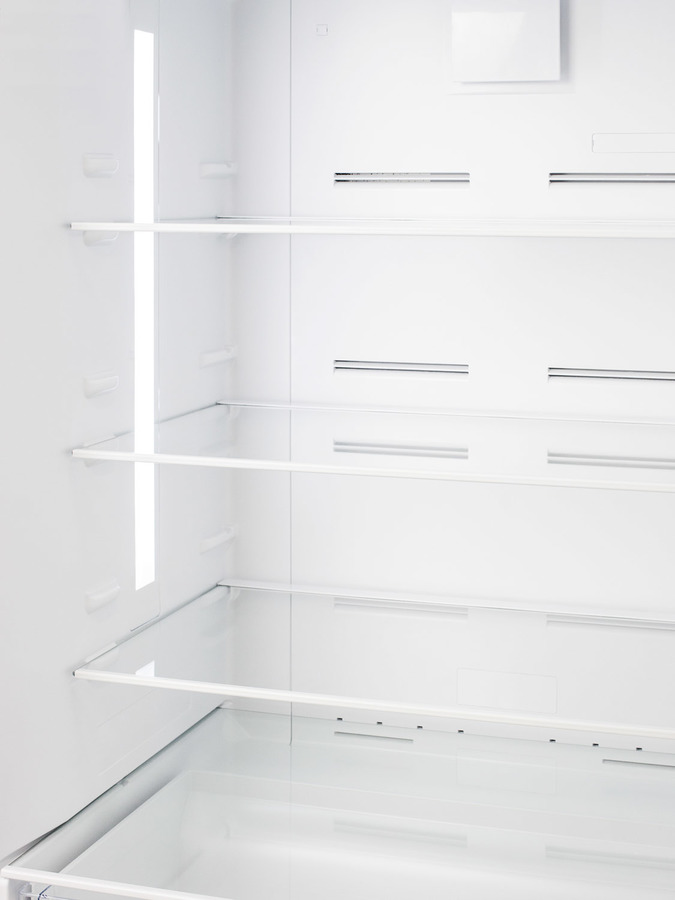

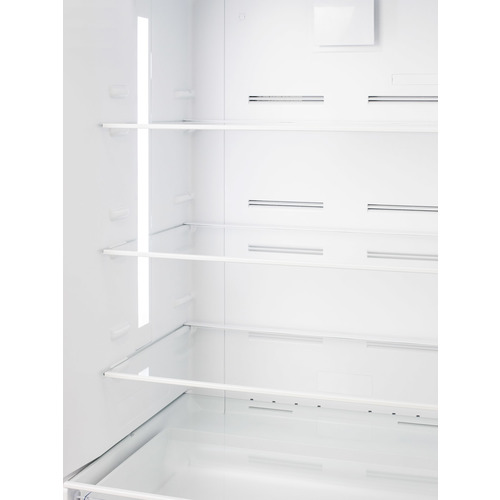

Interior LED lighting
Energy efficient lighting located inside the walls to provide a better view of the interior

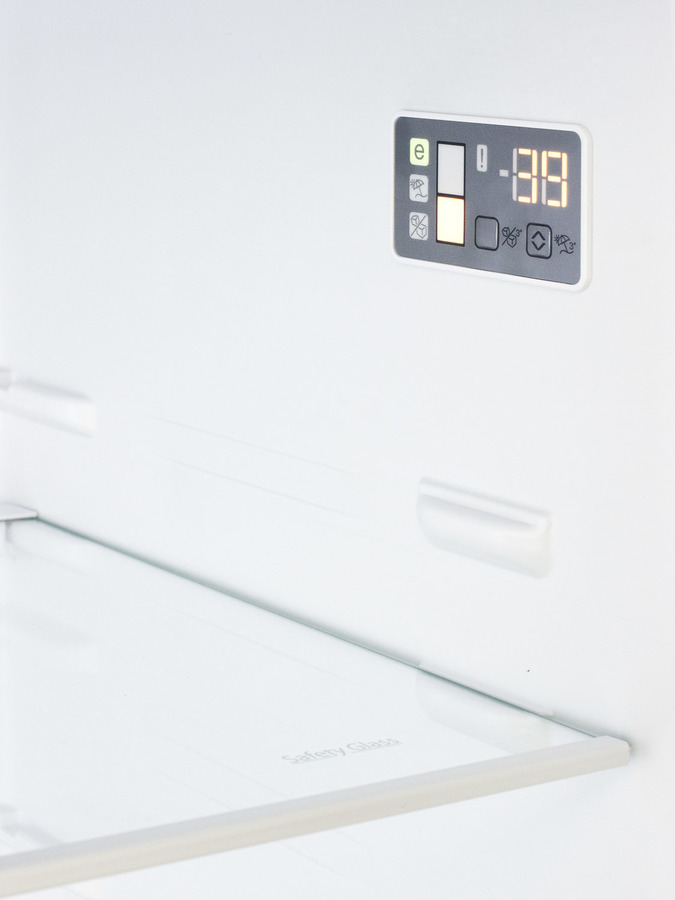

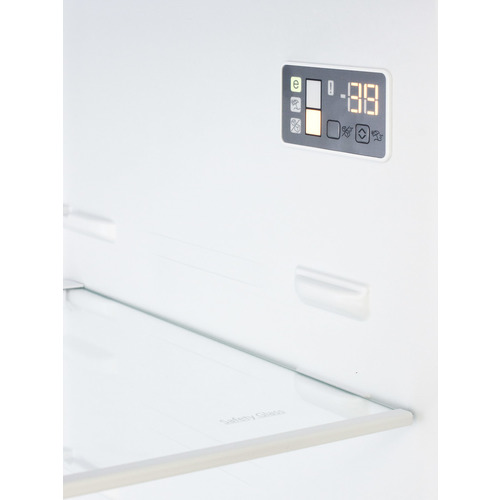

Digital temperature control
Innovative control panel located inside the refrigerator makes it easy to manage the refrigerator and freezer temperature at the touch of a button
Open door alarm
Alarm sends an audio and visual signal when the door is left ajar for over one minute
Full freezer shelf
Removable glass shelf offers spill-proof storage in the freezer compartment
Sealed back
Space-saving design offers easy cleanability
Vacation setting
Allows you to disable certain features during periods of inactivity
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 67.75" (172 cm)
Width 27.63" (70 cm)
Width with Door Open 28.63" (73 cm)
Depth 25.63" (65 cm)
Depth with Handle 27.63" (70 cm)
Depth with door at 90° 50.75" (129 cm)
Capacity 12.6 cu.ft. (357 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Platinum
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 400.0kWh/year
Amps 2.4
Voltage/Frequency 115 V AC/60 Hz
Weight 185.0 lbs. (84 kg)
Shipping Weight 192.0 lbs. (87 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 41.0" (104 cm)
Refrigerator - Interior Width 23.5" (60 cm)
Refrigerator - Interior Depth 18.5" (47 cm)
Refrigerator - Capacity 9.67 cu.ft
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 3
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 16.25" (41 cm)
Freezer - Interior Width 22.25" (57 cm)
Freezer - Interior Depth 16.38" (42 cm)
Freezer - Capacity 2.89 cu.ft
Freezer - Shelf Type Glass
Freezer - Shelf Qty 1
Freezer - Full Door Shelves 1
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.94 oz.
High Side PSI 224.0
Low Side PSI 53.0
Level Legs 2
Compressor Step Height 9.0" (23 cm)
Compressor Step Width 23.5" (60 cm)
Compressor Step Depth 5.5" (14 cm)

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing
Door reversal to left hand swing

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
FF1512SSIM.pdf
Download
TECHNICAL DRAWING (.dwg)
FF1511SS_FF1512SSIM__A-C_2000_.dwg
Download
MSDS INFORMATION
R600a_MSDS_A.PDF
Energy Guide


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice
