SPECIFICATIONS

Overview
Height 32.0"
Width 23.63"
Depth 23.5"
Depth with Handle 24.63"
Depth with door at 90° 45.75"
Capacity 5.1 cu.ft.
Defrost Type Cycle
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 104.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Refrigerator - Interior Height 19.5"
Refrigerator - Interior Width 20.5"
Refrigerator - Interior Depth 17.0"
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 3
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 5.0"
Freezer - Interior Width 19.0"
Freezer - Interior Depth 11.5"
Adjustable Shelves Yes
Interior Light Yes
Thermostat Type Dial
Fan Type Interior and Exterior
Freon R134a
High Side PSI 285.0
Low Side PSI 70.0
Compressor Step Height 7.0"
Compressor Step Width 20.5"
Compressor Step Depth 5.0"

AVAILABLE UPGRADES

Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
KEY
Extra keys available for purchase
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Exterior
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Agion Door
Treat the door with Agion silver antimcrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface


California residents:
click here for information on Proposition 65

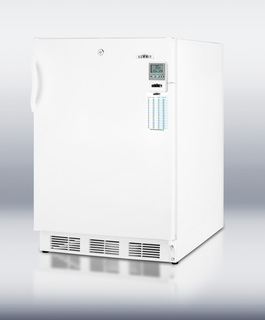

CT66LBIMEDADA

DISCONTINUED- REPLACED BY CT66LBIPLUSADA

32" H x 23.63" W x 23.5" D

OVERVIEW

SUMMIT's CT66LBIMEDADA is a specially featured refrigerator-freezer for built-in installation in medical and laboratory institutions, with a 32 inch height to fit under lower ADA counters.

The CT66LBIMEDADA uses SUMMIT's own dual evaporator system to separately cool the freezer and fresh food sections, with an internal fan for even cooling. Cycle defrost helps to reduce user maintenance on the refrigerator while maintaining a zero degree freezer.

Advanced medical features include a temperature alarm complete with an external display located on the door. A hospital grade cord and front lock are installed for added safety. Additional features include interior lighting, adjustable glass shelves, and sturdy door storage, all in a slim 24" width that fits well in limited space.

SUMMIT's CT66 series has long proven itself to have one of the best temperature performance records in the industry. With over five cubic feet of storage capacity, this model is leader in quality, reliability, and convenience.

FEATURES

ADA compliant
32 inch height fits under standard ADA counters
Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinets
Fully finished white cabinet
Allows the unit to be used freestanding
Factory installed lock
Keep contents secure with a key lock on the door
Alarm with temperature display
Temperature alarm warns of interior fluctuations while providing an external temperature readout on the door
Hospital grade cord and plug
Green dot plug for added safety
Zero degree freezer
Contents stay frozen
Cycle defrost
Combines an automatic defrosting refrigerator with a manual defrost freezer to save unit energy and user maintenance
Internal fan with gel packs
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Adjustable thermostat
Manage the interior temperature with ease and accuracy
Adjustable shelves
Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

DOWNLOADS

Download MSDS INFORMATION
R134a_safety_list.pdf
Download MSDS INFORMATION
PROPYLENE_GLYCOL_MSDS1.pdf
