CT66LBIIF

Unique dual evaporator system ensures better cooling in each section

33.5" H x 23.63" W x 23.5" D

(85cm H x 60cm W x 60cm D)

OVERVIEW

  • Factory installed lock provides security you can count on
  • Flexible design allows built-in or freestanding use in 24" spaces
  • Customizable door front accepts full overlay panels for a seamless look that can blend into cabinetry
  • Improved temperature performance with our unique dual evaporator cooling
  • Includes door storage and adjustable shelves
  • Made in Europe

SPECIFICATIONS

Overview
Height of Cabinet 33.5" (85 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with door at 90° 45.13" (115 cm)
Capacity 5.1 cu.ft. (144 L)
Defrost Type Cycle
Door Panel-Ready
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 100.0 lbs. (45 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 19.5" (50 cm)
Refrigerator - Interior Width 20.5" (52 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 5.0" (13 cm)
Freezer - Interior Width 19.0" (48 cm)
Freezer - Interior Depth 11.5" (29 cm)
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 2.6 oz.
High Side PSI 285.0
Low Side PSI 70.0
Level Legs 4
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 20.5" (52 cm)
Compressor Step Depth 5.0" (13 cm)

AVAILABLE UPGRADES

Exterior
KeyIF
Extra key for select IF (panel-ready) units
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Legs
6" high leveling legs
CAS6 6" casters
6" high NSF listed casters
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
KEY
Extra keys available for purchase
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Latch
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Interior
FCGP - Fan w/Gel Packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

WHERE TO BUY

Invalid Format

DESCRIPTION

Accucold by Summit Appliance offers a wide range of undercounter refrigeration for general purpose storage. The CT66JBI Series includes built-in undercounter refrigerator-freezers equipped with dual evaporator cooling for optimum storage conditions.

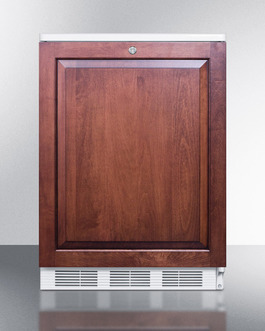

Sized with a 24" footprint, the CT66LBIIF can be used built-in under counters or freestanding. The interior offers over 5 cu.ft. of storage capacity. This model has a white cabinet. The factory reversible door includes a factory installed lock and an integrated frame designed to accept full overlay panels for a custom look. Users provide their own handle.

Inside, our unique dual evaporator system separately cools the refrigerator and freezer section to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, with static manual defrost operation in the freezer compartment. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting.

The CT66LBIIF has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full CT66JBI Series.

NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.

FEATURES

Slim undercounter dimensions
Less than 24 inches wide to fit tight spaces
Factory installed lock
Keyed lock offers added security
Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinetry
Fully finished white cabinet
Allows the unit to be used freestanding
Height Adjustable
Adjustable legs allow the unit to be sized from 33 1/2" to 34 3/4" high
Integrated door frame
Customize the front by mounting an overlay panel over the door; seamless look can blend into other cabinetry with no exposed frame. Handle not included (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
Cycle defrost
This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
Dual evaporator cooling
Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
Adjustable shelves
Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup
Crisper drawer
Get the longest life and best taste out of produce by storing greens in lower slide drawer
Door shelves
Keep tall bottles and condiments right on the door for convenient access
Interior light
Automatically illuminates when the door is opened
Adjustable thermostat
Dial thermostat located inside for easy temperature management
100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 33.5" (85 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with door at 90° 45.13" (115 cm)
Capacity 5.1 cu.ft. (144 L)
Defrost Type Cycle
Door Panel-Ready
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 100.0 lbs. (45 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 19.5" (50 cm)
Refrigerator - Interior Width 20.5" (52 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 5.0" (13 cm)
Freezer - Interior Width 19.0" (48 cm)
Freezer - Interior Depth 11.5" (29 cm)
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 2.6 oz.
High Side PSI 285.0
Low Side PSI 70.0
Level Legs 4
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 20.5" (52 cm)
Compressor Step Depth 5.0" (13 cm)

AVAILABLE UPGRADES

Exterior
KeyIF
Extra key for select IF (panel-ready) units
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Legs
6" high leveling legs
CAS6 6" casters
6" high NSF listed casters
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
KEY
Extra keys available for purchase
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Latch
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Interior
FCGP - Fan w/Gel Packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice
