CT66JDPL

Unique dual evaporator system ensures better cooling in each section

33.25" H x 23.63" W x 23.5" D

(84cm H x 60cm W x 60cm D)

OVERVIEW

Over 5 cu.ft. of storage capacity in a perfectly sized 24" footprint

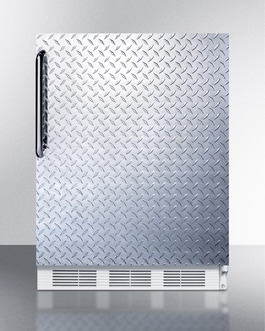

Textured diamond plate door in aluminum with polished towel bar handle offers an industrial look
Improved temperature performance with our unique dual evaporator cooling
Made in Europe

SPECIFICATIONS

Overview
Height of Cabinet	33.25" (84 cm)
Width	23.63" (60 cm)
Depth	23.5" (60 cm)
Depth with Handle	24.25" (62 cm)
Depth with door at 90°	45.0" (114 cm)
Capacity	5.1 cu.ft. (144 L)
Defrost Type	Cycle
Door	Diamond Plate
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Shipping Weight	113.0 lbs. (51 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
Refrigerator-Freezer
Door Swing	RHD
Reversible	Factory Reversible
Adjustable Shelves	Yes
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Interior Light	Yes
Refrigerator - Interior Height	19.5" (50 cm)
Refrigerator - Interior Width	20.5" (52 cm)
Refrigerator - Interior Depth	17.0" (43 cm)
Refrigerator - Shelf Type	Wire
Refrigerator - Shelf Qty	2
Refrigerator - Full Door Shelves	3
Freezer - Interior Height	5.0" (13 cm)
Freezer - Interior Width	19.0" (48 cm)
Freezer - Interior Depth	11.5" (29 cm)
Thermostat Type	Dial
Fan Type	Exterior
Refrigerant Type	R134a
Refrigerant Amount	2.6 oz.
High Side PSI	285.0
Low Side PSI	70.0
Level Legs	4
Compressor Step Height	7.0" (18 cm)
Compressor Step Width	20.5" (52 cm)
Compressor Step Depth	5.0" (13 cm)

AVAILABLE UPGRADES

Lock

L-Installed Lock Add a single key lock to the door with the L option	KEYPAD Battery-powered keypad lock installed for keyless security
AC Keypad Keypad lock powered by appliance power cord for keyless security

Interior

FCGP - Fan w/Gel Packs

Internal fan with gel packs included for a stabilized interior

FC - Internal Fan

Internal fan for even temperature distribution throughout the unit interior

Exterior

TT Thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order	PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
Legs 6" high leveling legs	CAS6 6" casters 6" high NSF listed casters
CAS3 3" casters 3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish	Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
SCD Self-Closing Door Protect interior contents and reduce energy waste with the Self Closing Door Option	ODA Open Door Alarm Add an open door alarm to audibly buzz when the door is left ajar.
LHD Door reversal to left hand swing	Latch Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK Stainless steel kickplate factory installed	HUM Humidity Sensor Humidity sensor with min/max readout
HG Cord Add a hospital grade cord equipped with green dot plug with the HG suffix	DL1 Temperature Logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac

California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

WHERE TO BUY

DESCRIPTION

Accucold by Summit Appliance offers a wide range of counter height refrigeration for general purpose storage. The CT66J Series includes freestanding refrigerator-freezers equipped with dual evaporator cooling for optimum storage conditions.

Sized with a 24" footprint, the CT66JDPL offers over 5 cu.ft. of storage capacity. This counter height model is designed for freestanding use. It has a white cabinet and diamond plate textured door in wrapped aluminum. A curved towel bar handle in polished stainless steel completes the industrial look.

Inside, our unique dual evaporator system separately cools the refrigerator and freezer section to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, with static manual defrost operation in the freezer compartment. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting.

The CT66JDPL has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full CT66 Series. For built-in undercounter applications, see the CT66JBIDPL.

NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.

FEATURES

Fully finished cabinet
Allows the unit to be used freestanding

Diamond plate finish on door
Textured diamond plate finish in wrapped aluminum creates a unique industrial look

Professional towel bar handle
Curved handle in polished stainless steel completes the look

Dual evaporator
Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators

Cycle defrost
This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment

Adjustable thermostat
Dial thermostat located inside for easy temperature management

Adjustable shelves
Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Door storage
Store tall bottles and condiments right on the door for convenient access

Crisper
Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

Interior light
Automatically illuminates when you open the door

100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals
