SPECIFICATIONS

Overview
Height of Cabinet	33.25" (84 cm)
Width	23.63" (60 cm)
Depth	23.5" (60 cm)
Capacity	5.1 cu.ft. (144 L)
Defrost Type	Cycle
Door	Panel-Ready
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Shipping Weight	104.0 lbs. (47 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
Refrigerator-Freezer
Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Interior Light	Yes
Refrigerator - Interior Height	19.5" (50 cm)
Refrigerator - Interior Width	20.5" (52 cm)
Refrigerator - Interior Depth	17.0" (43 cm)
Refrigerator - Shelf Type	Wire
Refrigerator - Shelf Qty	3
Refrigerator - Full Door Shelves	3
Freezer - Interior Height	5.0" (13 cm)
Freezer - Interior Width	19.0" (48 cm)
Freezer - Interior Depth	11.5" (29 cm)
Thermostat Type	Dial
Fan Type	Exterior
Refrigerant Type	R134a
Refrigerant Amount	2.6 oz.
High Side PSI	285.0
Low Side PSI	70.0
Level Legs	4
Compressor Step Height	7.0" (18 cm)
Compressor Step Width	20.5" (52 cm)
Compressor Step Depth	5.0" (13 cm)

AVAILABLE UPGRADES

Lock

L-Installed Lock Add a single key lock to the door with the L option	KEYPAD Battery-powered keypad lock installed for keyless security
AC Keypad Keypad lock powered by appliance power cord for keyless security

Interior

FCGP - Fan w/Gel Packs

Internal fan with gel packs included for a stabilized interior

FC - Internal Fan

Internal fan for even temperature distribution throughout the unit interior

Exterior

TT Thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order	PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
Legs 6" high leveling legs	CAS6 6" casters 6" high NSF listed casters
CAS3 3" casters 3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish	Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
SCD Self-Closing Door Protect interior contents and reduce energy waste with the Self Closing Door Option	ODA Open Door Alarm Add an open door alarm to audibly buzz when the door is left ajar.
LHD Door reversal to left hand swing	Latch Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK Stainless steel kickplate factory installed	HUM Humidity Sensor Humidity sensor with min/max readout
HG Cord Add a hospital grade cord equipped with green dot plug with the HG suffix	DL1 Temperature Logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac

California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

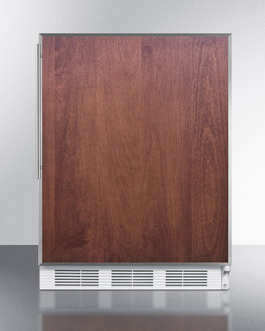

CT66JBIFR

Unique dual evaporator system ensures better cooling in each section

33.25" H x 23.63" W x 23.5" D

OVERVIEW

Flexible design allows built-in or freestanding use in 24" spaces
Stainless steel door frame accepts slide-in panels for a custom look
Improved temperature performance with our unique dual evaporator cooling
Door racks provide convenient storage options
Over 5 cu.ft. of storage capacity in a perfectly sized 24" footprint
Made in Europe

WHERE TO BUY

Accucold by Summit Appliance offers a wide range of undercounter refrigeration for general purpose storage. The CT66JBI Series includes built-in undercounter refrigerator-freezers equipped with dual evaporator cooling for optimum storage conditions.

Sized with a 24" footprint, the CT66JBIFR can be used built-in under counters or freestanding. The interior offers over 5 cu.ft. of storage capacity. This model has a white cabinet. The user-reversible door includes a stainless steel door frame designed to accept slide-in panel inserts (sized 23" W x 28" H) to create a custom look. A stainless steel handle is included.

Inside, our unique dual evaporator system separately cools the refrigerator and freezer section to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, with static manual defrost operation in the freezer compartment. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting.

The CT66JBIFR has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full CT66JBI Series.

NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.

FEATURES

Slim undercounter dimensions Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit	Built-in capable Make the best use of space by installing your appliance under the counter and flush with other cabinetry
Fully finished white cabinet Allows the unit to be used freestanding	Height Adjustable Adjustable legs allow the unit to be sized from 33 1/4" to 34 1/2" high
Stainless steel door frame Slide a panel into this two-piece exposed stainless steel door frame to match the unit to other cabinetry (panel size: 23" W x 28" H at up to 1/4" thick	Pro style handle Stainless steel handle adds an attractive touch
Reversible door User-reversible door swing for added flexibility	Dual evaporator cooling Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
Cycle defrost This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment	Crisper drawer Get the longest life and best taste out of produce by storing greens in lower slide drawer
Adjustable shelves Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup	Door shelves Keep tall bottles and condiments right on the door for convenient access
Interior light Automatically illuminates when the door is opened	Adjustable thermostat Dial thermostat located inside for easy temperature management
Hidden evaporator Cold wall design with hidden evaporator and seamless interior	100% CFC free Environmentally friendly design does not contain ozone-damaging chemicals
