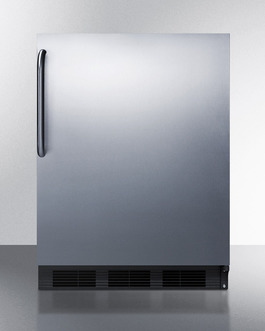

CT66BSSTB
CT66BSSTB
angle
open
full
SHARE THIS PRODUCT
E-mail a Friend Print

SPECIFICATIONS

Overview
Height of Cabinet 33.25" (84 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.63" (65 cm)
Depth with door at 90° 45.63" (116 cm)
Capacity 5.1 cu.ft. (144 L)
Defrost Type Cycle
Door Stainless Steel
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 118.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Refrigerator - Interior Height 19.5" (50 cm)
Refrigerator - Interior Width 20.5" (52 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 3
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 5.0" (13 cm)
Freezer - Interior Width 19.0" (48 cm)
Freezer - Interior Depth 11.5" (29 cm)
Adjustable Shelves Yes
Interior Light Yes
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 2.6 oz.
High Side PSI 285.0
Low Side PSI 70.0
Level Legs 2
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 20.5" (52 cm)
Compressor Step Depth 5.0" (13 cm)

AVAILABLE UPGRADES

Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Interior
FCGP - Fan w/Gel Packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior
Exterior
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Legs
6" high leveling legs
CAS6 6" Casters
6" high NSF listed casters
CAS3 3" Casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
SS Hinges
Stainless steel top and bottom hinges
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Agion Door
Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

CT66BSSTB

Unique dual evaporator system ensures better cooling in each section

33.25" H x 23.63" W x 23.5" D

OVERVIEW

WHERE TO BUY

Invalid Format
Accucold by Summit Appliance offers a wide range of counter height refrigeration for general purpose storage. The CT66J Series includes freestanding refrigerator-freezers equipped with dual evaporator cooling for optimum storage conditions.

Sized with a 24" footprint, the CT66BSSTB offers over 5 cu.ft. of storage capacity. This counter height model is designed for freestanding use. It has a black cabinet and stainless steel wrapped door. A curved towel bar handle completes the professional look.

Inside, our unique dual evaporator system separately cools the refrigerator and freezer section to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, with static manual defrost operation in the freezer compartment. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting.

The CT66BSSTB has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full CT66 Series. For built-in undercounter applications, see the CT66BBISSTB.

NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.

FEATURES

Slim counter height dimensions
Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
Stainless steel door
Durable design with lasting elegance
Professional towel bar handle
Curved handle in brushed stainless steel offers a sturdy grip with professional elegance
Fully finished black cabinet
Allows the unit to be used freestanding
Cycle defrost
This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
Dual evaporator
Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
Adjustable glass shelves
Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Clear crisper
Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
Door storage
Store tall bottles and condiments right on the door for convenient access
Interior light
Automatically illuminates when you open the door
Adjustable thermostat
Dial thermostat located inside for easy temperature management
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

DOWNLOADS

Download BROCHURE
CT66BSSTB.pdf
Download MSDS INFORMATION
R134a_safety_list.pdf
Download USE & CARE
CT66J_Manual.pdf
