24" Wide Built-In Refrigerator-Freezer with Wood Panel, ADA Compliant

SKU: CT663BKBIWP1ADA
Walnut finish in engineered wood for a classic look under the counter
Estimated Time to Ship:

3 to 5 days

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.
32.38" H x 23.63" W x 24.25" D
(82cm H x 60cm W x 62cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.38" (82 cm)
Width 23.63" (60 cm)
Depth 24.25" (62 cm)
Depth with Handle 25.75" (65 cm)
Depth with door at 90° 45.38" (115 cm)
Capacity 5.1 cu.ft. (144 L)
Defrost Type Cycle
Door Walnut Wood
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 365.0kWh/year
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 150.0 lbs. (68 kg)
Shipping Weight 155.0 lbs. (70 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101079639
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Wine Bottle Shelving Yes
Interior Light Yes
Refrigerator - Interior Height 18.0" (46 cm)
Refrigerator - Interior Width 21.0" (53 cm)
Refrigerator - Interior Depth 18.0" (46 cm)
Refrigerator - Capacity 4.5 cu.ft
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 5.25" (13 cm)
Freezer - Interior Width 19.0" (48 cm)
Freezer - Interior Depth 11.5" (29 cm)
Freezer - Capacity 0.6 cu.ft
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R600a
Refrigerant Amount 0.92 oz.
High Side PSI 180.0
Low Side PSI 80.0
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 6.0" (15 cm)

Door
STO-Step-To-Open Door Pedal
Step-to-open door pedal allows hands-free access to open the door 90 degrees
Handle
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
Exterior
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
SSK - Stainless steel kickplate
Stainless steel kickplate factory installed
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
SS Hinges
Stainless steel top and bottom hinges
Alarm/Thermometer
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior
FCGP internal fan with gel packs
Internal fan with gel packs included for a stabilized interior
Lock
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security

ADA Compliant

32" height to fit under lower ADA compliant counters

Slim undercounter dimensions

Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit

Built-in capable

Make the best use of space by installing your appliance under the counter and flush with other cabinetry

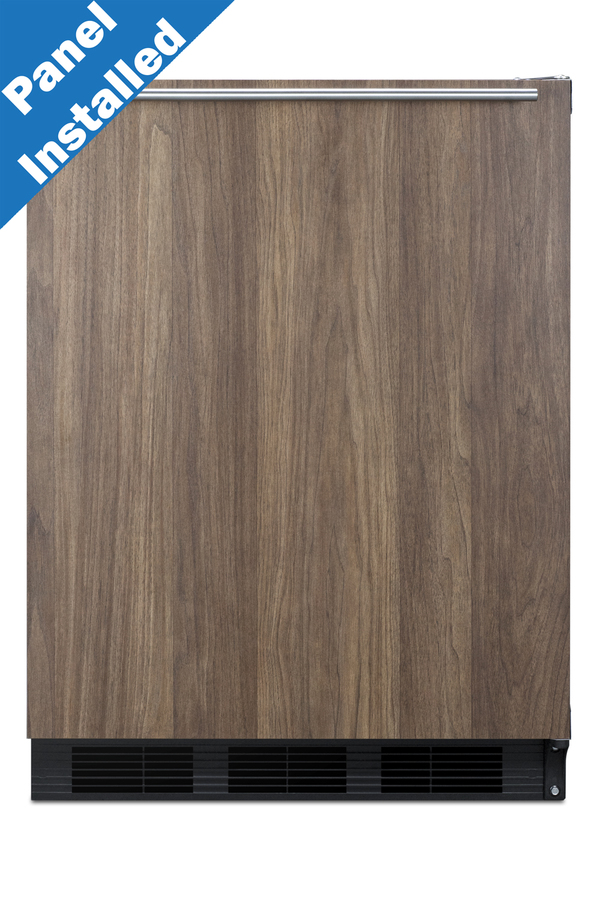

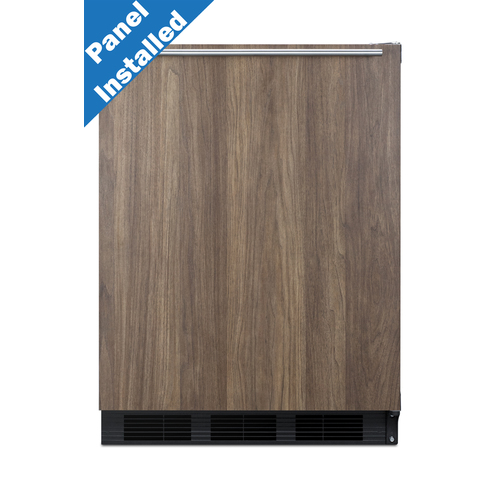

Pre-installed wood door panel

Door features engineered wood with a laminate finish in a walnut hue

Cycle defrost

This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment

Dual evaporator cooling

Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators

Adjustable glass shelves

Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup

Door shelves

Store tall bottles and condiments right on the door for convenient access

Crisper drawer

Get the longest life and best taste out of produce by storing greens in lower slide drawer

Hidden evaporator

Cold wall design with hidden evaporator and seamless interior

Interior light

Automatically illuminates when the door is opened

Professional horizontal handle

Thin 14mm diameter on stainless steel handle set horizontally across the door

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

Wine shelf

Removable scalloped wine shelf is included to store champagne and wine bottles

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit's line of wood-accented refrigeration solutions brings quality and style to any kitchen space.

Sized with a 24” footprint, the CT663BKBIWP1ADA refrigerator-freezer offers a generous 5.1 cu.ft. storage capacity, larger than many units in this size class. The 32” height and front-breathing design makes it ideal for installation under lower counters complying with ADA guidelines for height restriction. The fully finished black cabinet also enables freestanding use. This unit comes with a pre-installed engineered wood panel door in a walnut finish for added elegance and durability. A stainless steel handle mounted horizontally affords easy opening.

Inside, the CT663BKBIWP1ADA features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food. The deluxe interior includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is stored under the ideal conditions. These models include automatic interior lighting and an adjustable dial thermostat.

With its ideal dimensions and user-friendly features, the CT663BKBIWP1ADA is the perfect refrigerator-freezer for any ADA-compliant setting in need of versatile storage under counter. For this unit in a standard height, see the CT663BKBIWP1. Visit www.summitappliance.com to learn more.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
