27" Wide 230V 5-Burner Radiant Cooktop

SKU: CRS5B14W
Made in the USA with genuine Schott Ceran® glass
Estimated Time to Ship:

3 to 5 days

Voltage:
220/240V
Color: White

*Additional features may vary

3.13" H x 27.0" W x 20.5" D
(8cm H x 69cm W x 52cm D)

Overview
Height of Cabinet 3.13" (8 cm)
Width 27.0" (69 cm)
Depth 20.5" (52 cm)
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 25.0
Voltage/Frequency 230 V AC/60 Hz
Weight 35.0 lbs. (16 kg)
Shipping Weight 43.0 lbs. (20 kg)
Parts & Labor Warranty 1 Year
UPC 761101060354
Electric Cooktop
Heating Type Radiant
Surface Glass
Element Type Glasstop
Number of Elements 5
Controls Dial
Countertop Cutout Width 25.25" (64 cm)
Countertop Cutout Depth 18.75" (48 cm)
Element #1 Size 8.0" (20 cm)
Element #1 Wattage 1800.0
Element #2 Size 6.5" (17 cm)
Element #2 Wattage 1200.0
Element #3 Size 6.5" (17 cm)
Element #3 Wattage 1200.0
Element #4 Size 6.5" (17 cm)
Element #4 Wattage 1200.0
Element #5 Size 6.5" (17 cm)
Element #5 Wattage 1200.0
Power Cord Included No

27" width

Designed to fit 25.25" W x 18.75" D cutouts

Schott Ceran surface

Smooth ceramic glass cooking surface in a classic white finish

High output burner

Center burner features an 8" diameter for 1800W of cooking power, ideal for larger cooking vessels

Standard burners

Four 6.5" 1200W burners meet most heating needs

E.G.O. burners

Considered by many to be the industry's best cooking technology

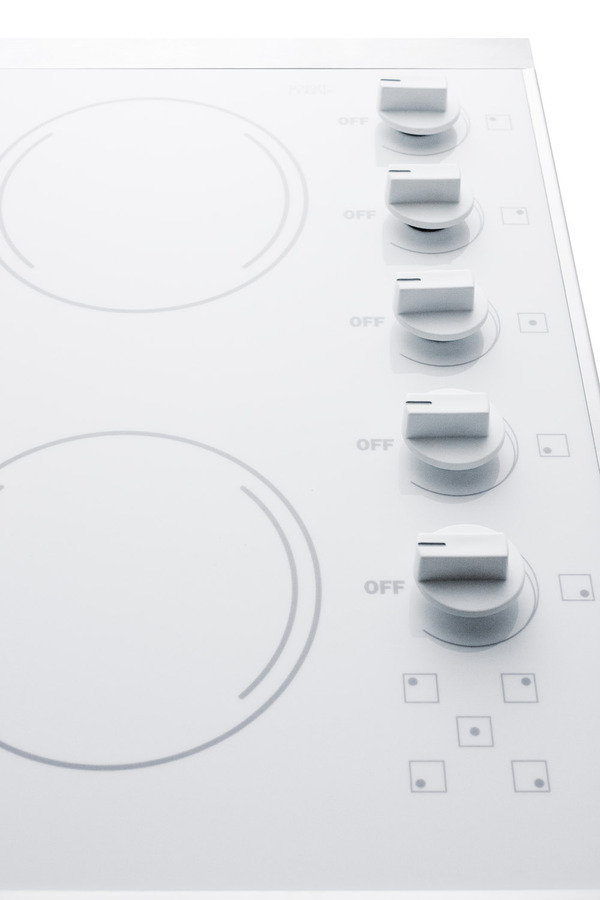

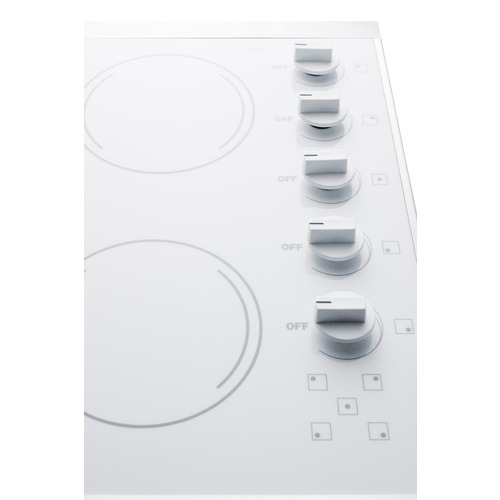

Push-to-turn knobs

Controls require a gentle push to help prevent cooking accidents

Indicator lights

Each burner includes an indicator light to show when the unit is on

Stainless steel trim

Stainless steel border adds an extra touch of style

230V operation

Requires professional hardwired installation to 230V power supply

SUMMIT introduces a new series of smooth-top electric cooktops sized for unique kitchen counter spaces, all made in the USA with the industry's best elements.

The CRS5B14W is a 230V 6600W cooktop, with all burner elements made by E.G.O in Germany. This unit includes one large 8" 1800W element located in the center to accommodate large cooking vessels. Four standard 1200W 6 1/2" burners meet most heating needs. Push-to-turn knobs offer added safety, with an attractive matte white finish. Each burner includes an indicator light.

The smooth surface is made from ceramic Schott glass in a jet white finish, offering easier cleanup than traditional coil elements. The unit is finished with oversized stainless steel trim for a modern look. Sized with an exterior width of 27" and a conveniently shallow 20 1/2" depth, the CRS5B14W can fit in cutouts 25 1/4" W x 18 3/4" deep.

Designed and manufactured in the USA, the CRS5B14W is the perfect way to finish any small kitchen space. For this unit in a white glass finish, see the CRS5B13B.


Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
