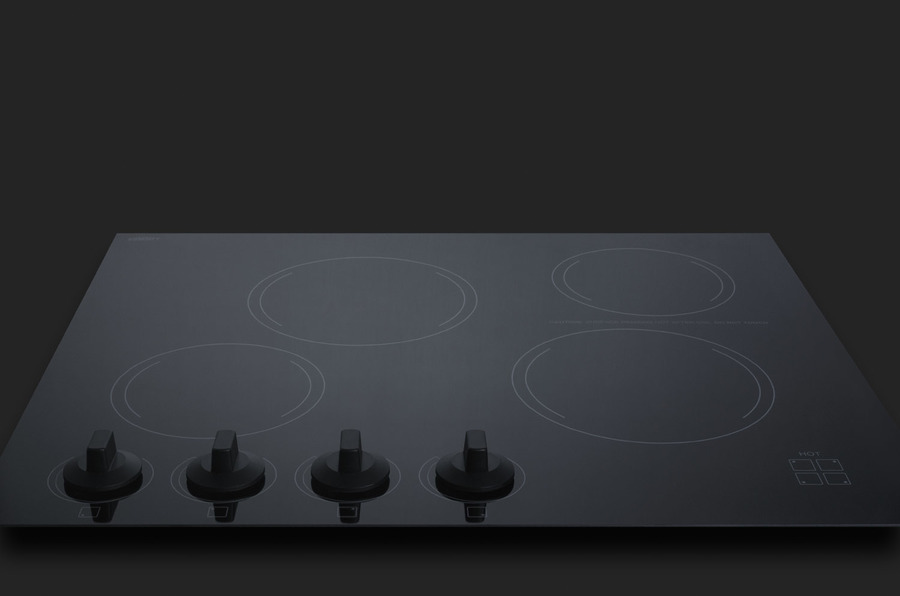

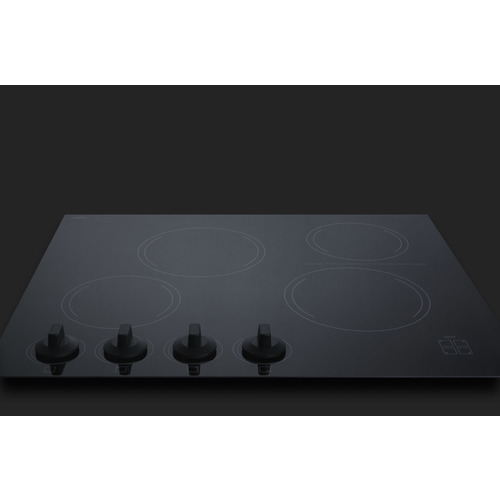

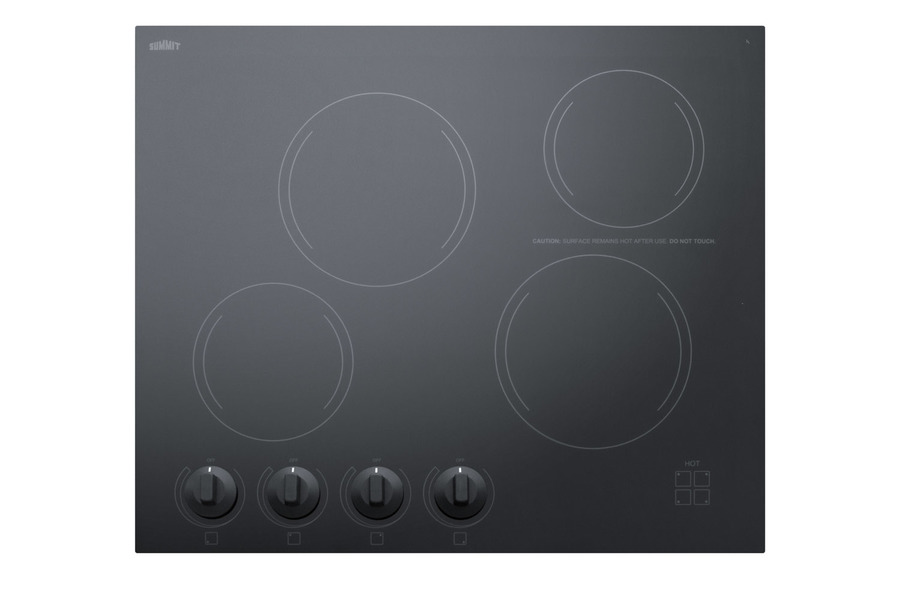

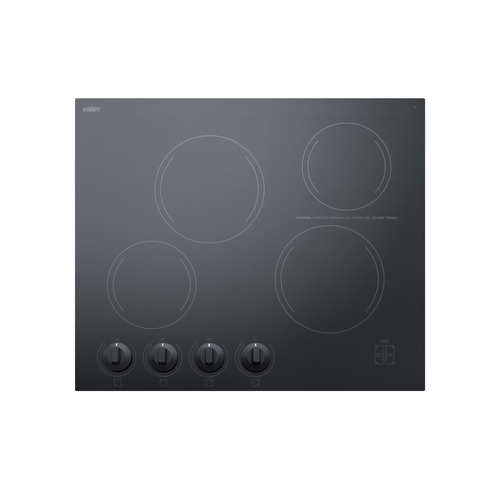

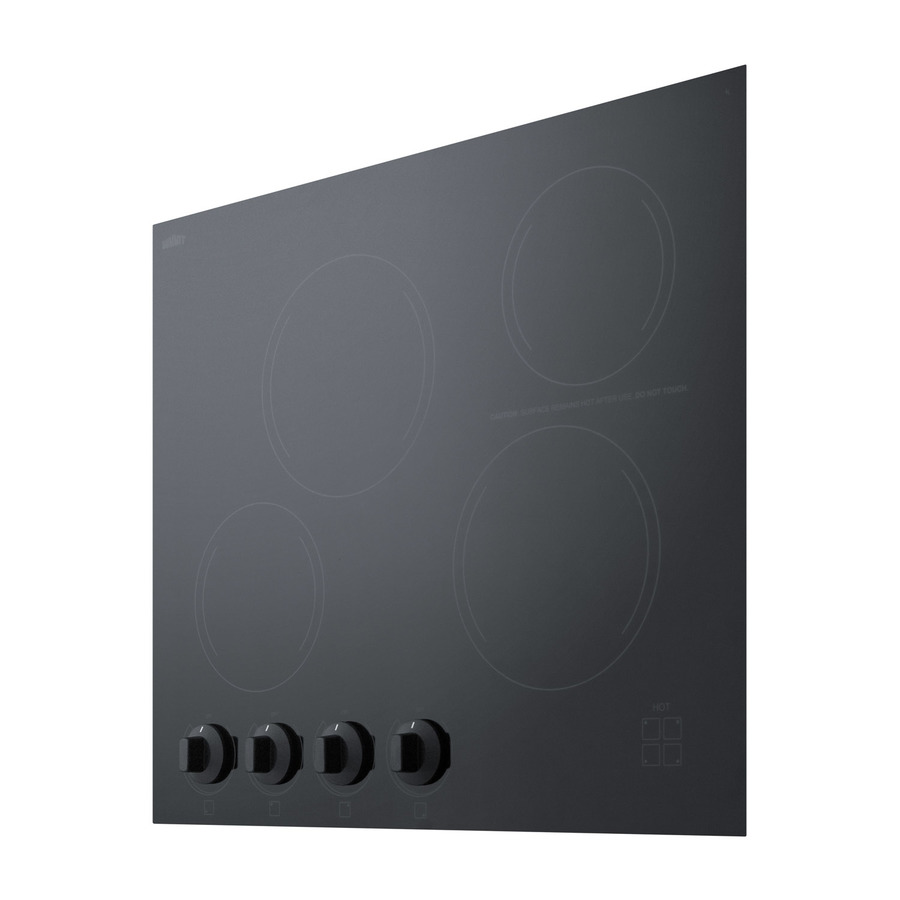

24" Wide 230V 4-Burner Radiant Cooktop

SKU: CREK4B

Made in France with EuroKera ceramic black glass and color-matched knobs for a modern look in any kitchen

3.0" H x 24.0" W x 20.5" D

(8cm H x 61cm W x 52cm D)

OVERVIEW

  • 24" width is ideally sized for many hard-to-fill cutouts
  • Smooth EuroKera glass surface offers easy cleanup
  • Jet black finish and color-matched knobs offers a modern look for the kitchen
  • Includes two 7 1/2" 1800W burners for faster heating of larger cookware
  • Made in France

SPECIFICATIONS

Overview
Height of Cabinet 3.0" (8 cm)
Width 24.0" (61 cm)
Depth 20.5" (52 cm)
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 25.0
Voltage/Frequency 230 V AC/60 Hz
Weight 18.0 lbs. (8 kg)
Shipping Weight 24.0 lbs. (11 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Electric Cooktop
Heating Type Radiant
Surface Glass
Element Type Glasstop
Number of Elements 4
controls Dial
Countertop Cutout Height 3.5" (9 cm)
Countertop Cutout Width 22.0" (56 cm)
Countertop Cutout Depth 18.63" (47 cm)
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 1200.0
Element #2 Size 7.5" (19 cm)
Element #2 Wattage 1800.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 1200.0
Element #4 Size 7.5" (19 cm)
Element #4 Wattage 1800.0
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

Summit offers an extensive selection of radiant cooktops for all kitchen spaces, including 24" wide European choices.

Made for us in France, the CREK4B is a 230V electric cooktop sized at 24 inches wide to bring full cooking capacity to smaller kitchen spaces. Two 7.5" elements offer 1800W of power for larger cooking vessels, with two standard 6" 1200 elements to handle lighter cooking needs. The EuroKera glass surface comes in a striking jet black finish, with color-matched push-to-turn knobs to complete the look. The knobs are located towards the front of the cooktop, making them easier to access and preventing users from having to reach over hot burners. This unit includes individual indicator lights and residual heat indicators to ensure added safety when cooking.

This cooktop can also be ordered in white (CREK4W). Additional choices, including 2, 3, and 5-burner cooktops, can be found in Summit's extensive product line. Browse our website for our full selection.

NOTE: This unit requires professional installation and is designed for cutouts sized 22" W x 18 5/8" D.

FEATURES

24" width
Designed to fit 22" W x 18.63" D cutouts
EuroKera surface
Smooth ceramic glass cooking surface in a sleek black finish
2 High output burners
Front right and rear left burners are sized at 7" with 1800W of cooking power for larger pots and pans
2 Standard burners
Front left and rear right burners are sized at 6" with 1200W of cooking power to meet most heating needs
Push-to-turn knobs
Controls require a gentle push to help prevent cooking accidents
Indicator lights
Each burner includes an indicator light to show when the unit is on
ADA Compliant
Front-located knobs meet ADA guidelines for accessibility
220-240V operation
Requires professional hardwired installation

SPECIFICATIONS

Overview
Height of Cabinet 3.0" (8 cm)
Width 24.0" (61 cm)
Depth 20.5" (52 cm)
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 25.0
Voltage/Frequency 230 V AC/60 Hz
Weight 18.0 lbs. (8 kg)
Shipping Weight 24.0 lbs. (11 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Electric Cooktop
Heating Type Radiant
Surface Glass
Element Type Glasstop
Number of Elements 4
controls Dial
Countertop Cutout Height 3.5" (9 cm)
Countertop Cutout Width 22.0" (56 cm)
Countertop Cutout Depth 18.63" (47 cm)
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 1200.0
Element #2 Size 7.5" (19 cm)
Element #2 Wattage 1800.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 1200.0
Element #4 Size 7.5" (19 cm)
Element #4 Wattage 1800.0

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
CREK4B.pdf
Download
TECHNICAL DRAWING (.dwg)
CREK4B-CREK4W_COOKTOP__A-C_2010_.dwg
Download
USE & CARE
CREK4B-W.pdf
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
