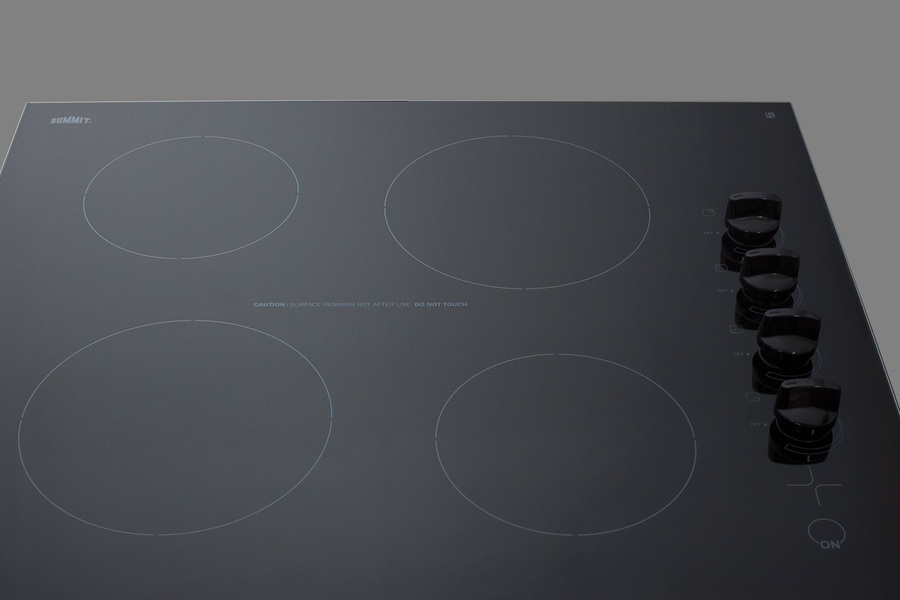

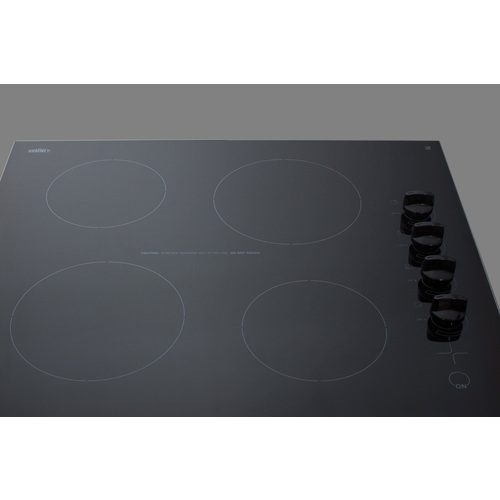

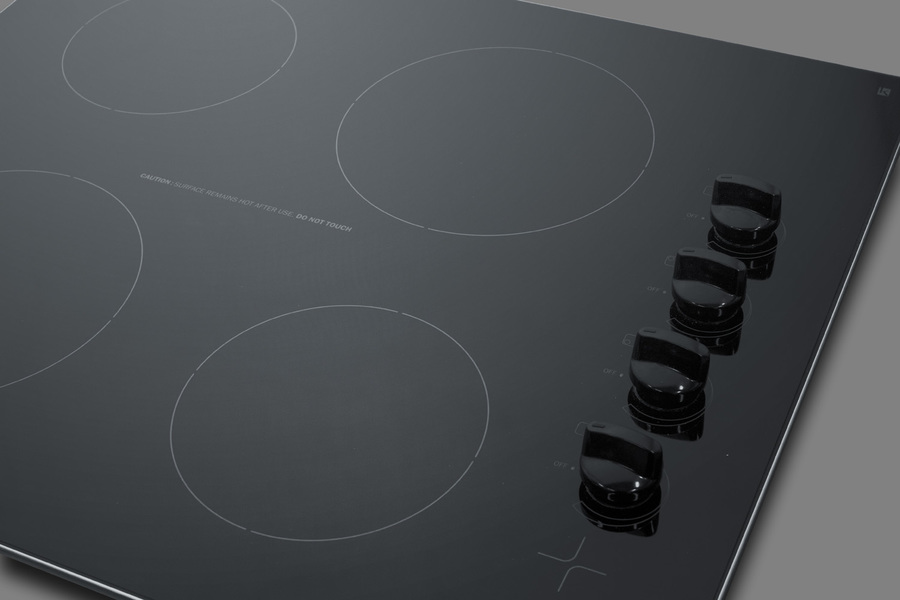

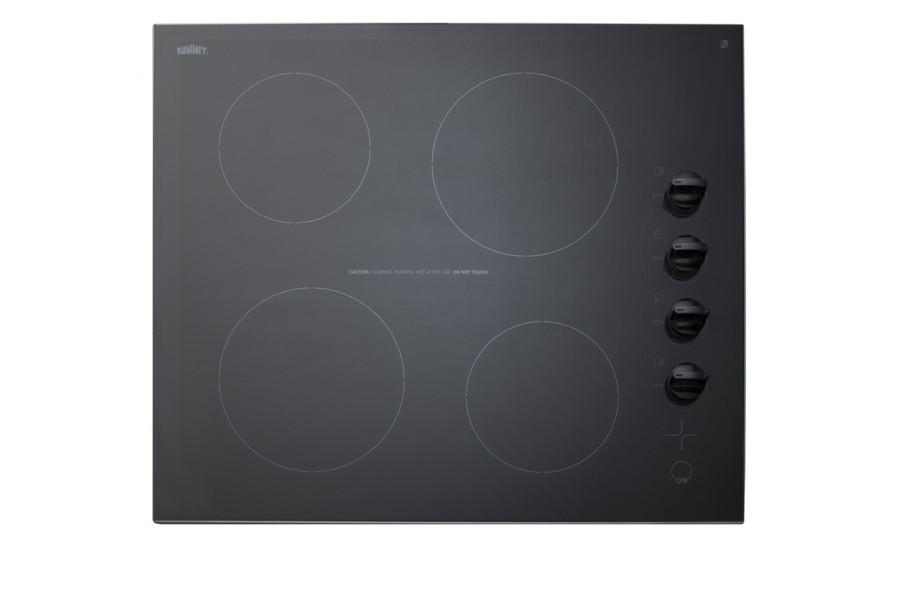

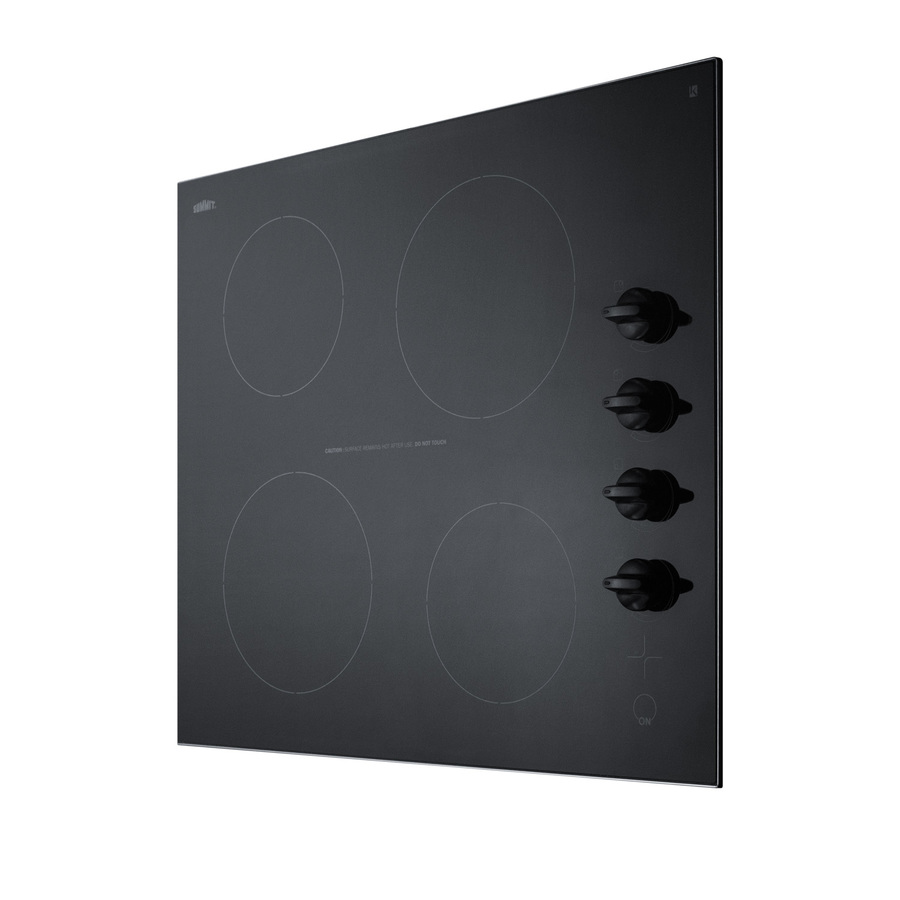

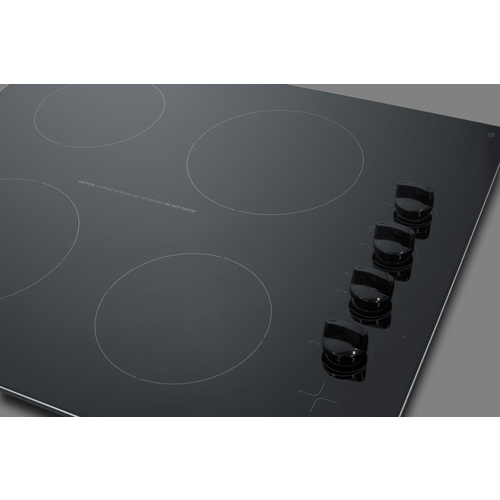

24" Wide 230V 4-Burner Radiant Cooktop

SKU: CR4B242BL

Designed and manufactured in Europe with EuroKera black glass for a modern look and easy cleanability

DISCONTINUED- REPLACED BY CR4B242BK

3.0" H x 24.0" W x 20.5" D
(8cm H x 61cm W x 52cm D)

Overview
Height of Cabinet	3.0" (8 cm)
Width	24.0" (61 cm)
Depth	20.5" (52 cm)
Cabinet	Black
US Electrical Safety	UL
Amps	21.0
Voltage/Frequency	230 V AC/60 Hz
Weight	20.0 lbs. (9 kg)
Shipping Weight	34.0 lbs. (15 kg)
Parts & Labor Warranty	1 Year
UPC	761101052700
Electric Cooktop
Heating Type	Radiant
Surface	Glass
Element Type	Glasstop
Number of Elements	4
Controls	Dial
Countertop Cutout Height	4.0" (10 cm)
Countertop Cutout Width	22.13" (56 cm)
Countertop Cutout Depth	19.38" (49 cm)
Element #1 Size	6.0" (15 cm)
Element #1 Wattage	1200.0
Element #2 Size	7.5" (19 cm)
Element #2 Wattage	1800.0
Element #3 Size	6.0" (15 cm)
Element #3 Wattage	1200.0
Element #4 Size	7.5" (19 cm)
Element #4 Wattage	1800.0
Power Cord Included	No

24" width

Designed to fit 22.13" W x 19.38" D cutouts

EuroKera surface

Smooth ceramic glass cooking surface in a sleek black finish

2 High output burners

Front left and rear right burners are sized at 7.5" with 1800W of cooking power for larger pots and pans`

2 Standard burners

Front right and rear left burners are sized at 6" with 1200W of cooking power to meet most heating needs

Push-to-turn knobs

Controls require a gentle push to help prevent cooking accidents

Indicator lights

Individual indicator lights show which burner is in use

220-240V operation

Requires professional hardwired installation

Summit offers an extensive selection of radiant cooktops for all kitchen spaces, including 24" wide European choices.

The CR4B242BL is a 230V 6000W electric cooktop designed to fit common 22 1/8" W x 19 3/8" D cutouts. Two 7.5" elements offer 1800W of power for larger cooking vessels, with two standard 6" 1200 elements to handle lighter cooking needs. The EuroKera glass surface comes in a striking jet black finish. Color-matched push-to-turn knobs complete the look. The side-mounted control panel helps to free up space in front when cooking. This unit includes individual indicator lights to show which burners are in use.

In addition to the CR4B242BL, Summit offers a variety of cooktop choices, including white glass models, induction cooktops, coil cooktops, and more. Browse our website to explore our full selection.

BROCHURE w/ DRAWINGS
CR4B242BL.pdf

TECHNICAL DRAWING (.dwg)
CR4B242BL_Cooktop__A-C_2018_.dwg

USE & CARE
CR4B420_Use_and_Care.pdf
