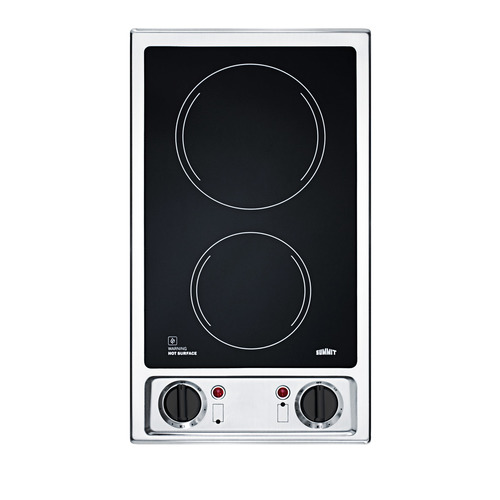

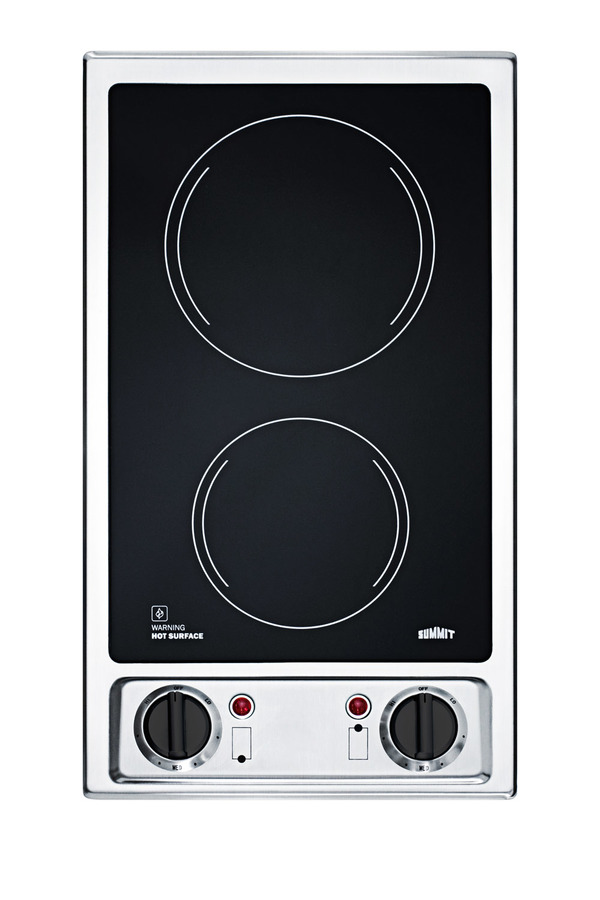

CR2B120
Brushed stainless steel trim brings a professional look to the counter
2.5" H x 11.25" W x 20.0" D
(6cm H x 29cm W x 51cm D)
OVERVIEW
- Two-burner electric cooktop with 120V operation
- Smooth black ceramic glass surface offers easy cleanup and modern style
- Stainless steel trim offers an added touch of modern style
- Includes push-to-turn knobs and heat indicator lights for safer use
SHARE THIS PRODUCT
SPECIFICATIONS
| Overview | |
|---|---|
| Height of Cabinet | 2.5" (6 cm) |
| Width | 11.25" (29 cm) |
| Depth | 20.0" (51 cm) |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 20.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 20.0 lbs. (9 kg) |
| Shipping Weight | 25.0 lbs. (11 kg) |
| Parts & Labor Warranty | 1 Year |
| Electric Cooktop | |
| Heating Type | Radiant |
| Surface | Glass |
| Element Type | Glasstop |
| Number of Elements | 2 |
| controls | Dial |
| Countertop Cutout Height | 2.5" (6 cm) |
| Countertop Cutout Width | 10.13" (26 cm) |
| Countertop Cutout Depth | 18.63" (47 cm) |
| Element #1 Size | 5.75" (15 cm) |
| Element #1 Wattage | 500.0 |
| Element #2 Size | 7.0" (18 cm) |
| Element #2 Wattage | 900.0 |
California residents:
click here for information on Proposition 65
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
WHERE TO BUY
DESCRIPTION
SUMMIT CR2B120 is a two-burner 120V cooktop made from black ceramic glass. The smooth surface is easy to clean and offers a sleek look for any kitchen counter, with a stainless steel trim to complete the look. Push-to-turn knobs ensure added safety, with indicator lights to show when the heat is turned on. This unit is designed for built-in installation with a cutout size of 10 1/8" W x 18 5/8" D. With a clean design and great price, SUMMIT’s electric cooktops offer top value for homes, hotels, yachts, and other settings with unique kitchen needs.
FEATURES
Smooth black ceramic surface
Easy cleanup and elegant style on a smooth ceramic glass surface
Easy cleanup and elegant style on a smooth ceramic glass surface
Two heating elements
One 900W burner and one 500W burner in smooth ceramic glass
One 900W burner and one 500W burner in smooth ceramic glass
115V operation
Standard 3-plug cord included for use with 20 amp circuits
Standard 3-plug cord included for use with 20 amp circuits
Push-to-turn controls
Prevents accidents by requiring a small amount of force to turn on cooktop heat
Prevents accidents by requiring a small amount of force to turn on cooktop heat
Indicator lights
Show when and which burners are turned on
Show when and which burners are turned on
Designed for built-in installation
Cutout dimensions: 10 1/8" W x 18 5/8" D
Cutout dimensions: 10 1/8" W x 18 5/8" D
ADA compliant design
Upfront controls and easy-to-operate knobs offer easier accessibility
Upfront controls and easy-to-operate knobs offer easier accessibility
Cord included
Ships with standard 3-pronged cord pre-installed
Ships with standard 3-pronged cord pre-installed
SPECIFICATIONS
| Overview | |
|---|---|
| Height of Cabinet | 2.5" (6 cm) |
| Width | 11.25" (29 cm) |
| Depth | 20.0" (51 cm) |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 20.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 20.0 lbs. (9 kg) |
| Shipping Weight | 25.0 lbs. (11 kg) |
| Parts & Labor Warranty | 1 Year |
| Electric Cooktop | |
| Heating Type | Radiant |
| Surface | Glass |
| Element Type | Glasstop |
| Number of Elements | 2 |
| controls | Dial |
| Countertop Cutout Height | 2.5" (6 cm) |
| Countertop Cutout Width | 10.13" (26 cm) |
| Countertop Cutout Depth | 18.63" (47 cm) |
| Element #1 Size | 5.75" (15 cm) |
| Element #1 Wattage | 500.0 |
| Element #2 Size | 7.0" (18 cm) |
| Element #2 Wattage | 900.0 |
DOWNLOADS
California residents:
click here for information on Proposition 65
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
