CM411LBIPLUS
SHARE THIS PRODUCT
E-mail a Friend Print

SPECIFICATIONS

Overview
Height of Cabinet 33.5" (85 cm)
Height to Hinge Cap 34.0" (86 cm)
Width 19.25" (49 cm)
Depth 21.38" (54 cm)
Depth with Handle 23.0" (58 cm)
Depth with door at 90° 39.5" (100 cm)
Capacity 4.1 cu.ft. (116 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 64.0 lbs. (29 kg)
Shipping Weight 85.0 lbs. (39 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Crisper Qty 1
Crisper Finish Opaque
Crisper Cover Glass
Refrigerator - Interior Height 28.75" (73 cm)
Refrigerator - Interior Width 15.75" (40 cm)
Refrigerator - Interior Depth 17.75" (45 cm)
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 2
Adjustable Shelves Yes
Interior Light Yes
Thermostat Type Dial
Fan Type Interior
Refrigerant Type R134a
Refrigerant Amount 1.75 oz.
High Side PSI 205.0
Low Side PSI 103.0
Level Legs 2
Wheels 2

AVAILABLE UPGRADES

Exterior
DL2 Temperature Logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
TH Thermometer
Add a solar powered thermometer with external temperature readout
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
CAS6 6" casters
6" high NSF listed casters
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Agion Door
Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
KEY
Extra keys available for purchase


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

CM411LBIPLUS

Factory installed lock located towards the top of the door for secure convenience

34.0" H x 19.25" W x 21.38" D

OVERVIEW

WHERE TO BUY

Invalid Format
Accucold's PLUS Series refrigerator-freezers come specially featured use doctors’ offices, medical clinics, nursing stations, and other general purpose facilities that require more temperature assurance than a standard refrigeration unit provides.

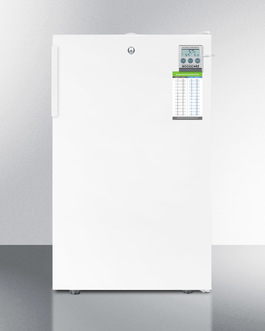

The CM411LBIPLUS is a 20” wide refrigerator-freezer designed for built-in use under counters. It has a manual defrost interior with fan-forced cooling and adjustable wire shelves. The solid door features a traceable thermometer that displays the current and high/low temperatures, as well as a factory installed top-mounted lock. A hospital grade cord offers added safety for high traffic areas.

This model is designed for built-in use but may also be used freestanding. For an identical unit in an ADA compliant (32") height, see the CM411LBIPLUSADA.</P>

FEATURES

Slim 20" width
Full 4.1 cu.ft. capacity inside conveniently slim footprint
Built-in capable
Make the best use of space by installing your appliance under the counter
Fully finished white cabinet
Allows the unit to be used freestanding
Factory installed lock
Top-mounted for convenient security
Traceable thermometer
Thermometer provides external readout of current and high/low temperatures
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety
Manual defrost
Efficient performance with reliable temperature stability
Internal fan with heat sink
Fan-forced cooling helps the unit stay evenly cooled from top to bottom
Adjustable shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Flat door liner
Easy to clean, with more depth for storage
Adjustable thermostat
Manage the temperature with ease and accuracy
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
