20" Wide Built-In Refrigerator-Freezer, ADA Compliant

SKU: CM411LBI7FRADA
Door accepts slide-in panels for a custom look
DISCONTINUED- REPLACED BY ALRF48IF
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
32.5" H x 19.25" W x 21.38" D
(83cm H x 49cm W x 54cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.5" (83 cm)
Width 19.25" (49 cm)
Depth 21.38" (54 cm)
Depth with door at 90° 39.5" (100 cm)
Capacity 4.1 cu.ft. (116 L)
Defrost Type Manual
Door Panel-Ready
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 64.0 lbs. (29 kg)
Shipping Weight 67.0 lbs. (30 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101034720
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 28.75" (73 cm)
Refrigerator - Interior Width 15.75" (40 cm)
Refrigerator - Interior Depth 17.75" (45 cm)
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 2
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.75 oz.
High Side PSI 205.0
Low Side PSI 103.0
Level Legs 2
Wheels 2

Exterior
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
LHD - Left hand door swing
Door reversal to left hand swing
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Alarm/Thermometer - Factory-installed alarm with external temperature readout
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security

Commercially listed

ETL-S listed to NSF standards for commercial use

ADA compliant

32" high to fit under lower ADA compliant counters

Slim 20" width

Full 4.1 cu.ft. capacity inside conveniently slim footprint

Built-in capable

Make the best use of space by installing your appliance under the counter

Fully finished white cabinet

Allows the unit to be used freestanding

Stainless steel door frame

Two-piece "U"-shaped door frame accepts slide-in custom panels (panel size: 19 1/4" W x 31 1/4" H at up to 1/4" thick)

Reversible door

User reversible door swing

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

Manual defrost

Efficient performance with reliable temperature stability

Adjustable shelves

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Crisper drawer

Get the longest life and best taste out of produce by storing greens in a bottom crisper

Interior light

Turn the light on and off with a convenient rocker switch

Flat door liner

Easy to clean, with more depth for storage

Adjustable thermostat

Manage the temperature with ease and accuracy

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

Accucold by Summit Appliance offers a wide range of ADA compliant refrigerator-freezers for general purpose storage. The commercially listed CM411LBI7ADA Series features high performing 20" wide, 32" high locking units designed for built-in use under counters in commercial settings following ADA guidelines for lower counter height.

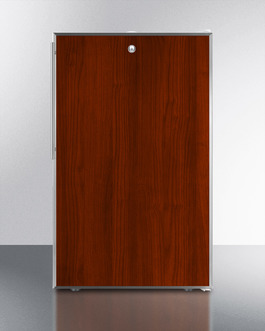

Sized at just under 20" wide, the ETL-S listed CM411LBI7FRADA has a 32" height and can be used built-in or freestanding. It has a white cabinet and reversible door with a top-mounted keyed lock. The door includes a two-piece stainless steel door frame that can accept slide-in panels for a custom look. The manual defrost interior includes adjustable wire shelves, a clear crisper drawer and an ice cube compartment for convenient storage. Additional features include an interior light and hospital grade cord for added safety in busy areas.

With easy-fitting dimensions and user-friendly features, the CM411LBI7FRADA is ideal for any commercial setting in need of a reliable refrigerator-freezer.

Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 718-893-3900.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
