20" Wide Refrigerator-Freezer, ADA Compliant

SKU: CM405BIIFADA
DISCONTINUED- REPLACED BY ALRF48IF
32.5" H x 19.25" W x 21.38" D
(83cm H x 49cm W x 54cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.5" (83 cm)
Width 19.25" (49 cm)
Depth 21.38" (54 cm)
Depth with door at 90° 39.5" (100 cm)
Capacity 4.1 cu.ft. (116 L)
Defrost Type Manual
Door Panel-Ready
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 339.0kWh/year
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 64.0 lbs. (29 kg)
Shipping Weight 85.0 lbs. (39 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101005201
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 28.75" (73 cm)
Refrigerator - Interior Width 15.75" (40 cm)
Refrigerator - Interior Depth 17.75" (45 cm)
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 2
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.75 oz.
High Side PSI 205.0
Low Side PSI 103.0
Level Legs 2
Wheels 2

Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
Alarm/Thermometer - Factory-installed alarm with external temperature readout
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior
FCGP internal fan with gel packs
Internal fan with gel packs included for a stabilized interior
Lock
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security

ADA compliant

32" high to fit under lower ADA compliant counters

Slim 20" width

Full 4.1 cu.ft. capacity inside conveniently slim footprint

Built-in capable

Make the best use of space by installing your appliance under the counter

Fully finished white cabinet

Allows the unit to be used freestanding

Integrated door frame

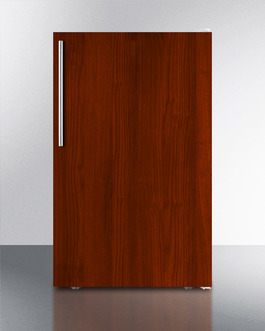

Stainless steel door frame accepts overlay panels for users to create a custom look over the front (panel size: 19 1/2" W x 31 1/2" H and up to 3/4" thick)

Reversible door

User reversible door swing

Manual defrost

Efficient performance with reliable temperature stability

Adjustable shelves

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Crisper drawer

Get the longest life and best taste out of produce by storing greens in a bottom crisper

Interior light

Turn the light on and off with a convenient rocker switch

Adjustable thermostat

Manage the temperature with ease and accuracy

Flat door liner

Easy to clean, with more depth for storage

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

SUMMIT CM405BIADA series features 20" wide refrigerator-freezers designed for built-in use under lower ADA compliant counters.

Sized at just under 20" wide, the CM405BIIFADA is 32" high to fit under lower ADA counters. This model has a white exterior and reversible door with an integrated door frame that accepts full custom overlay panels. The manual defrost interior includes adjustable wire shelves, a clear crisper drawer and an ice cube compartment for convenient storage. This unit includes and interior light with an on/off rocker switch.

With easy-fitting dimensions and user-friendly features, the CM405BIIFADA is ideal for any household or professional setting in need of a reliable refrigerator-freezer. This model can be used built-in or freestanding.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
