CL69ROSW

Commercial home ea581a399e3ae77121f807aa081394156550222354be8f27504df77d2fff3a44
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

Complete stainless steel exterior for weatherproof use in outdoor kitchens

34.0" H x 23.38" W x 23.5" D

(86cm H x 59cm W x 60cm D)

OVERVIEW

  • 304 grade stainless steel wrapped exterior offers lasting durability in outdoor kitchens
  • Flexible design allows built-in or freestanding use in 24" wide spaces
  • Factory installed lock provides security you can count on
  • Easy temperature management with a digital thermostat
  • Door storage and spill-proof shelves provide convenient storage solutions
  • Commercially listed to NSF-7 standards

SPECIFICATIONS

Overview
Height of Cabinet 34.0" (86 cm)
Width 23.38" (59 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 45.63" (116 cm)
Capacity 4.6 cu.ft. (130 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 250.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Full Door Shelf Qty 2
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.38oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 43ºF
Dimensions
Interior Height 25.75" (65 cm)
Interior Width 19.0" (48 cm)
Interior Depth 17.25" (44 cm)
Compressor Step Height 3.5" (9 cm)
Compressor Step Width 19.0" (48 cm)
Compressor Step Depth 4.75" (12 cm)

AVAILABLE UPGRADES

Exterior
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
Extra key
Extra keys available for purchase


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

WHERE TO BUY

Invalid Format

DESCRIPTION

Summit Classic Collection features deluxe undercounter appliances designed to bring modern luxury to indoor and outdoor living spaces.

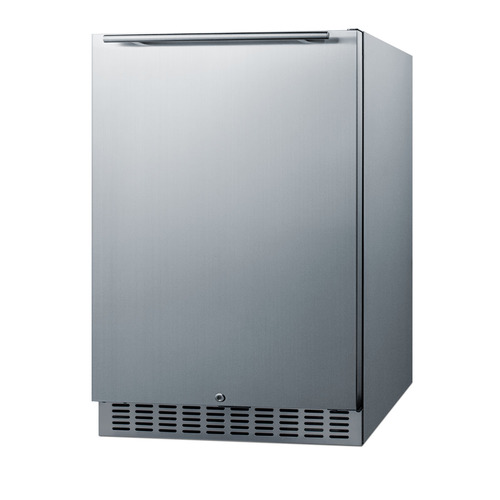

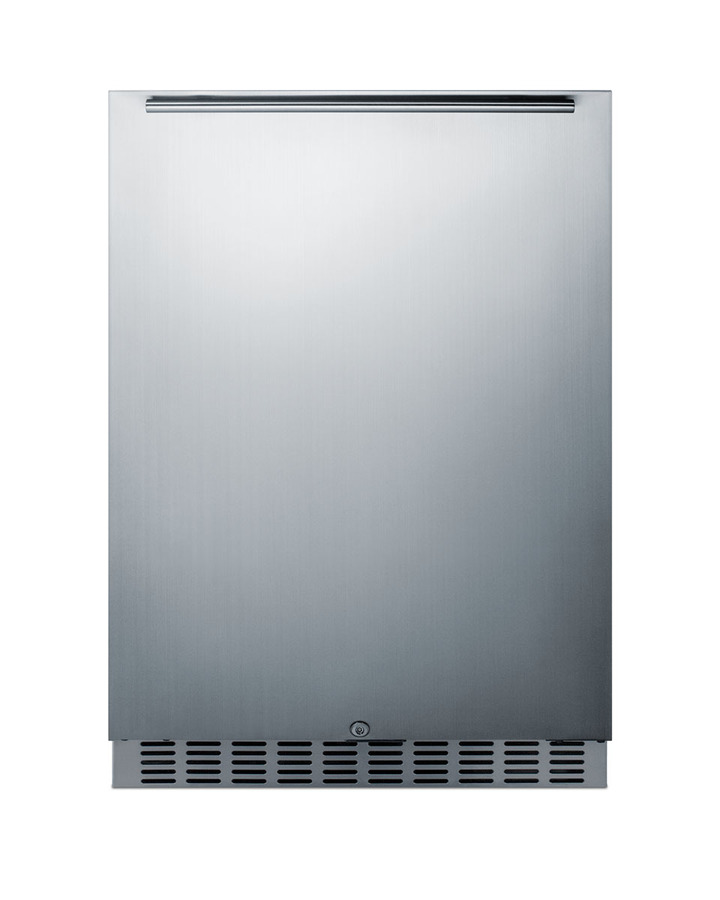

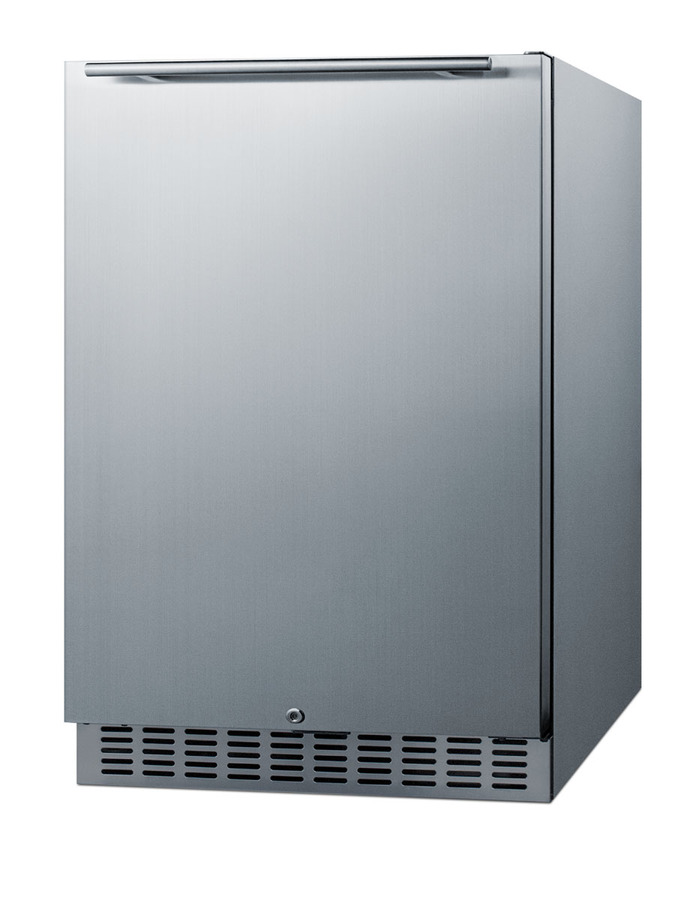

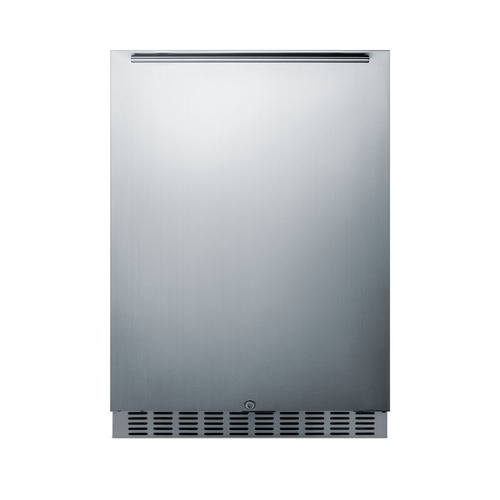

Designed and constructed for weatherproof use in the outdoors, the CL69ROSW is an all-refrigerator sized with a convenient 24" footprint. The front-breathing design allows built-in installation under counters, while the fully finished cabinet also enables freestanding use. This unit features a 304 grade stainless steel wrapped cabinet and reversible door, specially designed to hold up to the elements. A sealed back and integrated ground fault circuit interrupter offers added safety. The door includes a horizontally mounted pro style handle and a front lock.

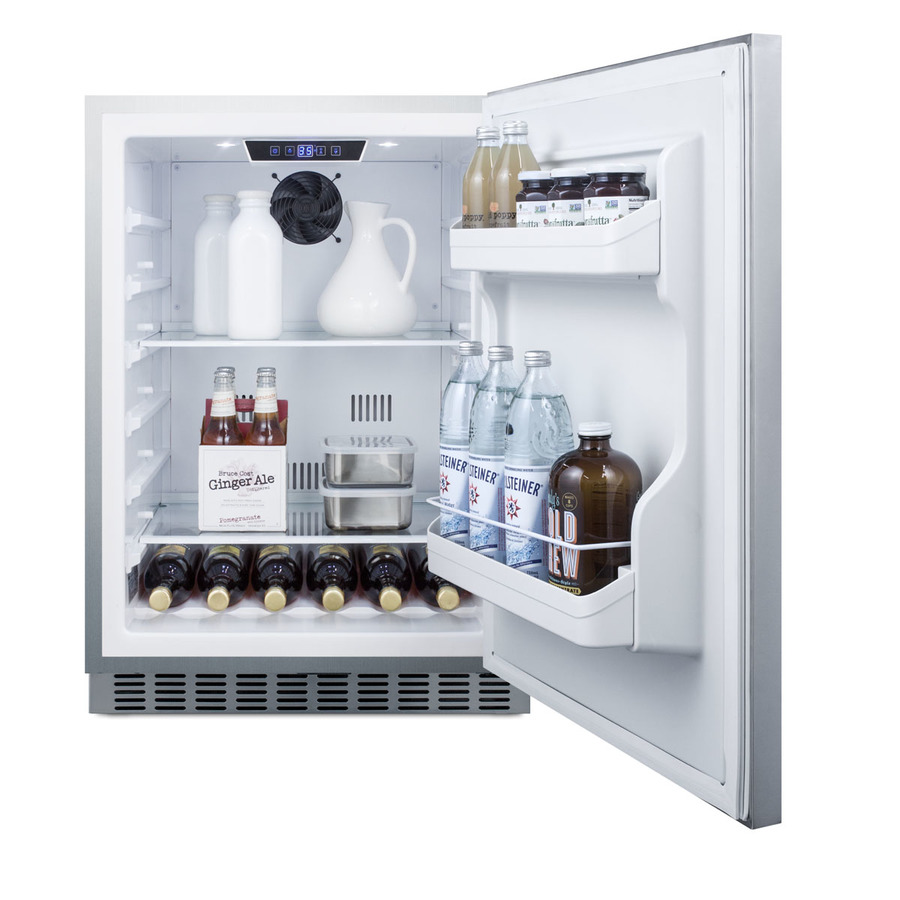

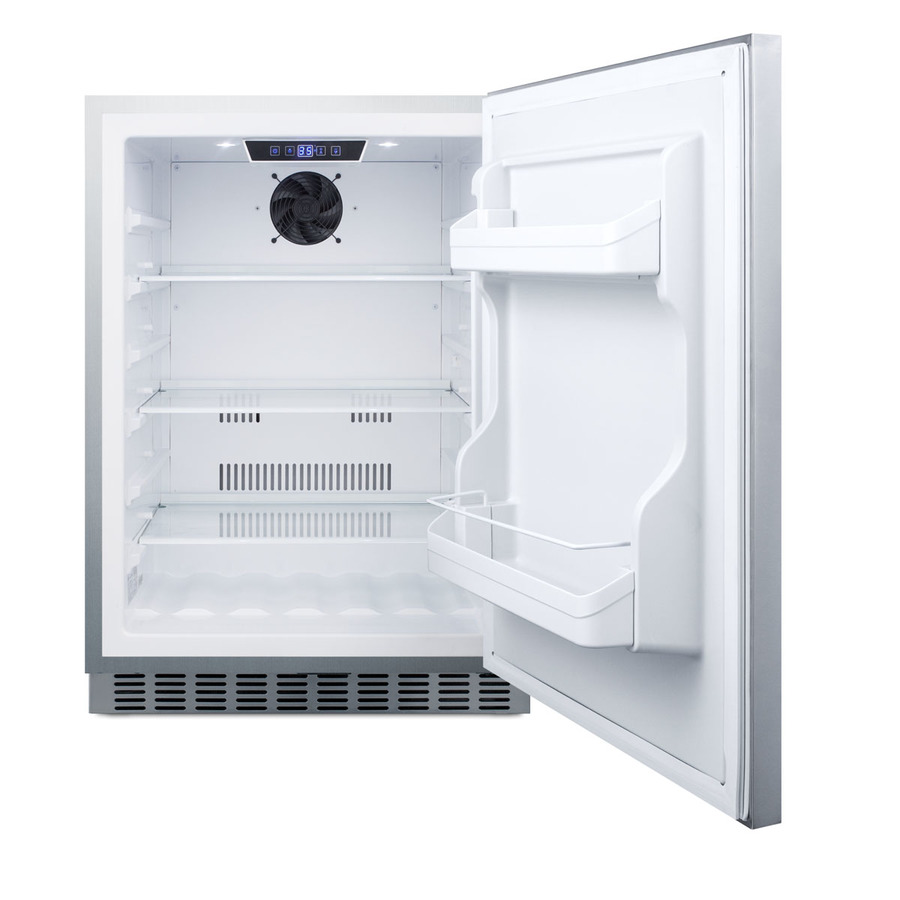

Inside, the CL69ROSW features a clean white interior with recessed LED lighting for full visibility. The digital control panel makes it easy to manage the temperature in Celsius or Fahrenheit. Frost-free operation ensures minimum user maintenance and an internal fan allows for a more evenly cooled interior. Adjustable glass shelves offer spill-proof storage and two fixed door racks allow you to keep condiments and tall bottles in easy reach. The floor is specially slotted to hold bottles in place. Additional features include audible alarms for high temperature and open door alerts and Sabbath mode, which allows users to disable the light and alarms during periods of observance.

The CL69ROSW can be used in residential or commercial outdoor kitchens and is ETL-S listed to NSF-7 standards. With its durable construction, elegant design, and user-friendly features, it makes a stunning addition to any outdoor space. For the same unit with a black interior, see the CL67ROSB.

FEATURES

Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Stainless steel exterior
Door and cabinet feature a 304 grade stainless steel finish designed to hold up to the elements
Factory installed lock
Keyed lock for a secure interior, with two keys included

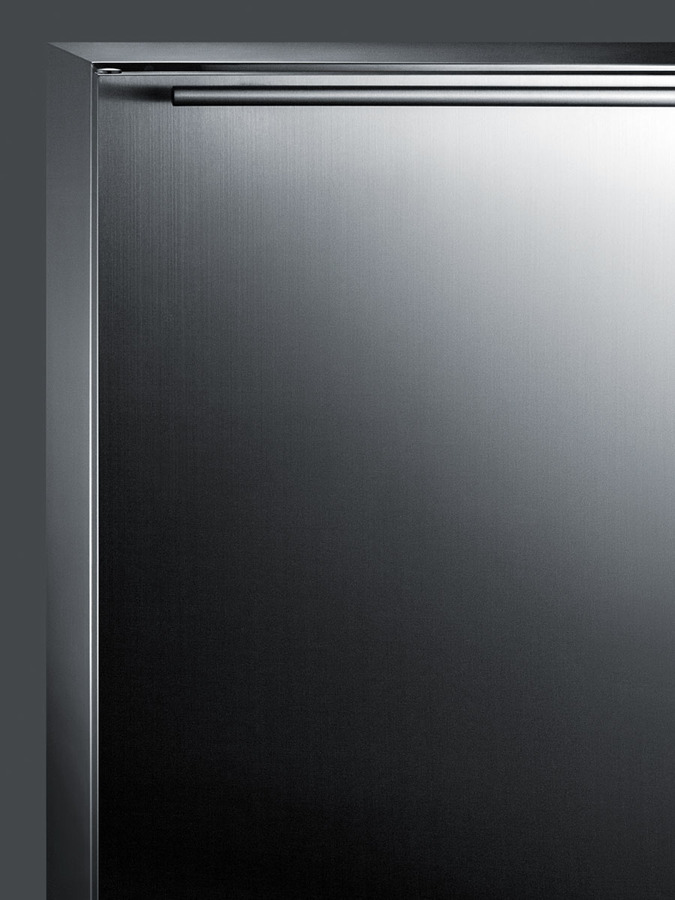

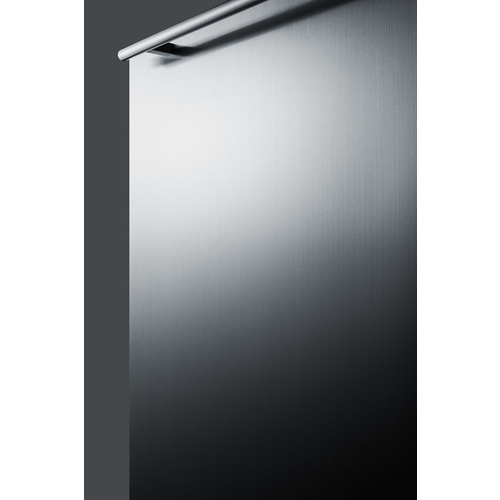

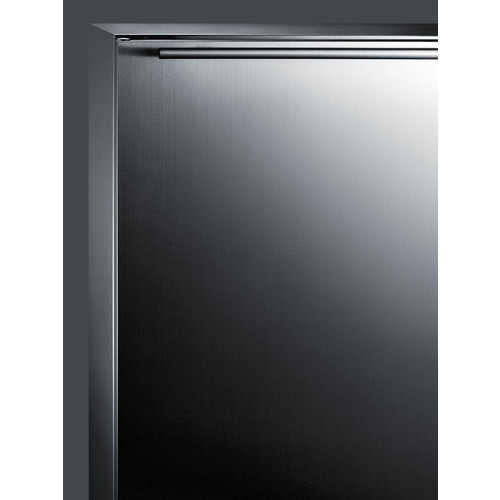

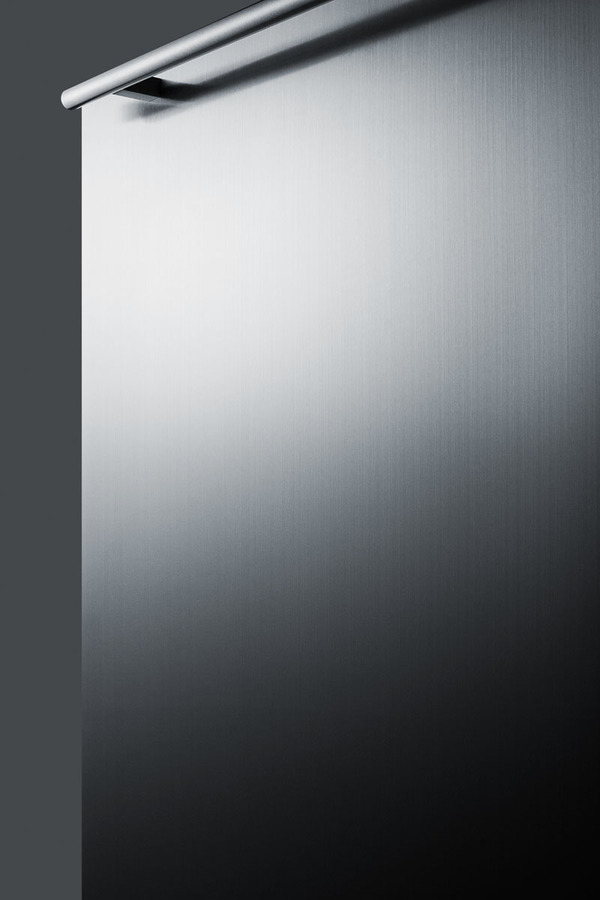

Professional handle
Horizontally mounted handle with a thin diameter in brushed stainless steel to match many popular styles of cabinetry
Frost-free operation
No-frost operation for minimum user maintenance
Digital thermostat
Electronic controls located inside the unit for precise temperature management
Door storage
Two door racks offer convenient storage for condiments and tall bottles
Adjustable glass shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Recessed LED lighting
Efficient and attractive lighting illuminates stored items for a full display
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
White interior finish
Ideal for adding brightness to your outdoor kitchen. For the same unit in black, see the CL67ROSB
Reversible door
User reversible door swing for added flexibility
Integrated stainless steel hinge
Door hinge adds no additional height, making it easier to install under a counter
Open door alarm
Alarm sounds if the door is left open for more than 60 seconds, helping to protect stored items from ambient temperature
High temperature alarm
Audible alarm sounds if the interior temperature rises out of set range
Sabbath mode
Optional setting lets you disable the lighting and alarm for up to 96 hours
Sealed back
No exposed electrical components allow safe use in the outdoors
Ground Fault Circuit Interrupter
Integrated GFCI exceeds U.L. requirements for safety by protecting your unit from shocks and circuit breaks
Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
Fully finished cabinet
Allows the unit to be used freestanding in the outdoors
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 34.0" (86 cm)
Width 23.38" (59 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 45.63" (116 cm)
Capacity 4.6 cu.ft. (130 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 250.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Full Door Shelf Qty 2
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.38oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 43ºF
Dimensions
Interior Height 25.75" (65 cm)
Interior Width 19.0" (48 cm)
Interior Depth 17.25" (44 cm)
Compressor Step Height 3.5" (9 cm)
Compressor Step Width 19.0" (48 cm)
Compressor Step Depth 4.75" (12 cm)

AVAILABLE UPGRADES

Exterior
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
Extra key
Extra keys available for purchase

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
CL69ROSW.pdf
Download
MSDS INFORMATION
R600a_K.pdf
Energy Guide


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice
