24" Wide Built-In Outdoor Wine/Beverage Center

SKU: CL66FDOS
304 grade stainless steel construction for durable use in the outdoors, with a French door swing for dramatic presentation
DISCONTINUED
34.5" H x 23.88" W x 23.88" D
(88cm H x 61cm W x 61cm D)

Overview
Height of Cabinet 34.5" (88 cm)
Width 23.88" (61 cm)
Depth 23.88" (61 cm)
Depth with Handle 25.5" (65 cm)
Depth with door at 90° 34.5" (88 cm)
Capacity 5.1 cu.ft. (144 L)
Bottles 21 bottles
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 101.0 lbs. (46 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101056111
Wine Cellar
Number of Zones 2
Door Swing French
Adjustable Shelves Yes
Shelf Type Glass and Wire
Shelf Qty 9
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.41 oz.
High Side PSI 277.0
Low Side PSI 103.0
Interior Height 1 26.0" (66 cm)
Interior Width 1 9.38" (24 cm)
Interior Depth 1 18.0" (46 cm)
Compressor Step Height 4.38" (11 cm)
Compressor Step Width 9.38" (24 cm)
Compressor Step Depth 5.5" (14 cm)
Level Legs 2
Wheels 4
Temperature Range 41 to 64ºF
Interior Height 2 26.0" (66 cm)
Interior Width 2 9.38" (24 cm)
Interior Depth 2 18.0" (46 cm)

Weatherproof design

Solid construction allows placement in the outdoors

304 grade stainless steel exterior

Complete stainless steel construction ensures lasting durability and style

Two temperature zones

Independent temperature zones allow separate storage of wine and craft beer under the proper temperature conditions

Built-in capable

Make the best use of space by installing your unit under the counter and flush with other cabinets

French door swing

Two side-by-side doors with French door opening

Automatic defrost

Reduced maintenance with auto defrost system

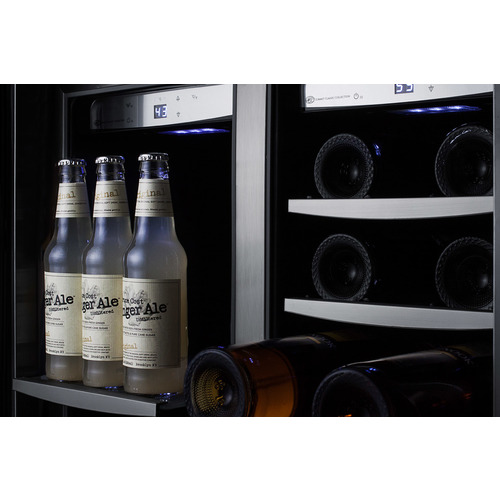

Adjustable glass shelves

Frosted glass shelves with silver trim can accommodate up to 60 12 oz. cans of your favorite craft beer

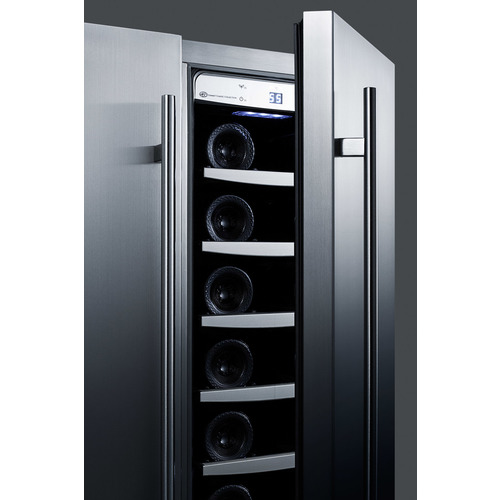

Slide-out wine shelves

6 wine shelves are ideally sized to store up to 21 standard 750 ml bottles, with a silver trimmed accent for an added touch of style

Digital thermostat

Intuitive touch controls located inside the unit make temperature adjustment simple, with a temperature display in Celsius or Fahrenheit

LED lighting

Recessed LED lighting offers an elegant and efficient view of the interior

Open door alarm

Audible alarm will sound if the door is left ajar

Caster set

Unit ships with four casters (two locking) for users to install to make the refrigerator portable

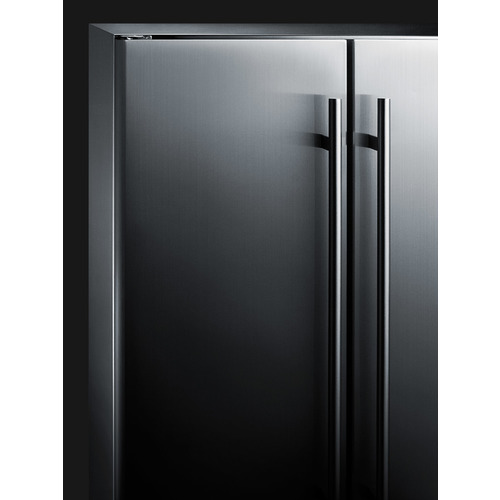

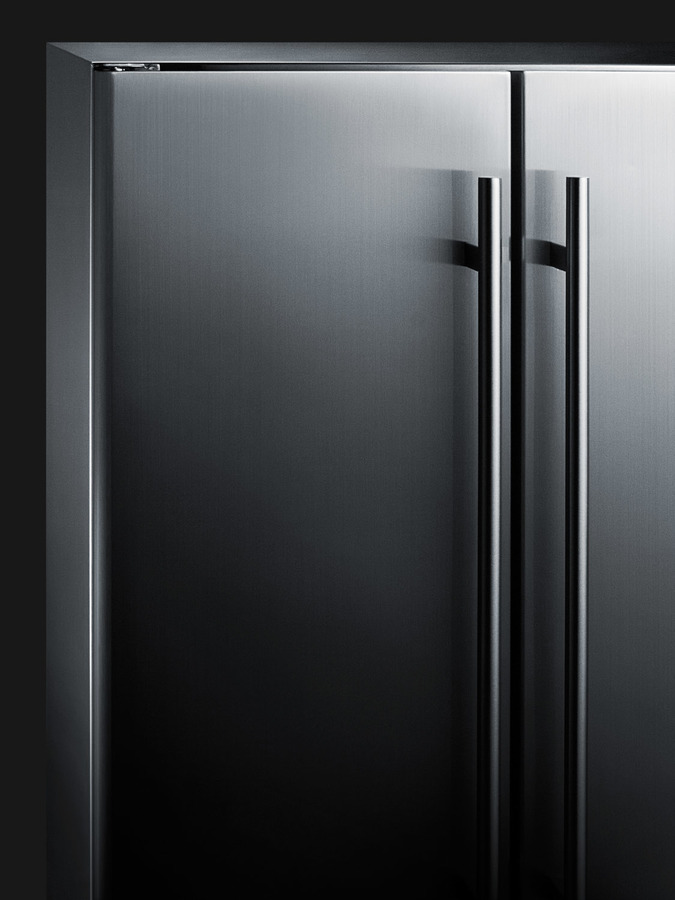

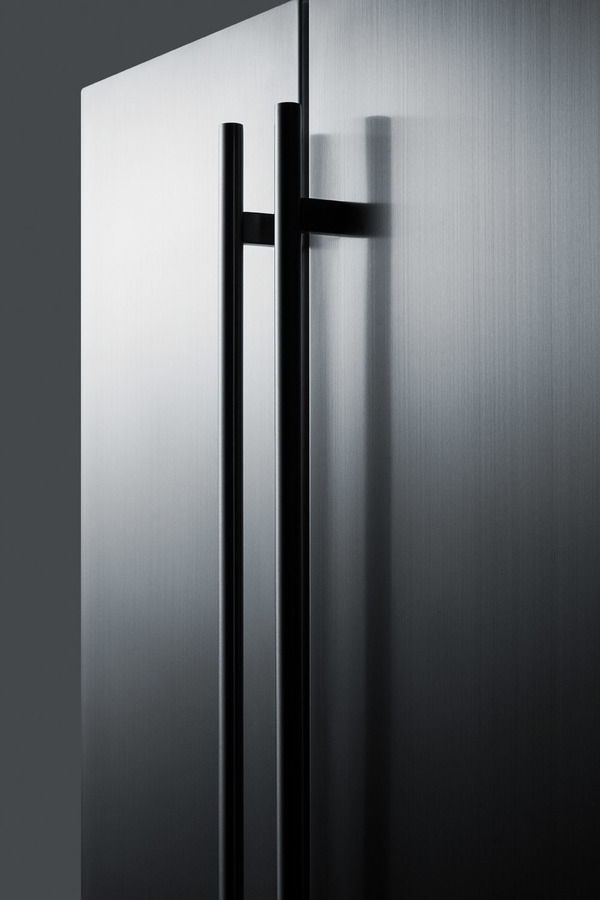

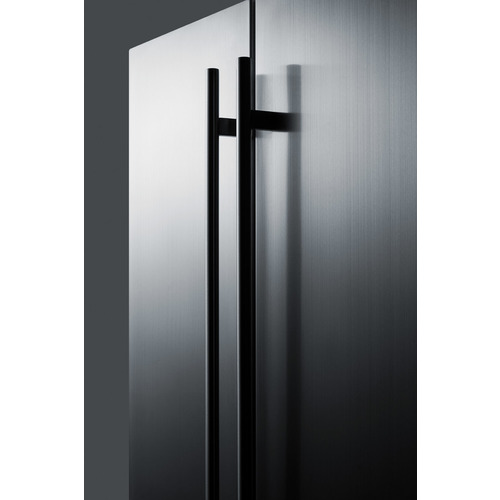

Professional handles

Vertically mounted handles in brushed stainless steel, with a sleek 16mm diameter that matches many popular styles of cabinetry

Fan-forced cooling

Internal fan ensures the interior is evenly cooled from top to bottom

Energy conservation mode

Lets you disable some of the electrical features to save on energy use

Sealed back

Space saving design with easier cleanability

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Temperature alarm

Audibly alerts if the interior temperature rises or falls out of the recommended storage range

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

The SUMMIT Classic Collection features deluxe undercounter appliances designed to bring modern luxury into the home.

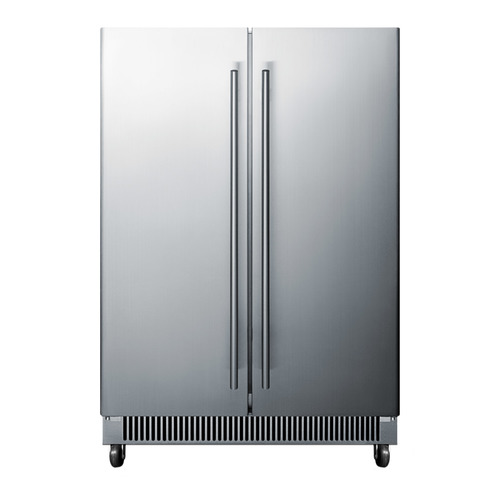

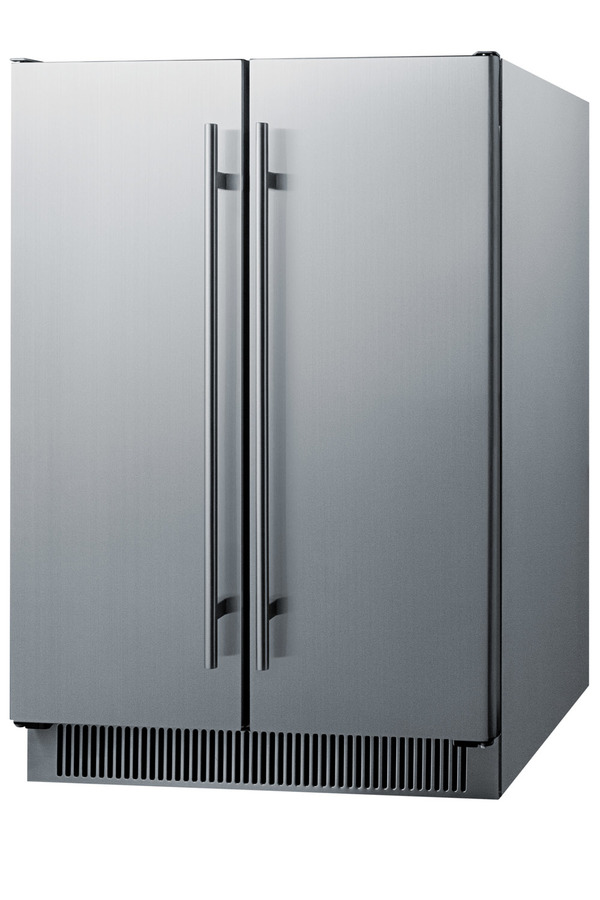

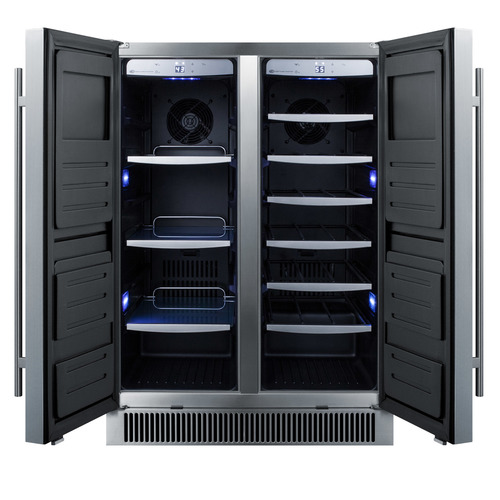

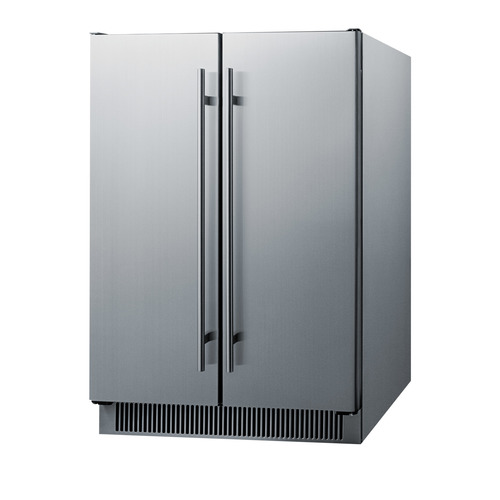

Ideally sized with a 24" footprint, the CL66FDOS offers innovative storage for wine and craft beer in the outdoors. The exterior is fully constructed from weatherproof 304 grade stainless steel, including two French doors with sleek handles for a dramatic presentation. Our signature kickplate adds a modern accent. This unit can be built-in under counters or used freestanding. We include a four-piece caster set that can easily be installed to make the CL66FDOS a mobile unit.

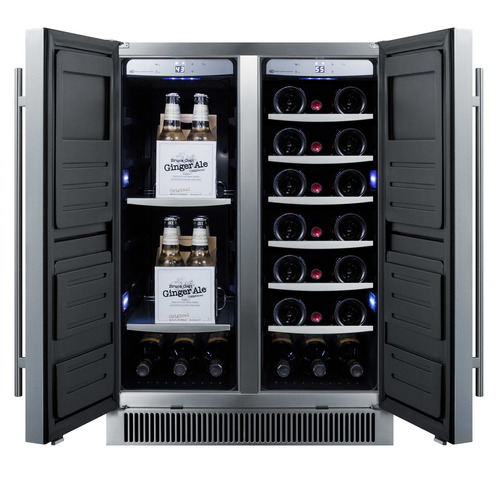

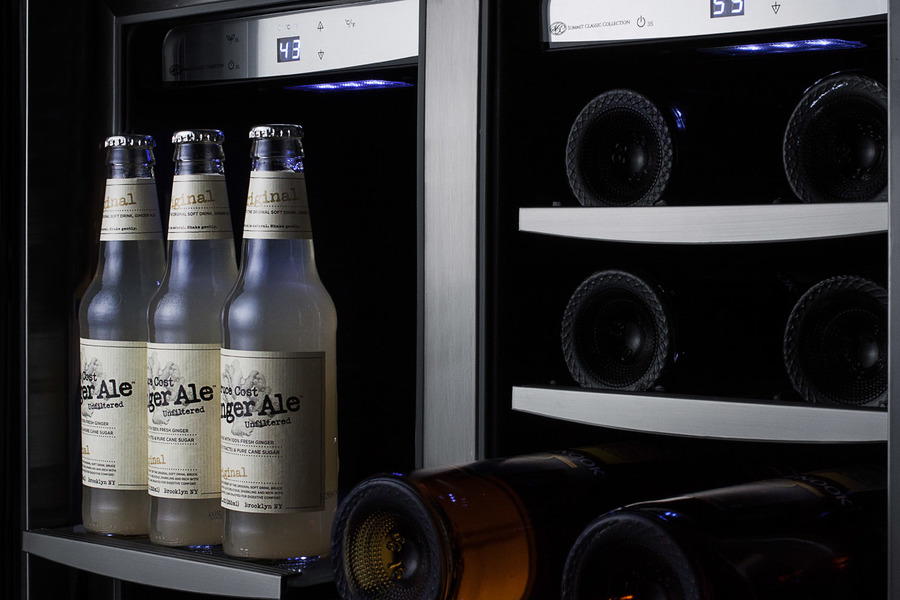

Two independent zones let you keep your wine or craft beer collection stored at the right temperature, with separate digital thermostats for easy use. The red wine section includes six slide-out shelves that can accommodate up to 21 standard 750ml bottles of wine, while the cooler white wine or craft beer section includes frosted glass shelves that can hold wine or up to 60 12 oz. beer cans. The jet black interior is fully illuminated by recessed LED lighting. Additional features include an open door alarm, energy conservation mode, temperature memory function, and high/low temperature alarm that audibly warns if the unit goes out of the recommended temperature range.

With its versatile design and weatherproof construction, the CL66FDOS makes the perfect addition to outdoor kitchens in need of flexible storage.

Download
BROCHURE w/ DRAWINGS
CL66FDOS.pdf
Download
TECHNICAL DRAWING (.dwg)
CL63FDOSWINECELLARREF.A-C2000.dwg

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
