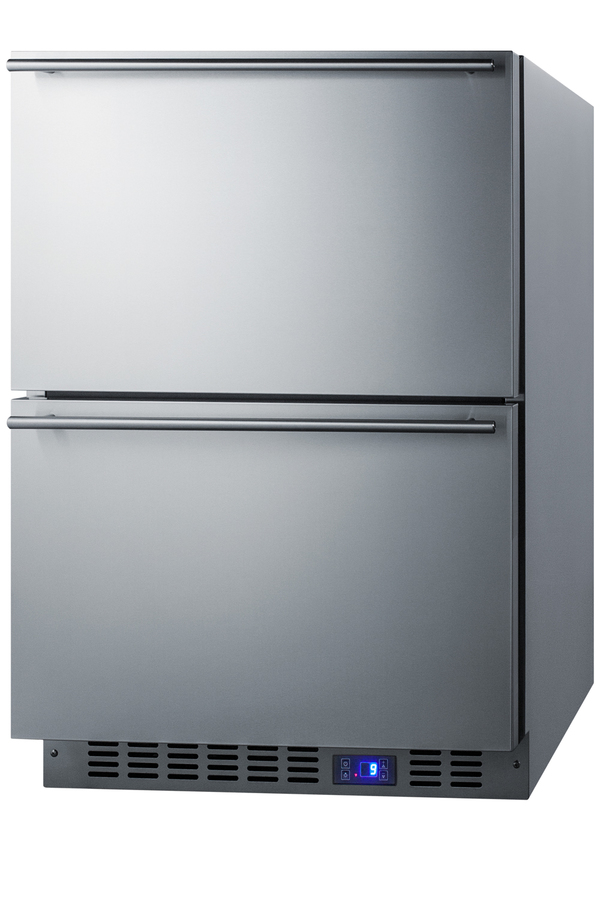

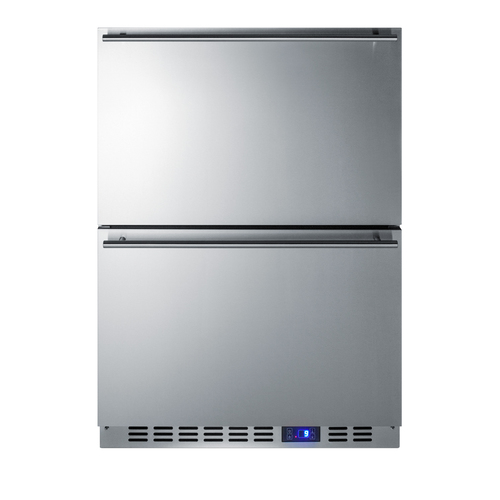

24" Wide Built-In 2-Drawer All-Freezer

SKU: CL2F249
Panel-ready drawer fronts let you create your own custom look
Estimated Time to Ship:

2 to 4 days

34.0" H x 23.63" W x 23.63" D
(86cm H x 60cm W x 60cm D)

Overview
Height of Cabinet 34.0" (86 cm)
Width 23.63" (60 cm)
Depth 23.63" (60 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 39.38" (100 cm)
Capacity 3.54 cu.ft. (100 L)
Defrost Type Frost-Free
Door Stainless Steel/Panel-Ready
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 405.0kWh/year
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 106.0 lbs. (48 kg)
Shipping Weight 111.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101032214
Freezer
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.24 oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs 2
Interior Drawers Yes
Drawers Qty 2
Interior Height - Drawer 1 9.25" (23 cm)
Interior Width - Drawer 1 17.25" (44 cm)
Interior Depth - Drawer 1 15.5" (39 cm)
Interior Height - Drawer 2 10.0" (25 cm)
Interior Width - Drawer 2 17.25" (44 cm)
Interior Depth - Drawer 2 15.5" (39 cm)
Compressor Step Height 3.5" (9 cm)
Compressor Step Width 17.25" (44 cm)
Compressor Step Depth 4.0" (10 cm)
Sabbath Mode Yes

Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.

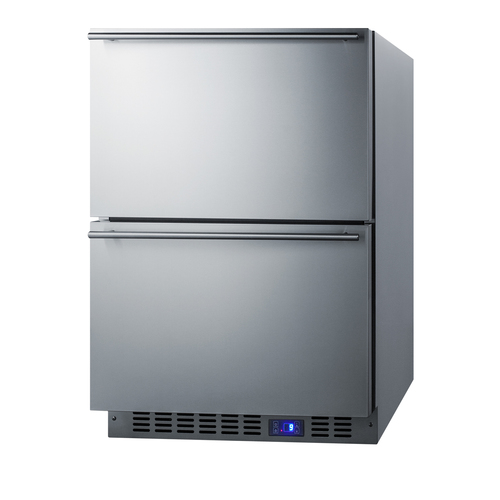

Stainless steel construction

Cabinet, drawers, and kickplate are fully constructed from stainless steel to ensure lasting durability and easy cleanup

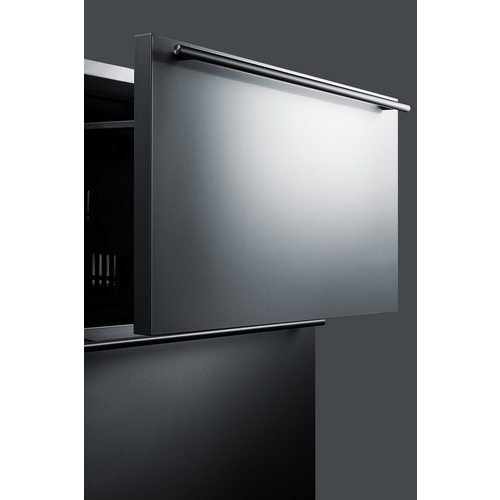

Two sliding drawers

Smoothly gliding stainless steel drawers for easy use

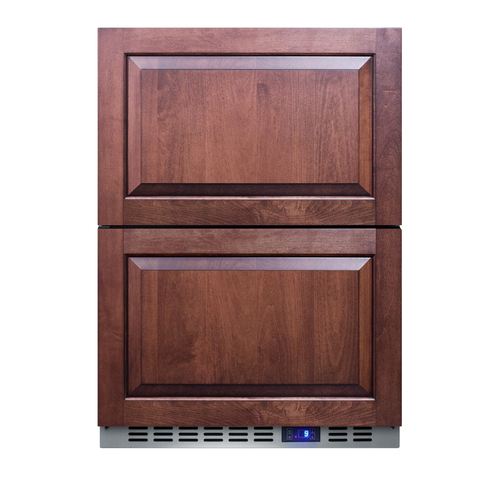

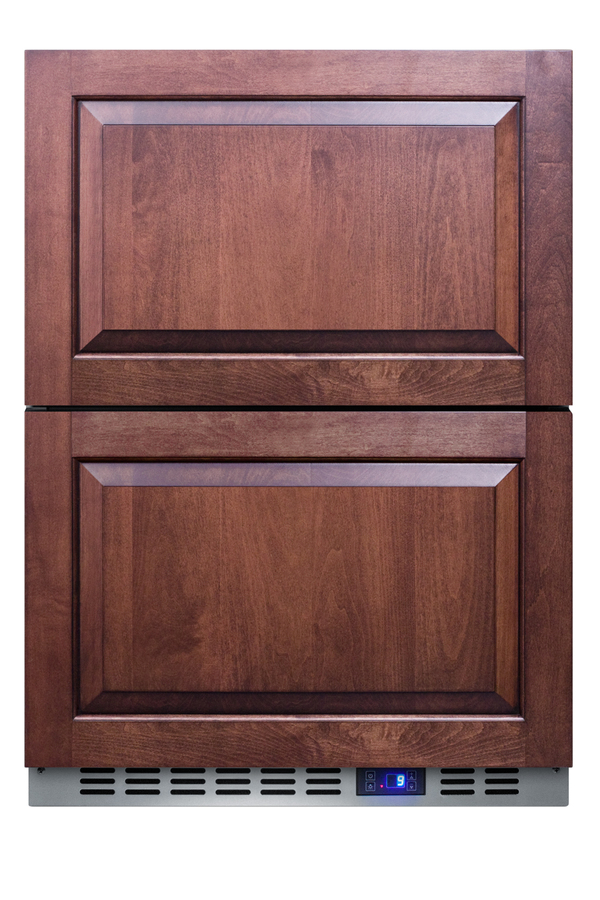

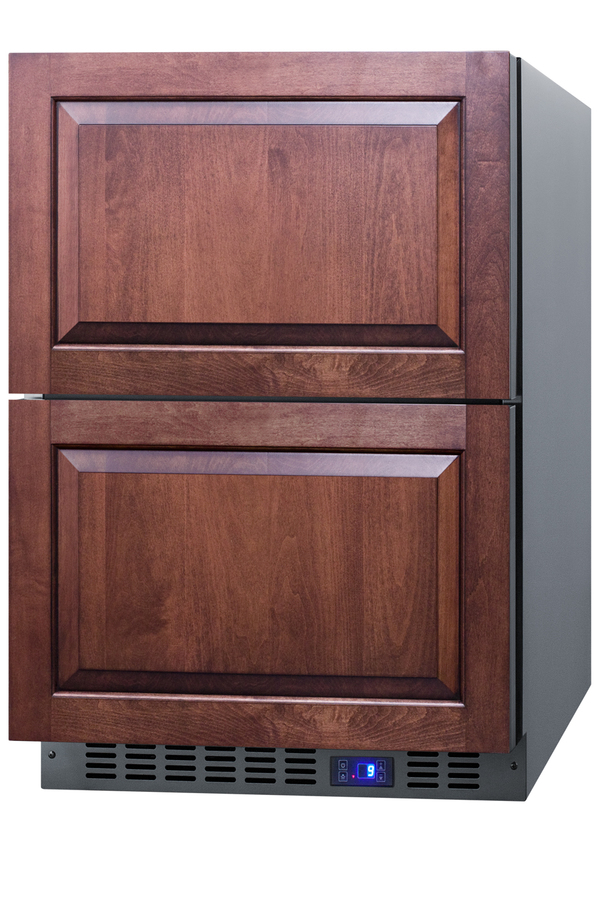

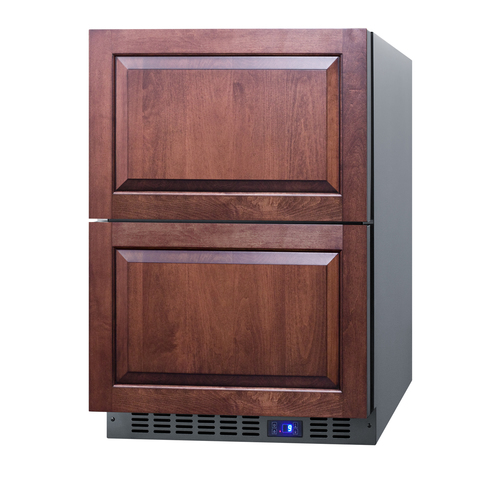

Panel-ready drawer fronts

Drawers accept overlay panels (size: 23.43" x 15" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design

Built-in capable

Make the best use of space by installing your appliance under the counter and flush with other cabinets

Frost-free operation

Minimum user maintenance with a fully no-frost operation system

Internal fan

Fan-forced cooling ensures even temperature distribution from top to bottom

Digital thermostat

Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit

LED lighting

Elegant and efficient lighting offers a gentle illumination for the drawer interiors

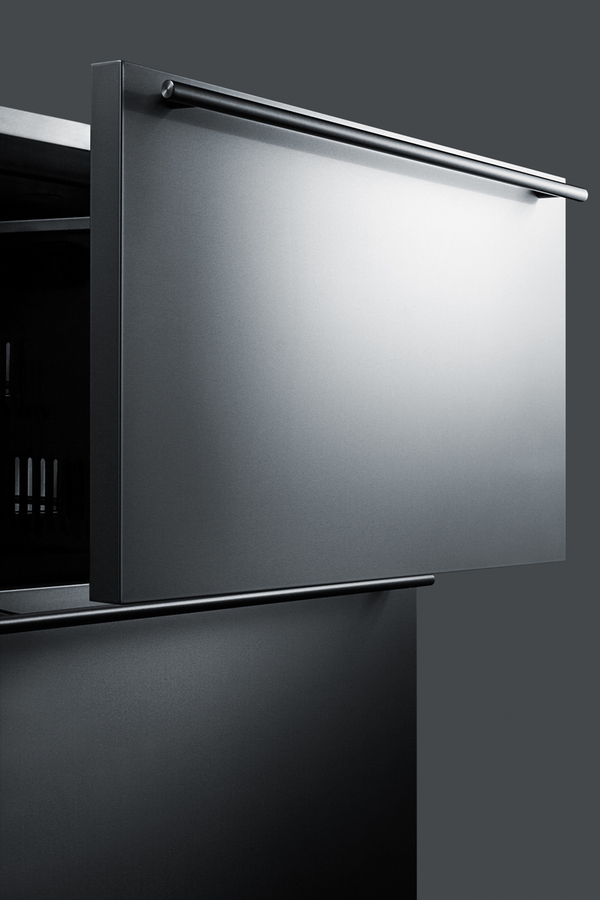

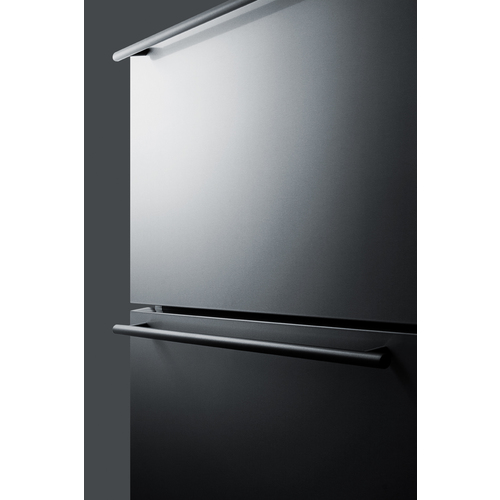

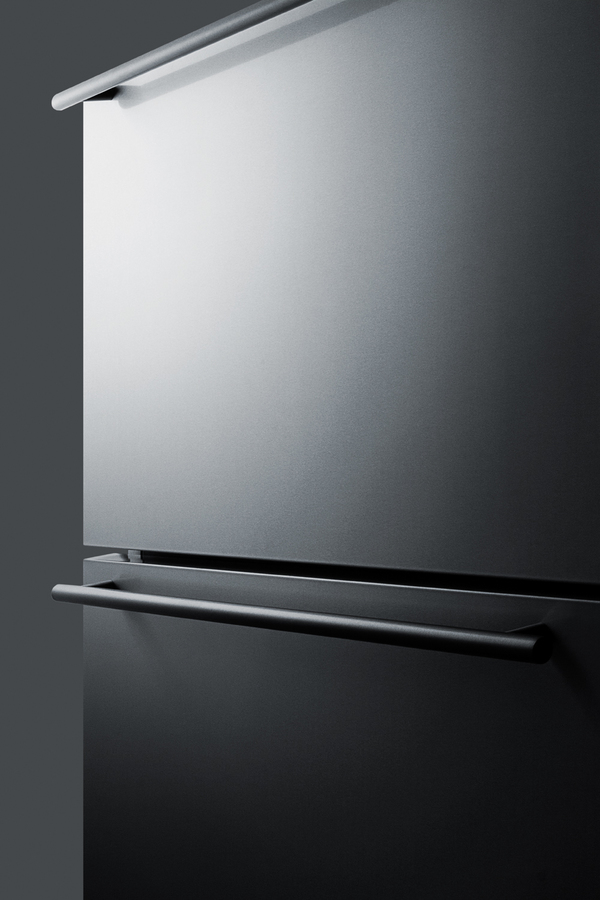

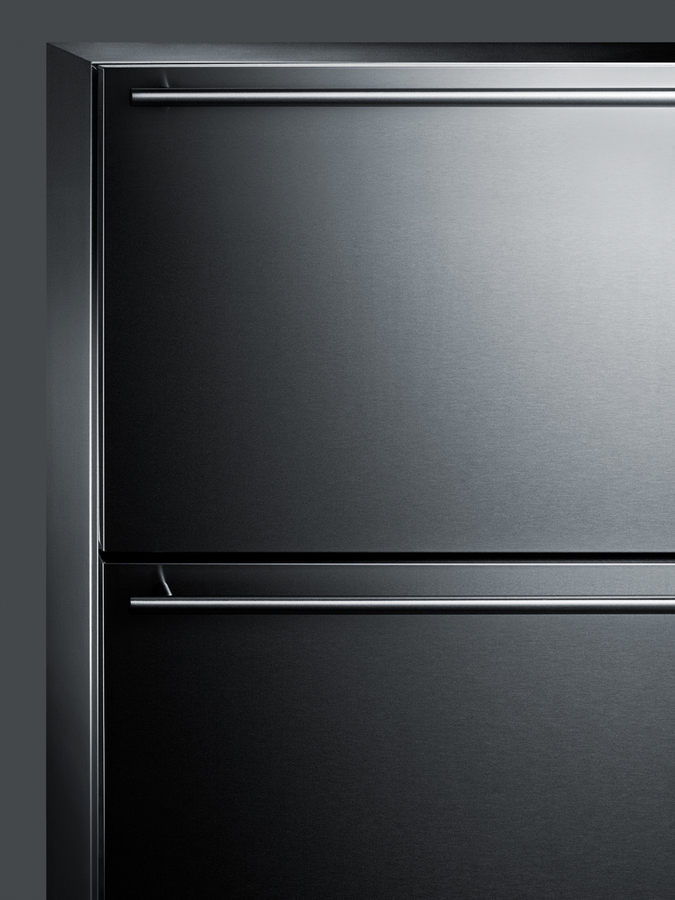

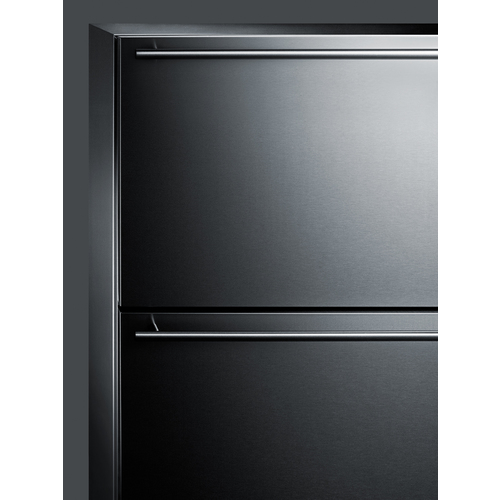

Professional handles

Sleek stainless steel handles add an elegant touch to any setting

Drawer dividers

Two adjustable dividers make it easier to organize the drawer interiors

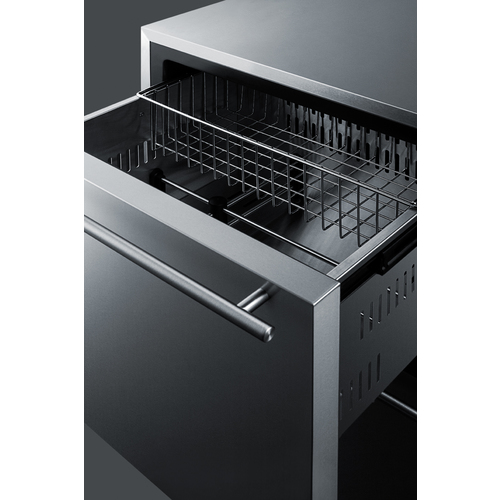

Sliding basket

Removable chrome basket included for easier storage convenience

Sabbath Mode

Optional setting lets you disable the lighting and alarm for up to 48 hours

Open drawer alarm

Audible alarm will sound if either drawer is left open longer than one minute

Temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Fully finished cabinet

Allows the freezer to be used as a freestanding model

Sealed back

Space-saving design that offers easier cleanability

Anti-tip bracket

Included and recommended for user-installation to reduce the risk of tipping

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

The Summit Classic Collection features deluxe undercounter appliances designed to bring modern luxury into the home.

The CL2F249 is a two-drawer all-freezer capable of built-in or freestanding use in any 24" cutout. Complete stainless steel construction inside and out offers long-lasting durability with professional elegance.The drawers can be customized with overlay panels to match or accent existing cabinetry design. The stainless steel kickplate and sleek handles complete the look.

The 3.5 cu.ft. interior utilizes frost-free operation with fan-forced cooling to ensure even temperature distribution and minimum user maintenance. For true storage convenience, the CL2F249 includes a full-width sliding wire basket and two adjustable dividers that let you organize the interior according to any storage needs. Recessed LED lighting offers an attractive yet energy efficient look inside. The digital thermostat located in the stainless steel kickplate makes it easy to manage the temperature, with an LED display that can read in Celsius or Fahrenheit. Additional features include a Sabbath mode setting, temperature memory function, and audible alarms for high temperature fluctuations and open drawer alerts.

With its versatile design and user-friendly features, the CL2F249 is the ideal drawer freezer for home settings looking to add convenient luxury to the kitchen. To create a  matching set, pair with our CL2R248 all-refrigerator.

Download
BROCHURE w/ DRAWINGS
CL2F249.pdf
Energy Guide

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
