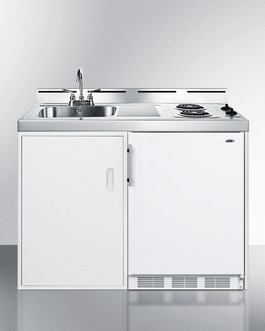

C48EL

Complete kitchen convenience in just 48" of width

40.0" H x 47.25" W x 24.0" D

(102cm H x 120cm W x 61cm D)

OVERVIEW

One-piece kitchenette in 48" width and convenient 24" depth
Includes two 120V coil cooking elements
Deluxe CT661 refrigerator-freezer includes adjustable glass shelves, a crisper drawer, wine shelf, and door storage
Perfect in small quarters or as a temporary kitchen
Approved for use in the U.S. and Canada

SPECIFICATIONS

Overview
Height of Cabinet	40.0" (102 cm)
Width	47.25" (120 cm)
Depth	24.0" (61 cm)
Depth with door at 90°	44.25" (112 cm)
Capacity	5.1 cu.ft. (144 L)
Defrost Type	Cycle
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	25.0
Voltage/Frequency	115 V AC/60 Hz
Weight	200.0 lbs. (91 kg)
Parts & Labor Warranty	1 Year
Kitchenette
Refrigerator Included	CT661
Refrigerator Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Shelf Type	Glass
Shelf Qty	3
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Full Door Shelves	3
Thermostat Type	Dial
Interior Light	Yes
Refrigerant Type	R134a
Refrigerant Amount	2.6 oz.
High Side PSI	285.0
Low Side PSI	70.0
Cooktop Type	Coil
Number of Burners	2
Cooktop Controls	Dial
Interior Height 1	19.5" (50 cm)
Interior Width 1	20.5" (52 cm)
Interior Depth 1	17.0" (43 cm)
Interior Height 2	5.0" (13 cm)
Interior Width 2	19.0" (48 cm)
Interior Depth 2	11.5" (29 cm)
Compressor Step Height	7.0" (18 cm)
Compressor Step With	20.5" (52 cm)
Compressor Step Depth	5.0" (13 cm)
Sink Height	5.88" (15 cm)
Sink Width	16.75" (43 cm)
Sink Depth	14.88" (38 cm)

AVAILABLE UPGRADES

Exterior

LHD

Door reversal to left hand swing

California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

WHERE TO BUY

DESCRIPTION

SUMMIT brings innovative value into the kitchen with all-in-one combination units for full-service use. Two electric burners, a refrigerator-freezer, sink, and cabinet space create a utility kitchen with easy-fitting dimensions.

The C48EL is our deluxe combination kitchen in a full 48" width. At 24" deep, it leaves you plenty of room to navigate while preparing food on two 120V coil burners.

SUMMIT CT661, one of our most popular compact refrigerator-freezers, slides in under the counter. This unit uses SUMMIT's exclusive dual evaporator cooling, for energy efficiency with quality results. Automatic defrost eases maintenance in the refrigerator section and a manual defrost zero degree freezer keeps even ice cream frozen. Adjustable glass shelves, door storage, a wine shelf, and a crisper provide added storage options.

A side cabinet provides ample space for dry storage. This unit includes a stainless steel work surface with a sink and faucet.

Our all-in-one combination kitchens ship fully assembled in two boxes. Just slide the refrigerator in and start serving. Perfect for studio apartments, hotel rooms, dormitories, assisted living facilities, and any other location in need of a full kitchen area at one great price.

FEATURES

Two electric burners
120V coil elements for easy cooking

One piece stainless steel countertop
Easy to clean and built to last

Sink and faucet
Stainless steel sink comes ready to wash

Storage compartment
Large convenient cabinet with center shelf lets you store dry goods behind a door

Refrigerator-freezer included
Includes SUMMIT CT661, a refrigerator-freezer with dual evaporator cooling, adjustable glass shelves, a crisper, and more

Ships fully assembled
Base model comes in one box. Just slide the refrigerator-freezer into its opening and plug in

100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet	40.0" (102 cm)
Width	47.25" (120 cm)
Depth	24.0" (61 cm)
Depth with door at 90°	44.25" (112 cm)
Capacity	5.1 cu.ft. (144 L)
Defrost Type	Cycle
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	25.0
Voltage/Frequency	115 V AC/60 Hz
Weight	200.0 lbs. (91 kg)
Parts & Labor Warranty	1 Year
Kitchenette
Refrigerator Included	CT661
Refrigerator Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Shelf Type	Glass
Shelf Qty	3
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Full Door Shelves	3
Thermostat Type	Dial
Interior Light	Yes
Refrigerant Type	R134a
Refrigerant Amount	2.6 oz.
High Side PSI	285.0
Low Side PSI	70.0
Cooktop Type	Coil
Number of Burners	2
Cooktop Controls	Dial
Interior Height 1	19.5" (50 cm)
Interior Width 1	20.5" (52 cm)
Interior Depth 1	17.0" (43 cm)
Interior Height 2	5.0" (13 cm)
Interior Width 2	19.0" (48 cm)
Interior Depth 2	11.5" (29 cm)
Compressor Step Height	7.0" (18 cm)
Compressor Step With	20.5" (52 cm)
Compressor Step Depth	5.0" (13 cm)
Sink Height	5.88" (15 cm)
Sink Width	16.75" (43 cm)
Sink Depth	14.88" (38 cm)

AVAILABLE UPGRADES

Exterior

LHD

Door reversal to left hand swing

DOWNLOADS

BROCHURE w/ DRAWINGS
C48EL.pdf

TECHNICAL DRAWING (.dwg)
C48EL_COMBO_KITCHEN__A-C_2000_.dwg

ENERGY GUIDES
EnergyGuide-CT661.pdf

USE & CARE
C48EL_C48ELGLASS_C60EL_C60ELGLASS_User_Manual.pdf
