24" Wide Built-In Refrigerator-Freezer

SKU: BI605BCSS

Full 6 cu.ft. of capacity with over 20 years of proven quality

DISCONTINUED- REPLACED BY CT663BKCSS

34.75" H x 23.75" W x 24.5" D
(88cm H x 60cm W x 62cm D)

Overview
Height of Cabinet	34.38" (87 cm)
Height to Hinge Cap	34.75" (88 cm)
Width	23.75" (60 cm)
Depth	24.5" (62 cm)
Capacity	6.1 cu.ft. (173 L)
Defrost Type	Manual
Door	Stainless Steel
Cabinet	Stainless Steel
US Electrical Safety	UL
Energy Usage/Year	342.0kWh/year
Amps	0.9
Voltage/Frequency	115 V AC/60 Hz
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101041230
Refrigerator-Freezer
Door Swing	RHD
Reversible	Factory Reversible
Adjustable Shelves	Yes
Interior Light	Yes
Refrigerator - Interior Height	20.25" (51 cm)
Refrigerator - Interior Width	21.0" (53 cm)
Refrigerator - Interior Depth	20.5" (52 cm)
Refrigerator - Shelf Type	Wire
Refrigerator - Shelf Qty	3
Refrigerator - Full Door Shelves	3
Freezer - Interior Height	5.0" (13 cm)
Freezer - Interior Width	21.0" (53 cm)
Freezer - Interior Depth	20.5" (52 cm)
Thermostat Type	Dial
Fan Type	Exterior
Refrigerant Type	R134a
Refrigerant Amount	3.0 oz.
High Side PSI	235.0
Low Side PSI	140.0
Level Legs	4

Exterior

Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.	LHD - Left hand door swing Door reversal to left hand swing
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option	Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management	PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
CAS3 3" casters 3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish	DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Lock

AC Keypad - AC powered keypad lock

KEYPAD - Battery-powered keypad door lock

Slim undercounter dimensions

Less than 24" wide to fit tight spaces

Built-in capable

Make the best use of space by installing your appliance under the counter

Complete stainless steel exterior

Fully wrapped in 304 grade stainless steel

Professional towel bar handle

A curved stainless steel handle provides generous room for a comfortable grip

Fully finished cabinet

Allows the unit to be used freestanding

Large capacity

Full 6 cu.ft. capacity

Manual defrost

Efficient performance with reliable temperature stability

Door storage

Store items right on the door for easy access

Interior light

Automatically illuminates when you open the door

Adjustable thermostat

Manage the temperature with ease and accuracy

Adjustable shelves

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

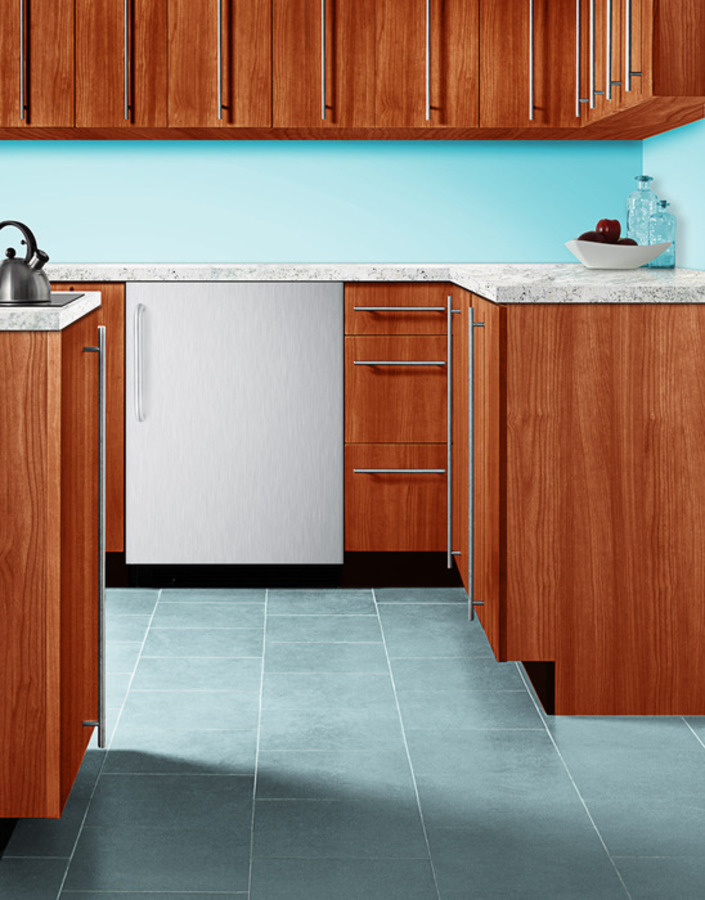

Solid construction meets great value in SUMMIT's BI605BCSS, a refrigerator-freezer designed for built-in installation under counters.

With a slim 24" width and true 6 c.f. storage capacity, the BI605BCSS is an ideal model for apartments, military housing, residential hotels, and other locations in need of efficient refrigeration in a compact size. It has a bottom condenser with front-vented fan-forced cooling to ensure safe built-in installation but can also work freestanding.

Priced for value and designed for long term use, the BI605BCSS uses manual defrost operation. Adjustable shelves and door racks provide various storage options, with interior lighting, a reversible door, and an adjustable thermostat adding convenience.

This unit comes with a fully wrapped 304 grade stainless steel finish complete with a pro towel bar handle.

BROCHURE
BI605BCSS.pdf

USE & CARE
BI605RManual.pdf

MSDS INFORMATION
MSDS_R134a_PS.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
