24" Wide All-Refrigerator, ADA Compliant

SKU: BAR631BKPADA
Made in Europe, with a lavender purple door finish to bring modern elegance under the counter
Estimated Time to Ship:

3 to 5 days

32.38" H x 23.63" W x 23.0" D
(82cm H x 60cm W x 58cm D)

Overview
Height of Cabinet 32.13" (82 cm)
Height to Hinge Cap 32.38" (82 cm)
Width 23.63" (60 cm)
Depth 23.0" (58 cm)
Depth with Handle 24.5" (62 cm)
Depth with door at 90° 45.25" (115 cm)
Capacity 5.8 cu.ft. (164 L)
Defrost Type Automatic
Door Purple
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 280.0kWh/year
Amps 0.9
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101087993
Refrigerator Features
Door Swing RHD
Reversible Yes
Crisper Qty 1
Crisper Finish Opaque
Crisper Cover Glass
Shelf Type Glass
Shelf Qty 3
Full Door Shelf Qty 3
Adjustable Shelves Yes
Wine Bottle Shelves Yes
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 0.64oz.
High Side PSI 180.0
Low Side PSI 80.0
Interior Light Yes
Dimensions
Interior Height 26.25" (67 cm)
Interior Width 21.0" (53 cm)
Interior Depth 18.0" (46 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 6.0" (15 cm)

Lock
L-TopLock
Add a single keyed lock located on top of the unit
L-SideLock
Add a single keyed lock located on the door's side (NOTE: side lock adds 1" to overall unit width and comes in white)
Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management

24" wide European all-refrigerator

Designed for freestanding or recessed installation in 24" wide spaces

ADA compliant design

32" height for use in settings complying with ADA guidelines for lower counter height

Slim counter height dimensions

Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit

Lavender purple door

Elegant purple finish with a slight gloss to elevate your undercounter space

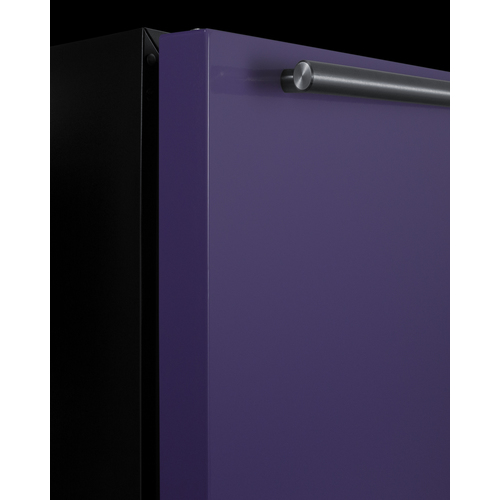

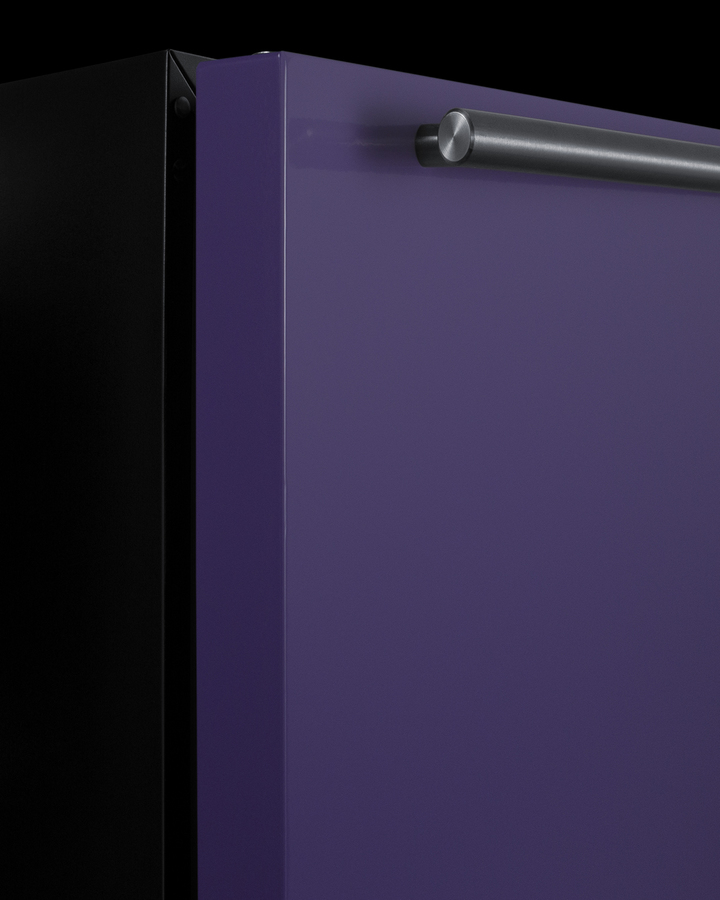

Professional handle

Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look

Automatic defrost

Reduced user maintenance with automatic defrost operation

Hidden evaporator

Cold wall design with hidden evaporator and seamless interior for reliable cooling

One piece interior liner

Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Adjustable glass shelves

Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Fruit and vegetable crisper

Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

Door storage

Keep tall bottles and condiments right on the door for convenient access

Wine shelf

Removable scalloped wine shelf is included to store champagne and wine bottles

Interior light

Automatically illuminates when you open the door

Adjustable thermostat

Dial thermostat located inside for easy and intuitive temperature management

Stainless steel kickplate

Added touch of style to complement the handle and complete the look

Reversible door

User-reversible door swing for added flexibility

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

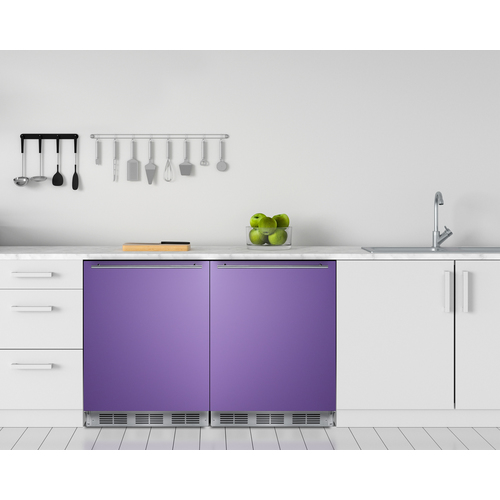

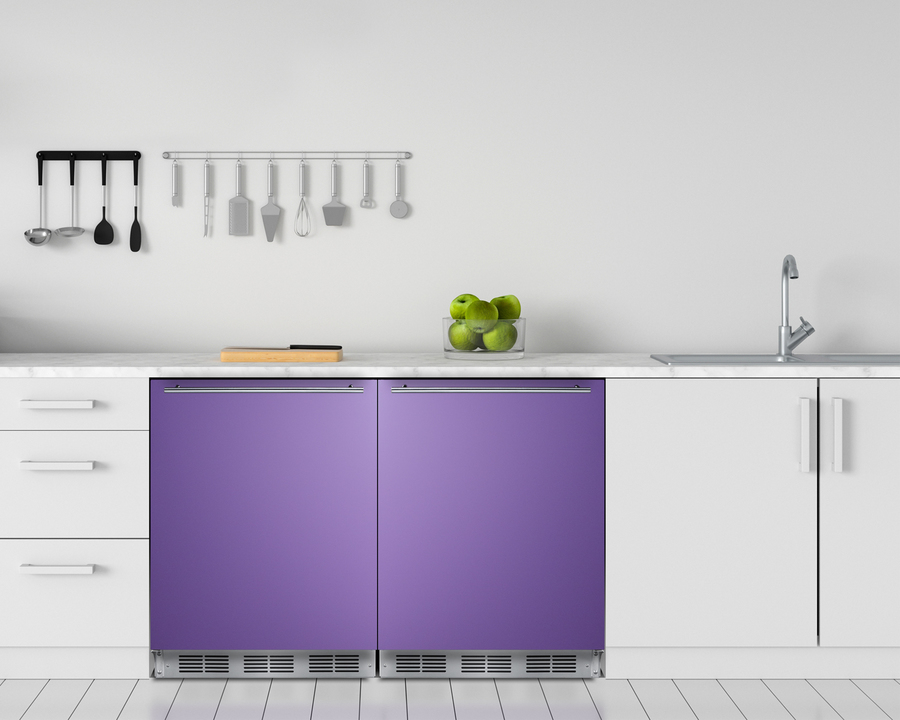

Make a statement under the counter with Summit's exclusive European collection of boldly colored refrigerators, available in standard or ADA compliant height.

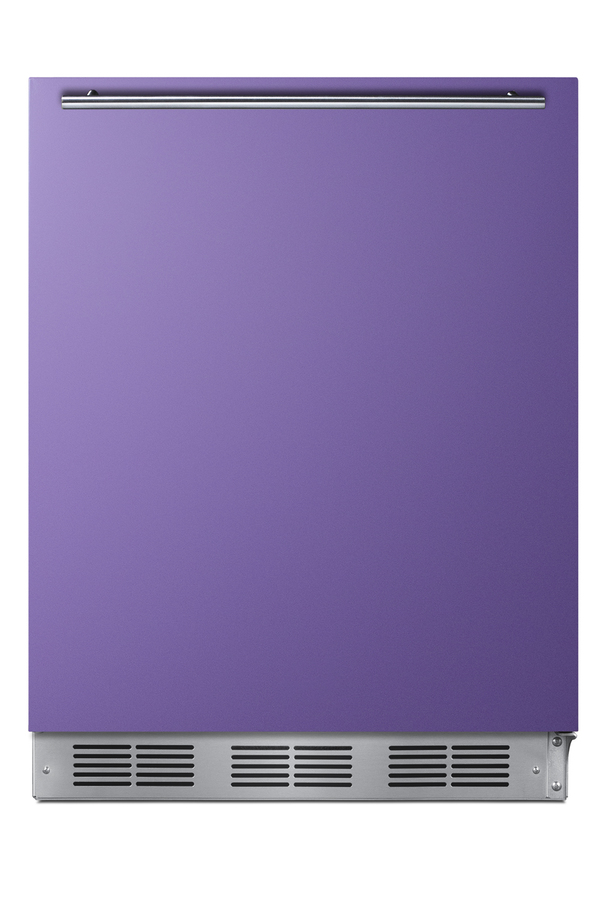

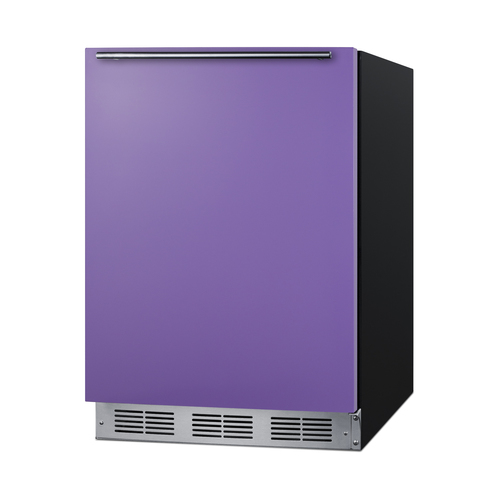

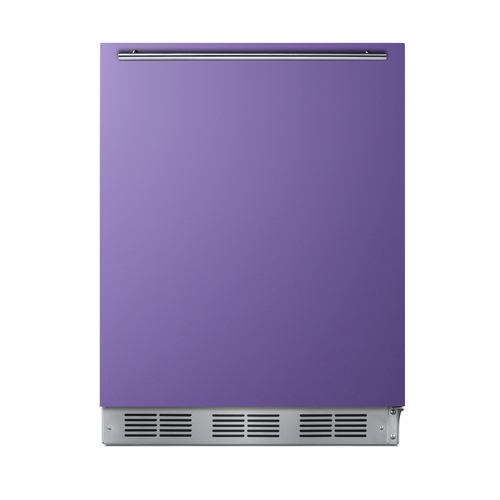

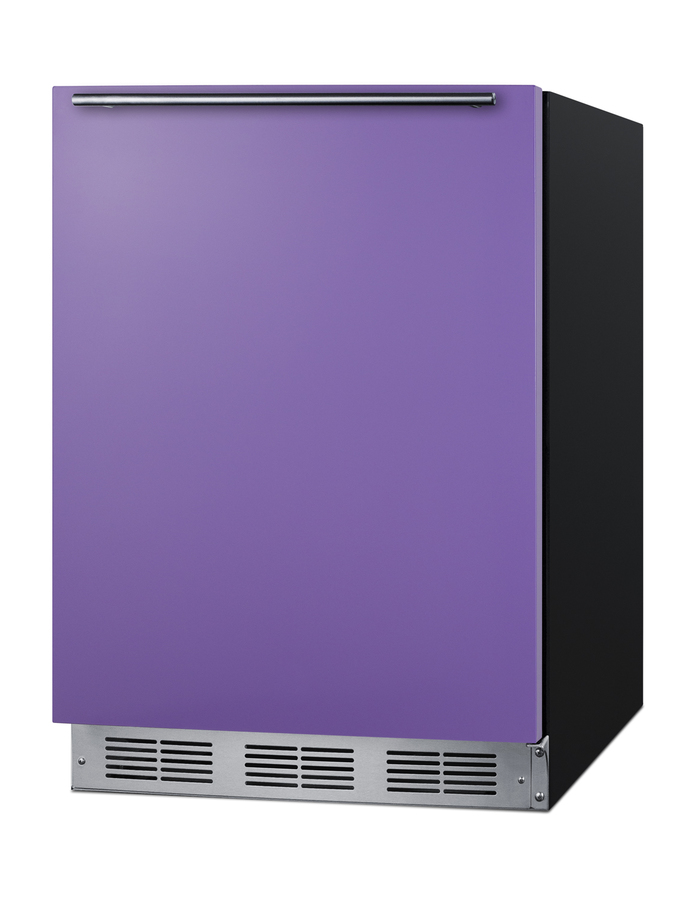

Model BAR631BKPADA is a 24" wide all-refrigerator sized at just 32" high for use in ADA compliant settings.  The door finish comes in an attractive lavender purple hue, with a sleek horizontally mounted stainless steel handle and matching stainless steel kickplate to complete the unique look. This unit has a jet black cabinet. It is manufactured in Europe and modified in the United States with domestic steel finishing.

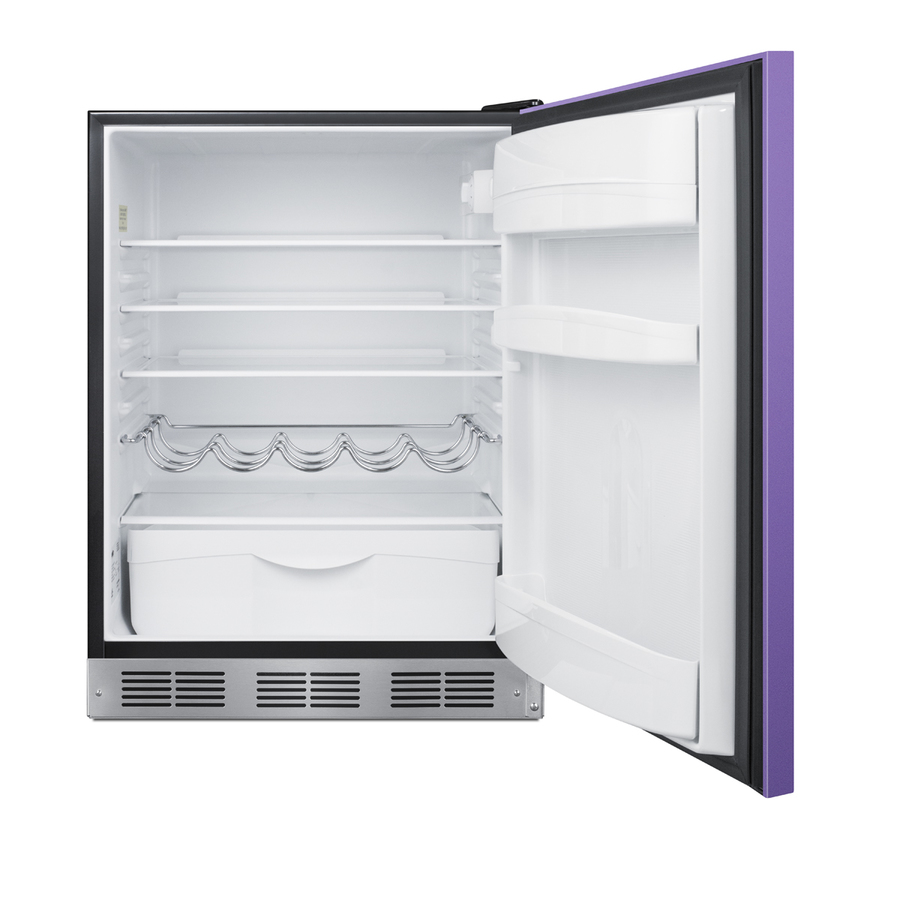

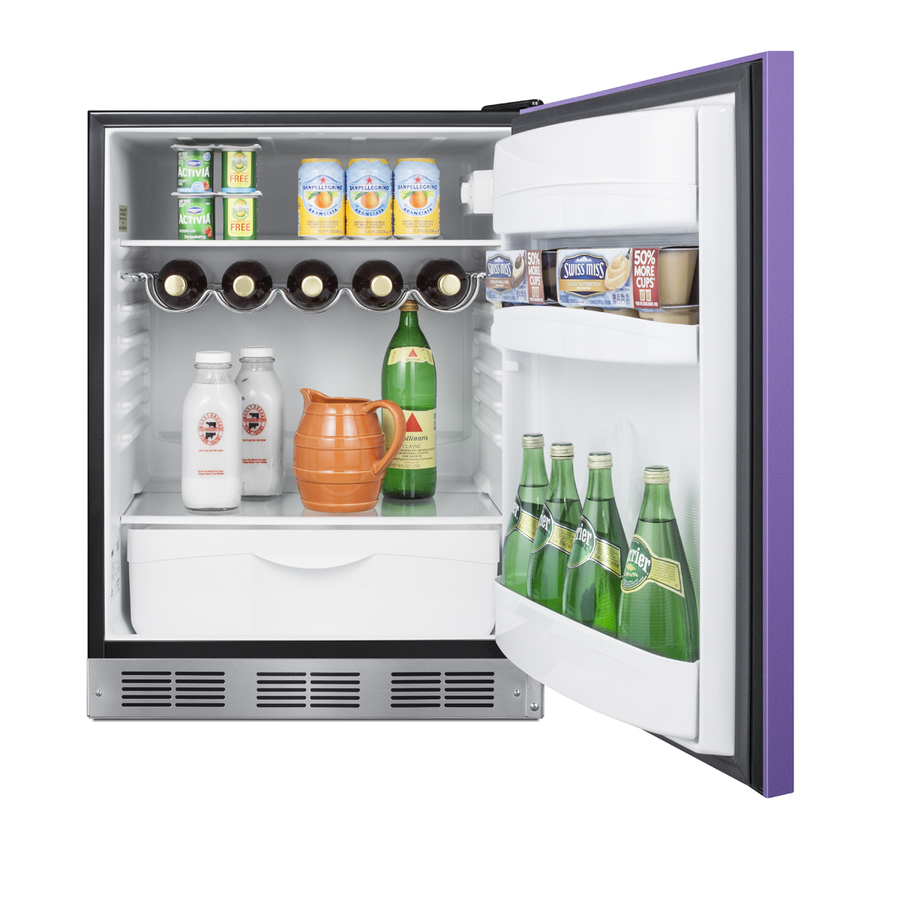

Inside, the BAR631BKPADA utilizes automatic defrost operation to ensure minimum user maintenance with a cold wall design for more reliable cooling. The 5.5 cu.ft. interior offers more storage space than most models in this size class. Adjustable glass shelves ensure spill-proof storage, while a large crisper drawer is ideal for keeping produce at its best. A removable wine shelf lets you keep bottles securely in place. The door includes three storage racks for condiments and tall bottles. The seamless interior also features a dial thermostat and automatic light.

Additional colors are available, including saffron gold, cobalt blue, and emerald green. Browse the full Summit selection to find the perfect addition to your kitchen.


Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
