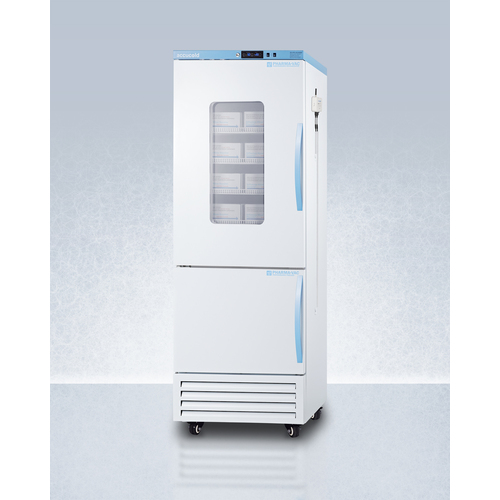

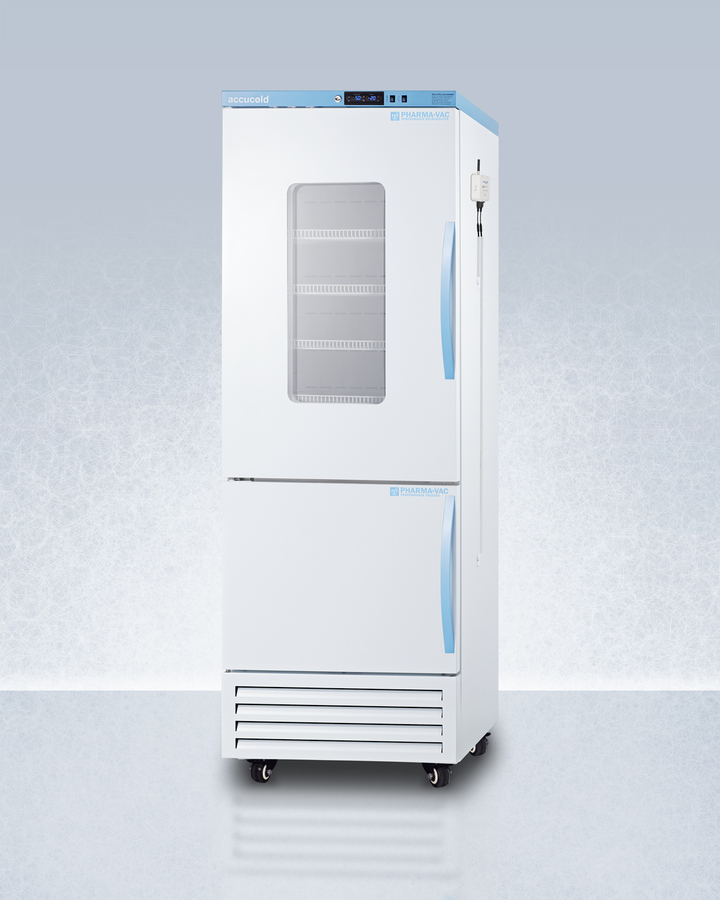

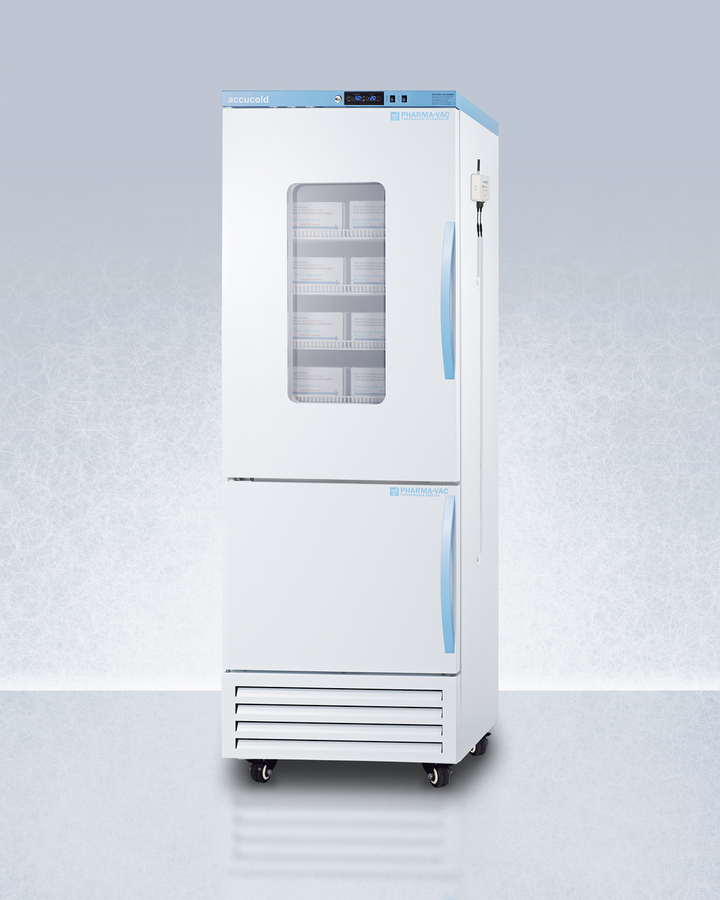

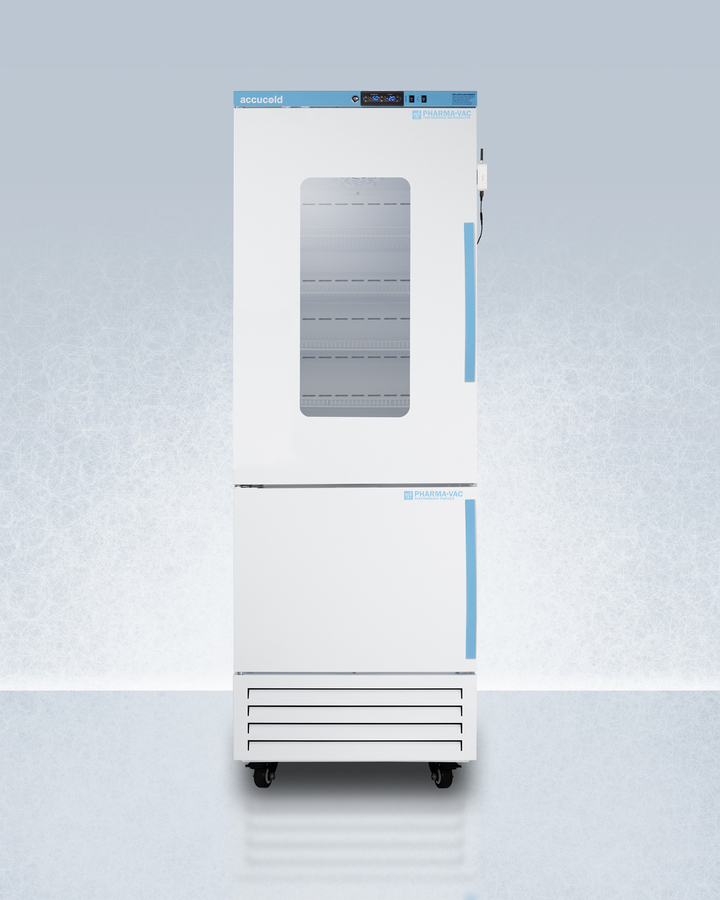

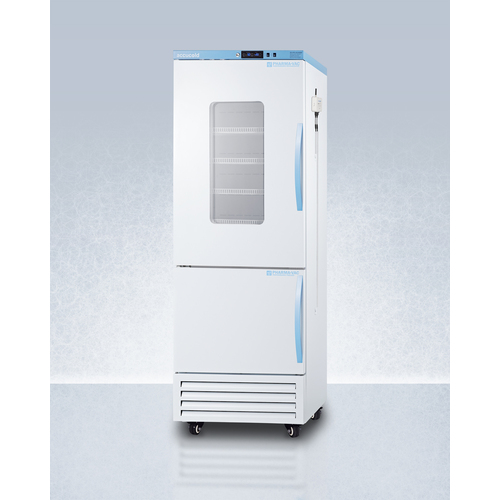

28" Wide Performance Series All-Refrigerator/All-Freezer Combination
5 to 7 days
(202cm H x 70cm W x 67cm D)
SPECIFICATIONS
Overview
|
|
---|---|

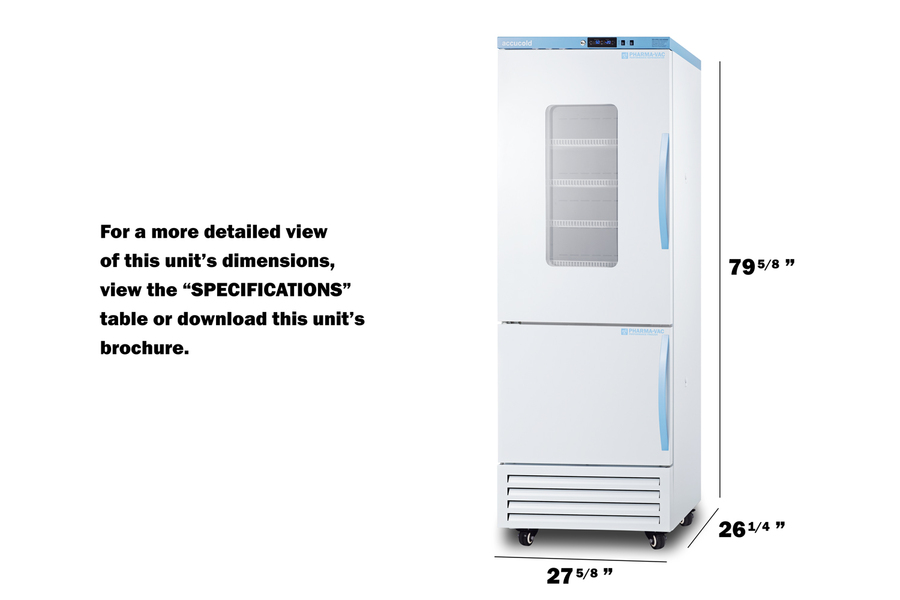

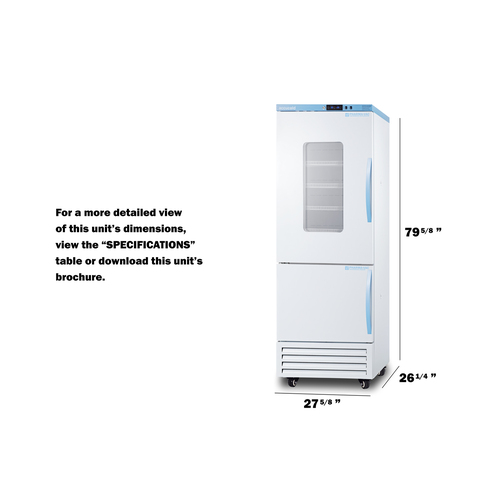

Height of Cabinet | 79.63" (202 cm) |
Width | 27.63" (70 cm) |
Width with Door Open | 28.13" (71 cm) |
Depth | 26.25" (67 cm) |
Depth with Handle | 27.25" (69 cm) |
Depth with door at 90° | 55.13" (140 cm) |
Capacity | 15.54 cu.ft. (440 L) |
Defrost Type | Cycle |
Door | White |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Amps | 2.6 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 275.0 lbs. (125 kg) |
Parts & Labor Warranty | 2 Years |
Compressor Warranty | 5 Years |
UPC | 761101159805 |
Refrigerator-Freezer
|
|
Door Swing | LHD |

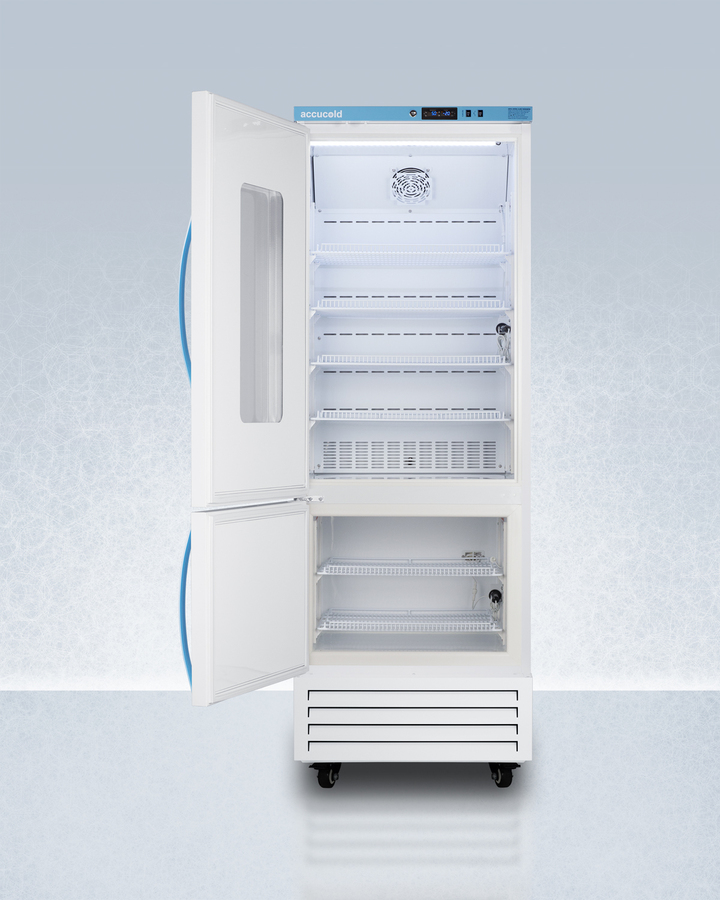

Adjustable Shelves | Yes |
Interior Light | Yes |
Refrigerator - Interior Height | 40.0" (102 cm) |
Refrigerator - Interior Width | 23.75" (60 cm) |
Refrigerator - Interior Depth | 17.75" (45 cm) |
Refrigerator - Capacity | 11.04 cu.ft |
Refrigerator - Shelf Type | Wire |
Refrigerator - Shelf Qty | 4 |
Refrigerator - Temperature Range | 2 to 8ºC |
Refrigerator - Refrigerant Type | R600a |
Refrigerator - Refrigerant Amount | 1.44 oz. |
Freezer - Interior Height | 15.75" (40 cm) |
Freezer - Interior Width | 22.0" (56 cm) |
Freezer - Interior Depth | 19.5" (50 cm) |
Freezer - Capacity | 4.5 cu.ft |
Freezer - Shelf Type | Wire |
Freezer - Shelf Qty | 2 |
Thermostat Type | Digital |
Fan Type | Interior |
Wheels | 4 |
Freezer - Temperature Range | -30 to -10ºC |
Freezer - Refrigerant Type | R290a |
Freezer - Refrigerant Amount | 1.27 oz. |
AVAILABLE UPGRADES
Exterior | |
---|---|
|
FEATURES
Purpose-built all-refrigerator and all-freezer for vaccine storage in medical, pharmaceutical, and life science applications
Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines
The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
Purpose-built technology to log refrigerator and freezer temperature and ensure the safe storage of biologics, tissues, vaccines, medications, and pharmaceuticals
ETM setup takes less than 20 minutes and connects to the strongest cellular signal to deliver accurate results
Instant temperature notifications for critical excursions via text, call, or email
Logger includes a 2-year certificate of calibration for your records

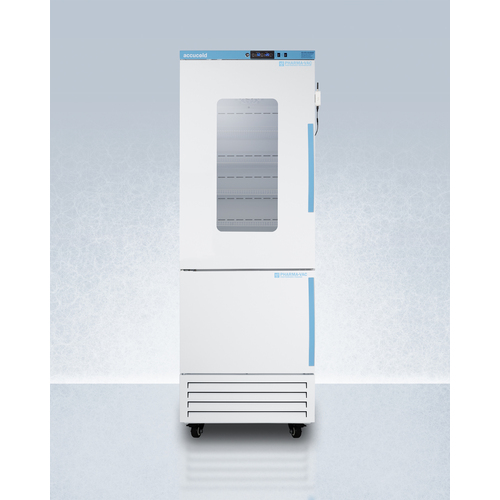

Triple paned glass on the upper refrigerator section provides a clear view of interior contents
Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint

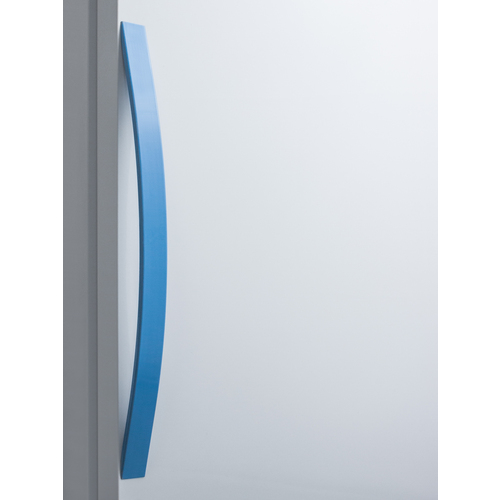

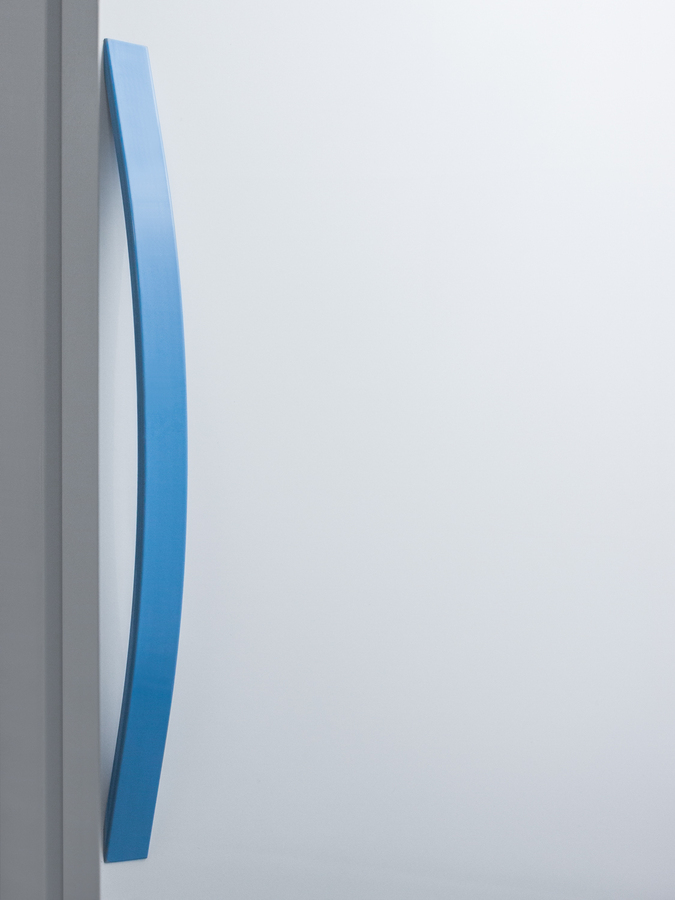

Powder-coated handles with naturally occurring silver ions to help reduce the spread of germs
Intuitive controls let you adjust the interior temperature between +2 to +8ºC (refrigerator) and -30º to -10ºC (freezer)
Visual and audible alarms alert if the interior temperature rises or falls out of set range

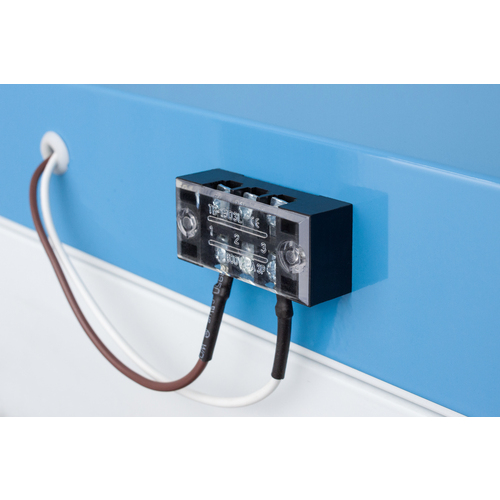

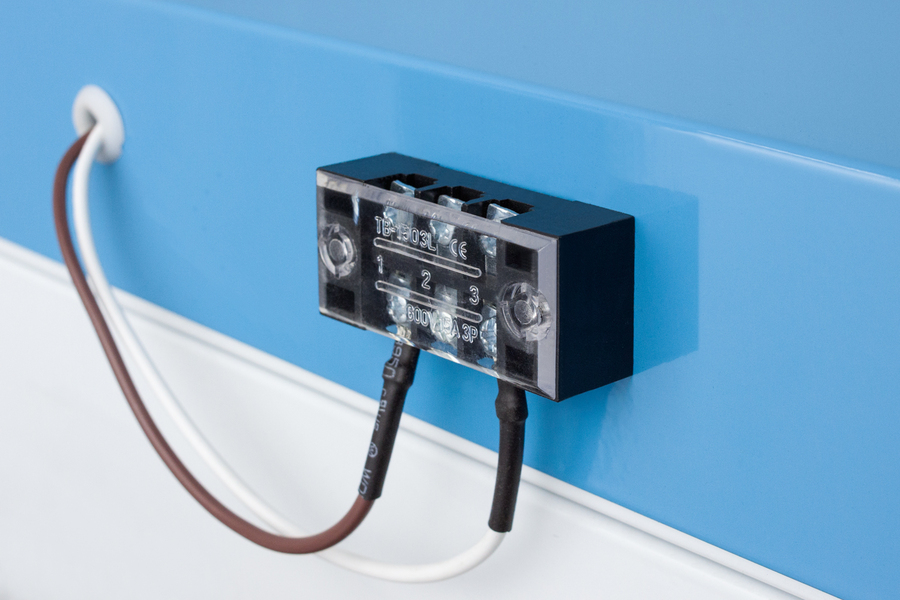

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup
Static cooling system for reduced temperature fluctuations

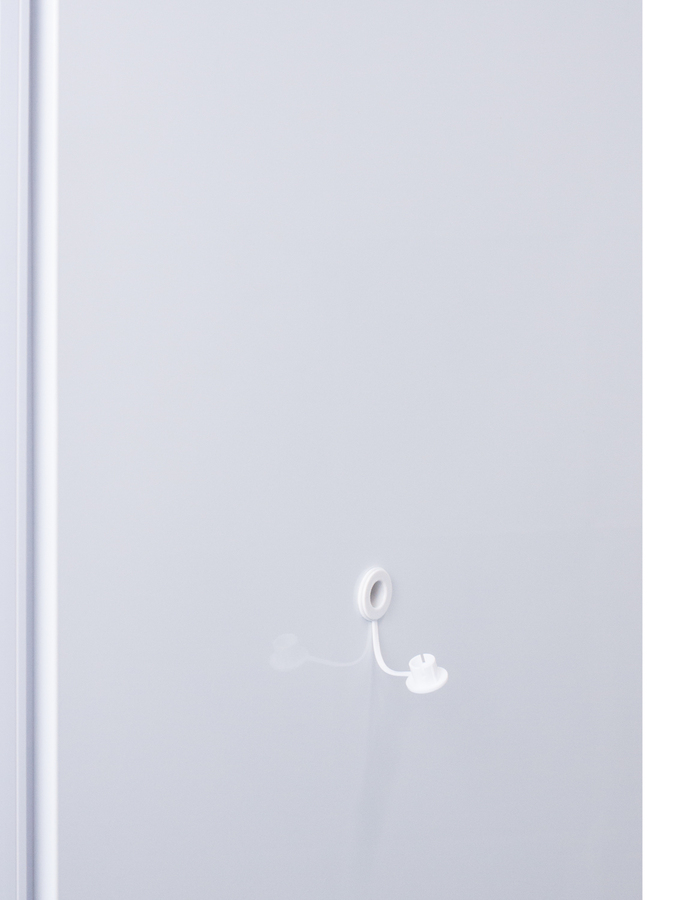

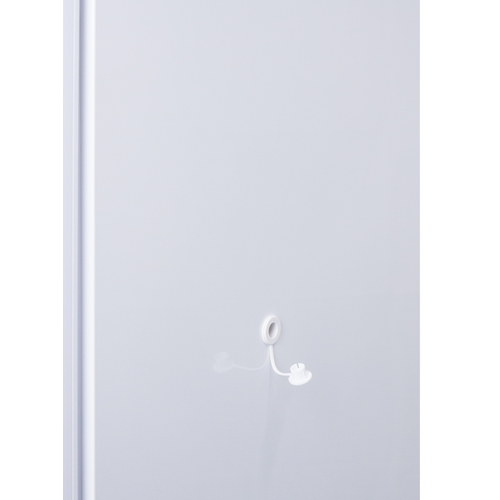

Both compartments include a pre-installed probe hole to allow easier connection to user-provided monitoring equipment
Alarms will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
Battery-powered alarms sound if the power connection is interrupted
Audible and visual alarms warn if the sensor is disrupted
Control panels require password entry to adjust the parameters beyond the set point
Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Control panels provide a readout of the low and high temperatures in 15 minute increments
Keyed locks for each door for facility security
Designed to accommodate a variety of sizes for flexible storage
Secure three-pronged cord for added unit safety
Energy efficient LED lighting with internal on/off switch
Added protection in busy settings to ensure the doors are not accidentally left ajar
Quality door gaskets ensure a tight seal for energy savings and improved performance
2 years parts and labor/5 years compressor
Using environmentally friendly hydrocarbons refrigerants for a greener footprint
Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
Compatible with Pyxis®, Omnicell®, and AcuDose RX®
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Environmentally friendly design without ozone-damaging chemicals
DESCRIPTION

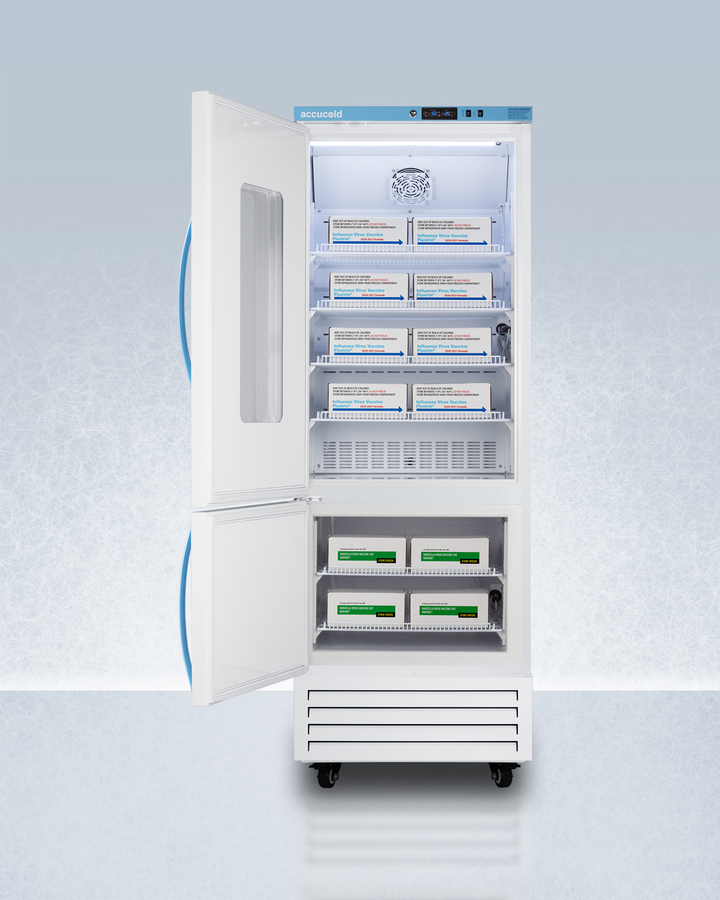

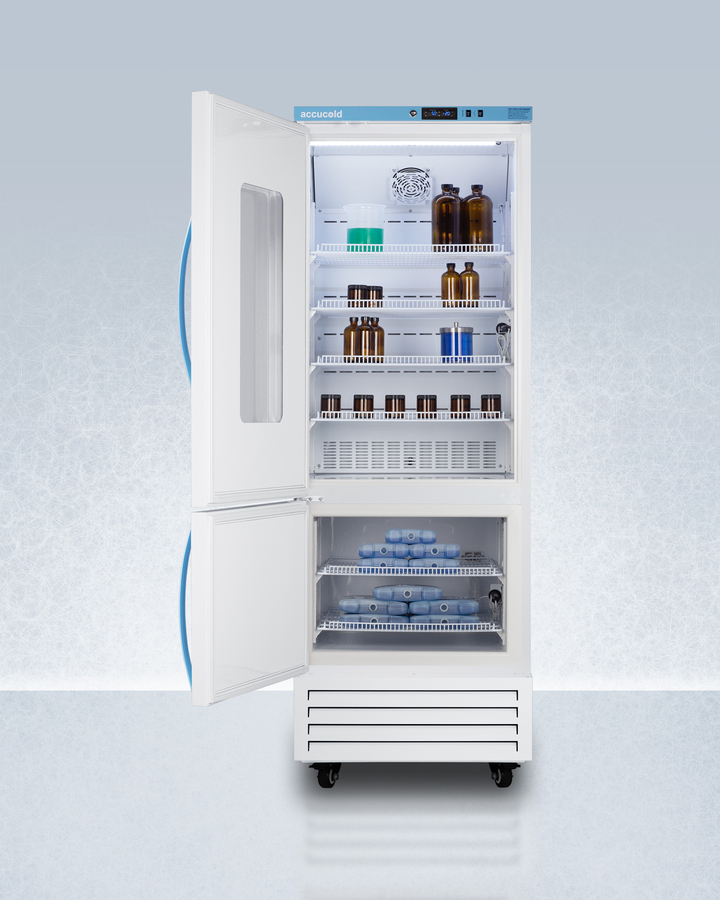

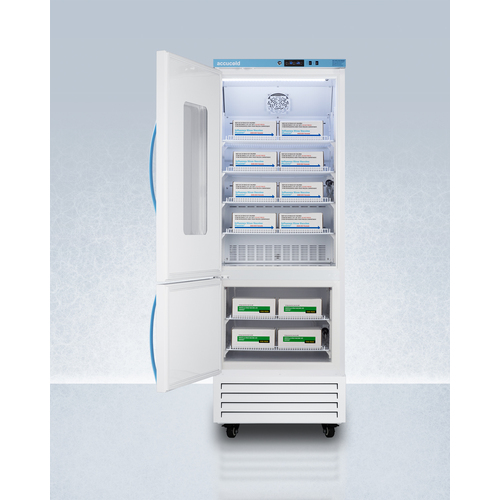

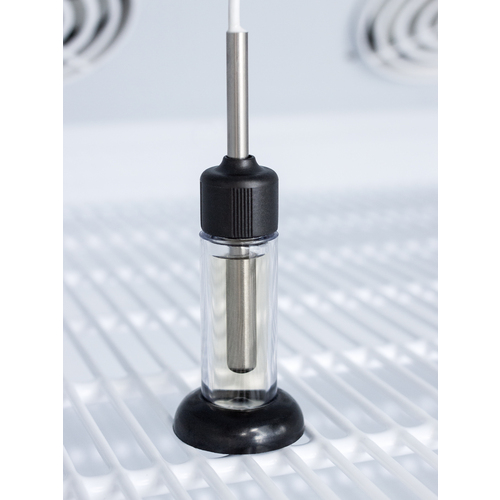

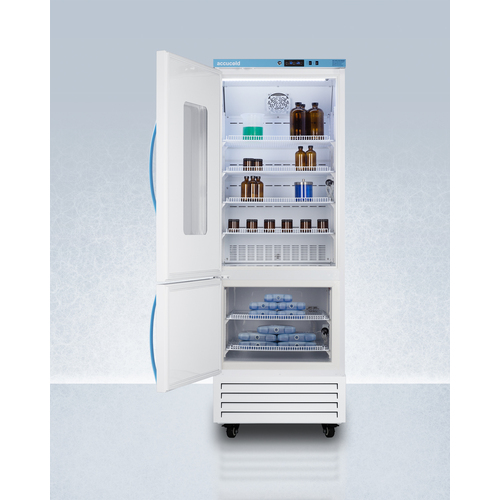

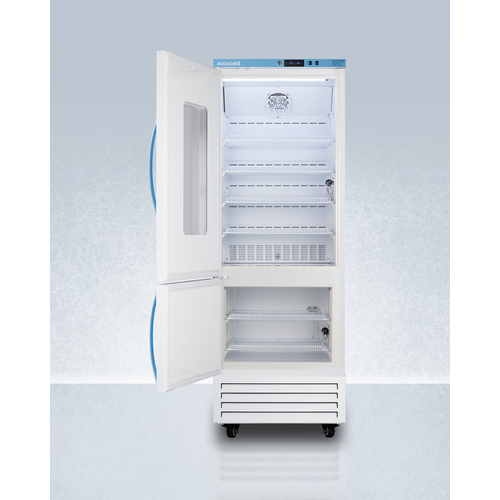

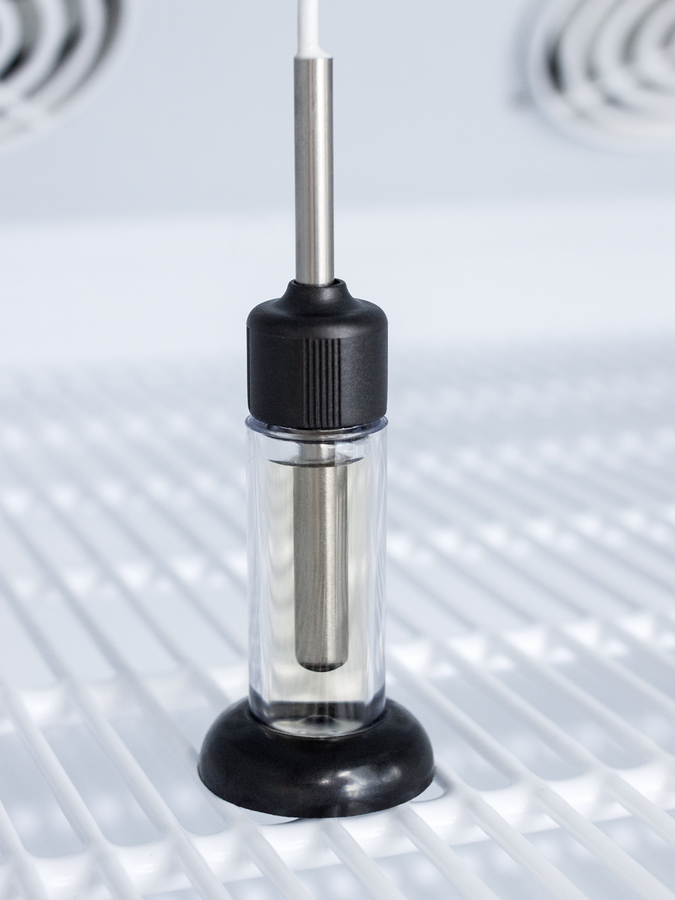

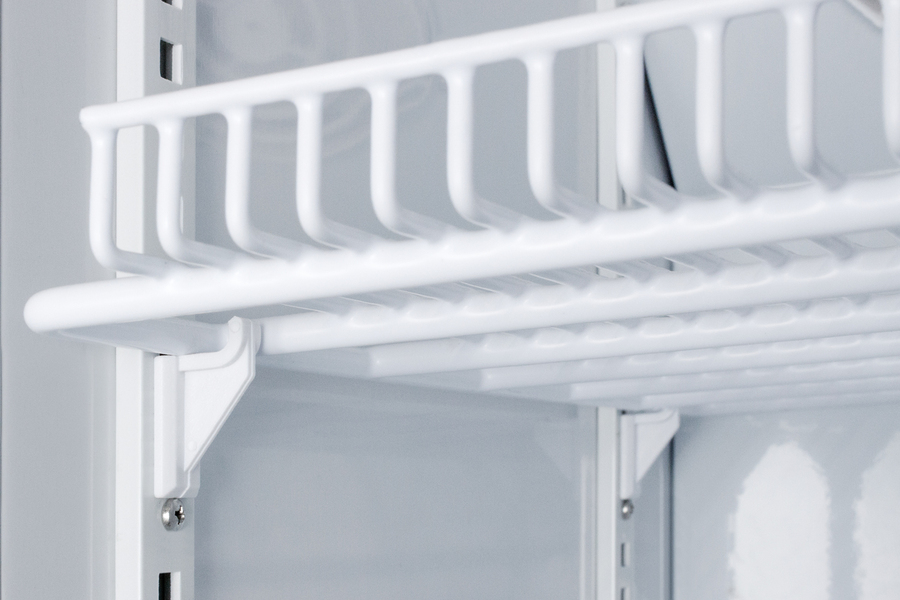

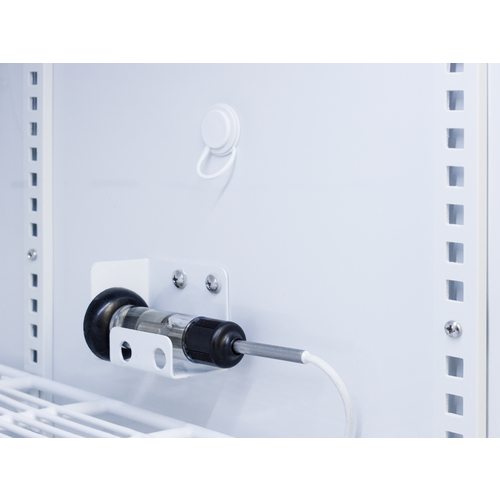

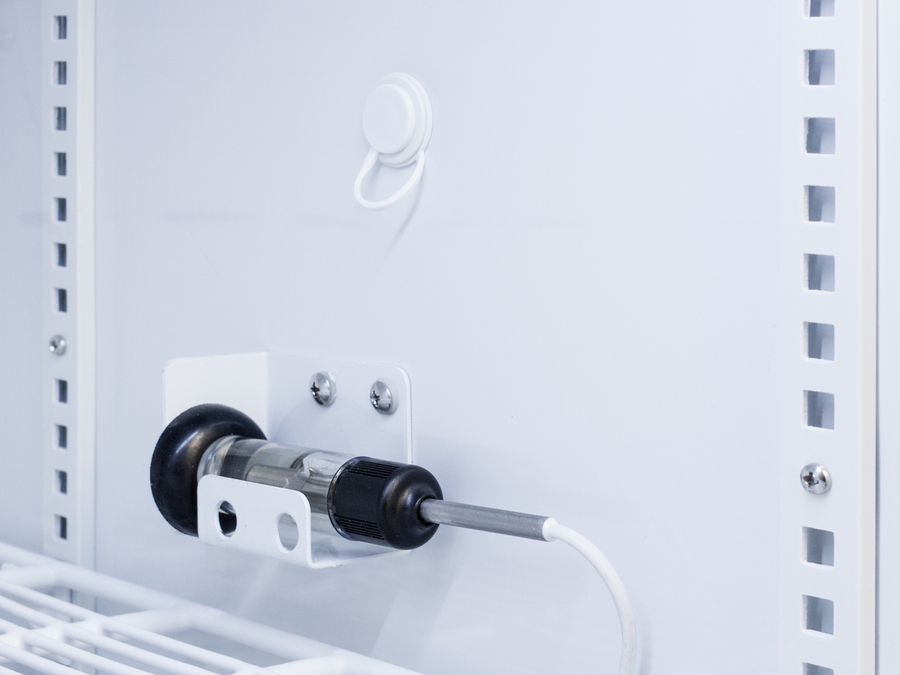

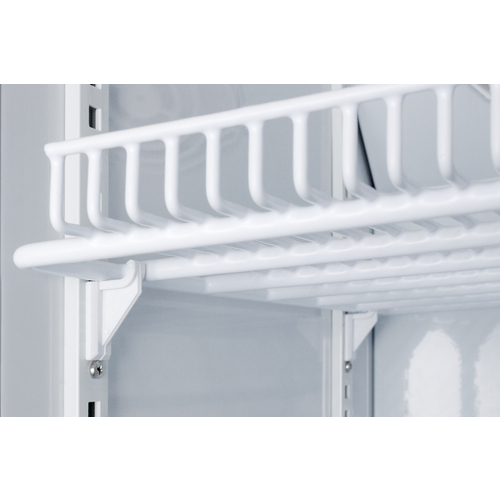

Accucold offers innovative solutions to vaccine and life science storage with the Performance Series dual compressor combination refrigerator-freezers. These units are purpose-built to ensure a stable temperature performance in hospitals, pharmacies, laboratories, and other facilities. Sized just under 28" wide, the ARFG18PVDLPWLHD features an upper refrigerator compartment with a small window and independent manual defrost freezer below. Both sections include adjustable plastic-coated wire shelves that can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention. The Pharma-Vac Performance Series is designed to meet the demanding needs of vaccine and life science storage. The ARFG18PVDLPWLHD features a dual microprocessor temperature controller (refrigerator range: +2 to +8ºC; freezer range: -30 to -10ºC). The buffered temperature probes are encased in glycol-filled bottles to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarms sound if the interiors go out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alert system. Both sections are equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. The factory-installed antimicrobial handles are powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas. Inside, the upper refrigerator compartment utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with an internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The freezer utilizes static manual defrost cooling. Both compartments include front-mounted keyed locks and powerful magnetic gaskets to ensure a positive seal, with self-closing doors for added protection in high traffic settings. Pre-installed hospital grade casters offer easy mobility as needed, with the front two wheels lockable to keep the unit in place. This unit ships with a left-hand door swing. This unit ships with PharmaWatch DLPWRF, a wireless environmental temperature monitoring device (ETM) that enables cloud-based data management. The ETM comes with a refrigerator and freezer probe to record both compartment temperatures via the latest cellular technology. Reports are managed in the included web portal for your records. Temperature alert notifications can be sent via text, call, or email. The device can be mounted to the front or side of the unit. It includes a 2-year certificate of NIST calibration, A/C adapter with 10' long cord, and backup battery. Additional sizes and styles are available. Browse Accucold's website for more information, or contact our sales team at 718-893-3900 to discuss your equipment needs.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
