24" Wide Performance Series All-Refrigerator/All-Freezer Combination

SKU: ARFG15PV
Designed and purpose-built for pharmacy, medication, life science, and vaccine applications to support meeting CDC/VFC/VFA guidelines
Estimated Time to Ship:

Next day shipping

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

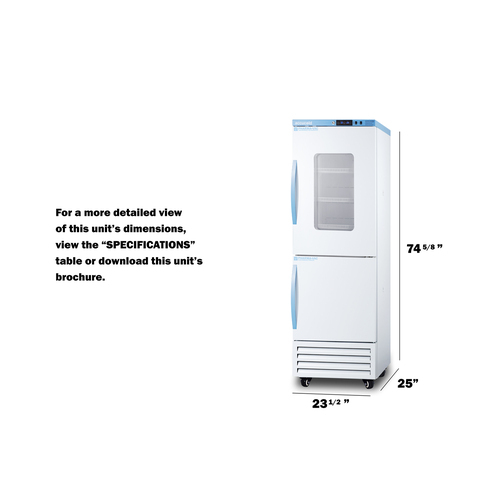

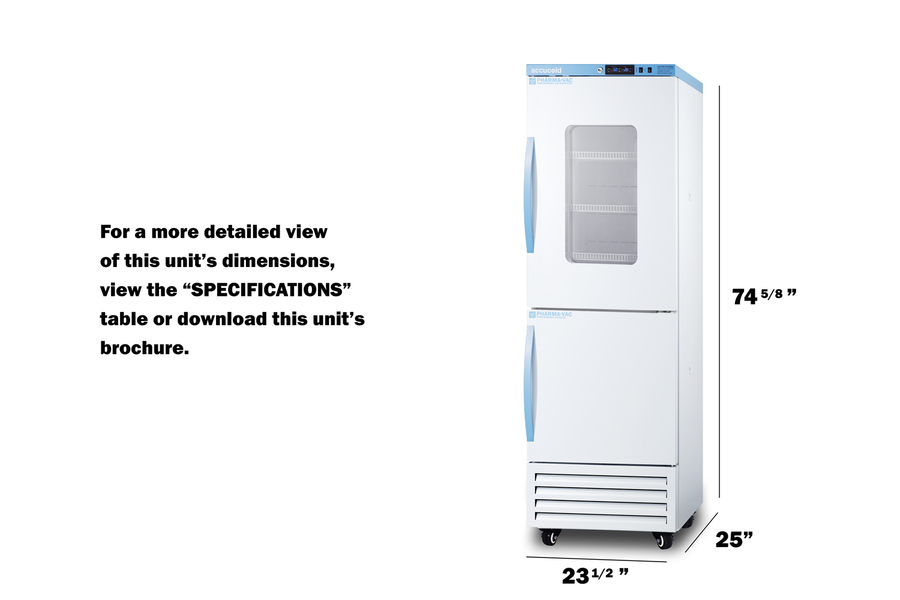

74.63" H x 23.5" W x 25.0" D
(190cm H x 60cm W x 64cm D)

Overview
Height of Cabinet 74.63" (190 cm)
Width 23.5" (60 cm)
Width with Door Open 24.0" (61 cm)
Depth 25.0" (64 cm)
Depth with Handle 26.5" (67 cm)
Depth with door at 90° 46.75" (119 cm)
Capacity 10.74 cu.ft. (304 L)
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 205.0 lbs. (93 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101156705
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Interior Light Yes
Refrigerator - Interior Height 33.0" (84 cm)
Refrigerator - Interior Width 19.5" (50 cm)
Refrigerator - Interior Depth 17.5" (44 cm)
Refrigerator - Capacity 6.74 cu.ft
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 3
Refrigerator - Temperature Range 2 to 8ºC
Refrigerator - Refrigerant Type R600a
Refrigerator - Refrigerant Amount 1.3 oz.
Freezer - Interior Height 17.75" (45 cm)
Freezer - Interior Width 15.25" (39 cm)
Freezer - Interior Depth 16.5" (42 cm)
Freezer - Capacity 4.0 cu.ft
Freezer - Shelf Type Wire
Freezer - Shelf Qty 2
Thermostat Type Digital
Fan Type Interior
Wheels 4
Freezer - Temperature Range -30 to -10ºC
Freezer - Refrigerant Type R290a
Freezer - Refrigerant Amount 1.2 oz.

Exterior
DTFAR-Temperature display converted to Fahrenheit
Factory conversion of temperature readout to display in Fahrenheit
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Performance Series Refrigerator-Freezer Combination

Purpose-built all-refrigerator and all-freezer for vaccine storage in medical, pharmaceutical, and life science applications

Purpose-built design

Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines

+/-1ºC Variation

The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

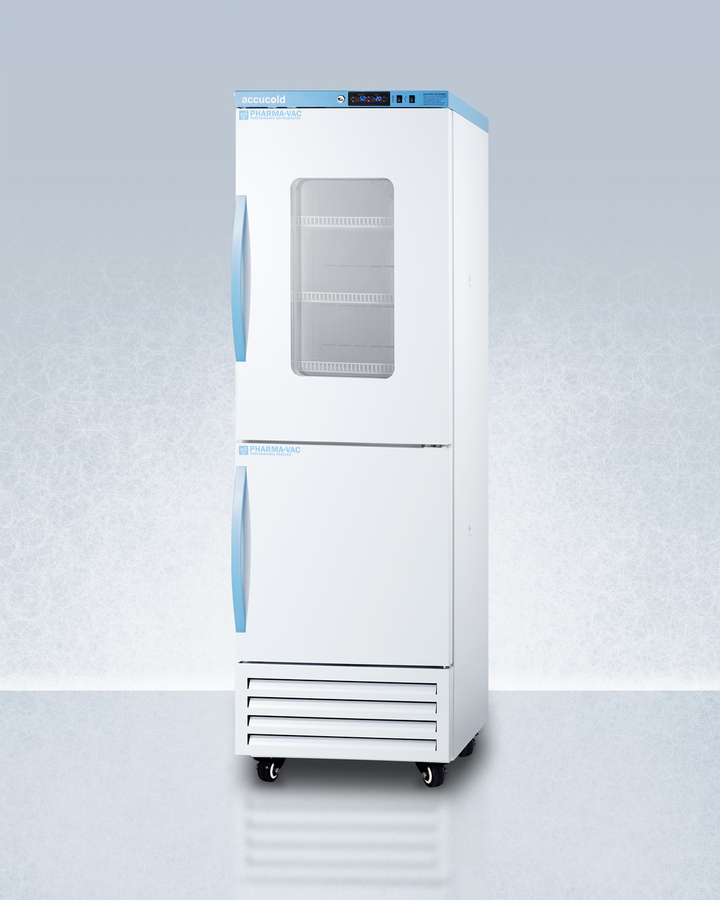

Refrigerator window

Triple paned glass on the upper refrigerator section provides a clear view of interior contents

Space-saving design

Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint

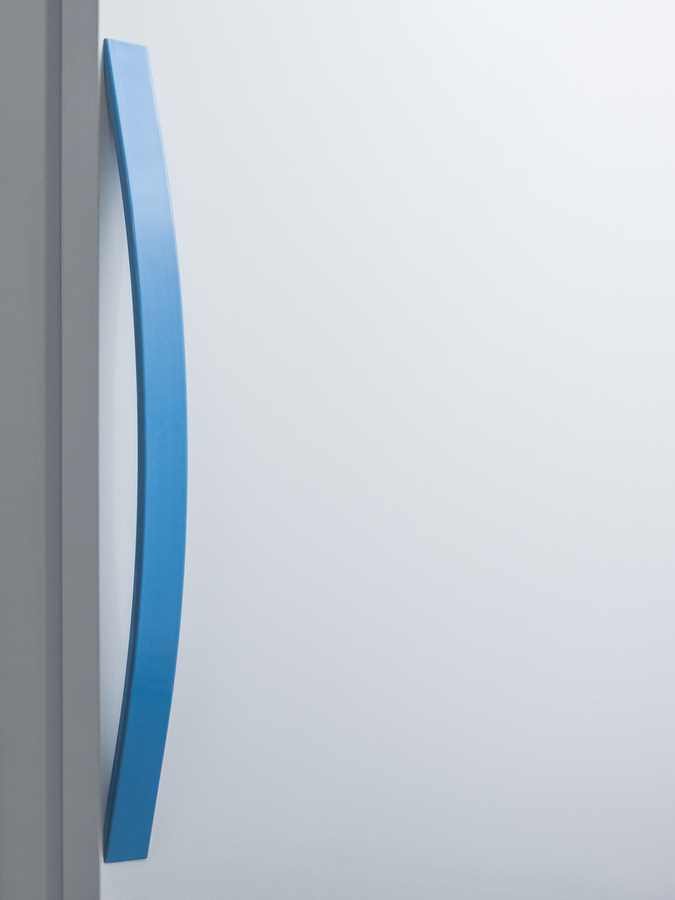

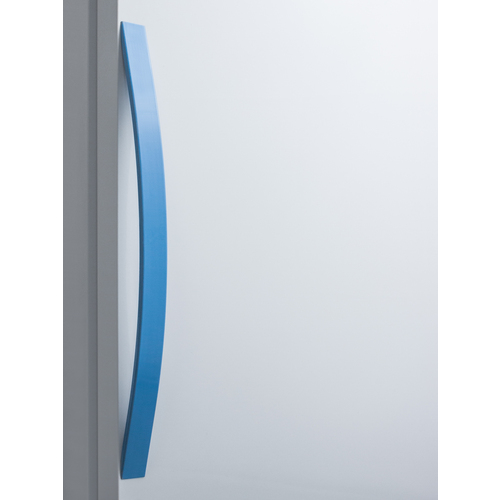

Antimicrobial silver ion-coated handles

Powder-coated handles with naturally occurring silver ions to help reduce the spread of germs

Adjustable temperature

Intuitive controls let you adjust the interior temperature between +2 to +8ºC (refrigerator) and -30º to -10ºC (freezer)

Temperature alarms

Visual and audible alarms alert if the interior temperature rises or falls out of set range

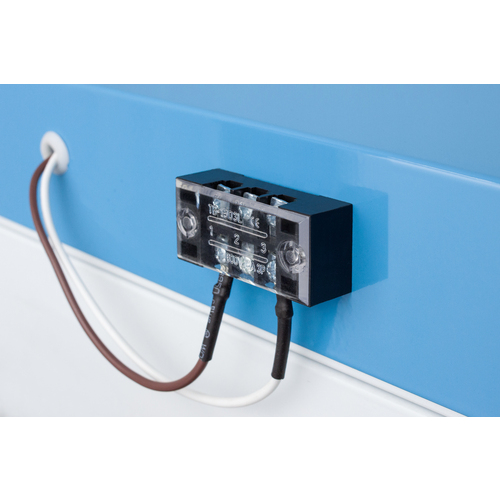

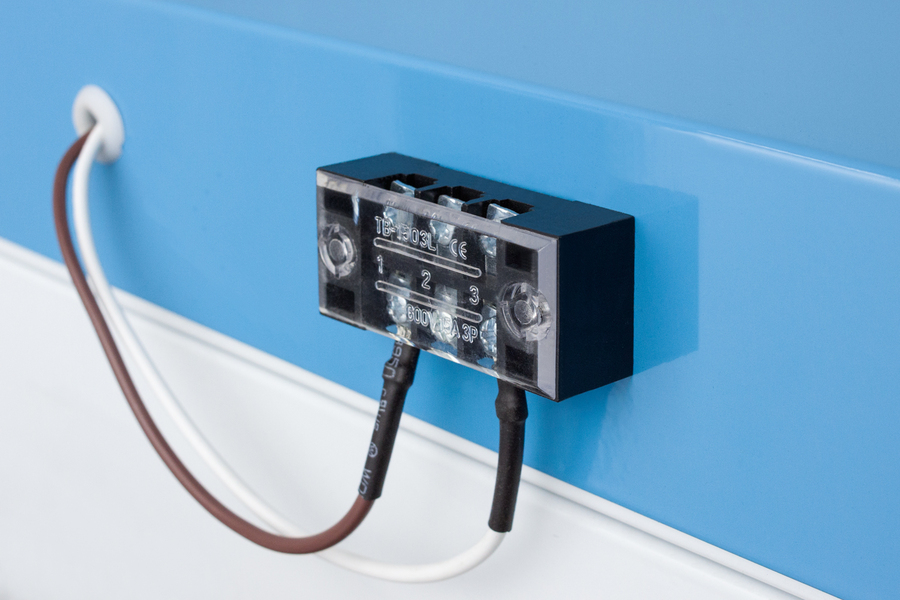

Remote alarm contacts

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

Automatic defrost with adjustable cycle defrost (refrigerator)

Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

Manual defrost (freezer)

Static cooling system for reduced temperature fluctuations

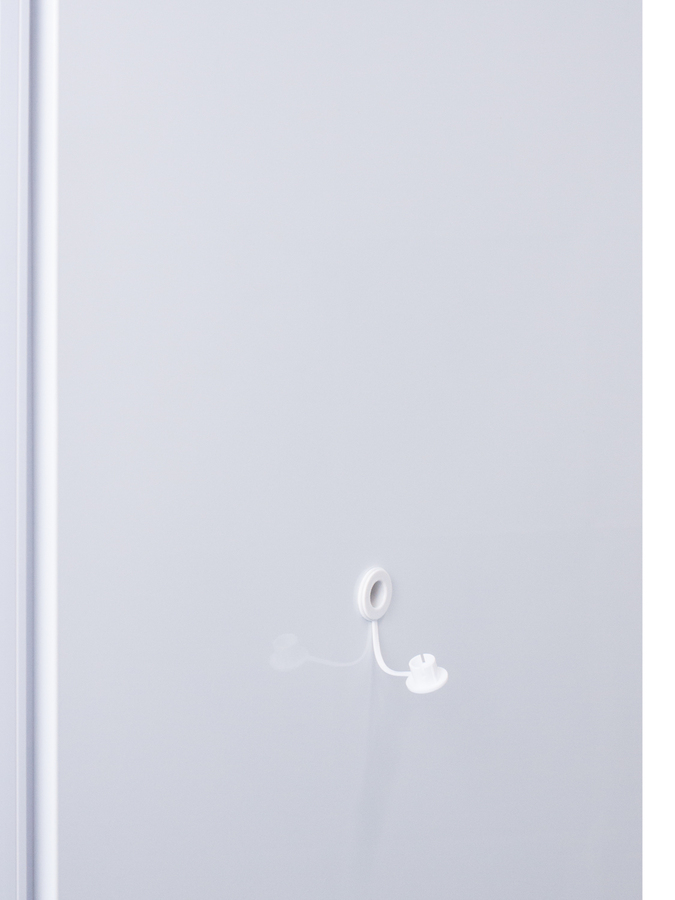

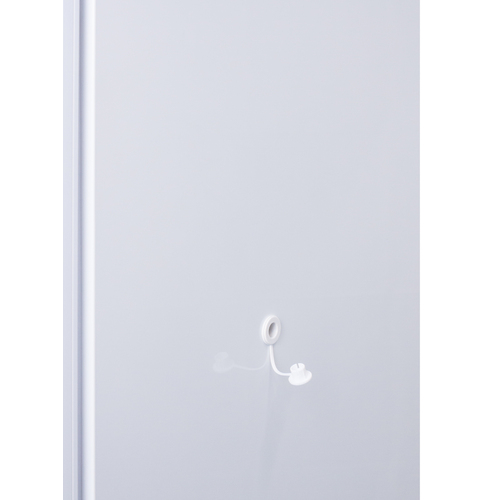

Access ports

Both compartments include a pre-installed probe hole to allow easier connection to user-provided monitoring equipment

Open door alarms

Alarms will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)

Audible power failure alarms

Battery-powered alarms sound if the power connection is interrupted

Sensor failure alarms

Audible and visual alarms warn if the sensor is disrupted

Password protection

Control panels require password entry to adjust the parameters beyond the set point

Microprocessor control panels

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management

Resettable min/max displays

Control panels provide a readout of the low and high temperatures in 15 minute increments

Factory-installed locks

Keyed locks for each door for facility security

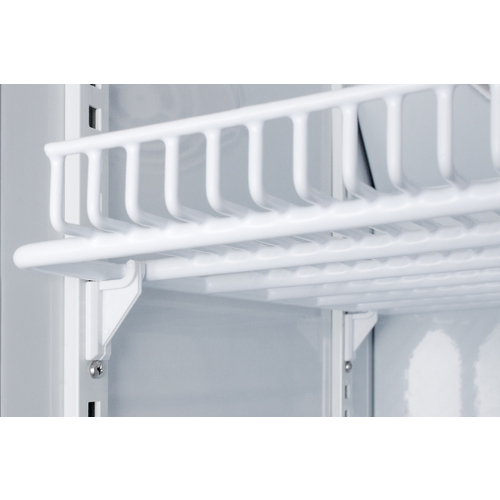

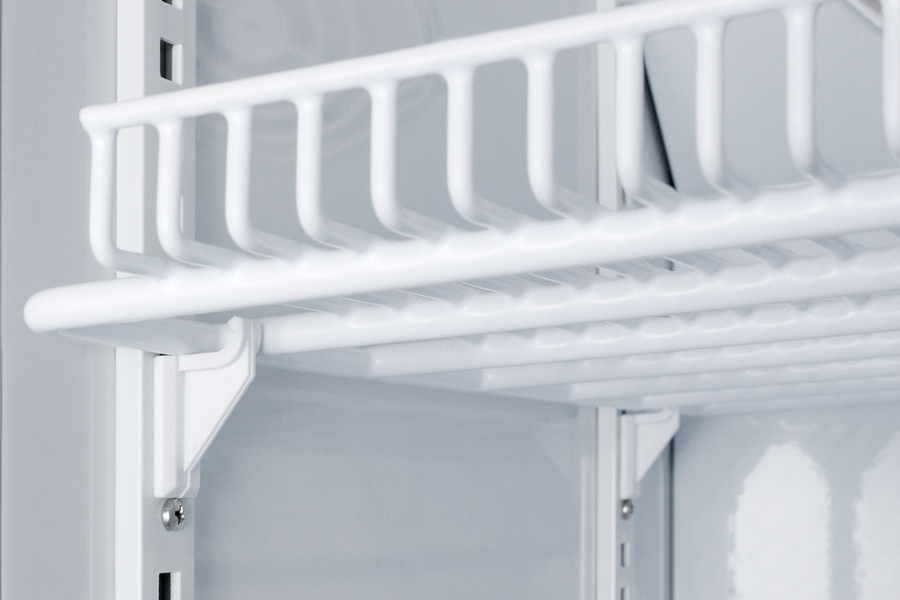

Adjustable plastic-coated wire shelves for improved circulation

Designed to accommodate a variety of sizes for flexible storage

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

Interior light

Energy efficient LED lighting with internal on/off switch

Self-closing doors

Added protection in busy settings to ensure the doors are not accidentally left ajar

Magnetic door gaskets

Quality door gaskets ensure a tight seal for energy savings and improved performance

Extended warranty

2 years parts and labor/5 years compressor

Eco-friendly

Using environmentally friendly hydrocarbons refrigerants for a greener footprint

Usage stickers

Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"

Versatile design

Compatible with Pyxis®, Omnicell®, and AcuDose RX®

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

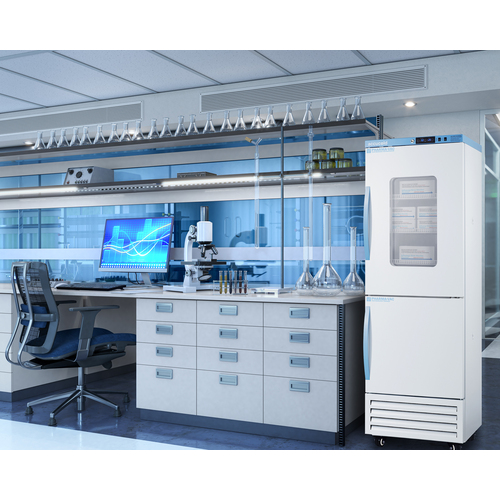

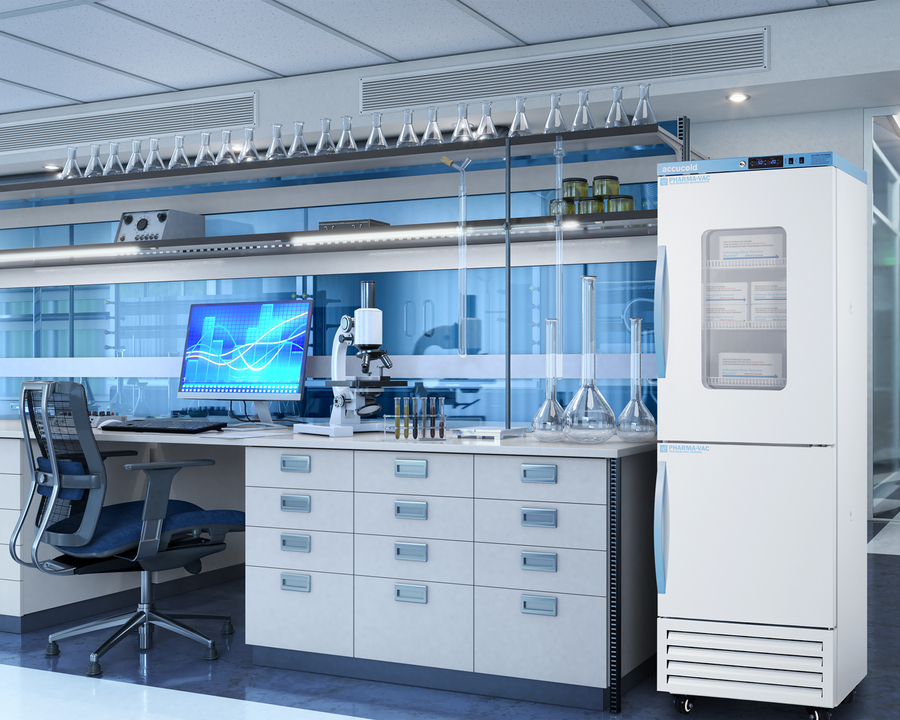

Accucold offers innovative solutions to vaccine and life science storage with the Performance Series dual compressor combination refrigerator-freezers. These units are purpose-built to ensure a stable temperature performance in hospitals, pharmacies, laboratories, and other facilities.

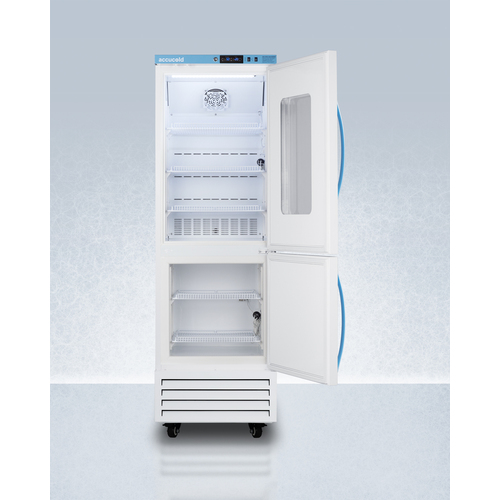

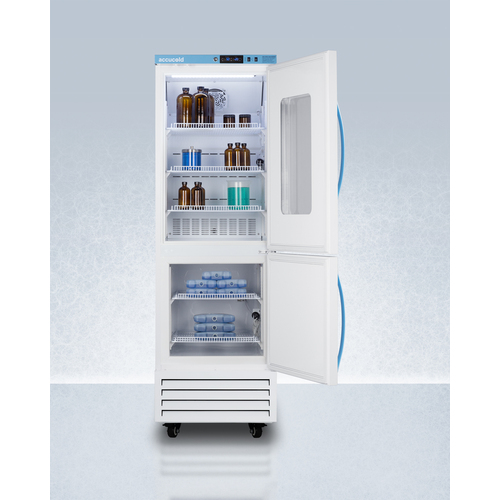

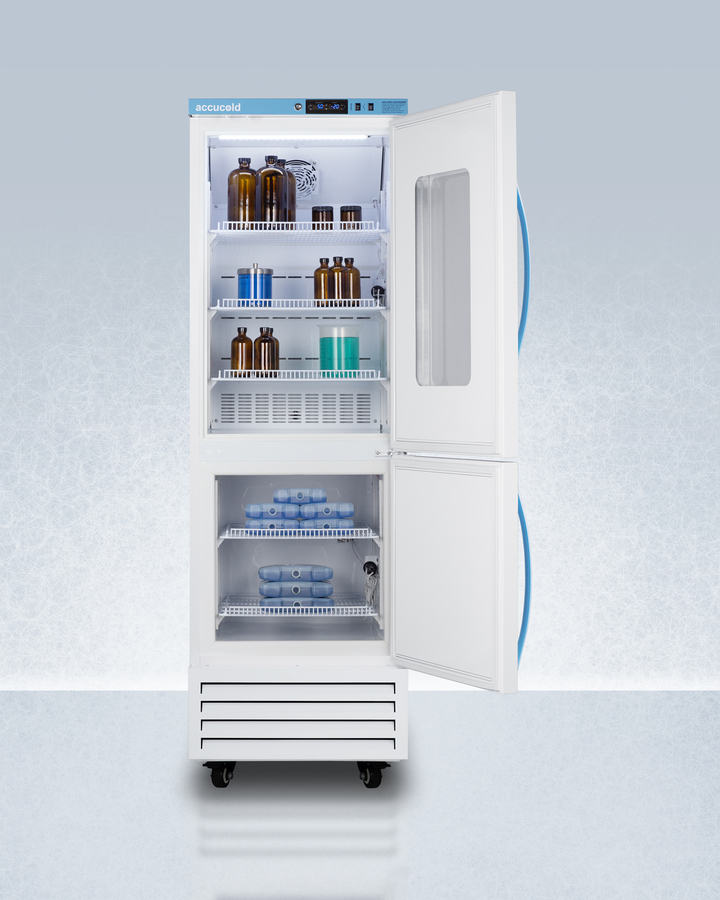

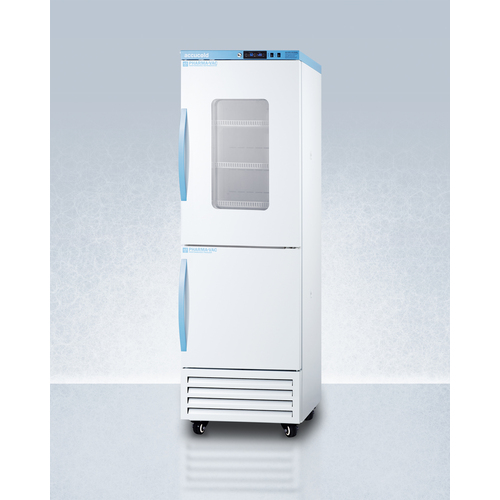

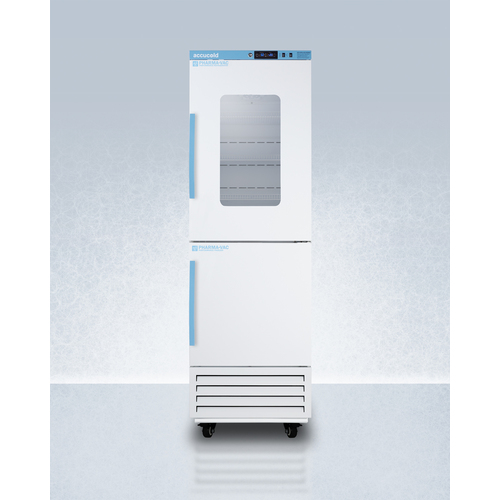

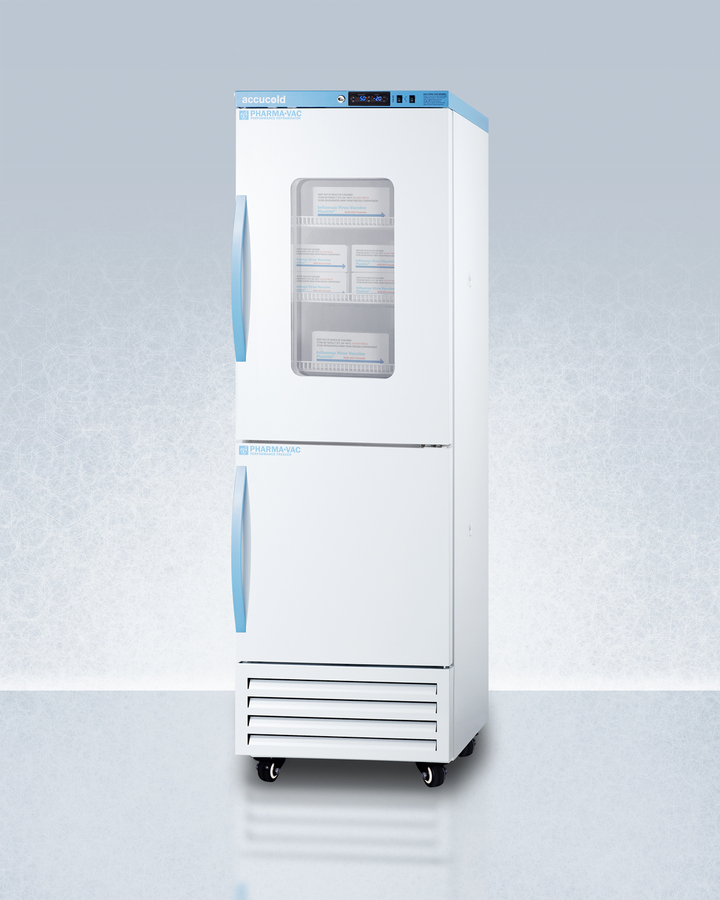

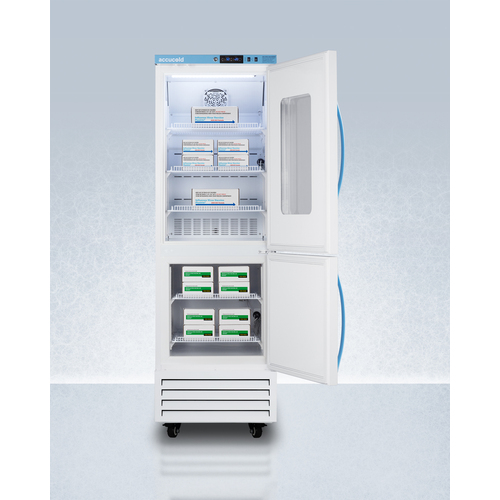

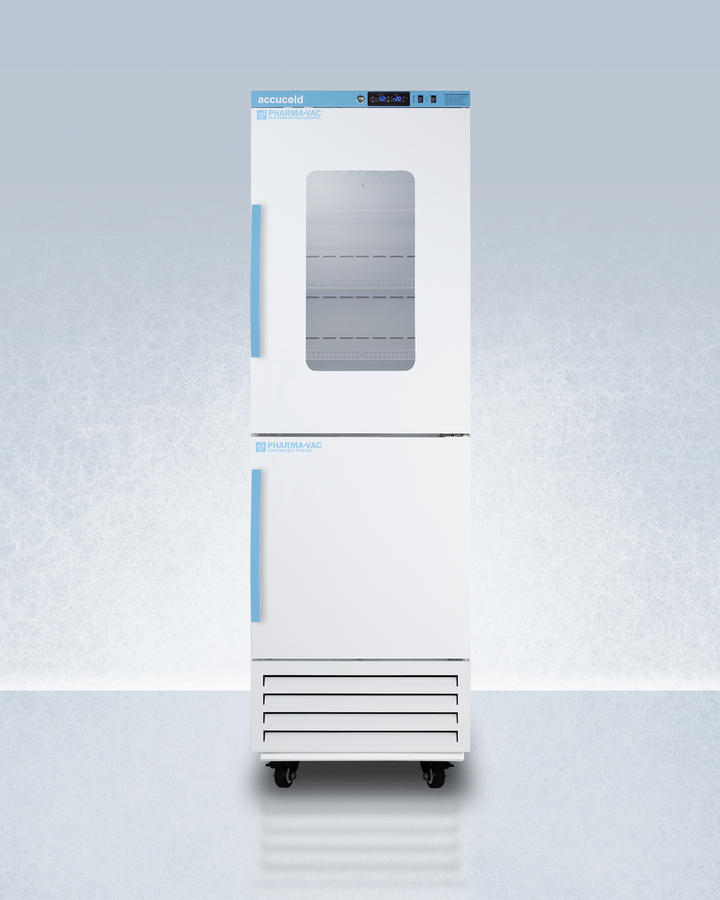

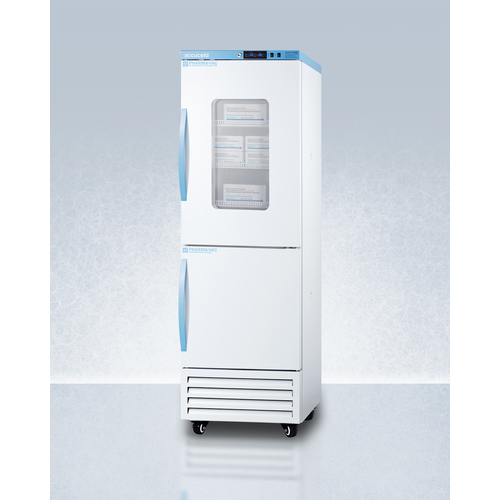

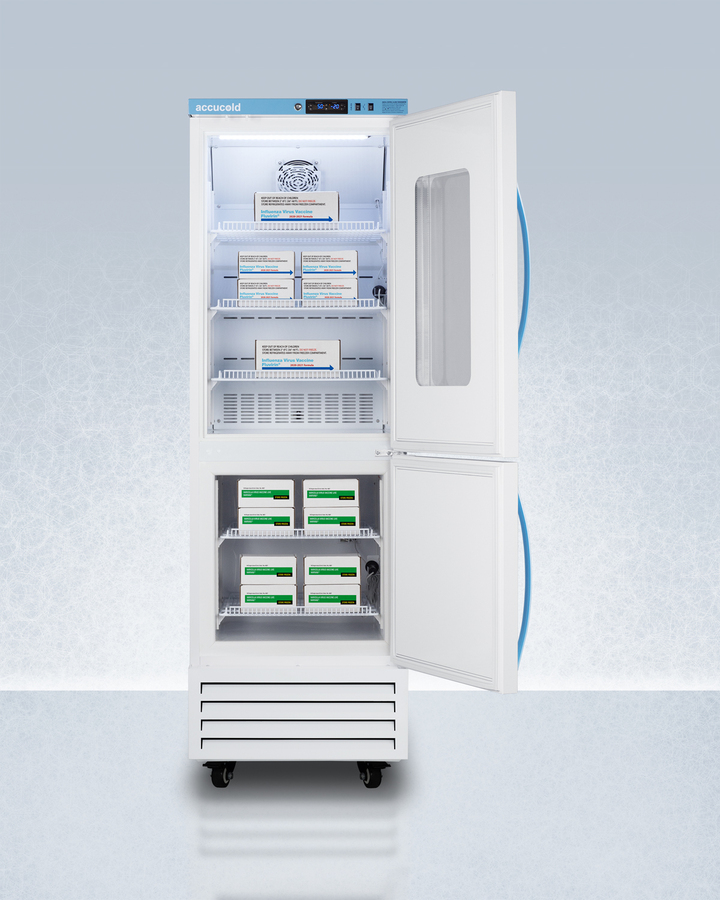

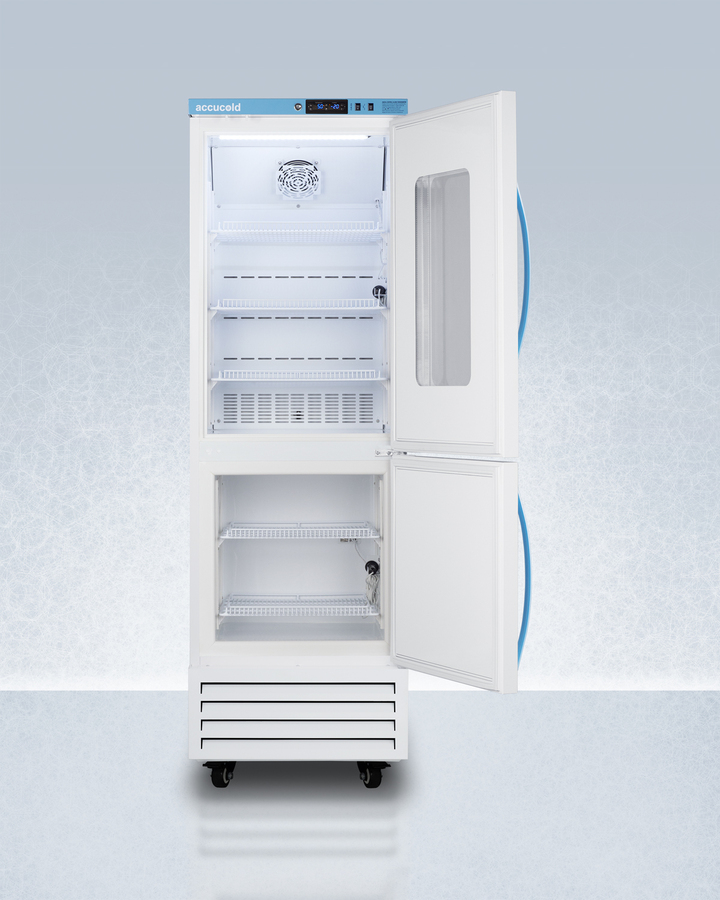

Sized just under 24" wide, the ARFG15PV features an upper refrigerator compartment with a small window and independent manual defrost freezer below. Both sections include adjustable plastic-coated wire shelves that can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention.

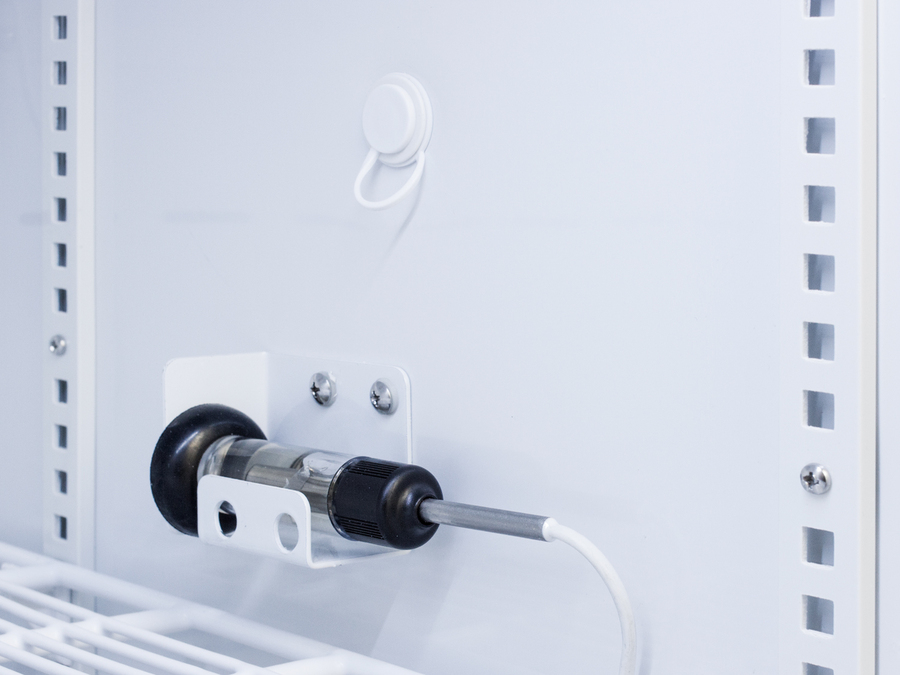

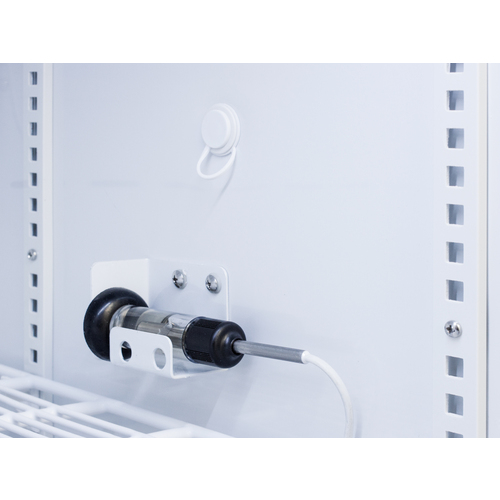

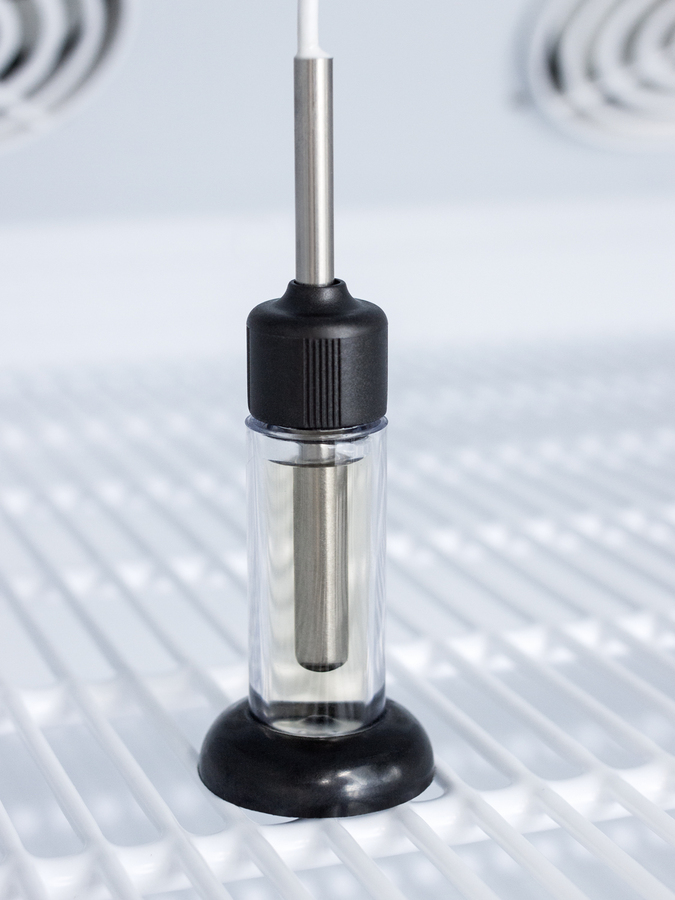

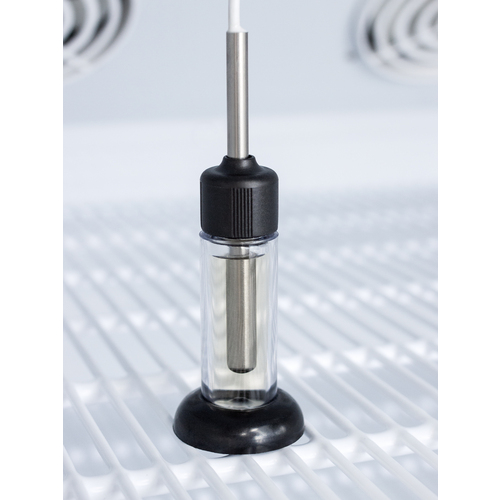

The Pharma-Vac Performance Series is designed to meet the demanding needs of vaccine and life science storage. The ARFG15PV features a dual microprocessor temperature controller (refrigerator range: +2 to +8ºC; freezer range: -30 to -10ºC). The buffered temperature probes are encased in glycol-filled bottles to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarms sound if the interiors go out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alert system. Both sections are equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. The factory-installed antimicrobial handles are powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas.

Inside, the upper refrigerator compartment utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with an internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The freezer utilizes static manual defrost cooling.

Both compartments include front-mounted keyed locks and powerful magnetic gaskets to ensure a positive seal, with self-closing doors for added protection in high traffic settings.  Pre-installed hospital grade casters offer easy mobility as needed, with the front two wheels lockable to keep the unit in place.

Additional sizes and styles are available. Browse Accucold's website for more information, or contact our sales team at 718-893-3900 to discuss your equipment needs.

NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8ºC. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B2 or DLPWRF.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
