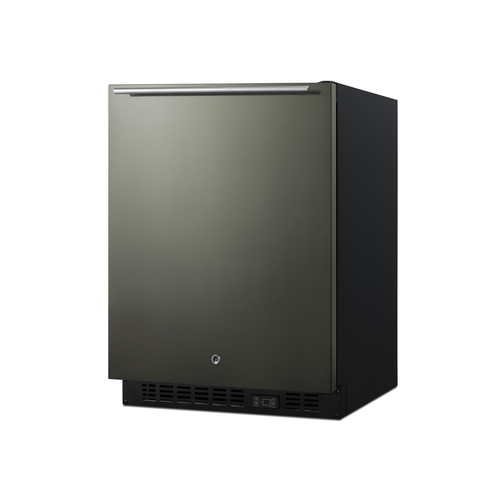

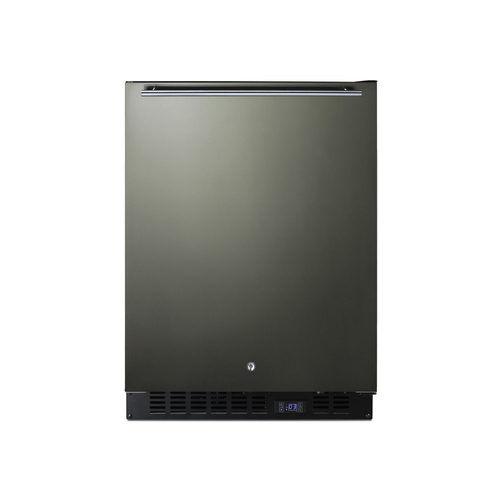

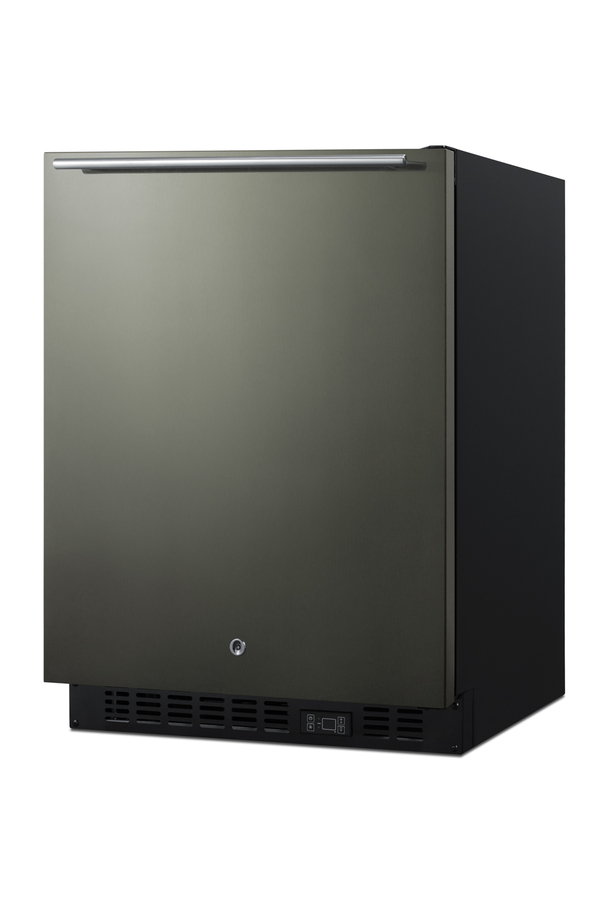

24" Wide Built-In All-Freezer, ADA Compliant

SKU: ALFZ53KSHH
Modern elegance with a 304 grade stainless steel wrapped door in a unique fingerprint-resistant black finish
Out of Stock; ETA:

04/19/2024

Refrigerator Type:
Freezerless All-Freezer
Color: Black Stainless Steel

*Additional features may vary

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
32.0" H x 23.63" W x 22.63" D
(81cm H x 60cm W x 57cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Width 23.63" (60 cm)
Depth 22.63" (57 cm)
Depth with Handle 24.13" (61 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 3.7 cu.ft. (105 L)
Defrost Type Frost-Free
Door Black Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 345.0kWh/year
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 92.0 lbs. (42 kg)
Shipping Weight 125.5 lbs. (57 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101088044
Freezer
Door Swing RHD
Reversible Yes
Interior Height 23.5" (60 cm)
Interior Width 18.75" (48 cm)
Interior Depth 15.5" (39 cm)
Shelf Type Chrome
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.31 oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs 4
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 18.75" (48 cm)
Compressor Step Depth 4.5" (11 cm)
Temperature Range -11°F to 11°F
Sabbath Mode Yes
Sound Level 33.7 dB

Exterior
SSK - Stainless steel kickplate
Stainless steel kickplate factory installed
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Built-in capable

Make the best use of space by installing your freezer under the counter and flush with other cabinets

Frost-free operation

No-frost convenience eliminates the need to manually defrost the unit

Black stainless steel wrapped door

304 grade stainless steel in a high gloss neutral finish from our basalt collection; note: due to the reflective quality of our door finish, this color may appear different under different lighting and surrounding conditions

Fingerprint resistant

Black stainless steel door front hides most smudges and wipes clean easily with a dry cloth

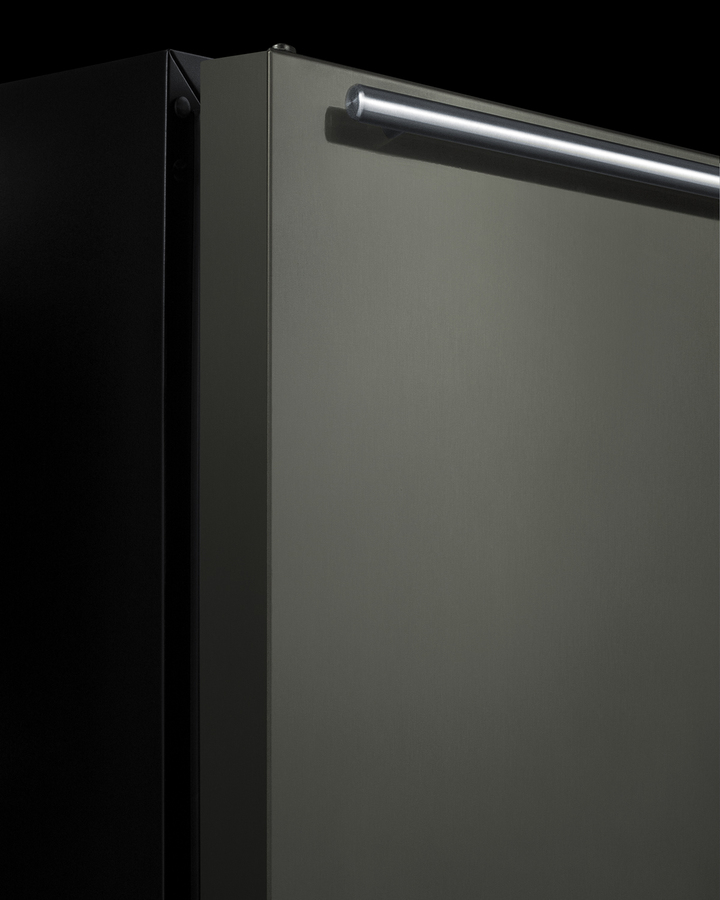

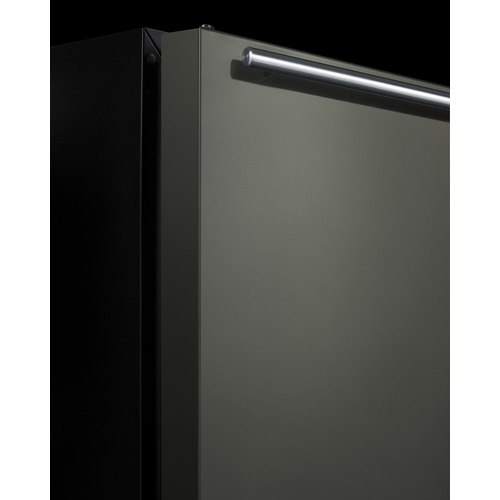

Professional handle

Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look

Digital thermostat

Electronic controls offer easy and intuitive temperature management

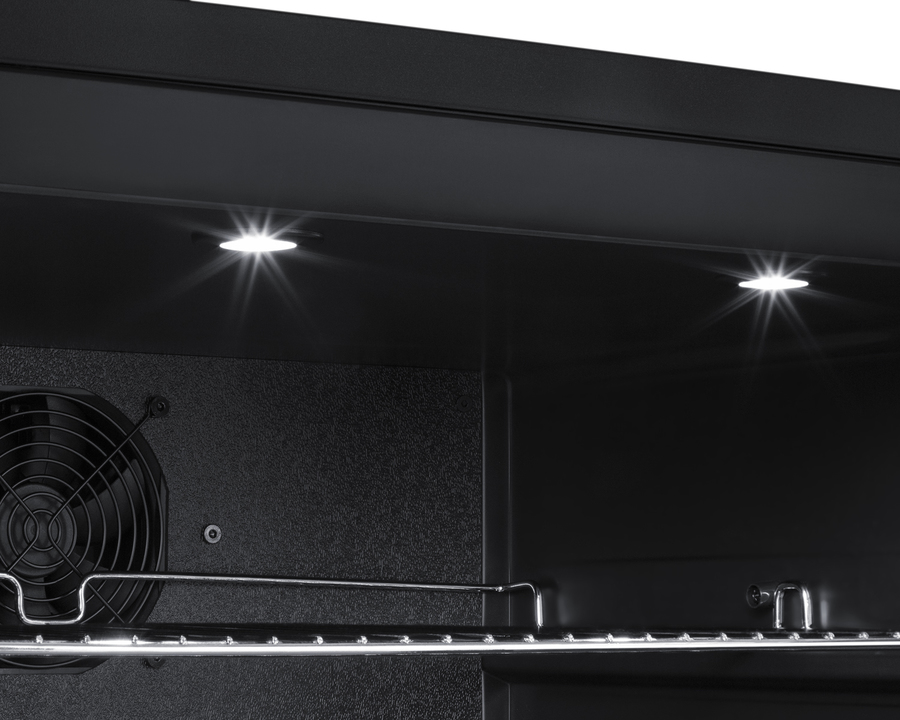

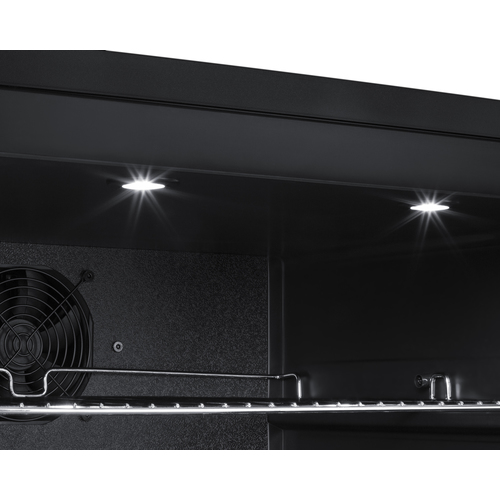

Recessed LED light

Elegant lighting with an on/off switch located on the control panel

Reversible door

User-reversible door swing for added flexibility

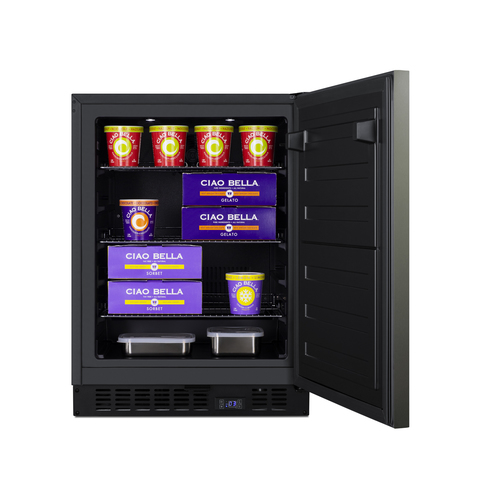

Adjustable shelves

Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Factory installed lock

Keyed lock for a secure interior (2 keys included)

Open door alarm

Audible alarm will sound if the door is left open longer than one minute

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 48 hours

High temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back

Space-saving design with no exposed coils for easier cleanability

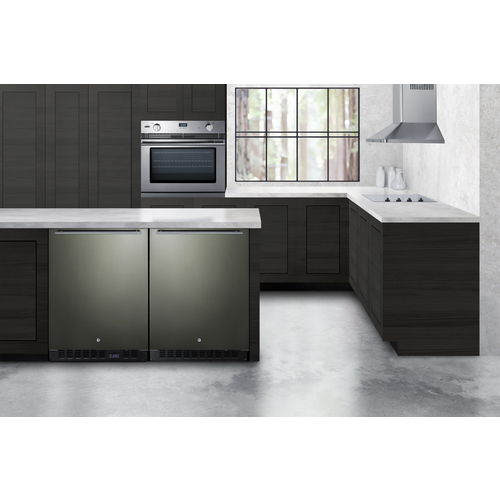

Matching refrigerator available

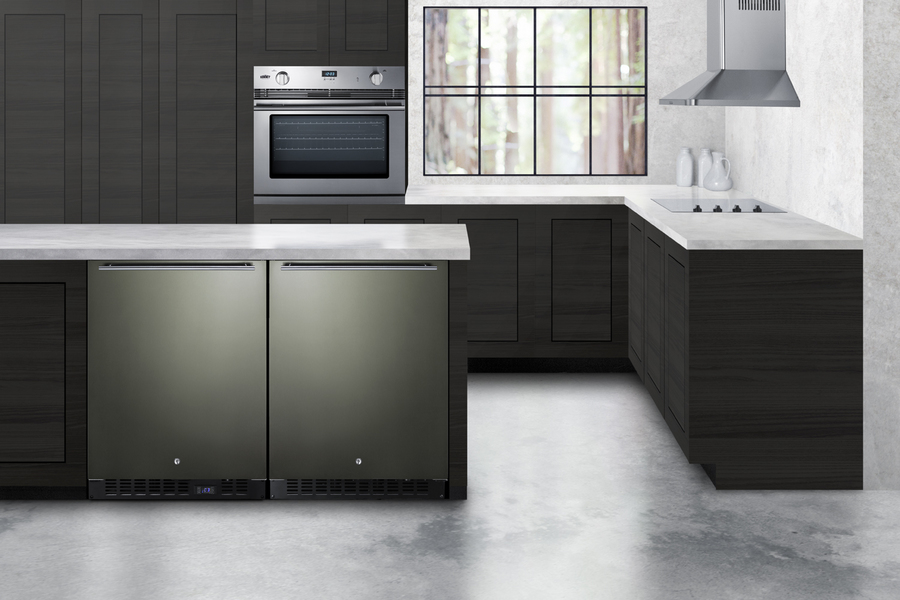

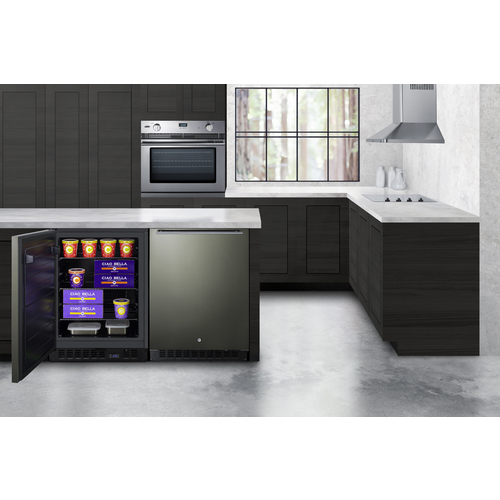

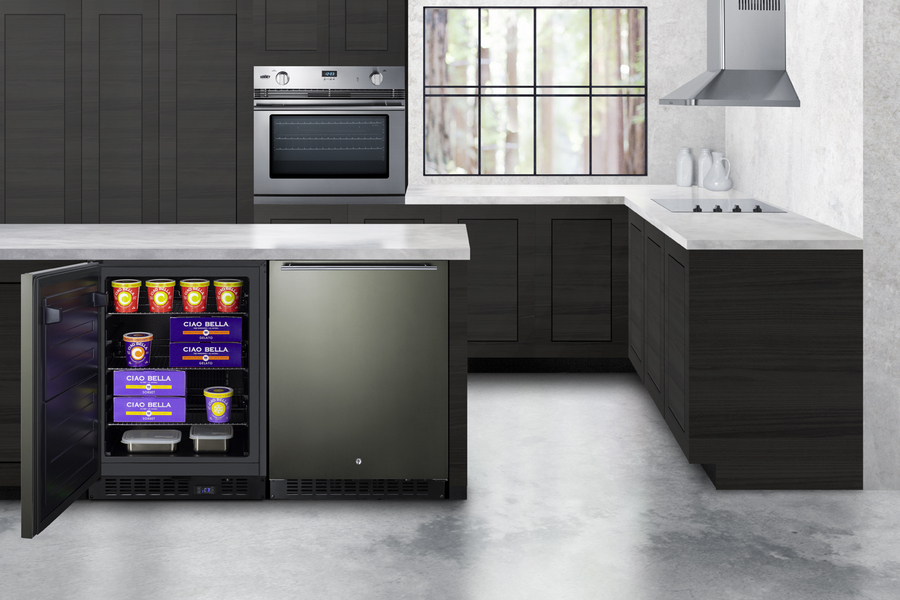

Pair with the AL54KSHH for a matching side-by-side set under lower ADA compliant counters

Commercially approved

ETL-S listed to NSF-7 commercial standards

Fully finished cabinet

Allows the freezer to be used as a freestanding model

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit manufactures the industry's largest selection of built-in appliances sized for use under lower ADA compliant counters, including frost-free freezers specially designed to match our popular ADA compliant refrigerators.

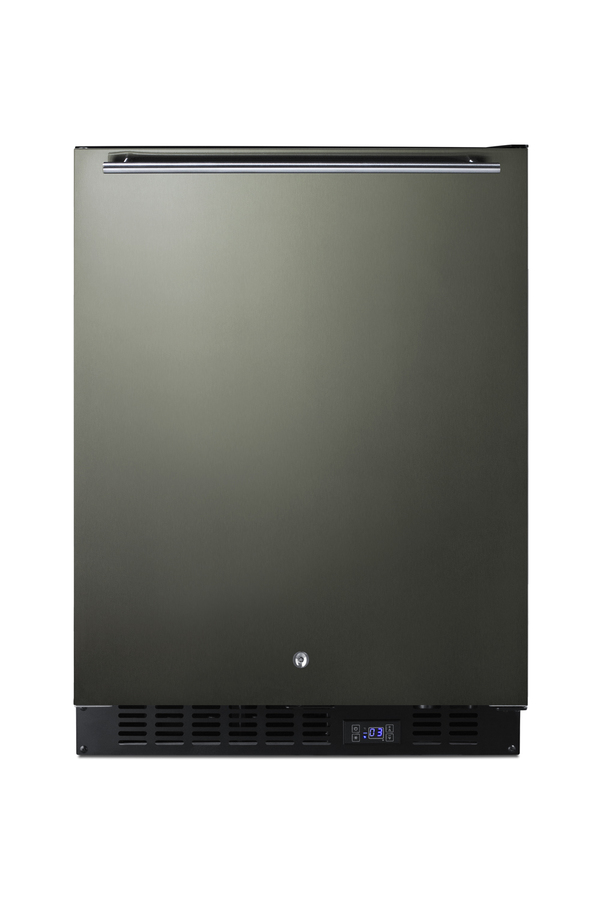

Model ALFZ53KSHH is a 24" wide all-freezer that can be paired with our AL54 all-refrigerator. Sized at just 32" high, it can easily be installed under an ADA compliant counter. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. This model's reversible door comes in our new black stainless steel finish from our exclusive basalt collection. The wrapped door is made from 304 grade stainless steel with a high gloss finish in a neutral hue to perfectly accent or complement your kitchen design. The door is strongly resistant to most fingerprints and can easily be wiped clean with a dry cloth. Our signature thin handle in brushed stainless steel is mounted horizontally to complete the modern look. This unit has a flush back for easy cleaning and a right angle cord for added space savings. A front lock offers added security.

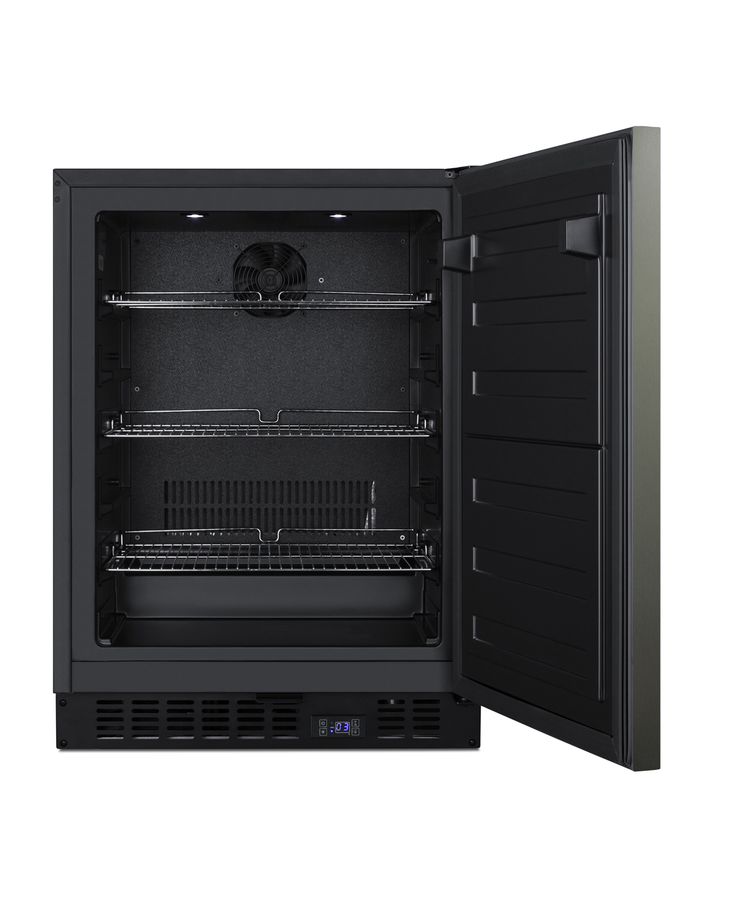

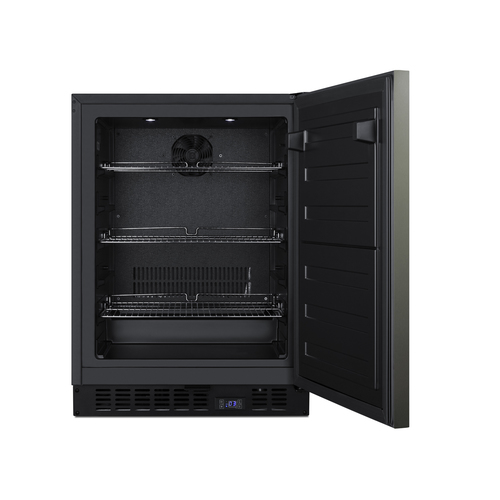

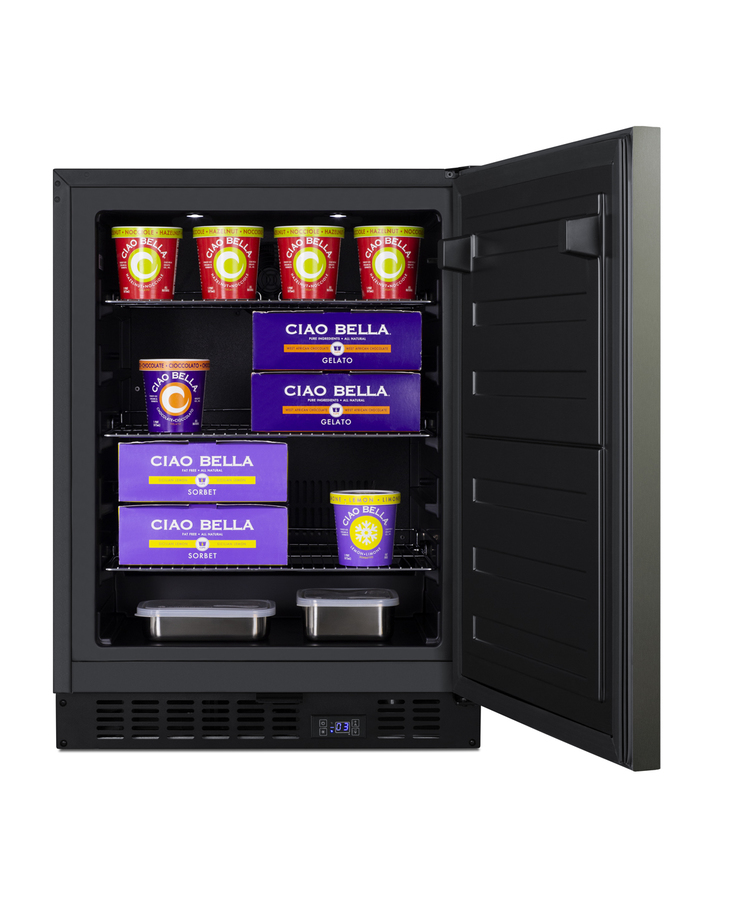

Inside, the ALFZ53KSHH utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look inside the black interior. Three adjustable chrome shelves can be set at five different positions to best accommodate your storage needs. Additional user-friendly features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. This unit features intuitive digital controls located in the external kickplate.

The ALFZ53KSHH freezer is approved for residential use and also ETL-S listed to NSF-7 standards for commercial applications. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens. It's a perfect match for our AL54KSHH all-refrigerator. Additional door finishes are available, including panel-ready, black stainless steel, and our new vibrant colors. Browse the full selection to explore your options.

NOTE: Black stainless steel may vary slightly in appearance from the image displayed, as it has a reflective quality that can be affected by surrounding colors and textures. Summit's black stainless steel comes with a high gloss finish and is not designed as a direct match to other brands.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
