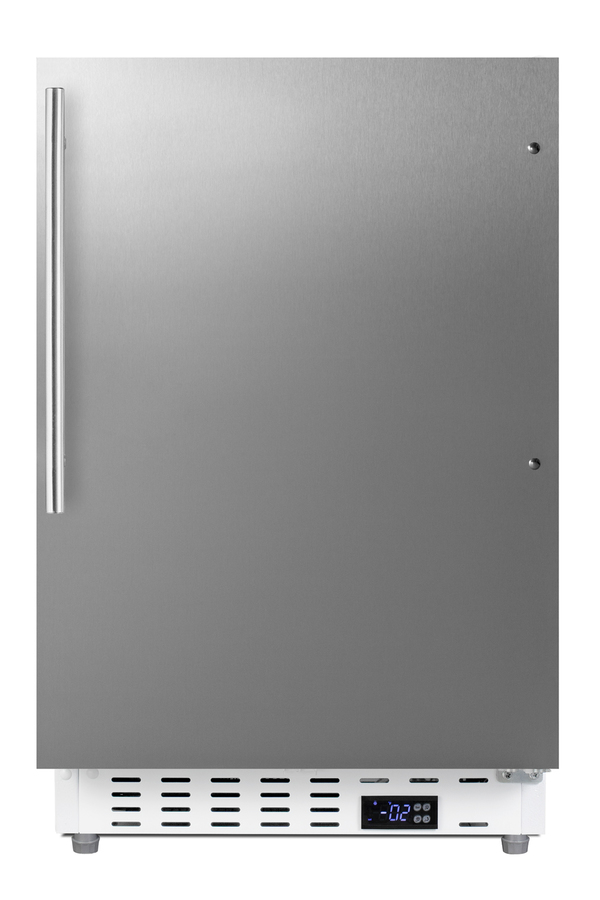

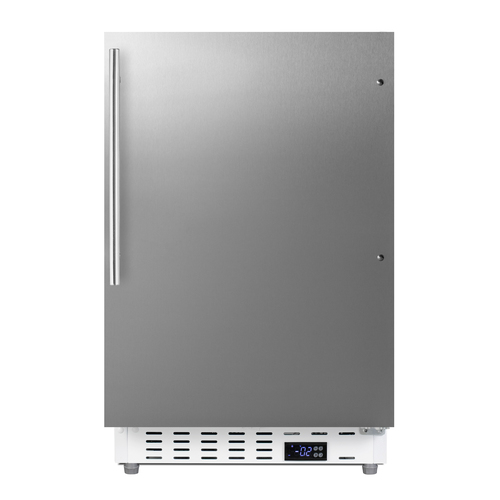

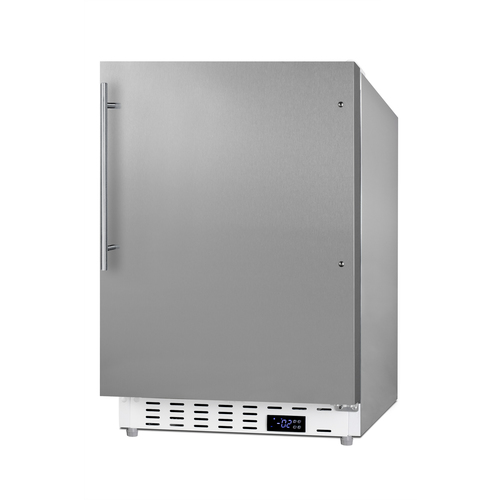

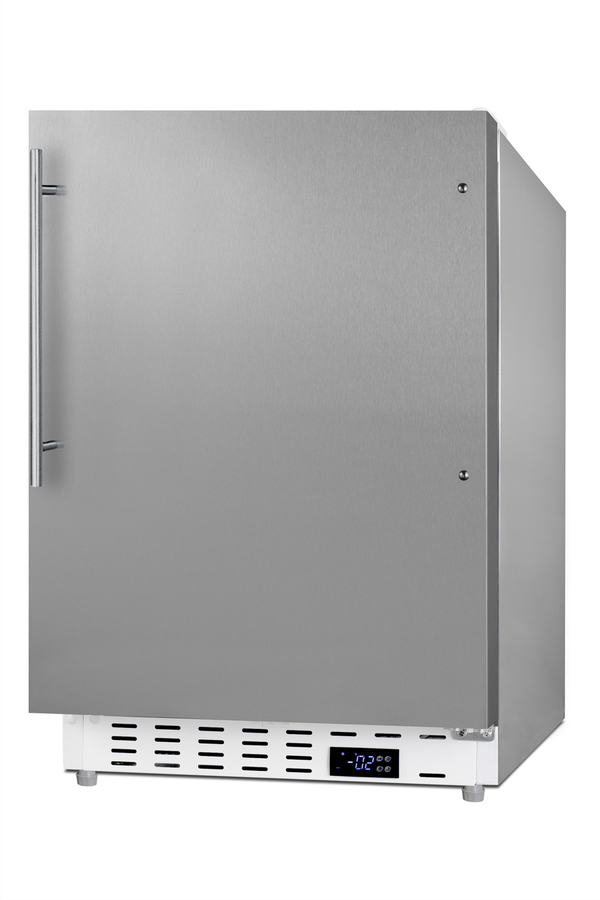

20" Wide Built-In All-Freezer, ADA Compliant

SKU: ALFZ36CSSHV
Slim-fitting undercounter freezer ideal for providing extra storage to small-spaced residential settings
Estimated Time to Ship:

3 to 5 days

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.
32.0" H x 19.88" W x 22.5" D
(81cm H x 50cm W x 57cm D)

Overview
Height of Cabinet 31.75" (81 cm)
Height to Hinge Cap 32.0" (81 cm)
Width 19.88" (50 cm)
Width with Door Open 20.88" (53 cm)
Depth 22.5" (57 cm)
Depth with Handle 24.0" (61 cm)
Depth with door at 90° 40.25" (102 cm)
Capacity 2.68 cu.ft. (76 L)
Defrost Type Manual
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 266.0kWh/year
Amps 0.6
Voltage/Frequency 115 V AC/60 Hz
Weight 105.0 lbs. (48 kg)
Shipping Weight 110.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101076867
Freezer
Door Swing RHD
Reversible Yes
Interior Height 23.75" (60 cm)
Interior Width 14.5" (37 cm)
Interior Depth 17.0" (43 cm)
Shelf Type Wire
Shelf Qty 3
Full Door Shelves 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Exterior
Refrigerant Type R600a
Refrigerant Amount 1.83 oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs 2
Wheels 2
Compressor Step Height 5.75" (15 cm)
Compressor Step Width 14.5" (37 cm)
Compressor Step Depth 6.0" (15 cm)
Temperature Range -13 to 5ºF

Handle
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
Exterior
Alarm/Thermometer
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
CAS6 6" casters
6" high NSF listed casters
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
AC Keypad
Keypad door lock powered by appliance power cord for keyless security
KEYPAD
Battery-powered keypad door lock installed for keyless security
L-Installed Lock
Add a single key lock to the door with the L option

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Adjustable thermostat

Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius

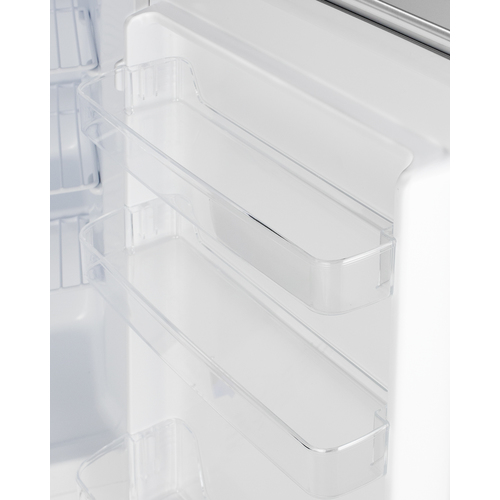

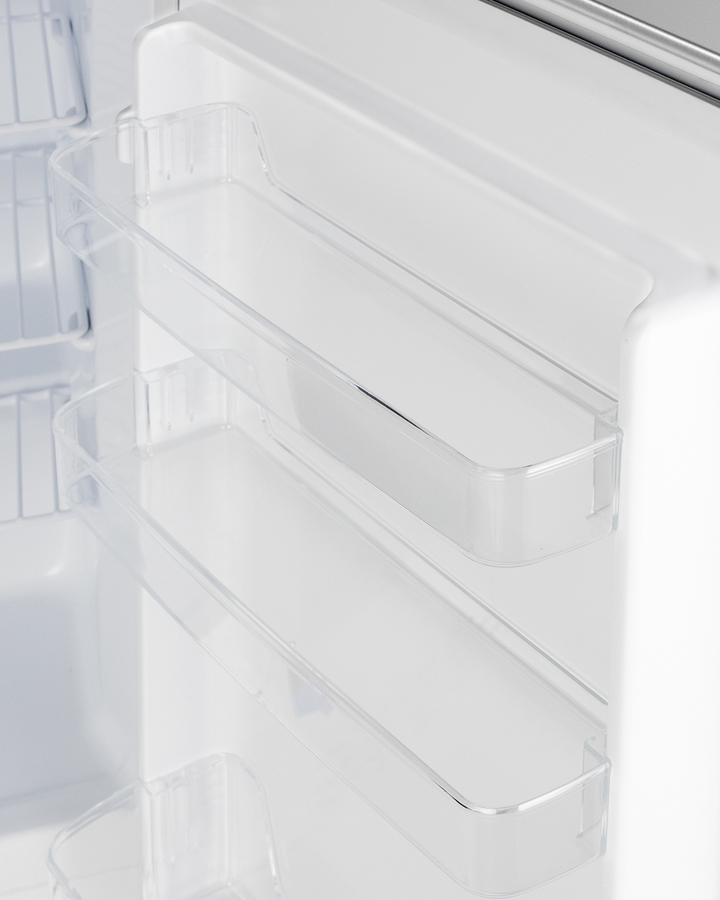

Door shelves

Three removable door racks for additional storage of larger items

Adjustable shelves

Three adjustable wire shelves for optimal storage in 2.68 cu. ft. interior

Reversible stainless steel door

Stainless steel, user-reversible door for added flexibility to best accommodate your setting

3" thick door

Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space

Temperature alarms

User-set high/low temperature alarms provide added security if temperature goes beyond setpoint

Open door alarm

Audible alarm will sound if the door is left ajar for over a minute

Sealed back

Space-saving design that offers easier cleanability

Right-angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Manual defrost

More temperature stability with an energy efficient manual defrost system

Professional handle

Brushed stainless steel handle with a thin 14mm diameter is mounted vertically for a sleek look

Matching all-refrigerator

This unit can be paired with the ALR46WCSSHV all-refrigerator for a complete set

Fully finished stainless steel cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Appliance offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience.

The ALFZ36CSSHV is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished stainless steel cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The stainless steel, user-reversible door is 3" thick for efficient insulation, with a sleek vertical handle with a thin 14mm diameter, a popular style that matches many common cabinet handles. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius.

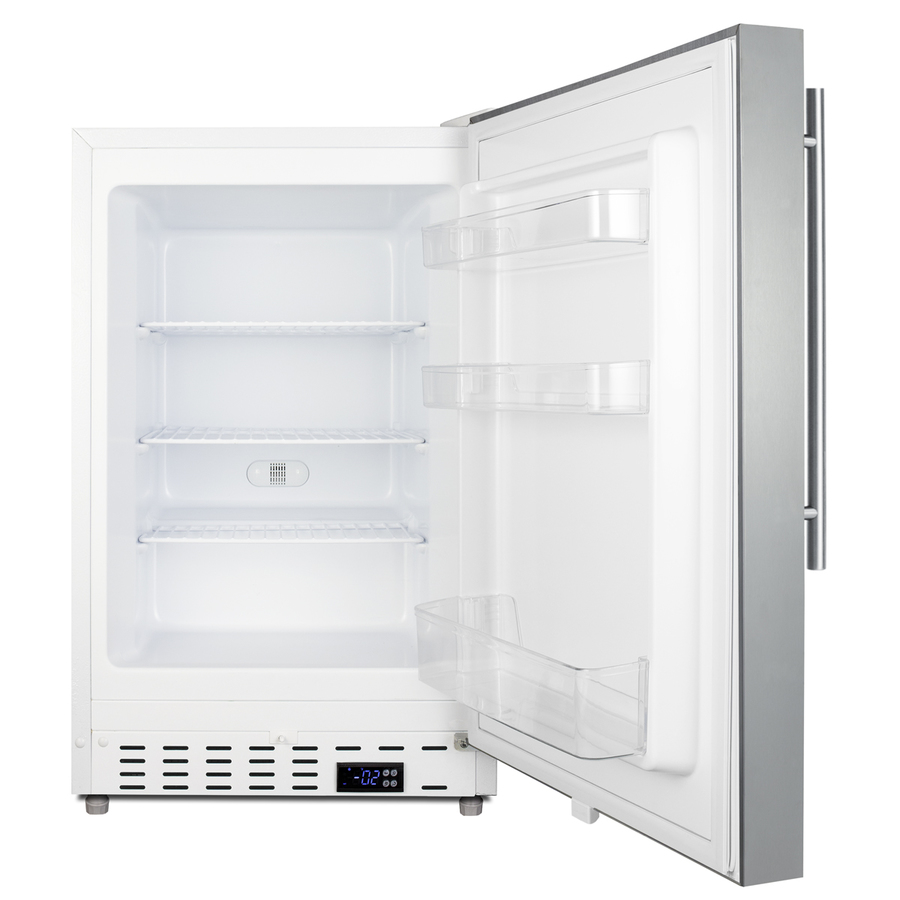

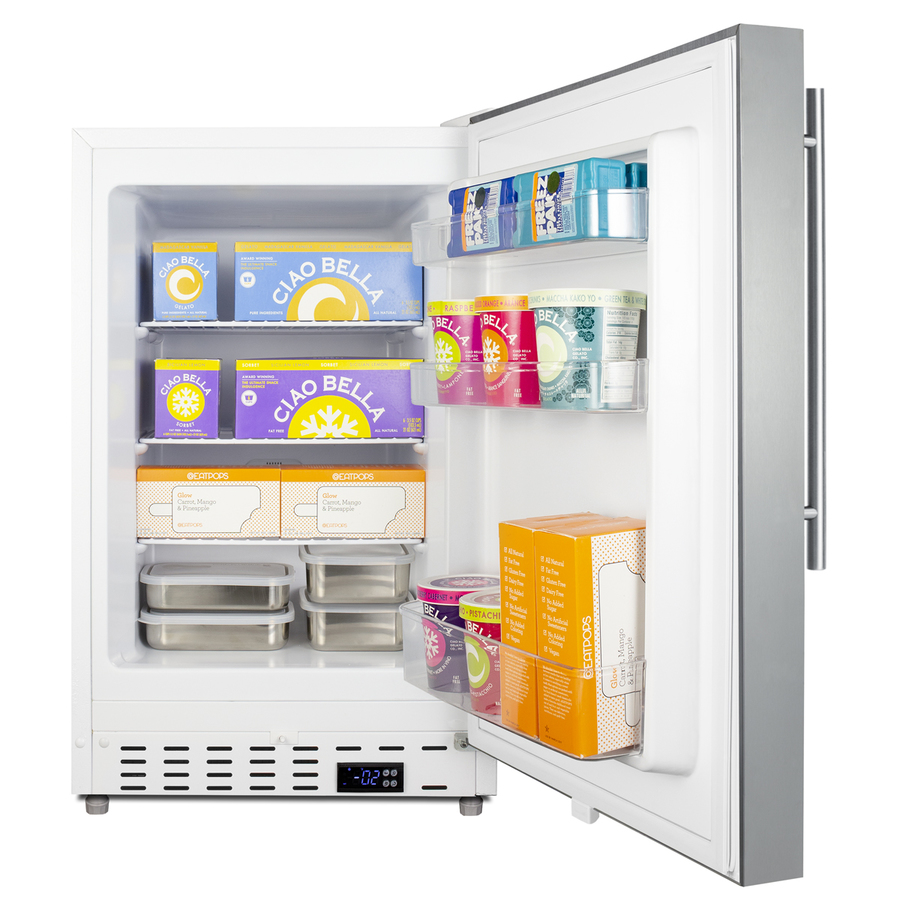

Inside, the ALFZ36CSSHV features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior. Three adjustable wire shelves offer optimal storage options for large and small items, while three removable door racks accommodate additional storage as needed. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs.

Sized at just 20" wide, the ALFZ36CSSHV is the perfect addition for space-challenged spaces seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALR46WCSSHV all-refrigerator. Additional choices are available in stainless steel and panel-ready exterior finishes.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
