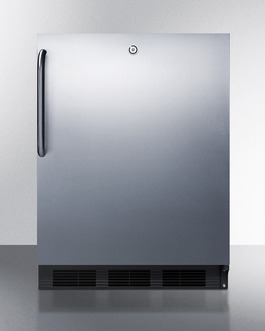

AL752LBLCSS

Designed to fit under lower ADA compliant counters

32.25" H x 23.75" W x 23.5" D

(82cm H x 60cm W x 60cm D)

OVERVIEW

32" height for use under lower ADA compliant counters
Flexible design allows built-in or freestanding use in 24" spaces
Factory-installed lock provides security you can count on
Fully wrapped stainless steel cabinet and door bring luxury to any room
Automatic defrost ensures minimum user maintenance
Made in Europe

SPECIFICATIONS

Overview
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.25" (82 cm)
Width	23.75" (60 cm)
Depth	23.5" (60 cm)
Depth with Handle	24.75" (63 cm)
Depth with door at 90°	45.5" (116 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	Stainless Steel
Cabinet	Stainless Steel
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Shipping Weight	105.0 lbs. (48 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
Refrigerator Features
Door Swing	RHD
Reversible	Factory Reversible
Shelf Type	Glass
Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Dial
Refrigerant Type	R134a
Refrigerant Amount	1.8oz.
High Side PSI	285.0
Low Side PSI	88.0
Level Legs Qty	4
Interior Light	Yes
Dimensions
Interior Height	26.25" (67 cm)
Interior Width	21.0" (53 cm)
Interior Depth	17.75" (45 cm)
Compressor Step Height	5.5" (14 cm)
Compressor Step Width	21.0" (53 cm)
Compressor Step Depth	5.5" (14 cm)

AVAILABLE UPGRADES

Interior

FCGP internal fan with gel packs

Internal fan with gel packs included for a stabilized interior

FC - Internal Fan

Internal fan for even temperature distribution throughout the unit interior

Exterior

TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order	PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management	Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Extra key Extra keys available for purchase	SS Hinges Stainless steel top and bottom hinges
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option	ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing Door reversal to left hand swing	Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK Stainless steel kickplate factory installed	HUM - Humidity sensor Humidity sensor with min/max readout
HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix	DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Agion Door Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

California residents:

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

DESCRIPTION

Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The AL750BI Series features 24" wide all-refrigerators designed for built-in installation under lower ADA compliant counters.

The AL752LBLCSS is a 32" high all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. The front-breathing design allows built-in use under counters, while the fully finished cabinet also lets this unit be used freestanding. This model has a fully wrapped stainless steel cabinet and door. A curved handle in brushed stainless steel completes the professional look and a factory installed lock offers added security.

Inside, the AL752LBLCSS utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable glass shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial.

For more finish options, browse the entire AL750BI Series.

NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.

FEATURES

ADA compliant
32 inch height fits under standard ADA counters

Slim undercounter dimensions
Less than 24 inches wide with a full 5.5 c.f. capacity

Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinets

Fully finished cabinet
Allows the unit to be used freestanding

Fully wrapped stainless steel cabinet
Enhance any room with durable luxury

Professional towel bar handle
Curved handle in brushed stainless steel offers a sturdy grip with professional elegance

Factory installed lock
Keyed lock offers added security

Automatic defrost
Reduced user maintenance with automatic defrost operation

One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Hidden evaporator
Cold wall design with hidden evaporator and seamless interior

Adjustable glass shelves
Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Flat door liner
An easy-to-clean flat liner accepts large trays

Deep shelf space
Interior accommodates large trays up to 19 1/2" x 15 1/2"

Adjustable thermostat
Dial thermostat located inside for easy temperature management

Interior light on rocker switch
Turn the light on when you need it and off when you're done with a convenient rocker switch

100% CFC free
Environmentally friendly design without ozone-damaging chemicals
