AL650LSSHH

Unique dual evaporator system ensures better cooling in each section

32.25" H x 23.63" W x 23.5" D

(82cm H x 60cm W x 60cm D)

OVERVIEW

  • 32" height for use in ADA compliant settings
  • Factory-installed lock provides security you can count on
  • Stainless steel door complete with sleek horizontal handle brings modern luxury to any setting
  • Over 5 cu.ft. of storage capacity in a perfectly sized 24" footprint
  • Improved temperature performance with our unique dual evaporator cooling
  • Made in Europe

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.25" (62 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 5.1 cu.ft. (144 L)
Defrost Type Cycle
Door Stainless Steel
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 113.0 lbs. (51 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 19.5" (50 cm)
Refrigerator - Interior Width 20.5" (52 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 5.0" (13 cm)
Freezer - Interior Width 19.0" (48 cm)
Freezer - Interior Depth 11.5" (29 cm)
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 2.6 oz.
High Side PSI 285.0
Low Side PSI 70.0
Level Legs 4
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 20.5" (52 cm)
Compressor Step Depth 5.0" (13 cm)

AVAILABLE UPGRADES

Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Interior
FCGP - Fan w/Gel Packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior
Exterior
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
KEY
Extra keys available for purchase
SS Hinges
Stainless steel top and bottom hinges
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Latch
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Agion Door
Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

WHERE TO BUY

Invalid Format

DESCRIPTION

Accucold by Summit Appliance offers a wide range of counter height refrigeration for general purpose storage. The AL650 Series includes freestanding refrigerator-freezers designed for optimum storage conditions and sized for use in settings complying with ADA guidelines.

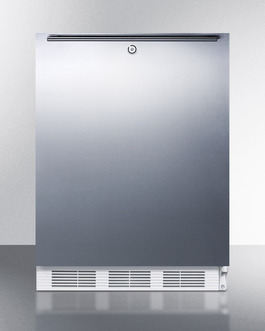

At 32" high, the AL650LSSHH is designed for freestanding use in ADA compliant facilities. The 24" footprint offers over 5 cu.ft. of storage capacity. This model features a white cabinet and a reversible stainless steel wrapped door with a factory installed lock. A sleek horizontally mounted handle completes the look.

Inside, our unique dual evaporator system separately cools the refrigerator and freezer sections to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, with static manual defrost operation in the freezer compartment. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting.

The AL650LSSHH has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full AL650 Series. For built-in undercounter applications, see the AL650LBISSHH.

NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.

FEATURES

ADA compliant
32" height for use in settings complying with ADA guidelines for lower counter height
Fully finished white cabinet
Allows the unit to be used freestanding
Stainless steel door
Durable design with lasting elegance
Professional horizontal handle
Thin 14mm diameter on stainless steel handle set horizontally across the door
Factory installed lock
Keyed lock offers added security
Cycle defrost
This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
Dual evaporator
Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
Adjustable shelves
Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Clear crisper
Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
Door shelves
Store tall bottles and condiments right on the door for convenient access
Adjustable thermostat
Dial thermostat located inside for easy temperature management
Reversible door
User-reversible door swing for added flexibility
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.25" (62 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 5.1 cu.ft. (144 L)
Defrost Type Cycle
Door Stainless Steel
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 113.0 lbs. (51 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 19.5" (50 cm)
Refrigerator - Interior Width 20.5" (52 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 5.0" (13 cm)
Freezer - Interior Width 19.0" (48 cm)
Freezer - Interior Depth 11.5" (29 cm)
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 2.6 oz.
High Side PSI 285.0
Low Side PSI 70.0
Level Legs 4
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 20.5" (52 cm)
Compressor Step Depth 5.0" (13 cm)

AVAILABLE UPGRADES

Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Interior
FCGP - Fan w/Gel Packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior
Exterior
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
KEY
Extra keys available for purchase
SS Hinges
Stainless steel top and bottom hinges
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Latch
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Agion Door
Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface
