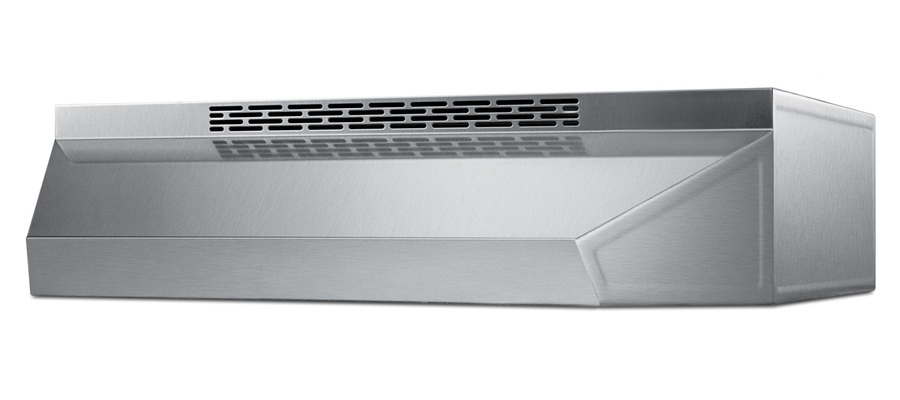

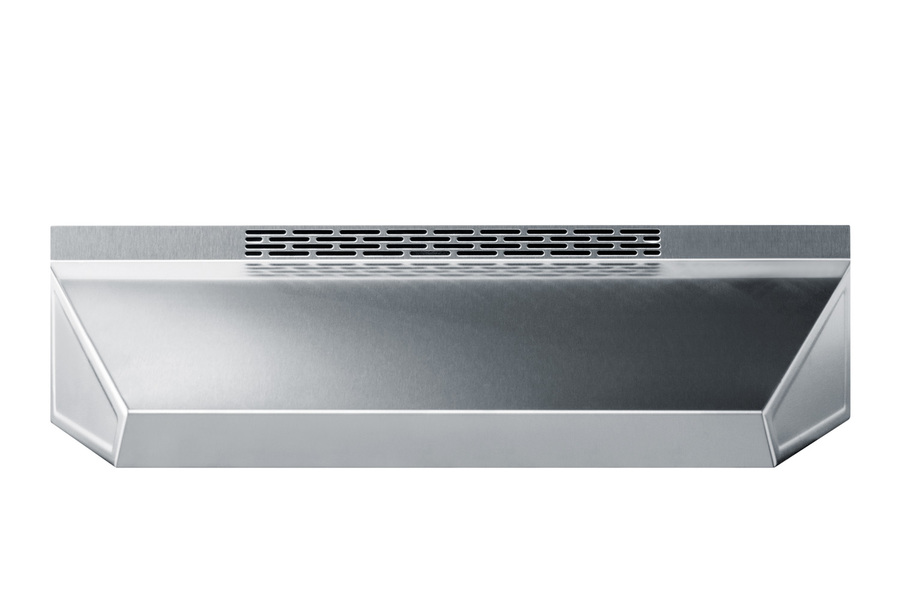

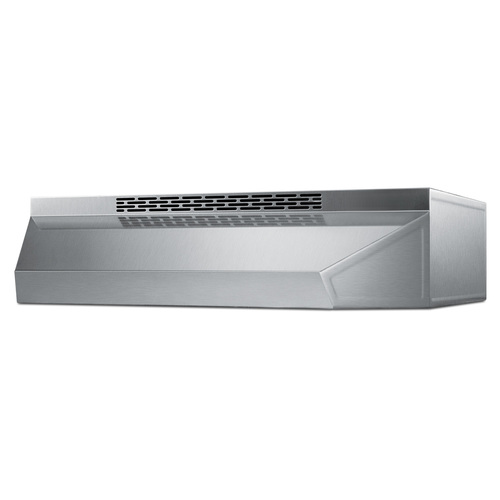

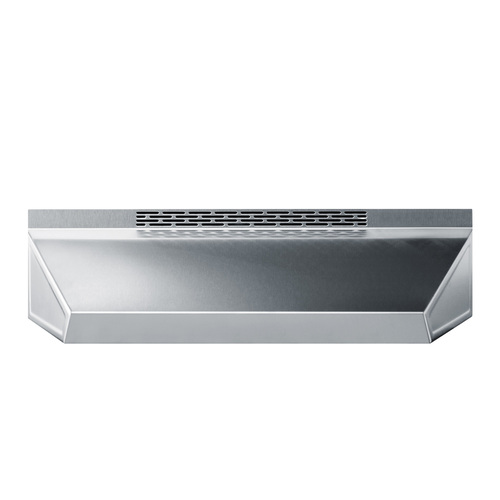

20" Under Cabinet Ductless Range Hood, ADA Compliant

SKU: ADAH1720SS

Specially designed for accessible use in ADA compliant kitchens

5.0" H x 20.0" W x 18.0" D

(13cm H x 51cm W x 46cm D)

OVERVIEW

  • ADA compliant design allows you to control the hood from a wall light switch for easier accessibility
  • 20" wide range hood matches slim apartment sized ranges and cooktops
  • Designed for ductless (recirculating) operation
  • Stainless steel finish to suit all kitchen styles
  • Requires professional installation by a licensed electrician
  • Made in the USA

SPECIFICATIONS

Overview
Height of Cabinet 5.0" (13 cm)
Width 20.0" (51 cm)
Depth 18.0" (46 cm)
Cabinet Stainless Steel
US Electrical Safety UL
Weight 14.0 lbs. (6 kg)
Shipping Weight 15.0 lbs. (7 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Range Hood
Installation Under Cabinet
Venting Recirculating
Number of Fan Speeds 2
Maximum Air Movement 160.0 CFM
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines.

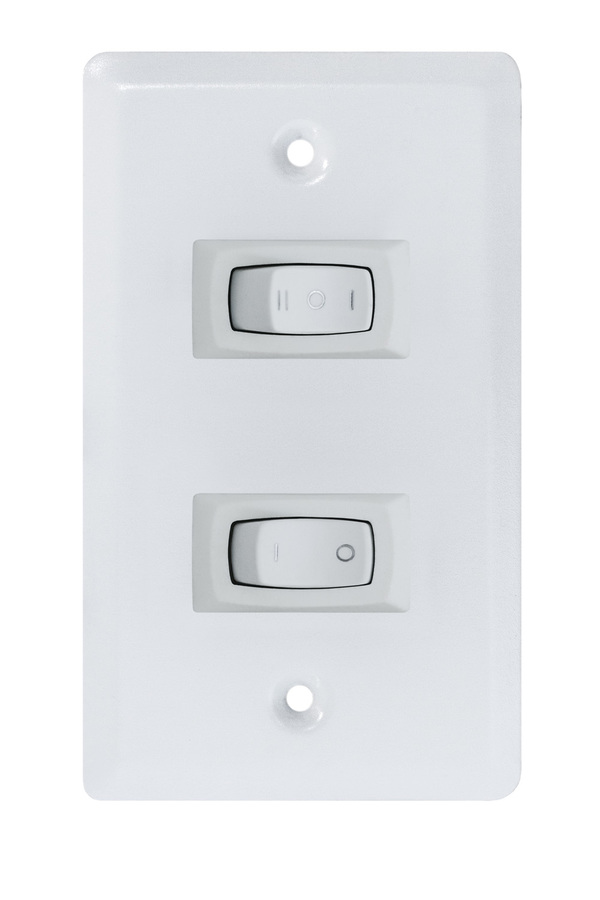

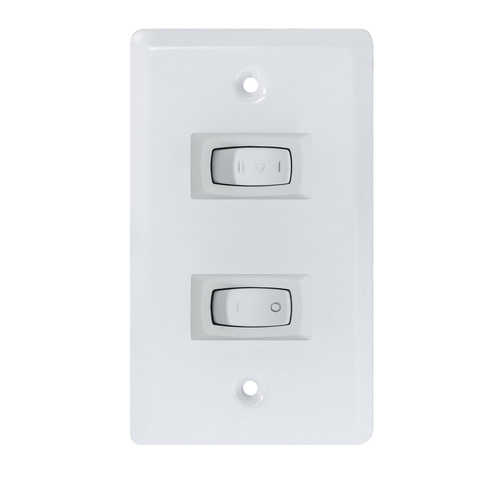

The ADAH1720SS is designed and manufactured in the USA. Sized at 20 inches wide, this ductless (recirculating) hood features solid construction in brushed stainless steel. We include a remote terminal block and white wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines.

This range hood includes a 2-speed fan to meet light and heavy ventilation needs. The aluminum grease filter is dishwasher-safe for easy cleaning, with a charcoal liner included for improved absorption. The ADAH1720SS can accept a light (40W max; bulb not included).

In addition to this model, Summit also offers ducted low profile range hoods and European style choices, with sizes ranging from 18 inch to 36 inch wide. Browse our website to explore our complete selection.

FEATURES

ADA compliant design
Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included
20" width
Designed to fit over slimmer ranges and cooktops
Ductless range hood
Use for recirculating operation where no ducting to the outside is available
Stainless steel finish
White and black range hoods also available in this size and series
Two-speed fan
High and low setting gives you the right amount of power for most general cooking applications

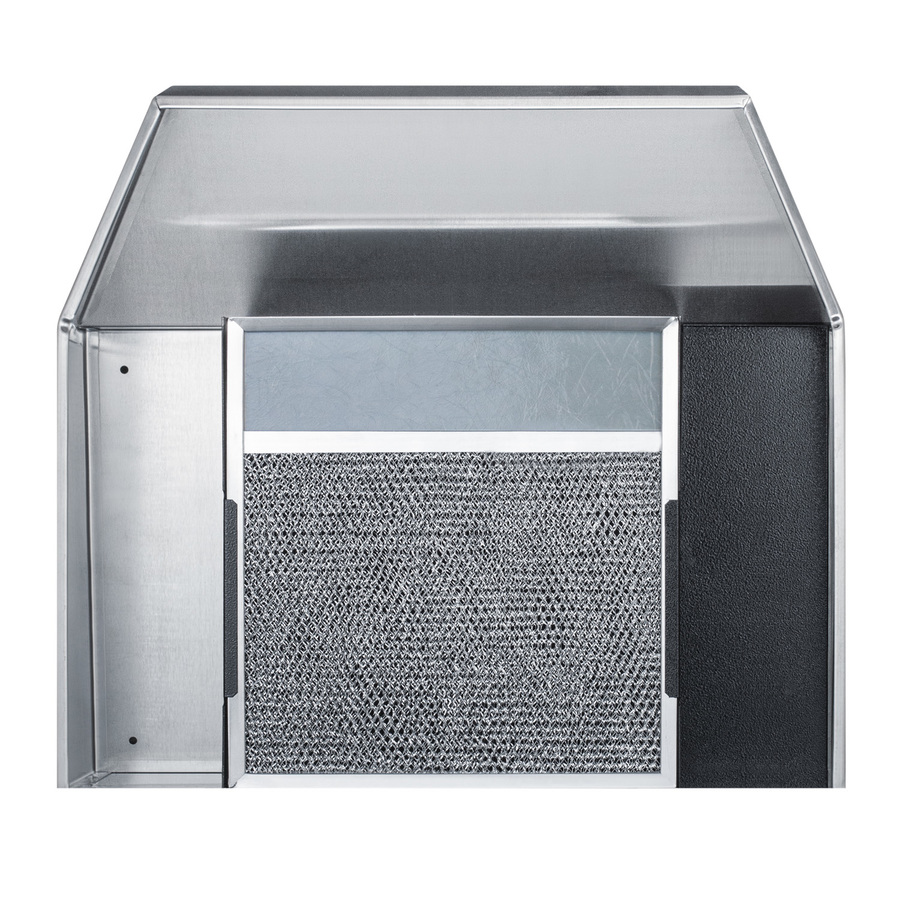

Dishwasher-safe aluminum filter
Removable mesh filter with solid construction and easy cleanability
Charcoal liner
Filter includes a charcoal liner for better absorption of grease and odors
Switchable light option
Unit can accept a light bulb (max 40W) with the switch included on the remote terminal block. Bulb is not included.
Made in the USA
Solidly constructed for years of use
More sizes available
Also available in 18", 24", 30", and 36" wide sizes
Ducted choices available by special order
For a ducted version of this hood, see the ADAH16 series

SPECIFICATIONS

Overview
Height of Cabinet 5.0" (13 cm)
Width 20.0" (51 cm)
Depth 18.0" (46 cm)
Cabinet Stainless Steel
US Electrical Safety UL
Weight 14.0 lbs. (6 kg)
Shipping Weight 15.0 lbs. (7 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Range Hood
Installation Under Cabinet
Venting Recirculating
Number of Fan Speeds 2
Maximum Air Movement 160.0 CFM

DOWNLOADS

Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
