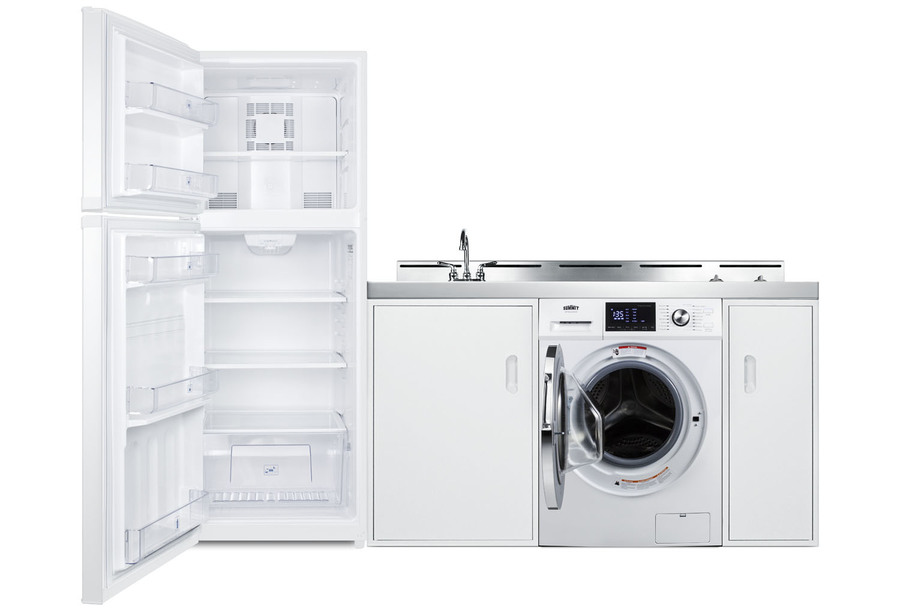

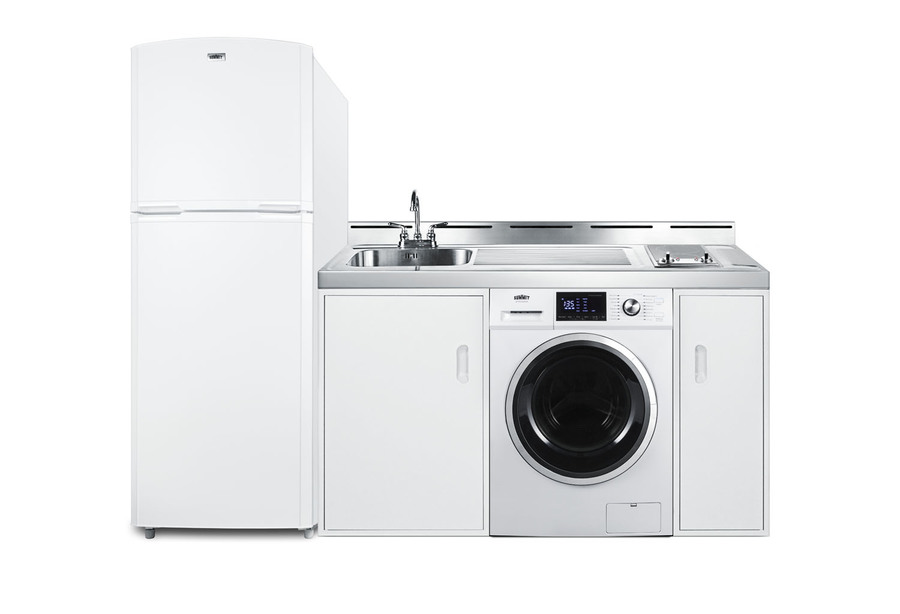

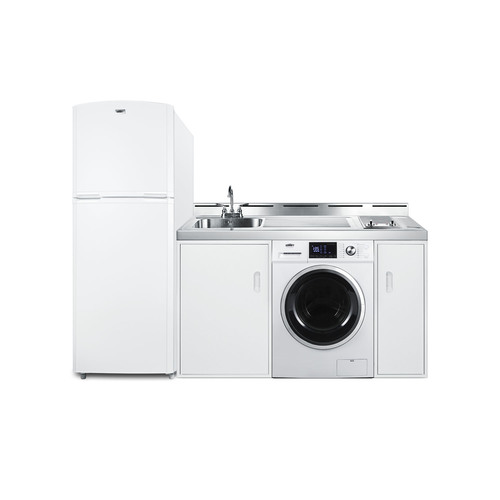

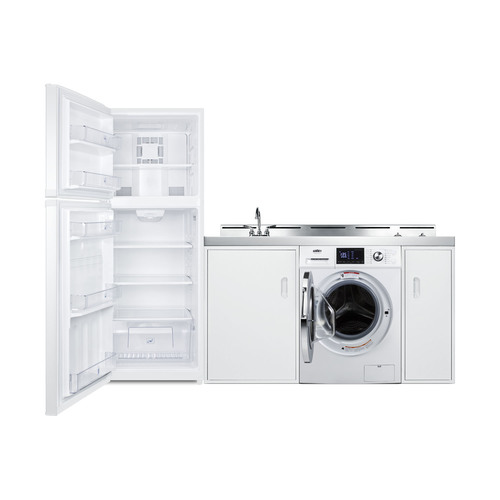

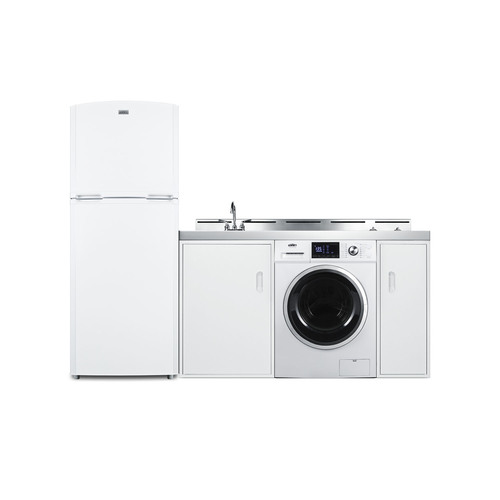

86" Wide All-In-One Kitchenette with Washer/Dryer Combo

SKU: ACKSPWD861G
Complete kitchen functionality with a full-sized refrigerator-freezer, 2-burner cooktop, non-vented 115V washer/dryer combo, and sink
DISCONTINUED- REPLACED BY ACKSPWD821G
Color: White

*Additional features may vary

40.0" H x 86.75" W x 26.0" D
(102cm H x 220cm W x 66cm D)

Overview
Height of Cabinet 40.0" (102 cm)
Width 86.75" (220 cm)
Depth 26.0" (66 cm)
Depth with door at 90° 44.25" (112 cm)
Capacity 12.9 cu.ft. (365 L)
Defrost Type Frost-Free
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Voltage/Frequency 115 V AC/60 Hz
Weight 330.0 lbs. (150 kg)
Shipping Weight 380.0 lbs. (172 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101086989
Kitchenette
Refrigerator Included FF1427W
Refrigerator Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Glass
Shelf Qty 3
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Full Door Shelves 5
Thermostat Type Dial
Interior Light Yes
Refrigerant Type R134a
Refrigerant Amount 3.5 oz.
Cooking Type Smooth-Top Cooktop
Number of Burners 2
Cooktop Controls Dial
Interior Height 1 37.88" (96 cm)
Interior Width 1 21.0" (53 cm)
Interior Depth 1 19.63" (50 cm)
Interior Height 2 18.5" (47 cm)
Interior Width 2 20.75" (53 cm)
Interior Depth 2 16.0" (41 cm)
Compressor Step Height 10.5" (27 cm)
Compressor Step With 21.0" (53 cm)
Compressor Step Depth 7.0" (18 cm)
Sink Height 5.88" (15 cm)
Sink Width 16.75" (43 cm)
Sink Depth 14.88" (38 cm)

Exterior
LHD - Left hand door swing
Door reversal to left hand swing

Complete all-in-one kitchenette

Includes a full-sized refrigerator-freezer, 115V washer/dryer combo, 2-burner cooktop, sink with faucet, and storage cabinets

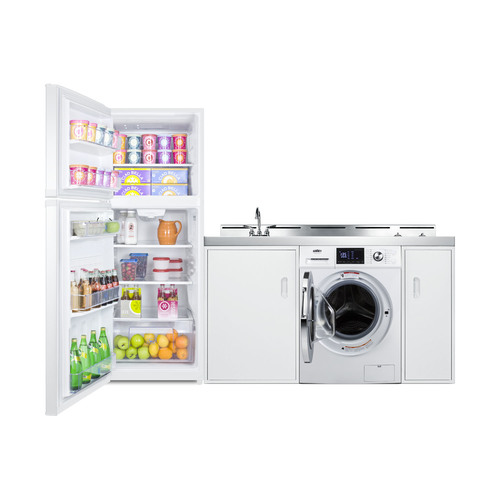

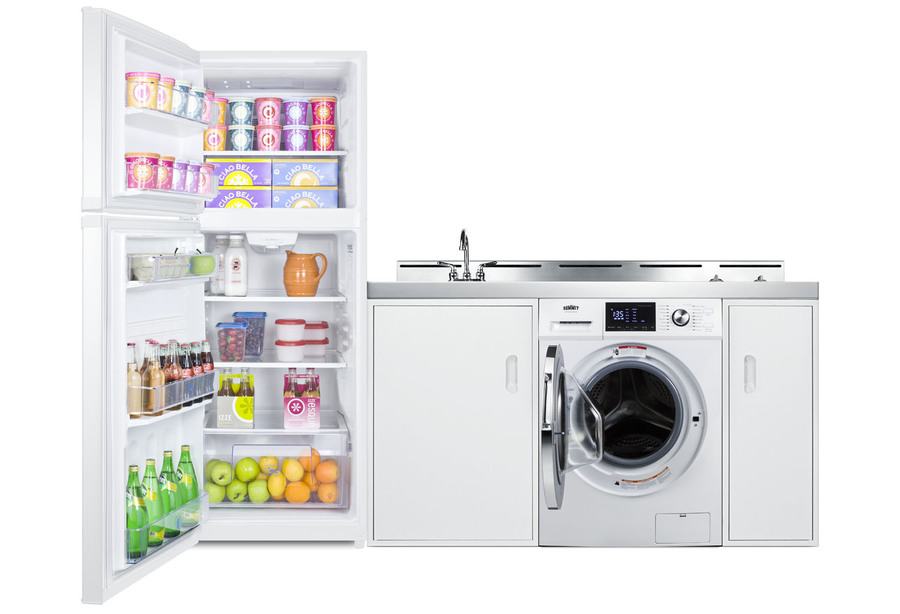

Full-sized refrigerator-freezer included

Ships with Summit FF1427W, a frost-free refrigerator-freezer with a 12.9 cu.ft. capacity, adjustable glass shelves, door storage, and a large crisper

Reversible doors

Refrigerator and freezer door swing can be switched to best accommodate your setup

All-in-one washer/dryer included

Includes Summit SPWD2202W, a 115V non-vented washer/dryer combo

16 wash cycles

Multiple options to accommodate a variety of fabric needs, including settings for delicates, wools, sportswear, babywear, and more

Stainless steel drum

Durable interior holds up load after load

2-burner radiant cooktop

Smooth glass cooktop offers easy cleanability and safer cooking, with a 115V 3-prong power cord included

Sink and faucet

Stainless steel sink comes ready to wash

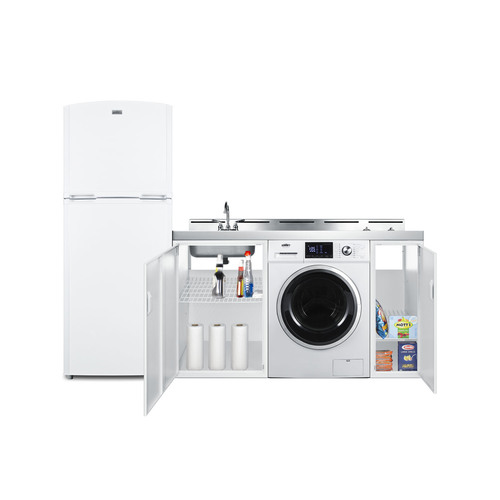

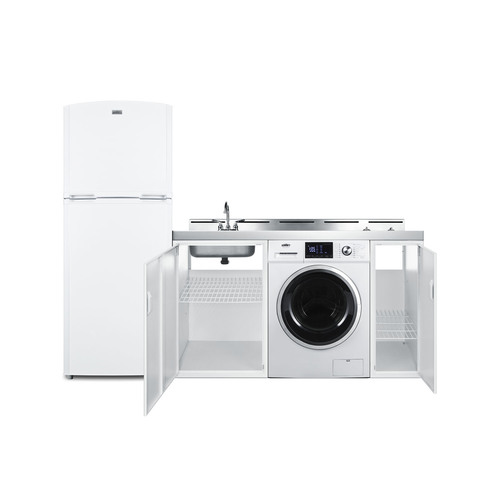

Storage compartment

Large convenient cabinet with center shelf lets you store dry goods behind a door

One piece stainless steel countertop

Easy to clean and built to last

Fast assembly

Each unit includes its own pre-installed power cord for easy setup. This item ships in three boxes

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

SUMMIT brings innovative value into the kitchen with all-in-one combination units for full-service use. Our ACKSPWD series features a full-sized refrigerator-freezer, washer/dryer combo, 2-burner cooktop, sink, and storage cabinet to create a complete one-wall kitchenette.

Model ACKSPWD861G is comprised of three pieces: our North American made frost-free FF1427W refrigerator-freezer; our C60ELGLASS kitchenette with sink, cabinets, and cooktop; and our SPWD2202W 24" non-vented washer/dryer combo. The exterior features a clean white finish, with stainless steel accents on the kitchenette work surface and dishwasher handle to elevate your kitchen style.

The FF1427W refrigerator offers nearly 13 cu.ft. of storage capacity. Frost-free operation ensures minimum user maintenance. The refrigerator section includes adjustable glass shelves, a large crisper drawer, and door storage, while the large freezer includes a removable shelf and door rack. This unit has a user-reversible door swing and can be installed to the left or right of your kitchenette.

The C60ELGLASS kitchenette includes a 2-burner radiant cooktop in black glass with a pre-installed 115V 3-prong power cord for easy setup. Two storage cabinet include removable shelves ideal for holding pantry items, cleaning supplies, and more. The ACKSPWD861G ships with our SPWD2202W all-in-one washer/dryer combo, a non-vented 115V unit to meet all of your laundry needs. The washer/dryer features 16 wash cycles with a combination of dial and digital controls for intuitive use. The stainless steel interior drum offers durable use to hold up load after load. (NOTE: to avoid the risk of spills and excessive heat buildup, do not use the cooktop when the washer/dryer is running.)

In addition to the ACKSPWD861G, Summit's expanded selection of all-in-one kitchenettes includes choices with full-sized ranges, European dishwashers, water pumps for no-plumbing applications, and much more. Explore the full lineup or contact our product specialists for more information.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
