VT65MLBISSHH
Front
Angle
Full
Open
SHARE THIS PRODUCT
Pinterest E-mail a Friend Print

SPECIFICATIONS

Overview
Height 33.5"
Width 23.63"
Depth 23.5"
Depth with Handle 25.13"
Depth with door at 90° 46.0"
Capacity 3.5 cu.ft.
Defrost Type Manual
Door Stainless Steel
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 115.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Yes
Height Adjustable 1
Interior Height 24.25"
Interior Width 17.75"
Interior Depth 16.5"
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R404a
Refrigerant Amount 2.7 oz.
High Side PSI 235.0
Low Side PSI 70.0
Level Legs 4
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 6.5"
Compressor Step Width 17.5"
Compressor Step Depth 5.5"
Temperature Range -20ºC to -30ºC

AVAILABLE UPGRADES

Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
KEY
Extra keys available for purchase
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Exterior
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
SS Hinges
Stainless steel top and bottom hinges
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
LHD
Door reversal to left hand swing
Legs
6" high leveling legs
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK Kickplate
Add a stainless steel kickplate
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DT Digital Thermostat
Install a digital thermostat with external readout for precise temperature management
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
CAS6 6" Casters
6" high NSF listed casters
CAS3 3" Casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Agion Door
Treat the door with Agion silver antimcrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface

VT65MLBISSHH

33.5" H x 23.63" W x 23.5" D

OVERVIEW

WHERE TO BUY

Invalid Format

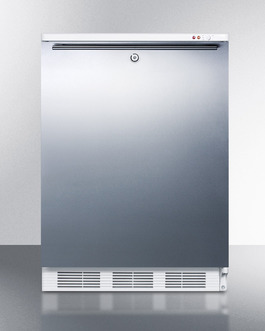

AccuCold VT65MBI medical all-freezers offer low temperature storage in a perfectly sized footprint designed for built-in installation under counters.

The 24” wide VT65MLBISSHH can be used built-in or freestanding, with low temperature manual defrost operation that can reach -25ºC. The interior includes three slide-out basket drawers for convenient storage that keeps items cold when the door is opened. Additional features include an adjustable thermostat and one-piece interior liner for easier cleanup.

This medical unit has a white cabinet with a 304 grade stainless steel wrapped door. A sleek handle (14mm diameter) is horizontally mounted for a modern look and a factory installed lock offers added security.

NOTE: ALL VT65M FREEZERS ARE DESIGNED FOR MEDICAL OR COMMERCIAL USE ONLY. THESE ARE NOT HOUSEHOLD FREEZERS.

FEATURES

Slim undercounter dimensions
Less than 24 inches wide to fit tight spaces
Factory installed lock
Keep contents secure with a key lock on the door
Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinets
Fully finished white cabinet
Allows the unit to be used freestanding
Stainless steel door
Durable design with lasting elegance
Professional horizontal handle
Thin 14mm diameter on stainless steel handle set horizontally across the door
-25º C capable
Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature sensitive materials
Manual defrost
No temperature fluctuations with an energy efficient manual defrost system
Three removable storage baskets
Conveniently organize your items while keeping the temperature stable when the door is opened
No internal fans
Static cooling system
Adjustable thermostat
Manage the interior temperature with ease and accuracy
One piece interior liner
Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices
100% CFC free
Environmentally friendly design using R404a and without ozone-damaging chemicals
