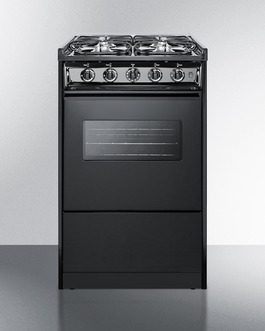

20" Wide Gas Range

SKU: TNM114RW
Made in the USA
DISCONTINUED- REPLACED BY TTM1307BKSW
36.0" H x 20.0" W x 24.0" D
(91cm H x 51cm W x 61cm D)

Overview
Height of Cabinet 36.0" (91 cm)
Width 20.0" (51 cm)
Depth 24.0" (61 cm)
Door Black
Cabinet Black
Weight 100.0 lbs. (45 kg)
Shipping Weight 145.0 lbs. (66 kg)
Parts & Labor Warranty 1 Year
UPC 761101012988
Gas Range
Ignition Spark
LP Convertible With Kit LP Accessory
Oven Capacity 2.46 cu.ft
Cooktop Surface Porcelain
Burner Type Sealed
Number of Burners 4
Burner #1 BTU 9000.0
Burner #2 BTU 9000.0
Burner #3 BTU 9000.0
Burner #4 BTU 9000.0
Burner Controls Dial
Oven Controls Dial
Oven Light Yes
Oven Window Yes
Oven Interior Height 14.0" (36 cm)
Oven Interior Width 16.0" (41 cm)
Oven Interior Depth 19.0" (48 cm)

Exterior
LP Conversion
Have this range factory converted to LP gas. KIT LP is included

Gas range

Natural gas range; can be converted to LP Gas in our shop or ordered with KIT LP for conversion

Slim 20 inch width

Apartment sized to fit in small or galley kitchens

Four sealed 9000 BTU burners

Easy cleanup on boil-overs and accidental spills

Slide-in look

Flat backguard can blend into other cabinetry and lets you choose your own wall design behind the range

Stainless steel manifold

An elegant finish to the classic white exterior

Porcelain construction

Black porcelain removable top and oven door

Oven window

Provides a convenient view of baking contents

Drop-down broiler drawer

Lower compartment for separate broiling with even heat distribution

Broiler pan included

Two-piece porcelain broiler tray with grease well

Electronic ignition

Gas spark ignition for automatic lighting of burners

Recessed oven door

Smart design limits the depth and protects adjacent cabinets

SUMMIT PROFESSIONAL features a wide selection of slide-in ranges with full features for safe cooking and slim sizes to fit your kitchen.

The TNM114RW is a gas range conveniently sized at just 20 inches wide. Four sealed gas burners top the solid porcelain surface that's easy to clean and durable to use. A low stainless steel backguard and stainless steel manifold trim create a modern slide-in look. This model has a classic black oven with window for a convenient window for easy baking.

Safety features include electronic ignition and an anti-tip bracket. The TNM114RW has a broiler drawer below the oven for more even crisping with heat that spreads from the top down.

Fully equipped for safe, easy, and quality cooking, our ranges are constructed with care in the U.S.A. and built to last in style.

This unit replaces the TTM114RW.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
