Height 34.5"
Width 23.63"
Depth 24.88"
Depth with Handle 26.5"
Depth with door at 90° 47.0"
Capacity 6.4 cu.ft.
Defrost Type Automatic
Door Panel-Ready
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.7
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 152.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Beer Dispenser
Door Swing RHD
Reversible No
Shelf Type Wire
Shelf Qty 2
Thermostat Type Dial
Fan Type Exterior
Refrigerant R134a
Refrigerant Amount 2.1 oz.
High Side PSI 280.0
Low Side PSI 88.0
Inter Height 29.0"
Interior Width 21.25"
Interior Depth 18.75"
Level Legs Qty 4

California residents:
click here for information on Proposition 65


Commercial unit
This unit is designed for commercial use. It meets the U.S. Department of Energy (DOE) commercial energy standards but may not meet DOE residential standards.


34.5" H x 23.63" W x 24.88" D

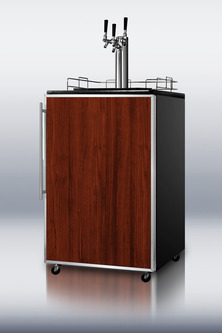

SUMMIT's SBC490BI Series features built-in undercounter commercial beer dispensers designed to meet your style and service needs, with automatic defrost operation for user-friendly convenience.

Designed primarily for built-in use, the SBC490BIFRTRIPLE can be installed in 24 inch spaces and under standard counters. It can also be used freestanding and ships with sturdy casters to be installed by users who want to use the SBC490BIFRTRIPLE as a portable beer cooler. The black cabinet includes a stainless steel door frame that accepts slide-in custom panels, allowing you to match the unit to other appliances and cabinetry (panel size: 31" H x 23 3/8" W).

Automatic defrost operation conveniently helps to keep maintenance down to a minimum, while the enhanced cooling system ensures reliable operation in commercial venues. The interior can hold three Cornelius kegs or two 1/6 sized kegs.

This unit is built to commercial standards and meets UL Commercial Standard 471. For an NSF-listed version of this unit, see the SBC490BI7FRTRIPLE.


Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinets
Fully finished black cabinet
Allows the unit to be used freestanding
Stainless steel door frame
Slide a panel into the frame to match your unit to other cabinets (panel size: 31" H x 23 3/8" W)
Triple tap system
Three taps allow you to serve three different brews from Cornelius kegs or two different makes from 1/6 sized kegs
KIT 490 included
Includes a 5lb. CO2 tank and regulator, draft arm, Sankey American tap, connection hardware, and cleaning kit
Automatic defrost
Reduced user maintenance with auto defrost operation
Adjustable thermostat
Manage the interior temperature with ease and accuracy
Casters included (ship unassembled)
To make the beer dispenser portable, install this sturdy set of casters to the base of the unit
Top guard rail (ships unassembled)
If using the unit freestanding, install this silver rail on top to reduce spills and neaten service
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
