Height 34.5"
Width 23.63"
Depth 24.88"
Depth with Handle 26.5"
Depth with door at 90° 47.0"
Capacity 6.4 cu.ft.
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation ETL-S
Amps 1.7
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 152.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Beer Dispenser
Door Swing RHD
Reversible No
Shelf Type Wire
Shelf Qty 2
Thermostat Type Dial
Fan Type Exterior
Refrigerant R134a
Refrigerant Amount 2.1 oz.
High Side PSI 280.0
Low Side PSI 88.0
Inter Height 29.0"
Interior Width 21.25"
Interior Depth 18.75"
Level Legs Qty 4

California residents:
click here for information on Proposition 65


Commercial approved
This unit meets NSF standards and is designed for commercial use. It complies with the U.S. Department of Energy (DOE) standards for commercial energy usage, but may not meet DOE household standards. For information on its commercial sanitation listing, see Specifications.


34.5" H x 23.63" W x 24.88" D

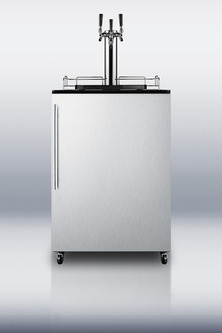

SUMMMIT's SBC490BI7 series features commercially approved beer dispensers for built-in use under counters.

The SBC490BI7SSHVTRIPLE lets you accommodate all tastes with three different drafts from a triple tap tower. The interior can hold three Cornelius kegs or two 1/6 sized kegs. We include a complete tap kit and 5 lb. CO2 tank for all your service needs.

Designed primarily for built-in use, the SBC490BI7SSHVTRIPLE can be installed under standard counters. It can also be used freestanding and ships with sturdy casters to be installed for easy mobility. The jet black cabinet is fitted with a fully wrapped stainless steel door. A sleek stainless steel handle completes the elegant look. Automatic defrost operation conveniently helps to keep maintenance down to a minimum.

The SBC490BI7SSHVTRIPLE is commercially approved (ETL-S listed to NSF-18) and features an enhanced cooling system for optimum operation in bars, restaurants, and any other establishment in need of a top quality beer dispenser at an affordable price.


Commercially approved
ETL-S Listed to NSF-18
Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinetry
Fully finished black cabinet
Allows the unit to be used freestanding
Stainless steel door
Modern elegance with durable construction
Professional stainless steel handle
Thin 14mm diameter on stainless steel handle, mounted vertically for a sleek look
KIT 490 included
Complete tap system with 5 lb. CO2 tank and regulator, draft arm, Sankey American tap, connection hardware, and cleaning kit
Triple tap system
Three taps allow you to serve three different brews from Cornelius kegs or two different makes from 1/6 sized kegs
Automatic defrost
Reduced user maintenance with auto defrost operation
Adjustable thermostat
Manage the temperature with ease and accuracy
Casters included (ship unassembled)
To make the unit portable, install this sturdy set of casters to the base of the unit
Top guard rail (ships unassembled)
If using the beer dispenser freestanding, install this silver rail on top to catch spills and neaten service
100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals
