Height 33.25"
Height to Hinge Cap 34.5"
Width 23.63"
Depth 23.5"
Depth with Handle 25.18"
Depth with door at 90° 45.63"
Capacity 5.1 cu.ft.
Defrost Type Cycle
Door Panel-Ready
Cabinet Black
US Electrical Safety UL
Amps 1.3
Shipping Weight 112.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Door Swing RHD
Reversible Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Refrigerator - Interior Height 19.5"
Refrigerator - Interior Width 20.5"
Refrigerator - Interior Depth 17.0"
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 3
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 5.0"
Freezer - Interior Width 19.0"
Freezer - Interior Depth 11.5"
Adjustable Shelves Yes
Interior Light Yes
Thermostat Type Dial
Fan Type Exterior
Freon R134a
Freon Amount 2.6
High Side PSI 285.0
Low Side PSI 70.0
Level Legs 4
Compressor Step Height 7.0"
Compressor Step Width 20.5"
Compressor Step Depth 5.0"


Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
FCGP - Fan w/Gel Packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
SS Hinges
Stainless steel top and bottom hinges
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Door reversal to left hand swing
6" high leveling legs
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
Stainless steel kickplate factory installed
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
CAS6 6" Casters
6" high NSF listed casters
CAS3 3" Casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations

California residents:
click here for information on Proposition 65


Unique dual evaporator for better cooling

33.25" H x 23.63" W x 23.5" D



Invalid Format

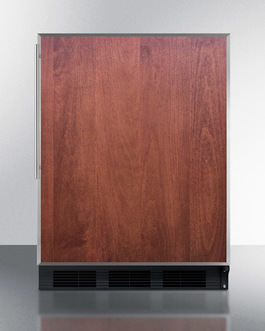

AccuCold by Summit Appliance offers a wide range of undercounter refrigeration for general purpose storage. The BI540 Series includes built-in undercounter refrigerator-freezers equipped with dual evaporator cooling for optimum storage conditions.

Sized with a 24" footprint, the BI541B can be used built-in under counters or freestanding. The interior offers over 5 cu.ft. of storage capacity. This model has a black cabinet. The user-reversible door includes a stainless steel door frame designed to accept slide-in panel inserts (sized 23" W x 28" H) to create a custom look. A stainless steel handle is included.

Inside, our unique dual evaporator system separately cools the refrigerator and freezer section to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, while the manual defrost freezer compartment can maintain zero degrees. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting.

The BI541B has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full BI540 Series.

NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.


Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinets
Dual evaporator
Our unique and efficient design separately cools the refrigerator while maintaining zero degrees in the freezer with two evaporators
Slim undercounter dimensions
Less than 24 inches wide to fit tight spaces
Stainless steel door frame
Two-piece U-shaped door frame in stainless steel accepts slide-in panels (sized 23" W x 28" H), allowing users to create a custom look to match or complement adjacent cabinetry
Cycle defrost
This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
Zero degree freezer
Stable interior allows you to store sensitive items under reliable freezer conditions
Adjustable thermostat
Dial thermostat located inside for easy temperature management
Interior light
Automatically illuminates when you open the door
Adjustable glass shelves
Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Fruit and vegetable crisper
Get the longest life and best taste out of produce by storing it in a convenient slide drawer
Ample door storage
Keep tall bottles and condiments right on the door for convenient access
Fully finished black cabinet
Allows the refrigerator to be used freestanding
Reversible door
User-reversible door swing for added flexibility
Hidden evaporator
Cold wall design with hidden evaporator and seamless interior
Pro style handle
Stainless steel handle adds an attractive touch
100% CFC free
Our refrigerator freezers are environmentally friendly because they do not run on ozone-damaging chemicals
